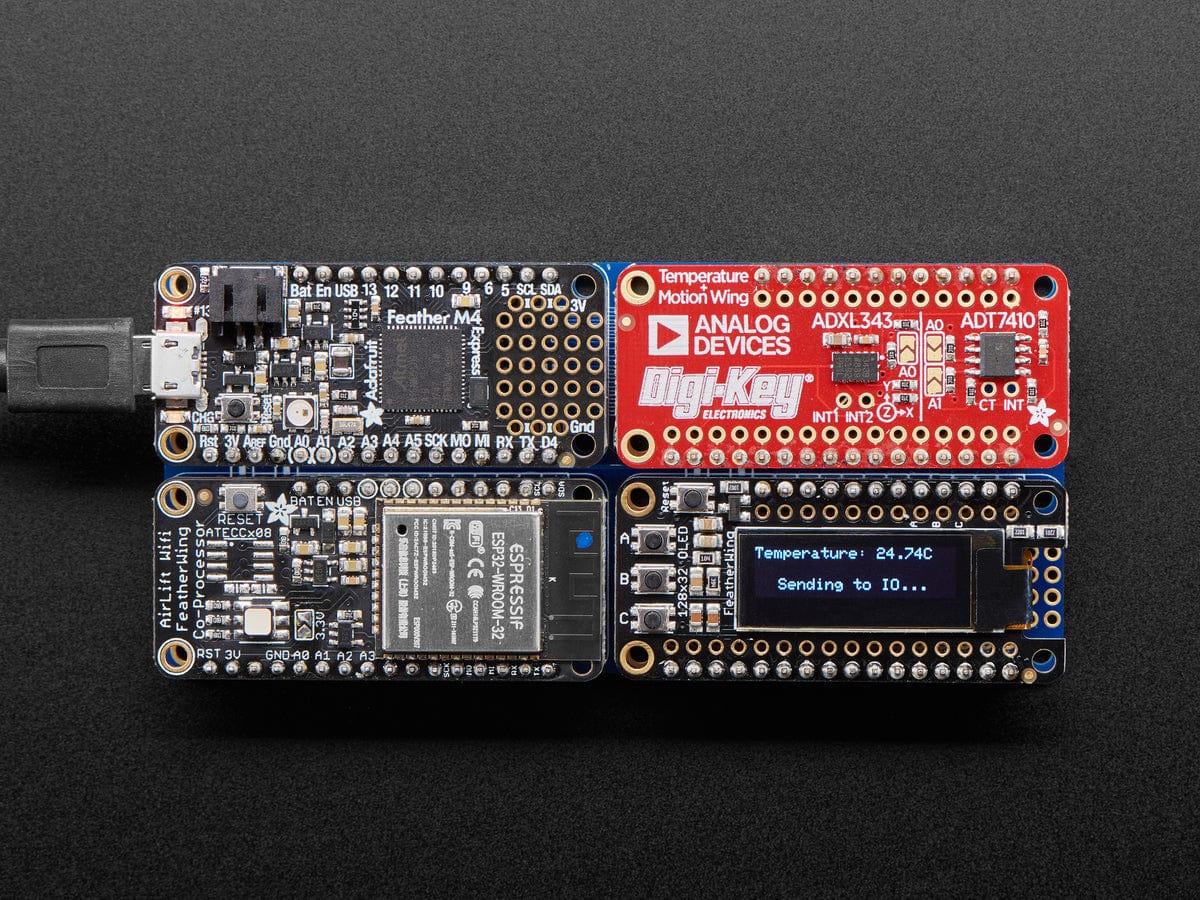

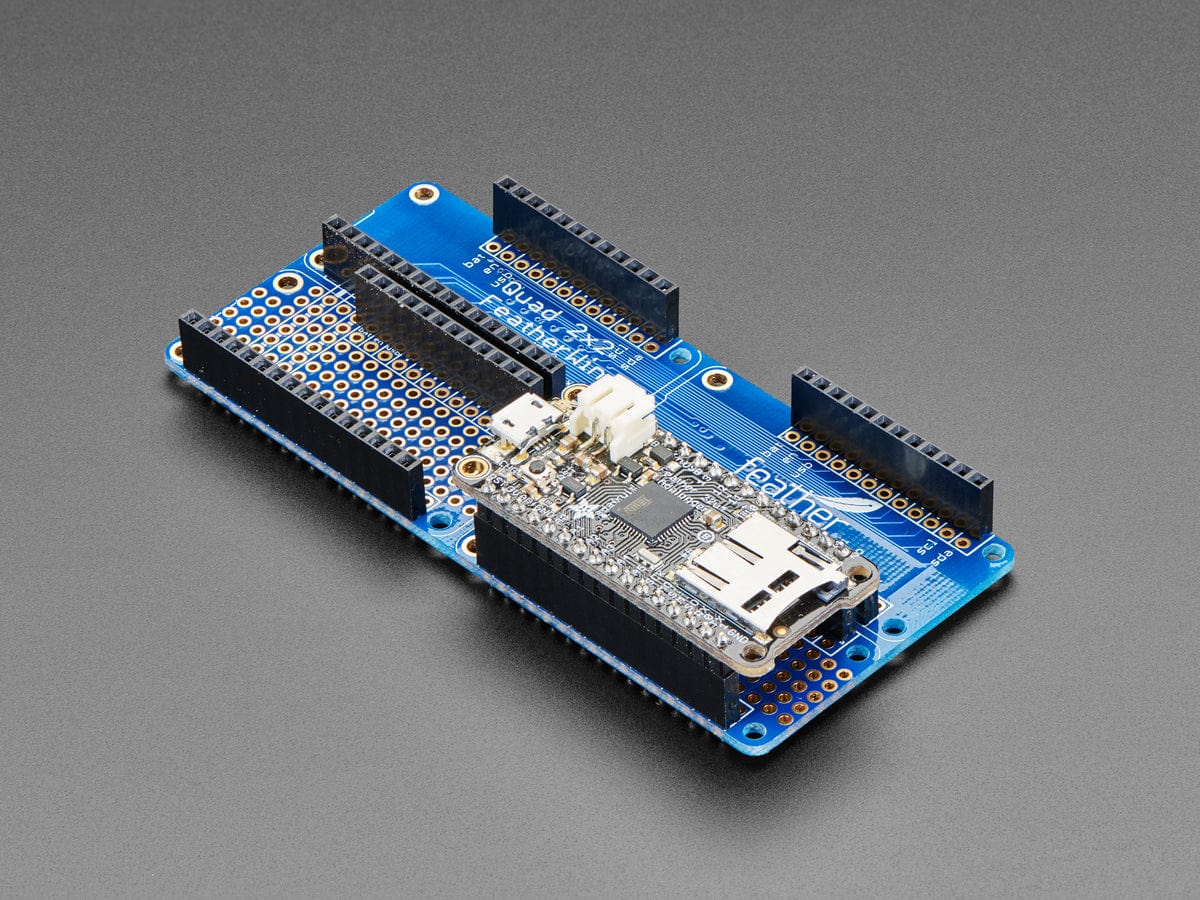

This is the FeatherWing Quad 2x2 - a prototyping add-on and more for all Feather boards. This is similar to our FeatherWing Proto except there are four! The magic of the Quad comes when you want to connect your Feather to three other Feather Wings without needing any stacking headers. The boards are all set up in a 2x2 grid, thus the name The Quad comes with:

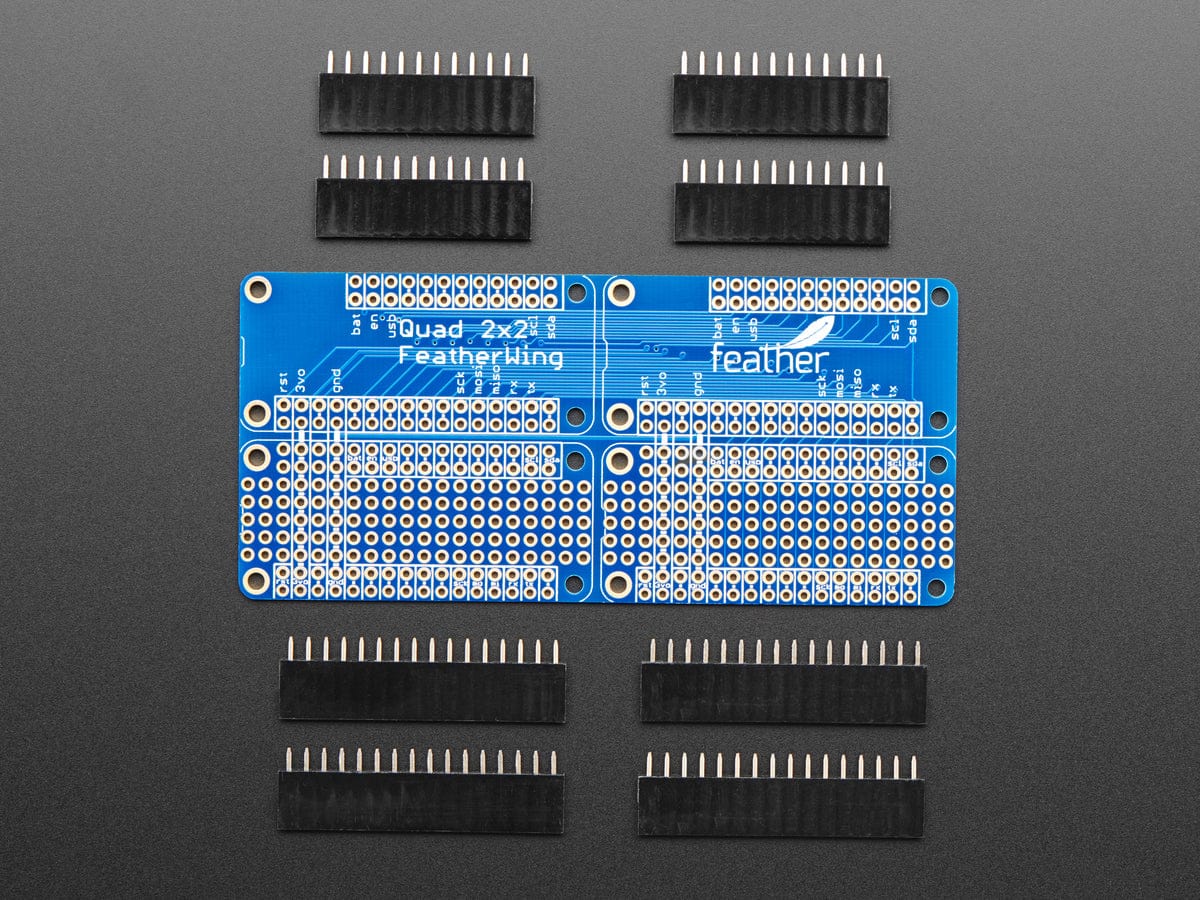

- 1 Quad 2x2 Wing PCB
- 4 sets Feather Female Headers

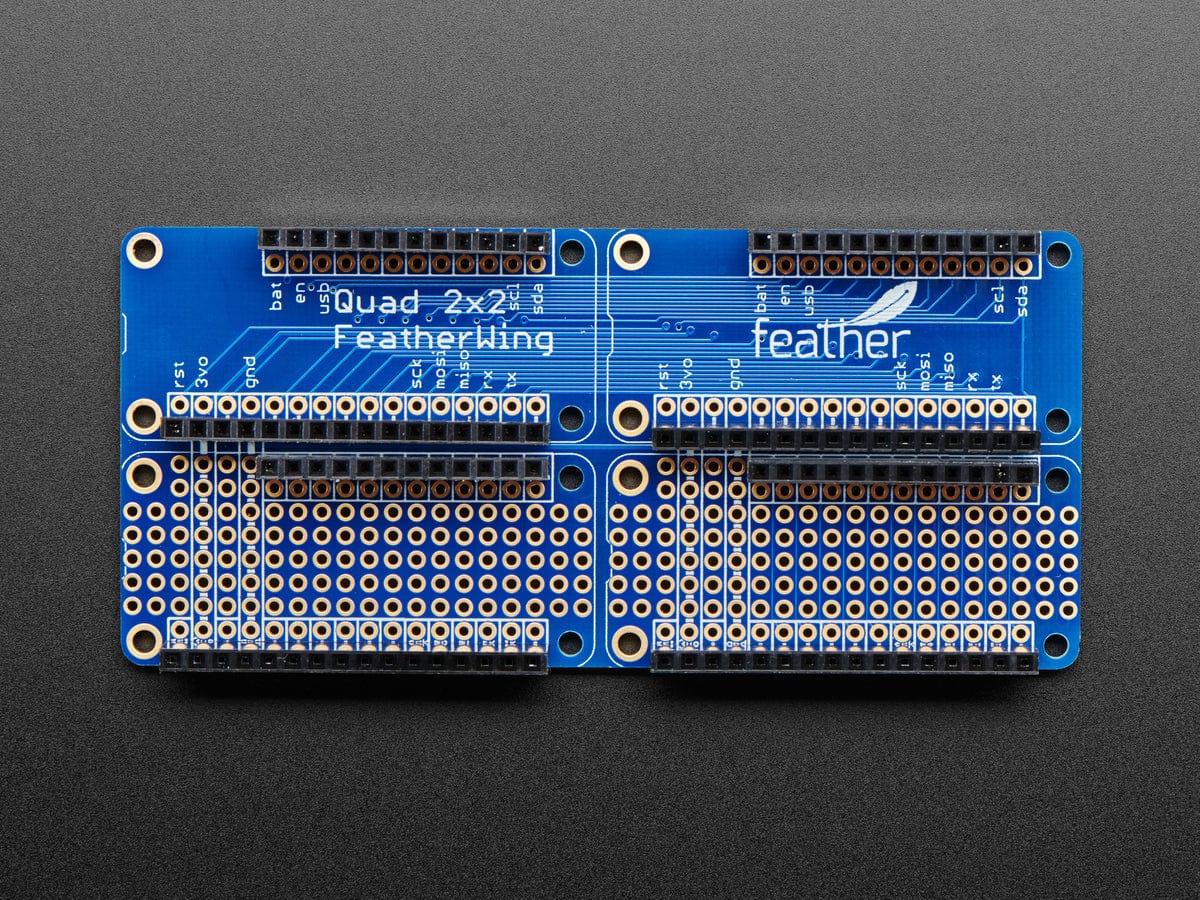

The Quad, like the Proto, has three breakouts for each pin on a Feather, as well as a bunch of plain grid proto holes. Also, the four sets of pins are cross connected and for GND and 3.3V, we give you a full strip of connected pads.
You'll need to solder on the female headers to the PCB, the Quad comes as a mini kit!

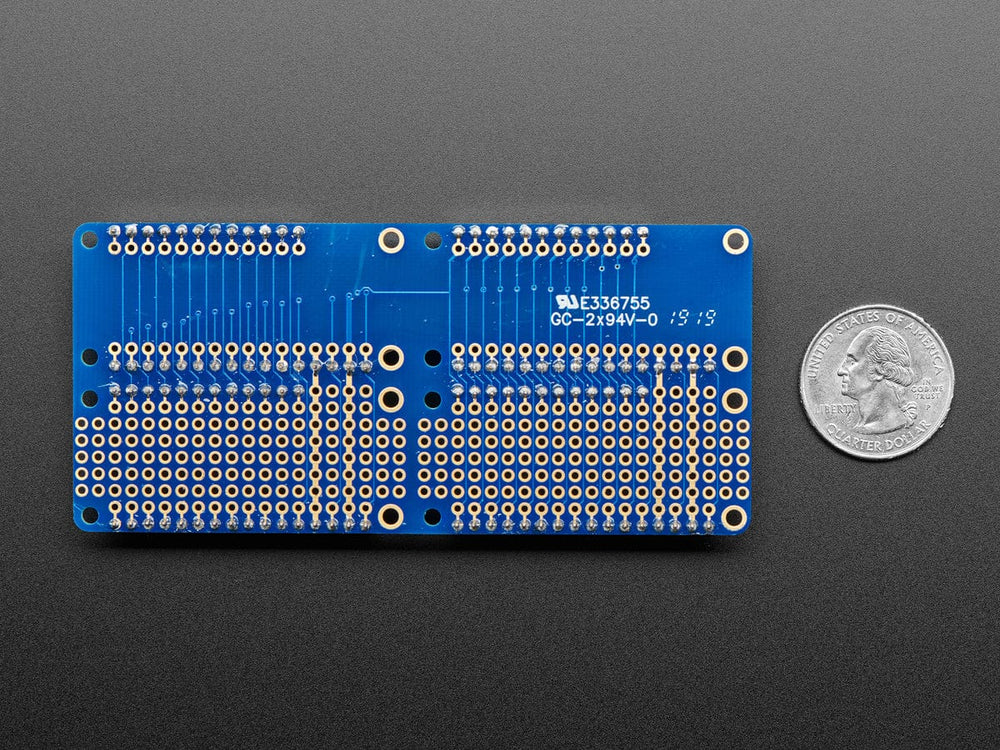

- PCB dimensions (unassembled): 103mm x 47mm x 1.6mm
