Adafruit Perma-Proto Small Mint Tin Size Breadboard PCB - 3 pack

AdafruitSKU: ADA1214
Price:
Sale price £7.90
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Awesome Extras

Break-away 0.1" 36-pin male headers (Black 10-pack) - The Pi HutBreak-away 0.1" 36-pin male headers (Black 10-pack) - The Pi Hut
Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

Making a project that will fit into an "Altoids Smalls" Mint Tin? Or maybe you just need a small amount of prototyping space and a larger breadboard size is too big? Put down that PCB shear and pick up a Perma-Proto in the new exciting shape!

Customers have asked us to carry basic perf-board, but we never liked the look of most basic perf: it's always crummy quality, with pads that flake off and no labelling. Then we thought about how people actually prototype - usually starting with a solderless breadboard and then transferring the parts to a more permanent PCB. That's when we realised what people would really like is a proto board that makes it easy!

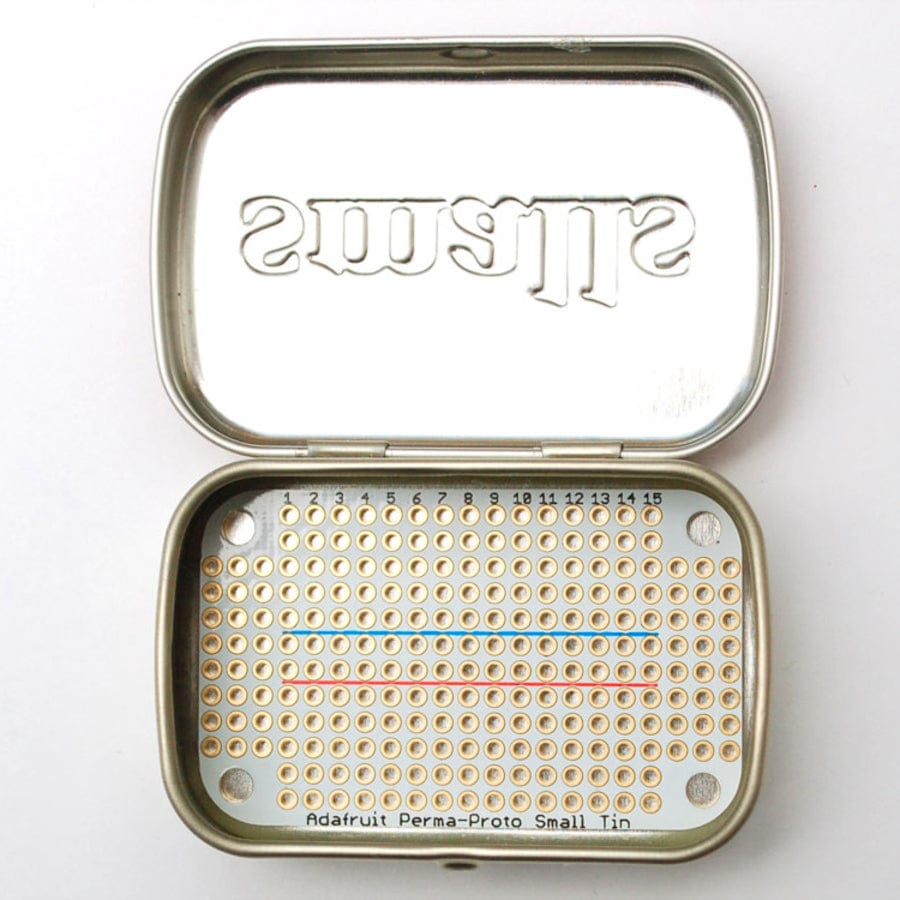

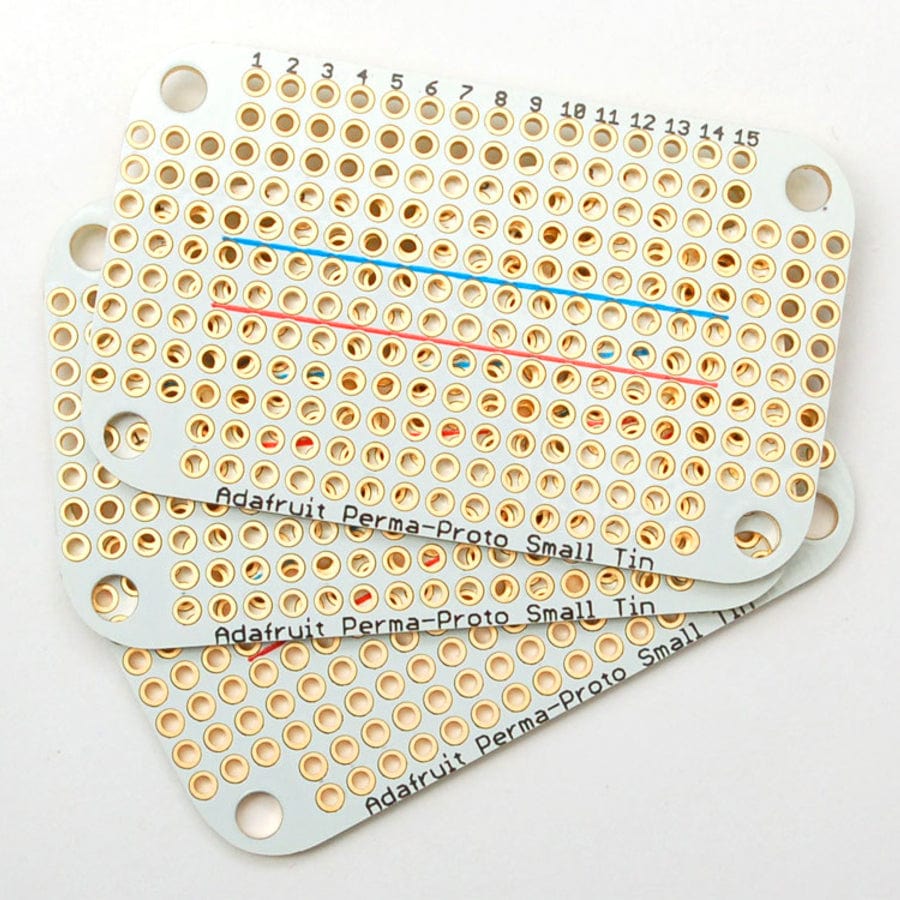

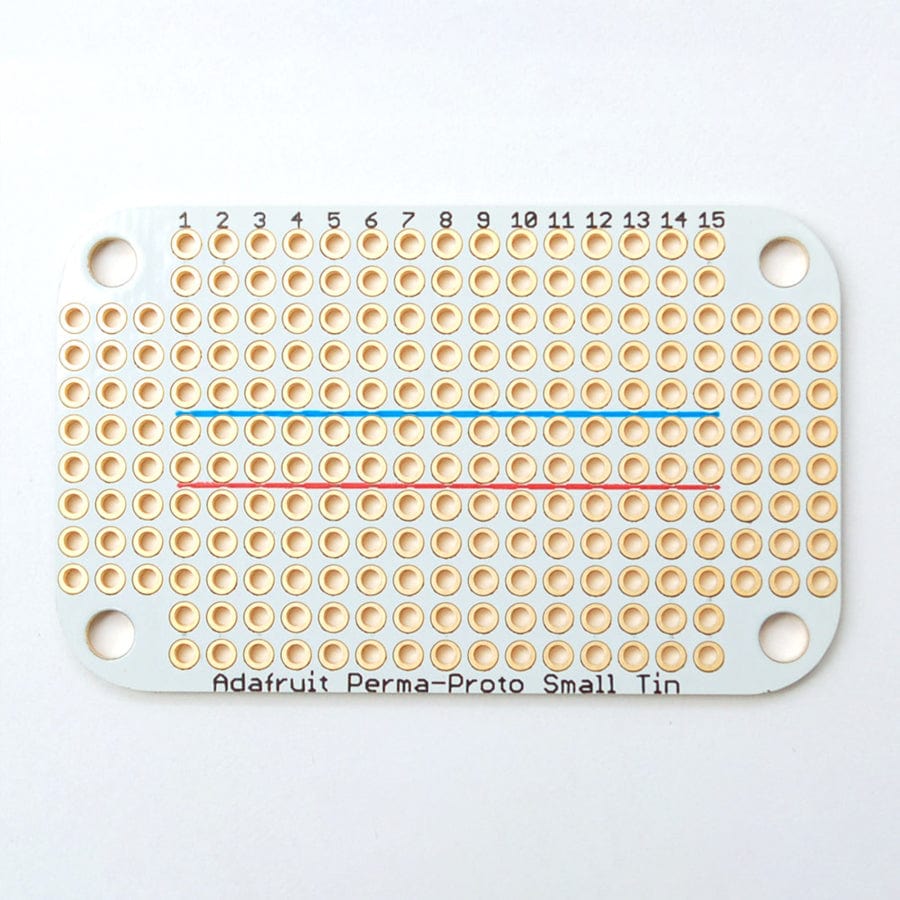

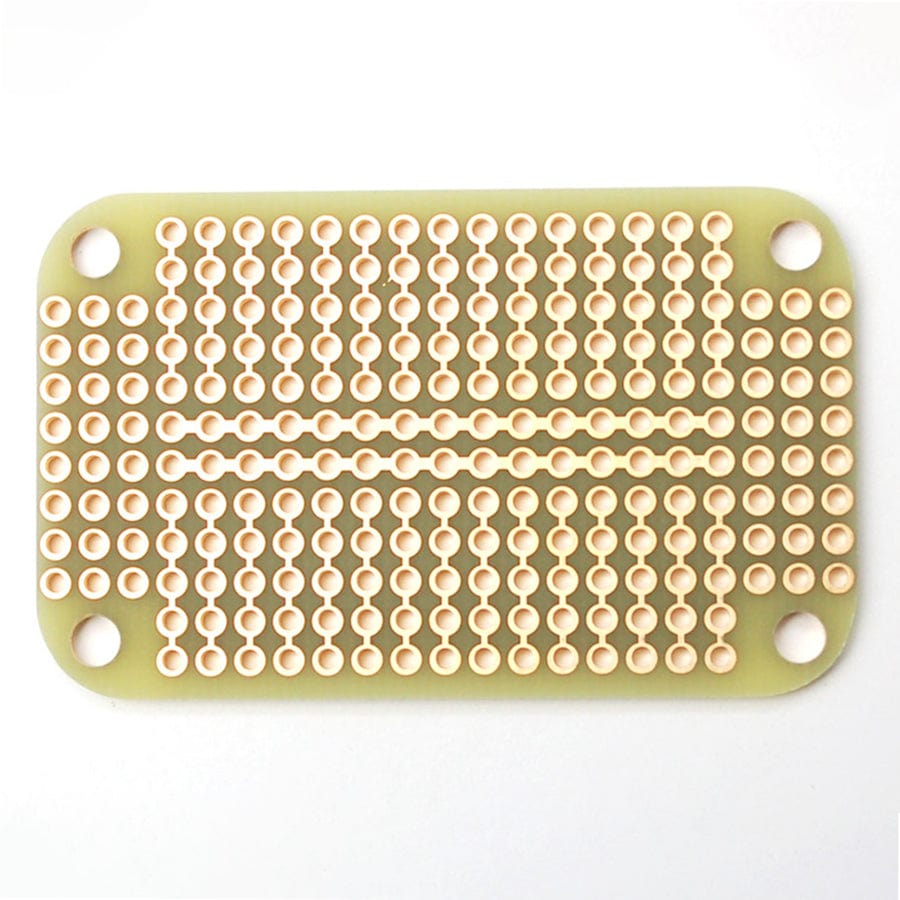

This proto-board is the PCB you always wish you had, but never realised it! We took the basic layout of a half-sized breadboard, extended it to the size of a mint tin, and turned that into a beautiful PCB. The top side has a white silkscreen, and the same markings you're familiar with, to make transferring components easy. The bottom has 15 rows of 5-hole pad design that matches a classic breadboard, with 2 power bus lines in the middle, and no mask so you can easily cut traces when necessary. There are another 48 holes for general wiring on the edges. We used 1.2mm diameter drill holes so even parts with big leads will fit. All holes are thru-plated for strength - these won't peel off with rework. The finish is a gold plate - you won't get oxidation like with bare copper perf! There are also four big mounting holes so you can attach the PCB to the tin. A perfect match for an Altoids "Smalls"-sized mint tin.

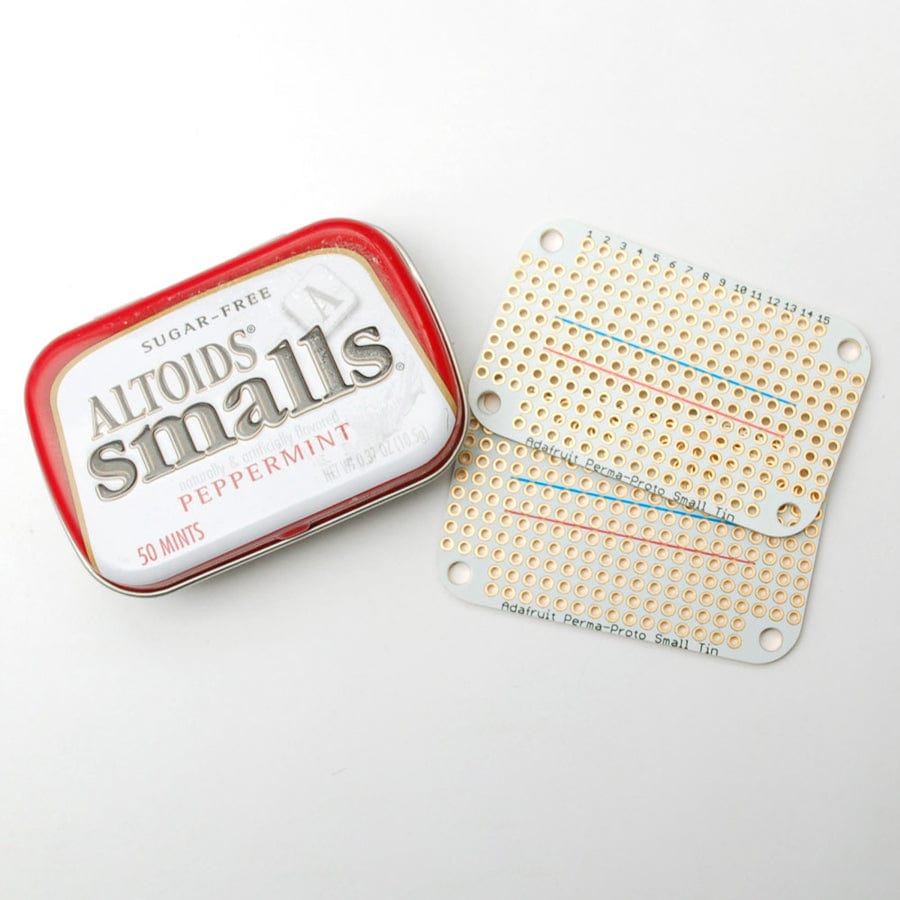

Comes in three per package. Mint tin is NOT included, you can get these at most grocery stores or candy stores. Once you use a Perma-Proto board, you'll never go back!

Specifications

  • 15 rows of double 5-hole rows + 48 individual holes
  • 2 power rails with positive/negative markings
  • 2.1" x 1.3" (54mm x 33mm), 0.063" thick FR4
  • 1.2mm drill holes
  • 4 x 3mm drill mounting holes spaced on a 45.5mm x 25.4mm
