Be the belle of the ball with the NeoPixel Jewel! We fit seven of our tiny 5050 (5mm x 5mm) smart RGB LEDs onto a beautiful, round PCB with mounting holes and a chainable design to create what we think is our most elegant (and evening-wear-appropriate) NeoPixel board yet.
Use only one microcontroller pin to control as many as you can chain together! Each LED is addressable as the driver chip is inside the LED. Each one has ~18mA constant current drive so the colour will be very consistent even if the voltage varies, and no external choke resistors are required making the design slim. Power the whole thing with 5VDC and you're ready to rock.

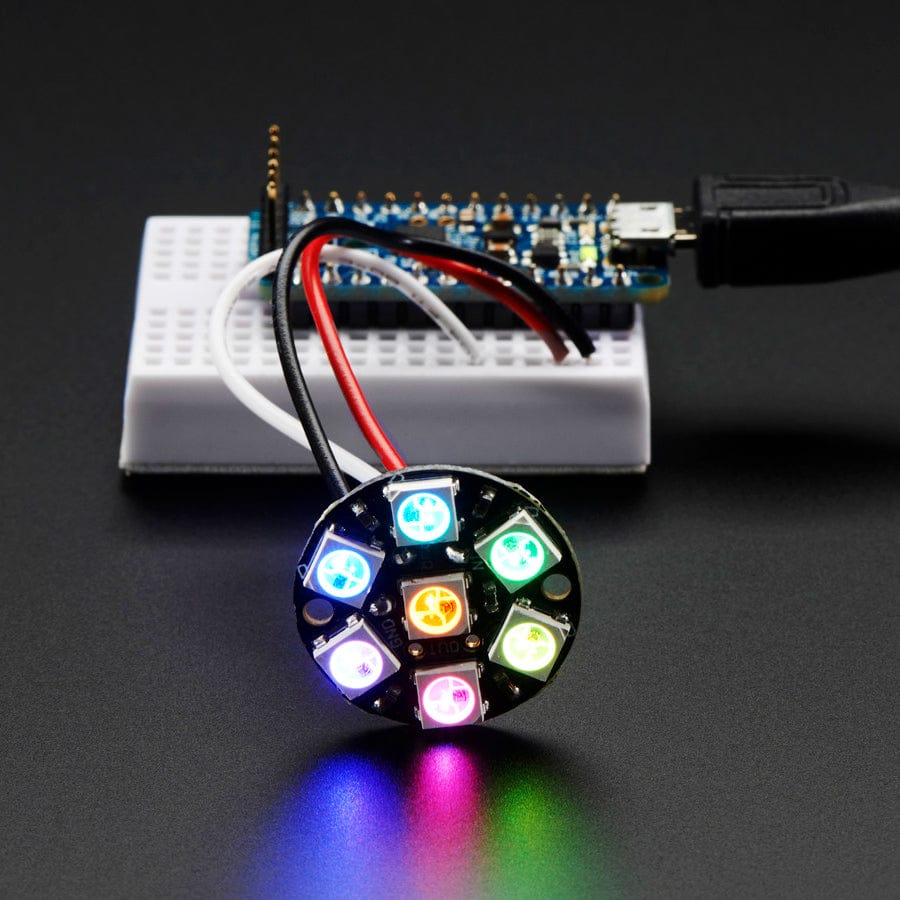

The LEDs are 'chainable' by connecting the output of one Jewel to the input of another. There is a single data line with a very timing-specific protocol. Since the protocol is very sensitive to timing, it requires a real-time microconroller such as an AVR, Arduino, PIC, mbed, etc. It cannot be used with a Linux-based microcomputer or interpreted microcontroller such as the Netduino or Basic Stamp. Our wonderfully written Neopixel library for Arduino supports these pixels! As it requires hand-tuned assembly it is only for AVR cores but others may have ported this chip driver code so please google around. An 8MHz or faster processor is required.

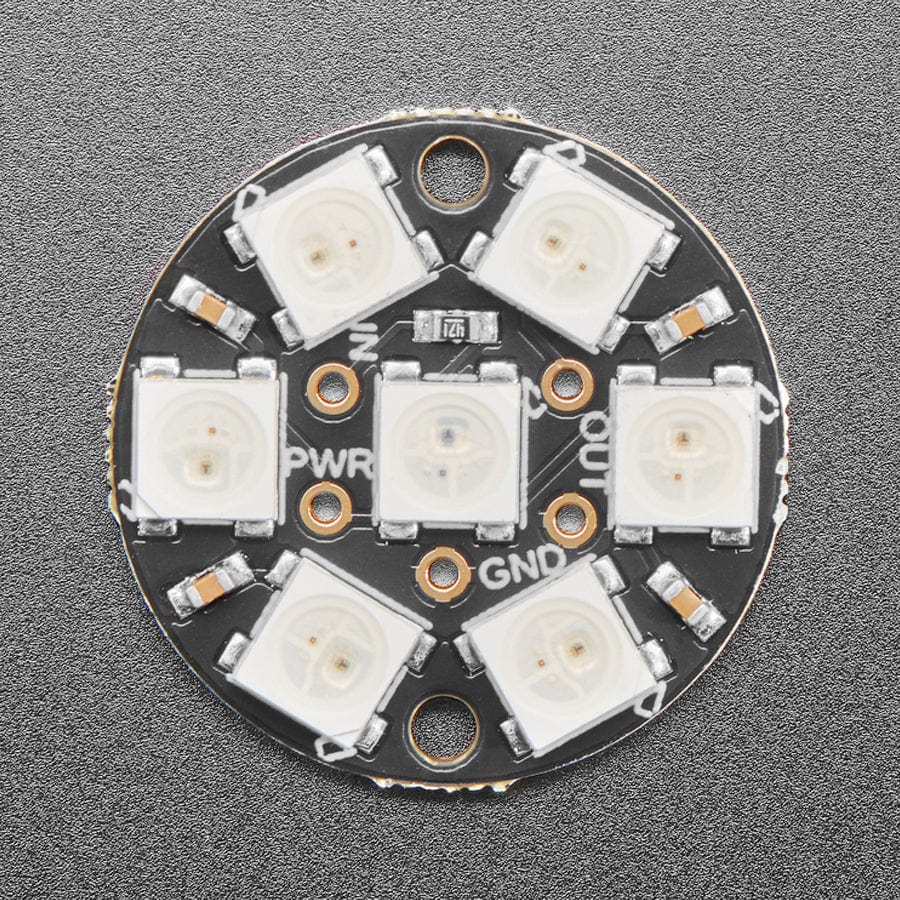

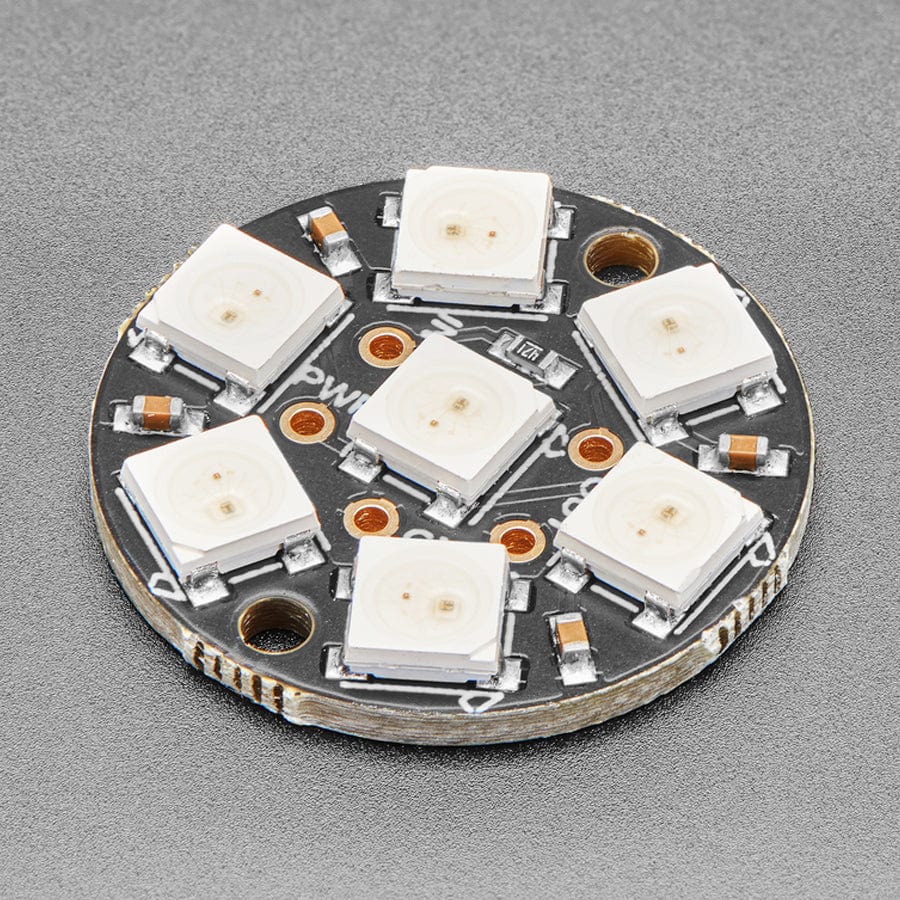

Comes as a single round board with 7 individually addressable RGB LEDs assembled and tested.
Revision History
As of May 17, 2023- You may get a NeoPixel Jewel with either WS2812B LEDs or SKC6812 LEDs; they are the same protocol and brightness. However, the SKC are more reliable and handle accidental over-volting a little better! We've also updated the PCB with Adafruit Pinguin to make a lovely and legible silkscreen -you may get the new PCB or the older version with vector fonts.
Specifications

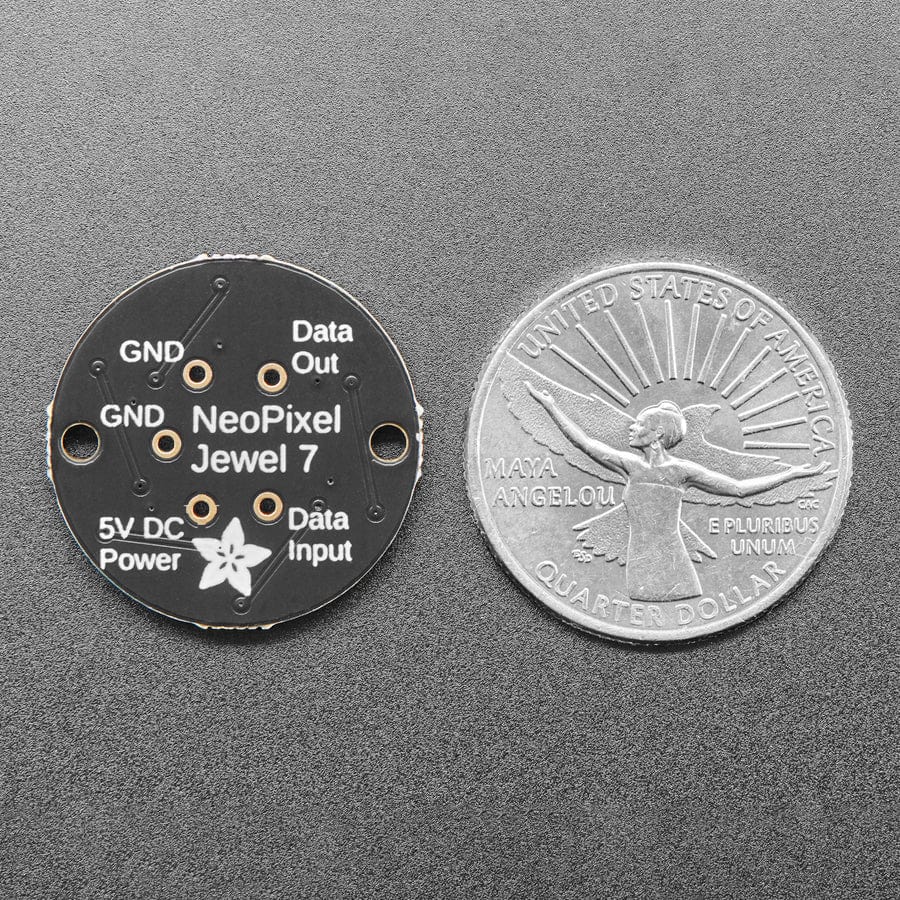

Diameter: 23mm
Thickness: 2mm
Weight: 1.5g
May ship with either WS2812B or SKC6812-based LEDs. They are the same brightness, colour, and protocol
