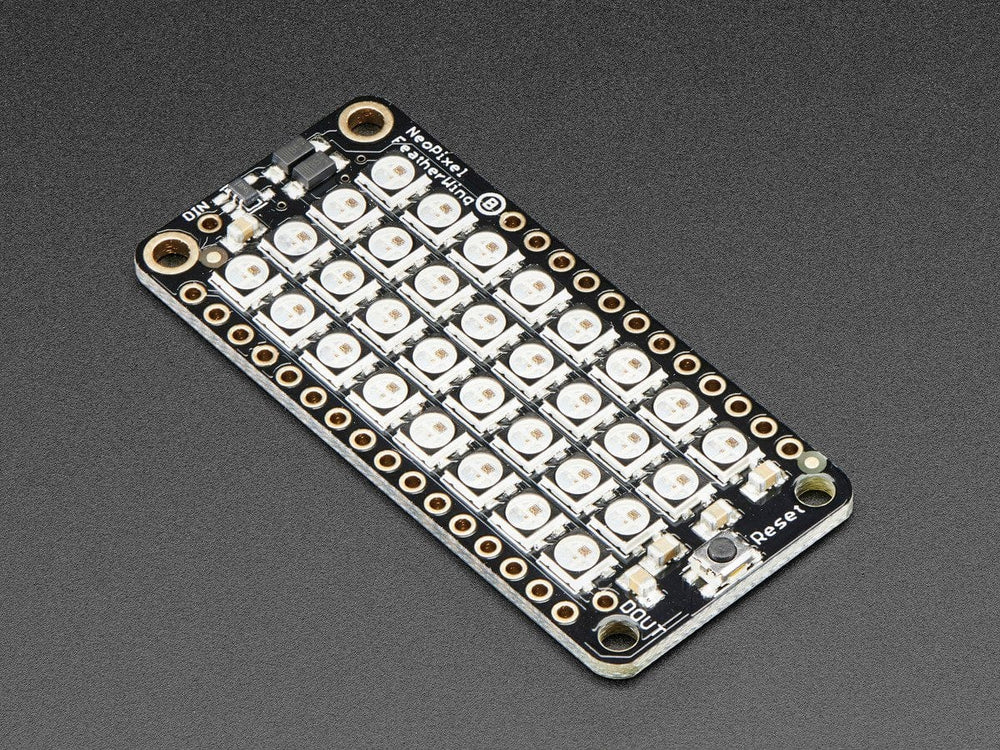

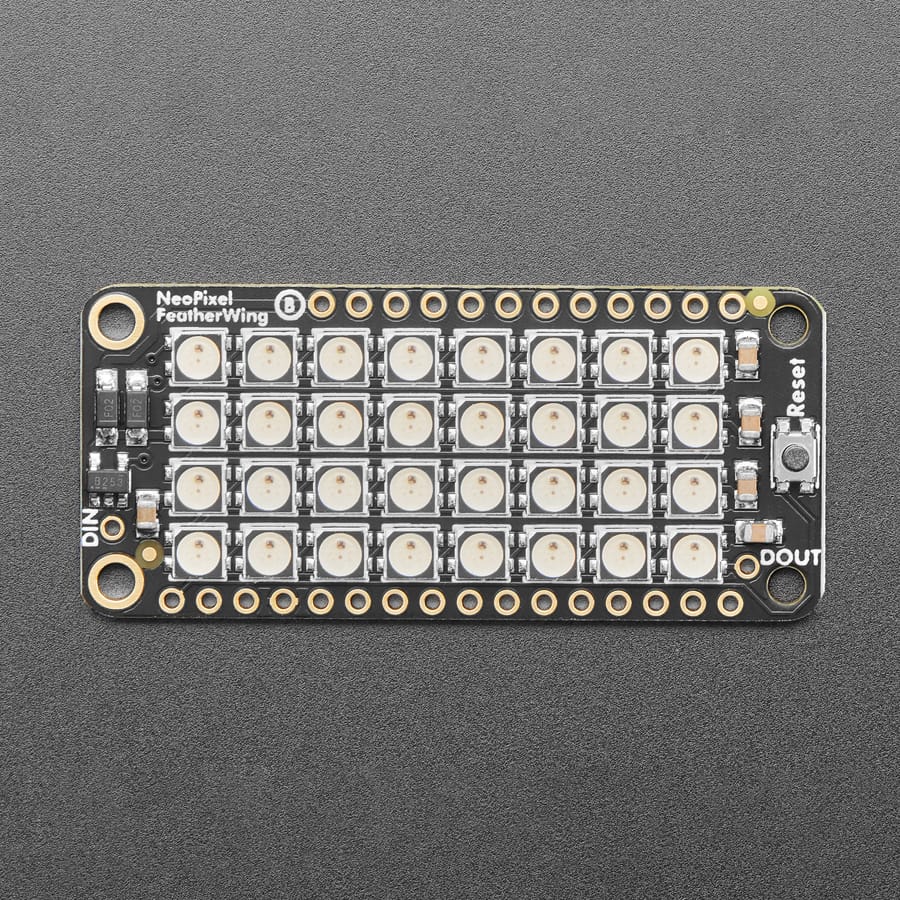

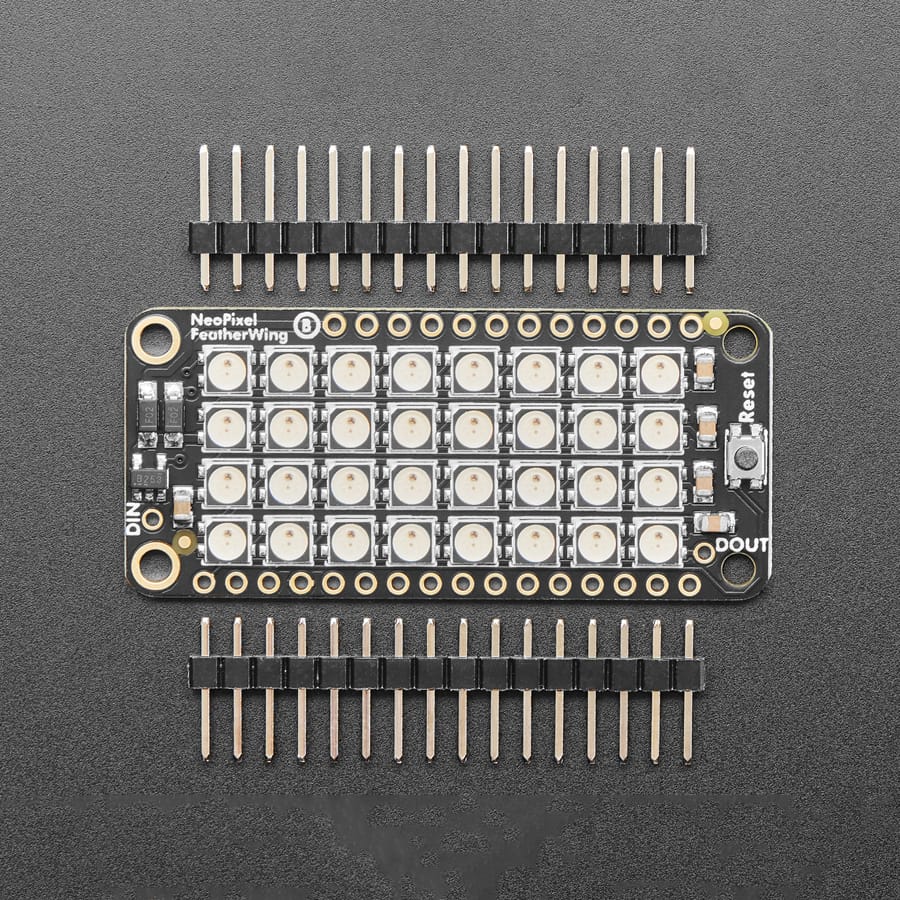

The NeoPixel FeatherWing adds a 4×8 grid of 32 individually addressable RGB LEDs to any Feather board for animations, indicators, and lighting effects.

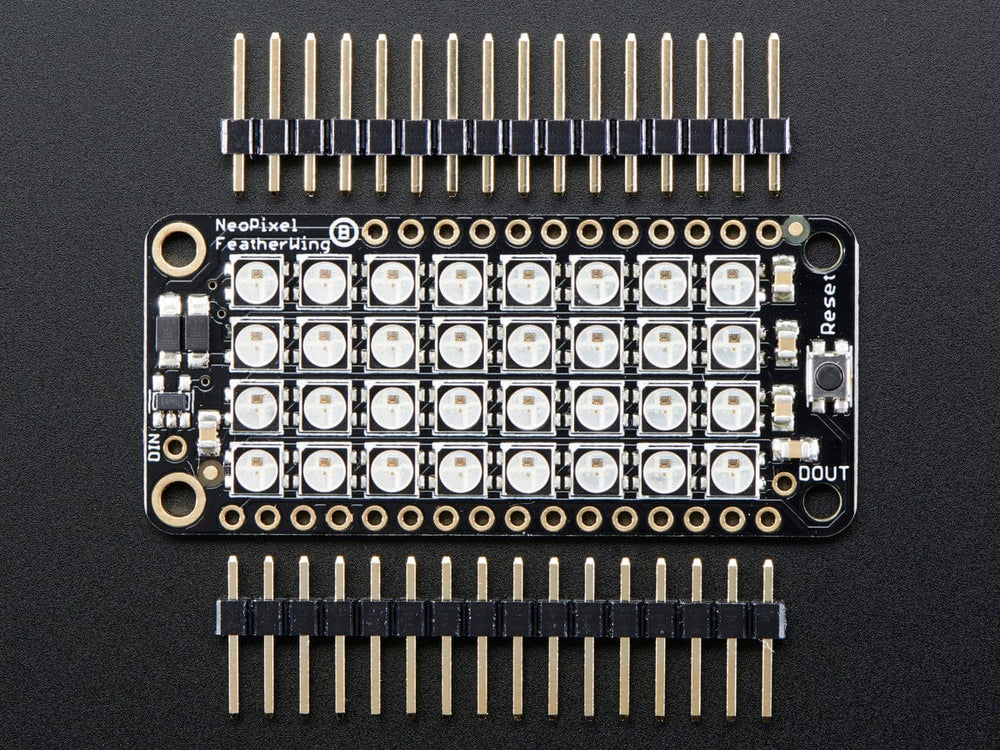

A Feather board without ambition is a Feather board without FeatherWings! This is the Adafruit NeoPixel FeatherWing, a 4x8 RGB LED Add-on For All Feather Boards! Using our Feather Stacking Headers or Feather Female Headers you can connect a FeatherWing on top or bottom of your Feather board and make your Feather board strut like a peacock at a rave.

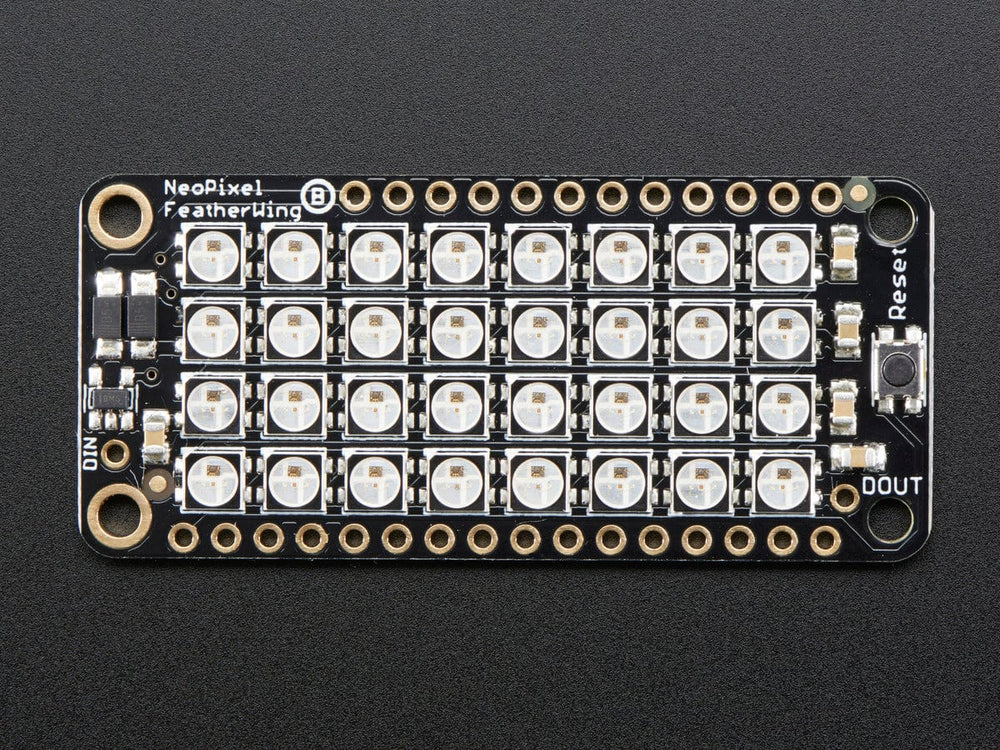

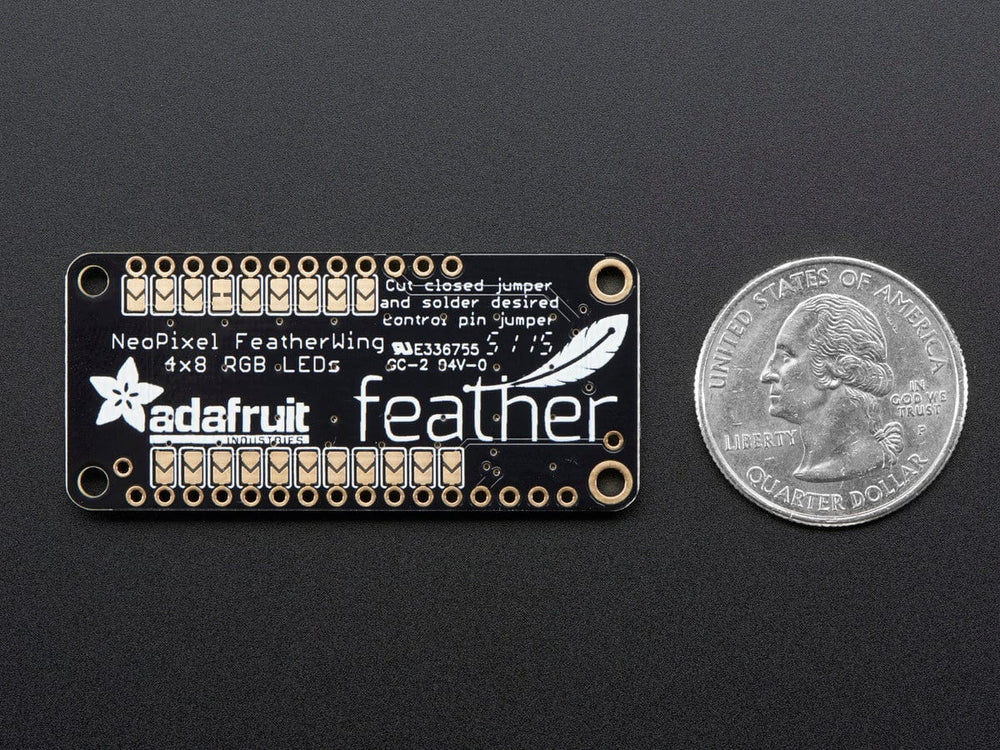

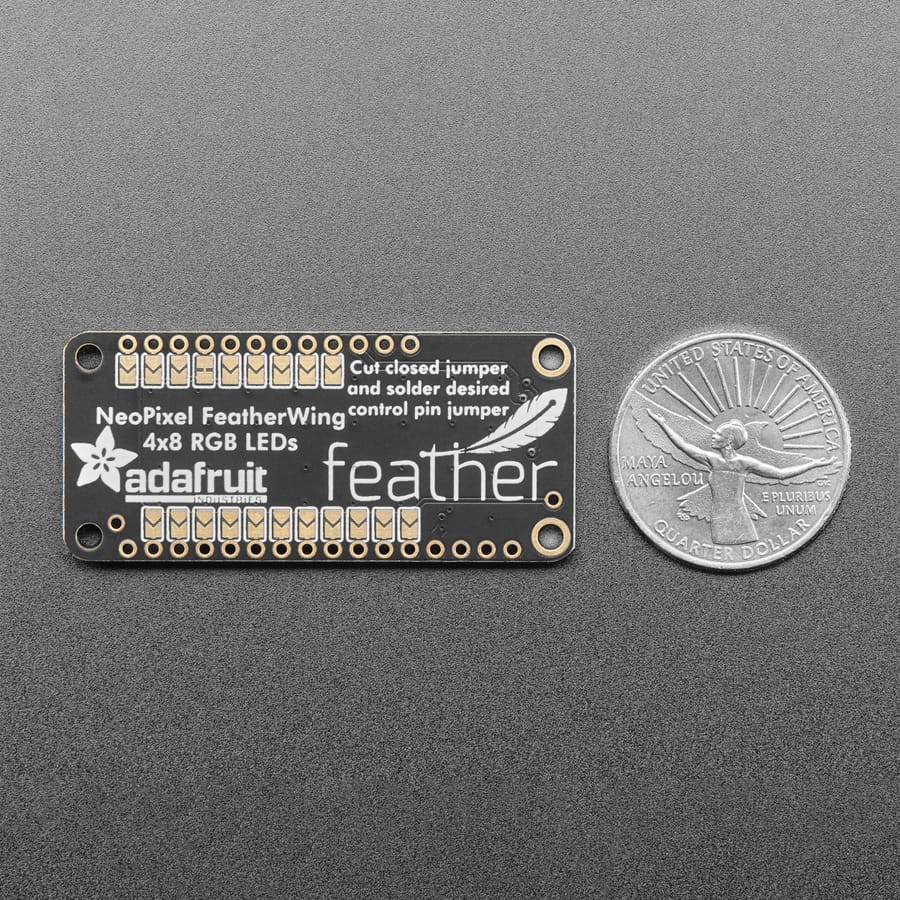

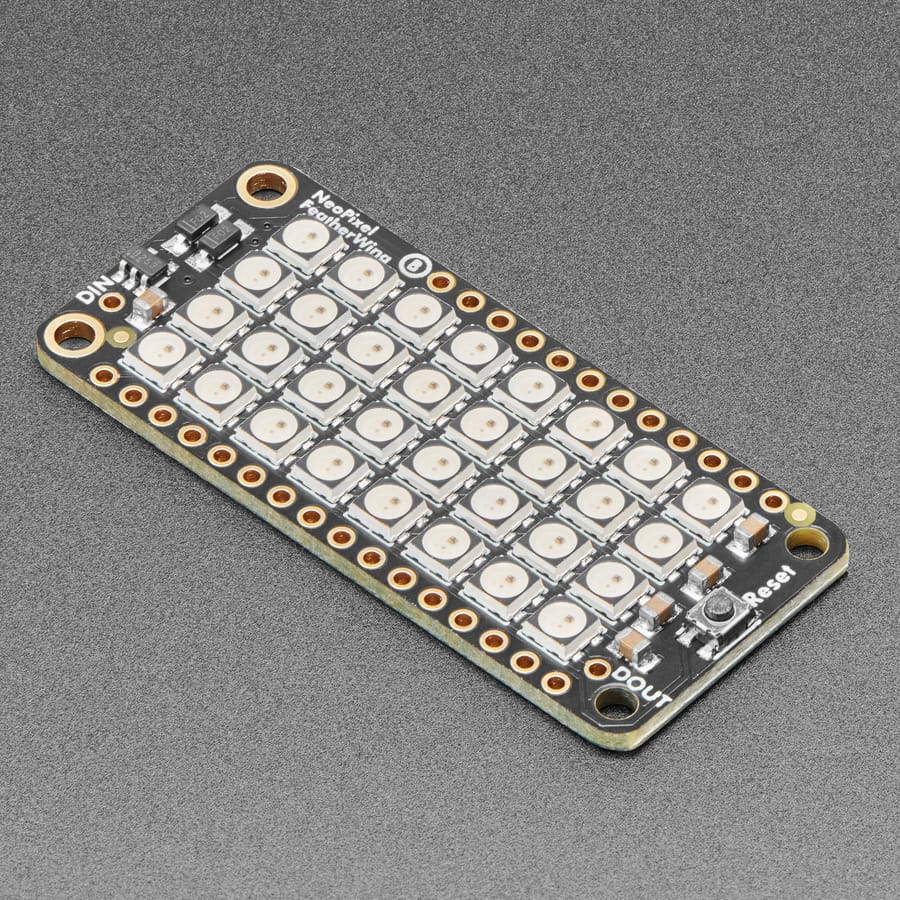

Put on your sunglasses before staring into these 32 configurable eye-blistering RGB LEDs. Arranged in a 4x8 matrix, each pixel is individually addressable. Only one pin is required to control all the LEDs. On the bottom we have jumpers for the DIN line to any of the I/O pins on a Feather. Works with any/all of our Feathers! You can cut the default jumper trace and use any pin you like. (In particular, the default pin for Feather Huzzah ESP8266 must be moved, try pin #15!)

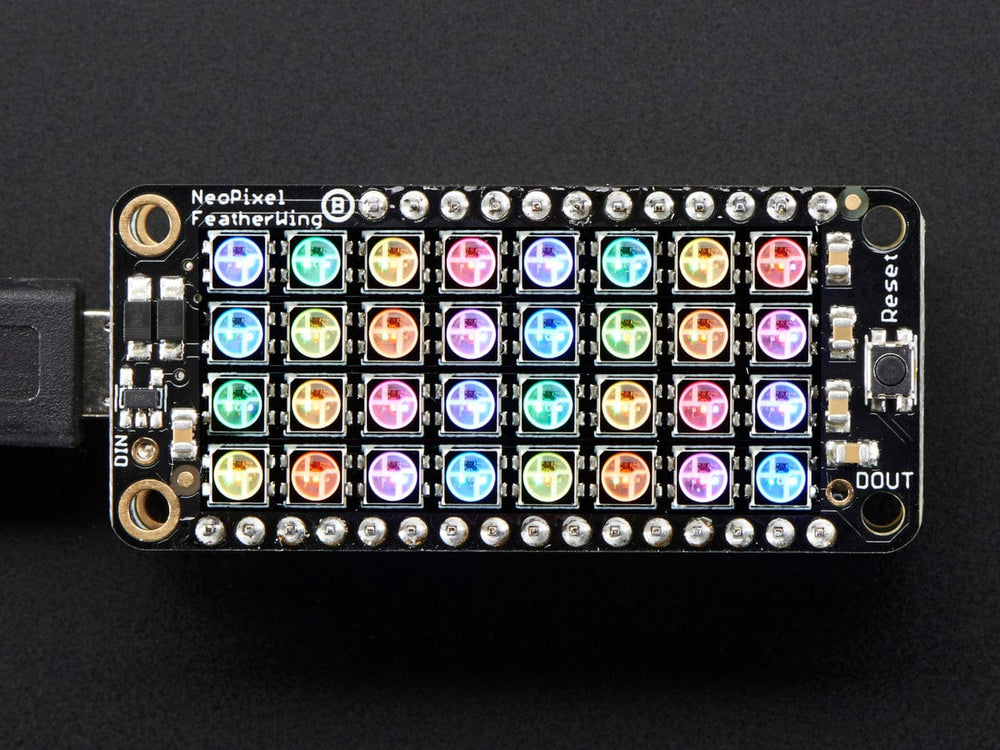

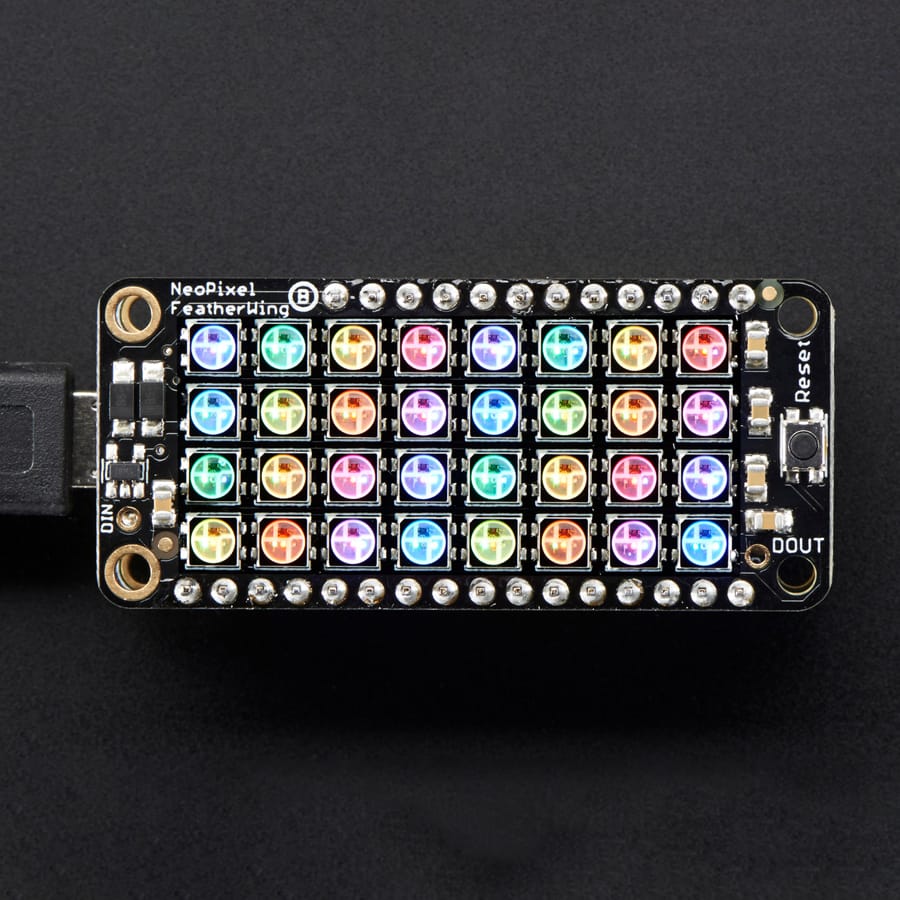

To make it easy to start, the LEDs are by default powered from either the USB power line or Battery power line, whichever is higher. Two Schottky diodes are used to switch between the two. This power arrangement is able to handle 1 Amp of constant current draw and maybe 2A peak, so not a good way to make a flashlight. It's better for colourful effects.
A level-up shifter converts the 3.3V logic of the Feather to the power line voltage. If, say, you need MORE blinky, you can chain these together. For the second Wing, connect the DIN connection to the first Wing's DOUT. Also connect a ground pin together and power with an independent 5V supply to keep from loading the power supply too much.
Features
32 individually addressable RGB LEDs arranged in 4x8 matrix
Single pin control for all LEDs
Compatible with all Feather boards
Configurable jumpers for DIN line connection to any I/O pin
Powered from USB or battery (whichever is higher)
Supports up to 1A continuous current (2A peak)
3.3V to 5V level-up shifter included
Stackable design using Feather headers
Chainable with multiple FeatherWings
Schottky diode power switching
Specifications
Product Dimensions: 50.8mm x 22.9mm x 2.7mm
Product Weight: 5.2g
Revision History
As of December 5, 2022 – we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen.
