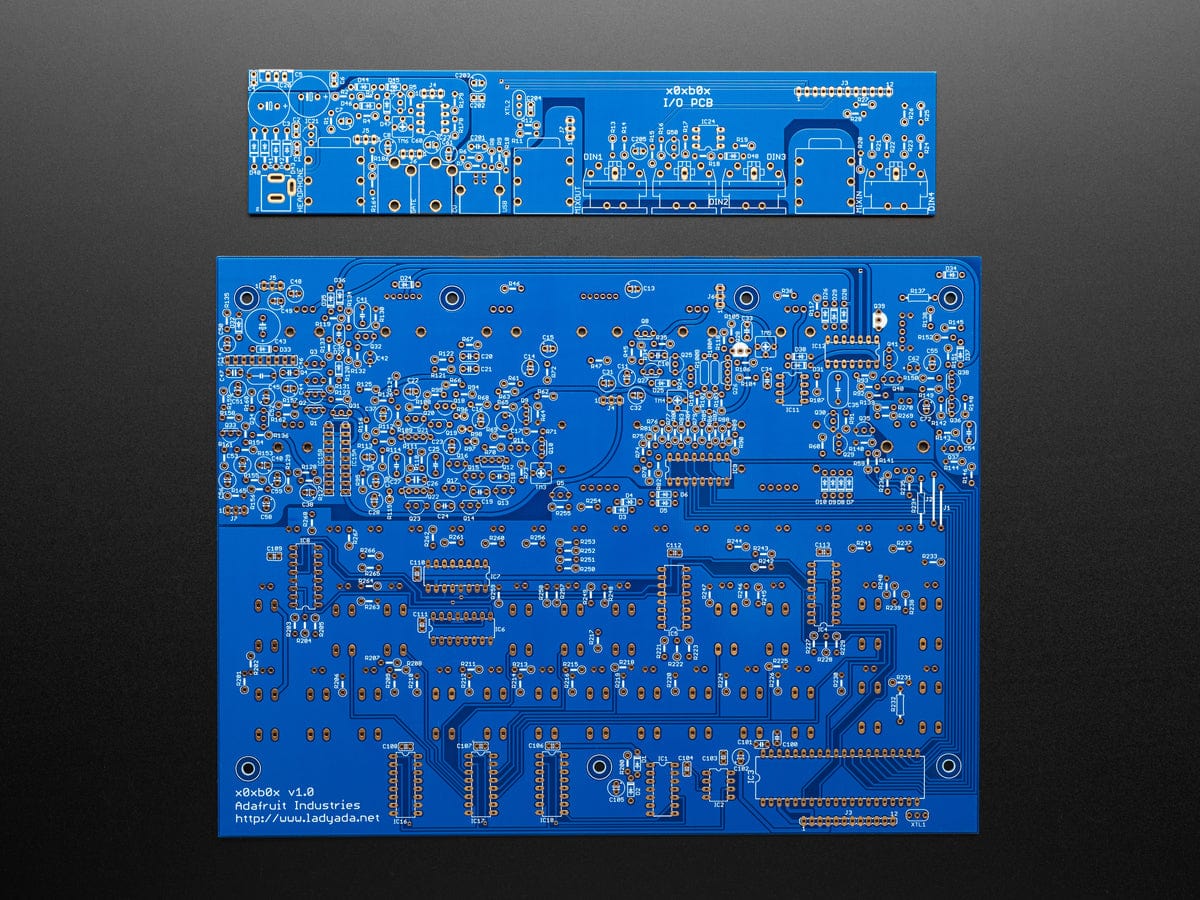

Do you like a challenge? What about acid techno? If you said YES to both of these, you are in the right place. This is the PCB set for the x0xb0x synthesizer kit. Many parts are rare and hard to source, but the PCBs are something we can provide for people who are psyched to order up the bill of materials and DIY their very own TB-303 synth clone.
This order comes with just the PCBs - it is not possible for us to offer a full kit at this time as many of the components are ultra-rare.

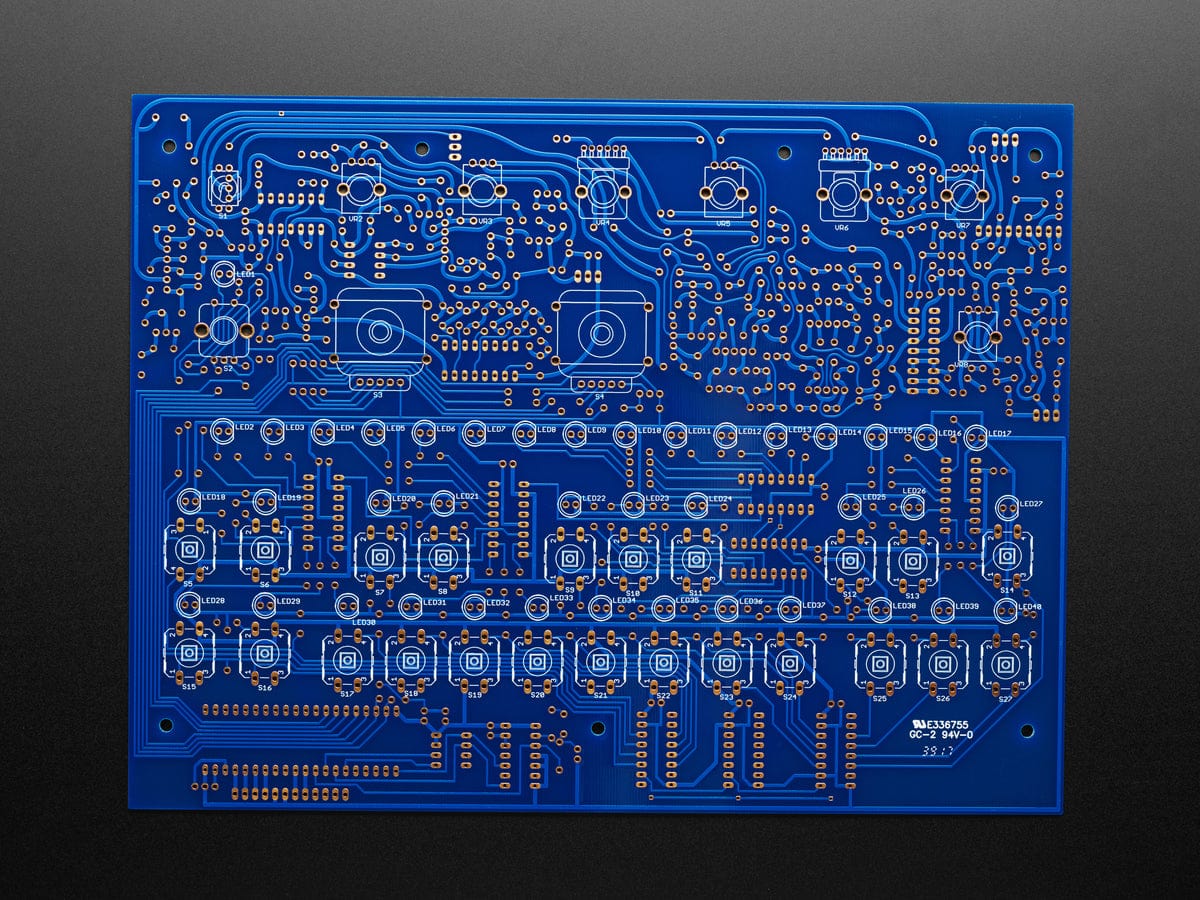

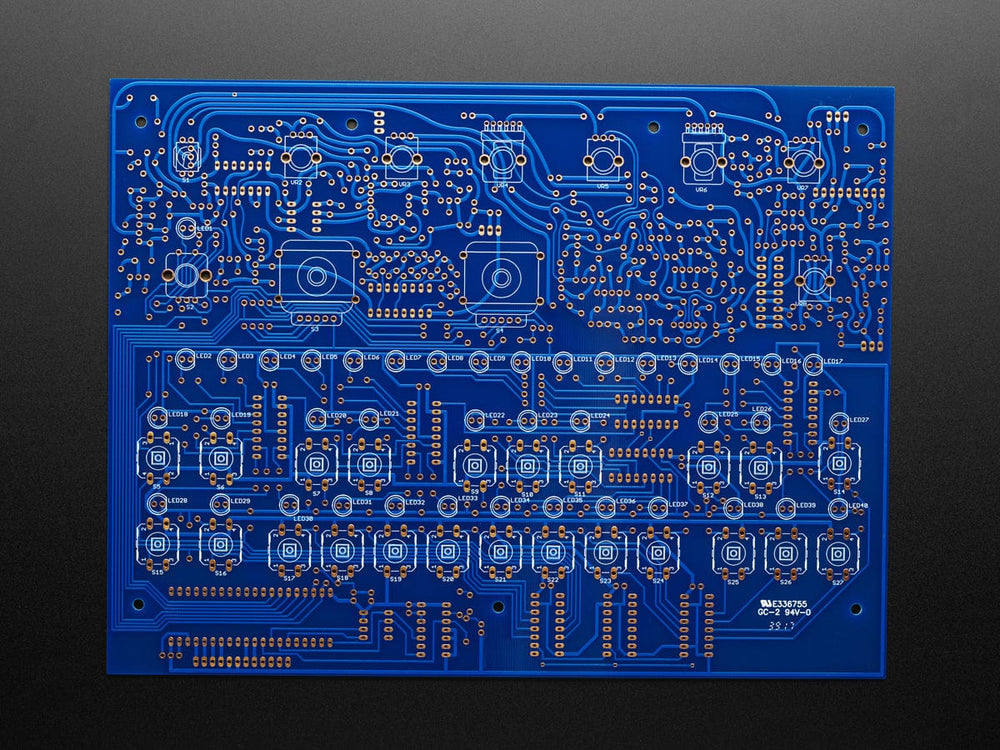

Mainboard dimensions: 237mm x 180mm x 1.7mm
Mainboard weight: 137.6g

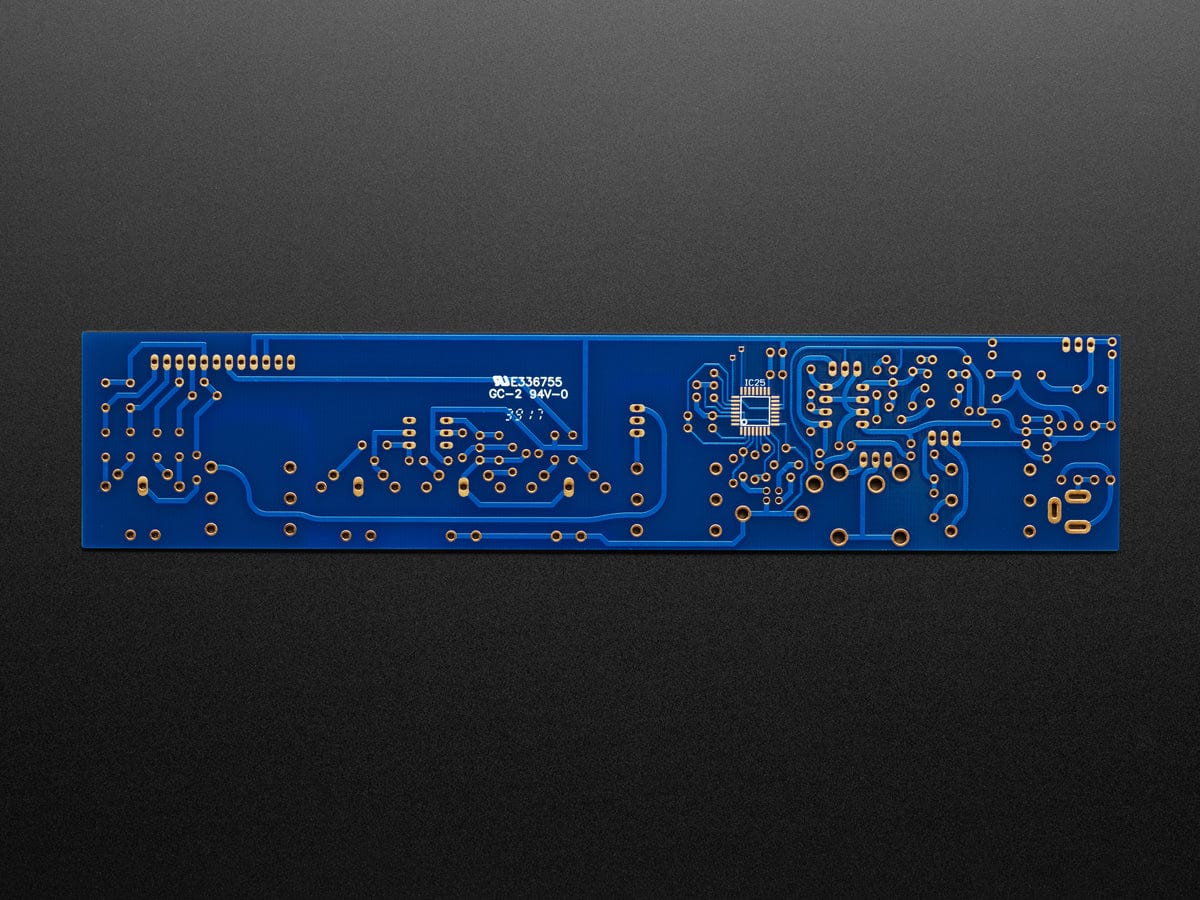

I/O board dimensions: 213mm x 44mm x 1.7mm
I/O board weight: 30.8g
