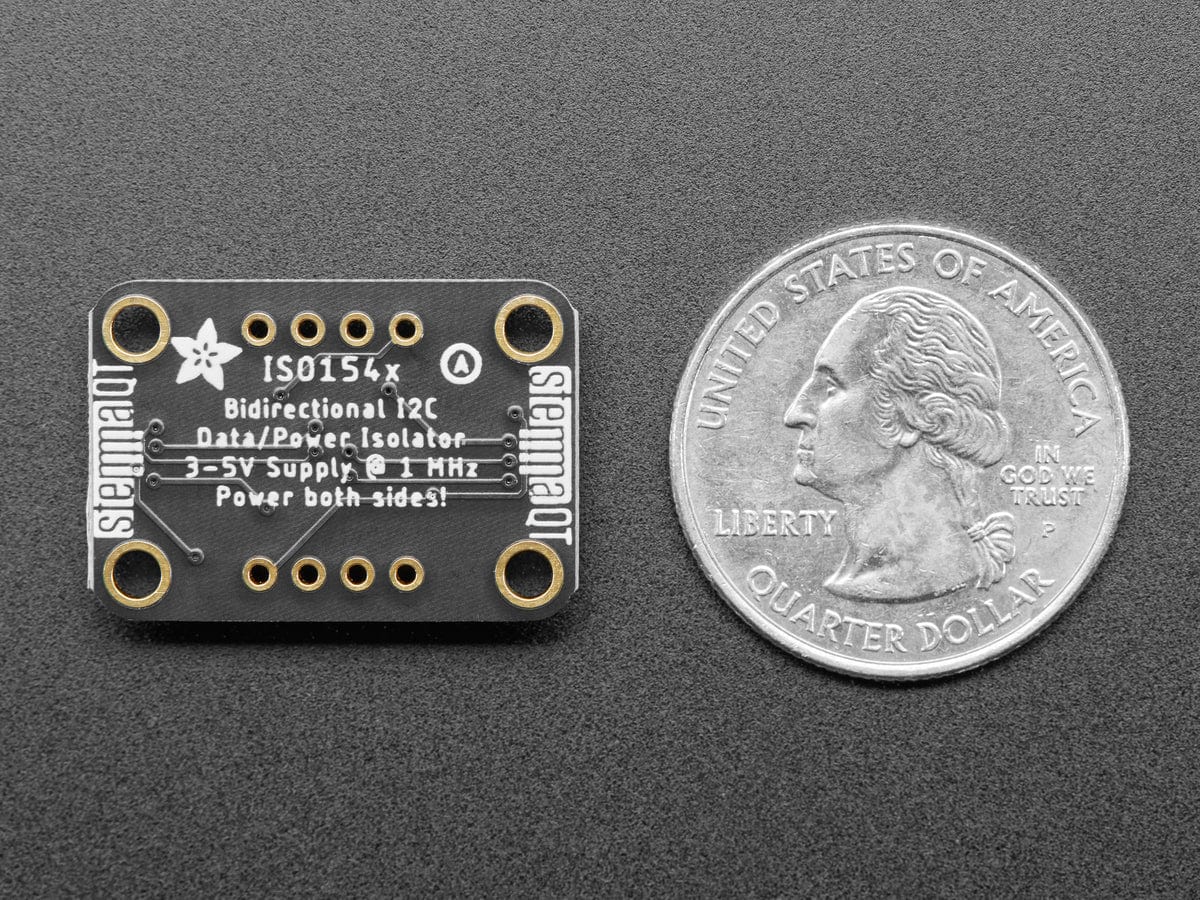

Adafruit ISO1540 Bidirectional I2C Isolator (STEMMA QT / Qwiic)

AdafruitSKU: ADA4903
Price:
Sale price £8.90
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

Awesome Extras

SparkFun Qwiic pHAT v2.0 for Raspberry Pi - The Pi HutSparkFun Qwiic pHAT v2.0 for Raspberry Pi - The Pi Hut
SparkfunSparkFun Qwiic pHAT v2.0 for Raspberry Pi
Sale price £7.20 incl. VAT excl. VAT
SparkFun Qwiic pHAT Extension for Raspberry Pi 400 - The Pi HutSparkFun Qwiic pHAT Extension for Raspberry Pi 400 - The Pi Hut
SparkfunSparkFun Qwiic pHAT Extension for Raspberry Pi 400
Sale price £6.60 incl. VAT excl. VAT
SparkFun Qwiic Cable Kit - The Pi HutSparkFun Qwiic Cable Kit - The Pi Hut
SparkfunSparkFun Qwiic Cable Kit
Sale price £8.80 incl. VAT excl. VAT

Sometimes you'll find yourself with an I2C bus controller on one side, and an I2C bus device on the other and you gotta keep em (electrically) separated. Maybe because one is Earth-grounded, maybe because you've got some funky power monitoring setup, maybe you want to reduce noise.

Whatever it is, you can use the Adafruit ISO1540 Bidirectional I2C Isolator to add full electrical isolation between two sides of an I2C bus. The chip we use, the TI ISO1540 is fully bi-directional, supports up to 1 MHz clock rates, supports clock-stretching, works with 3 to 5V DC power or logic (separate on either side of course), with 2500 V-RMS isolation

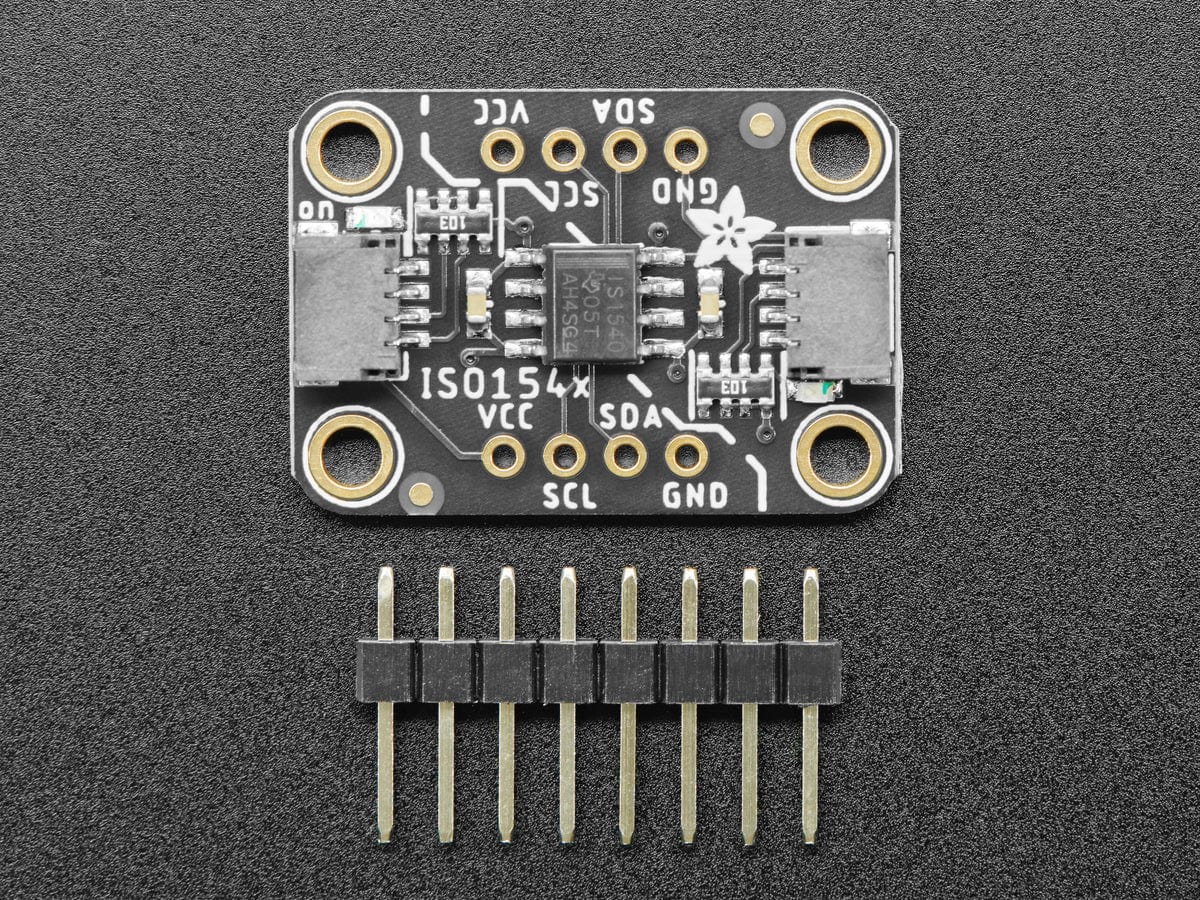

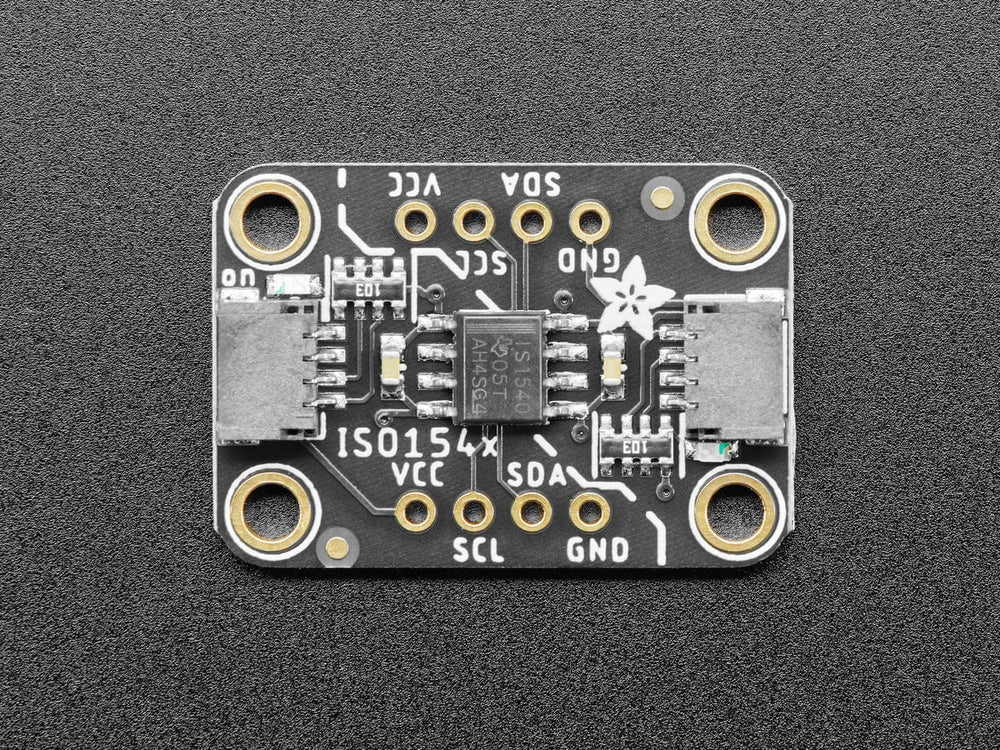

Usage is easy - you get power/ground/clock/data breakout pads for each side as well as a matching STEMMA QT connector. Unlike our other QT boards, the two sides are obviously electrically isolated, which means each half must be powered! Check that the green LED is lit on both sides. Now send data over I2C and you're good to go. We have 10K pullups on each side, from the I2C pins to the matching VCC for that side.

For more details about chip specifications, check out the TI product page.

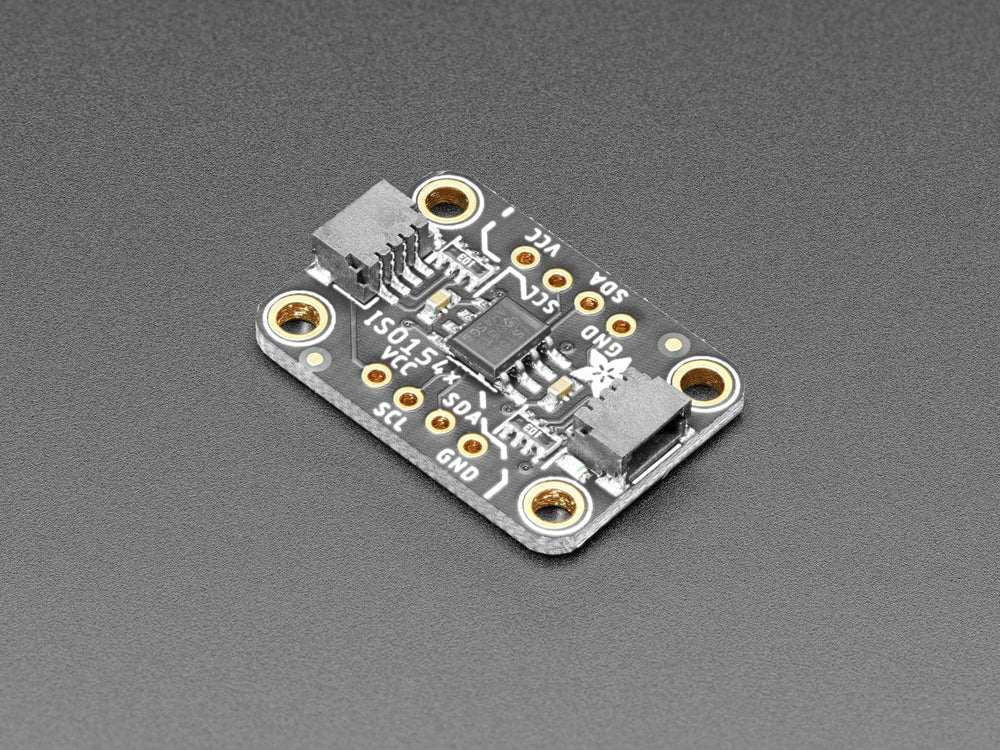

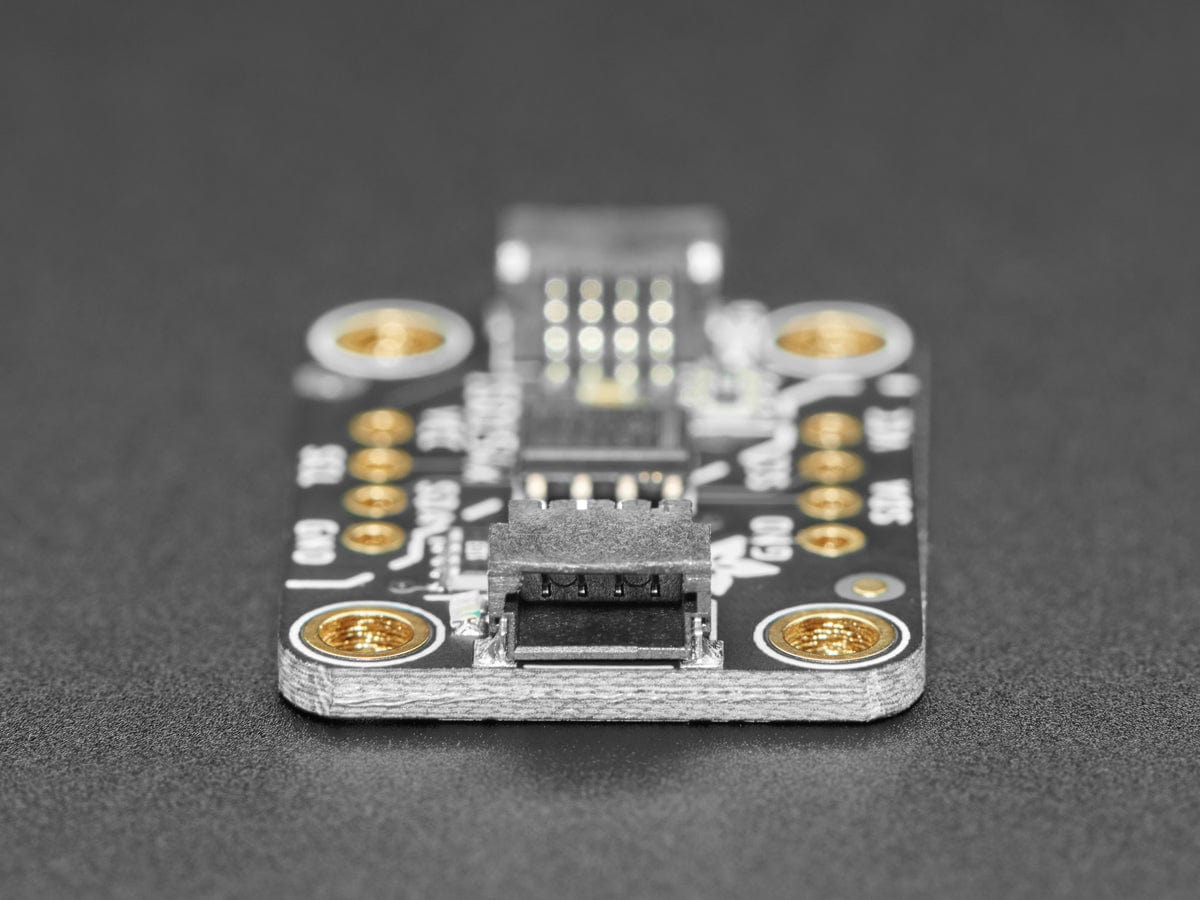

To get you going fast, we spun up a custom made PCB in the STEMMA QT form factor, making it easy to interface with. The STEMMA QT connectors on either side are compatible with the SparkFun Qwiic I2C connectors. This allows you to make solderless connections between your development board and the ISO1540 or to chain it with a wide range of other sensors and accessories using a compatible cable. QT Cable is not included, but we have a variety in the shop.

Technical Details

ISO1540 Features

  • Isolated bidirectional, I2C compatible, communication
  • Supports up to 1-MHz operation
  • 3-V to 5.5-V supply range
  • Open-drain outputs With 3.5-mA Side 1 and 35-mA Side 2 sink current capability
  • -40°C to +125°C operating temperature
  • ±50-kV/μs transient immunity (Typical)
  • HBM ESD protection of 4 kV on all pins; 8 kV on bus pins
  • Safety-related certifications:
    • 4242-VPK isolation per DIN VDE V 0884-11:2017-01
    • 2500-VRMS isolation for 1 minute per UL 1577
    • CSA approval per IEC 60950-1 and IEC 62368-1 end equipment standards
    • CQC basic insulation per GB4943.1-2011
