FRAM, or Ferroelectric Ram, is the coolest new data storage method that all the fashion magazines are talking about. Oh, wait, no that's quilted handbags. But FRAM is pretty damn cool too! It's similar to Dynamic random-access memory, only with a ferroelectric layer instead of a dielectric layer. This gives it stable handling (the bytes you write are non-volatile) with dynamic responsiveness (you can write them very fast!)

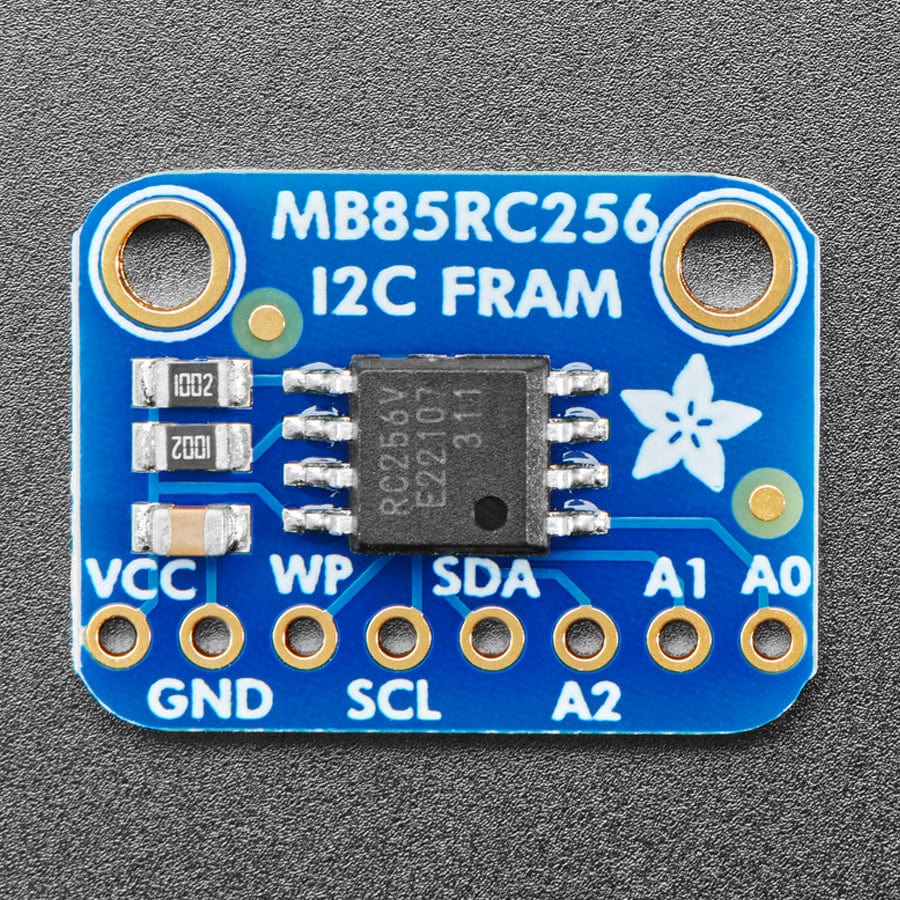

Now, with our I2C FRAM breakout board, you can add some FRAM storage to your next DIY project. FRAM allows for lower power usage and a faster write performance. It's excellent for low-power or inconsistent-power data logging or data buffering where you want to stream data fast while also keeping the data when there's no power. Unlike Flash or EEPROM, there are no pages to worry about. Each byte can be read/written 10,000,000,000,000 times so you don't have to worry too much about wear leveling.
This particular FRAM chip has 256 Kbits (32 KBytes) of storage, interfaces using I2C, and can run at up to 1MHz I2C rates. Each byte can be read and written instantaneously (like SRAM) but will keep the memory for 95 years at room temperature.

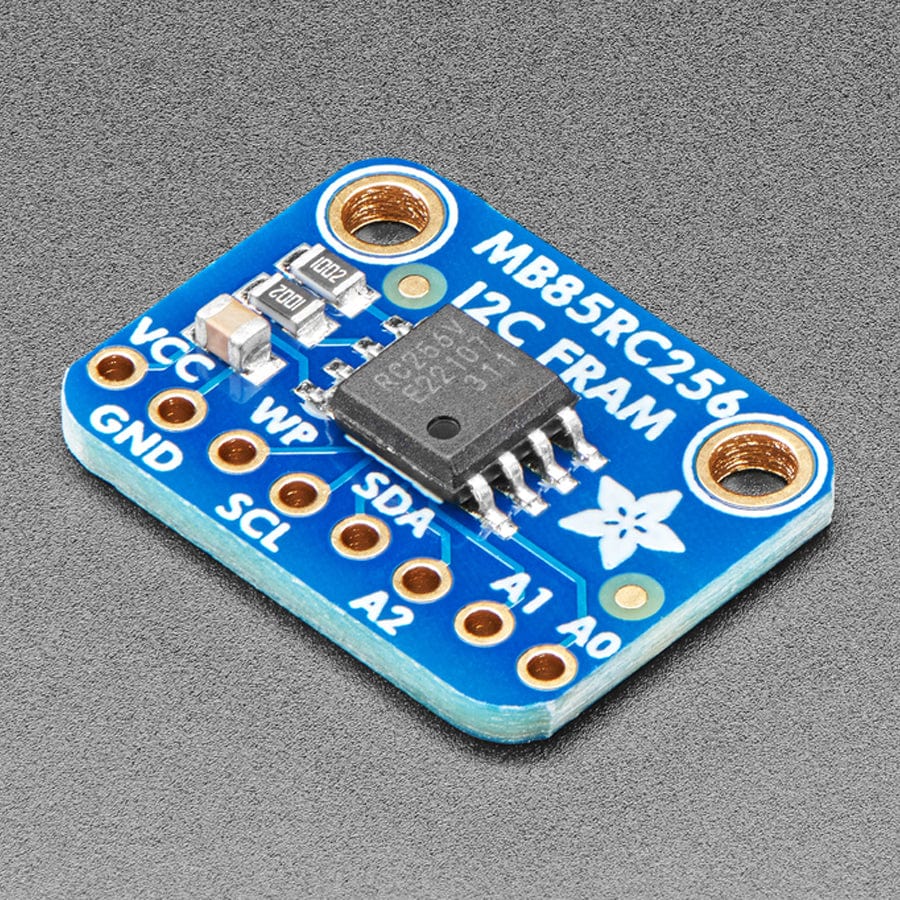

We picked up the largest chip that has I2C and is also 5V compliant. You can use this chip with either 3V or 5V power and logic. It comes in a breadboard-friendly breakout and a spare stick of 0.1" male header for soldering on.
We also have an SPI FRAM breakout board - which is smaller in size but faster (20MHz max SPI clock rate)
Revision History
As of September 4th, 2024– we've updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen - you may get the new PCB or the older version with vector fonts - both are identical other than the fancy silkscreen.
Specifications

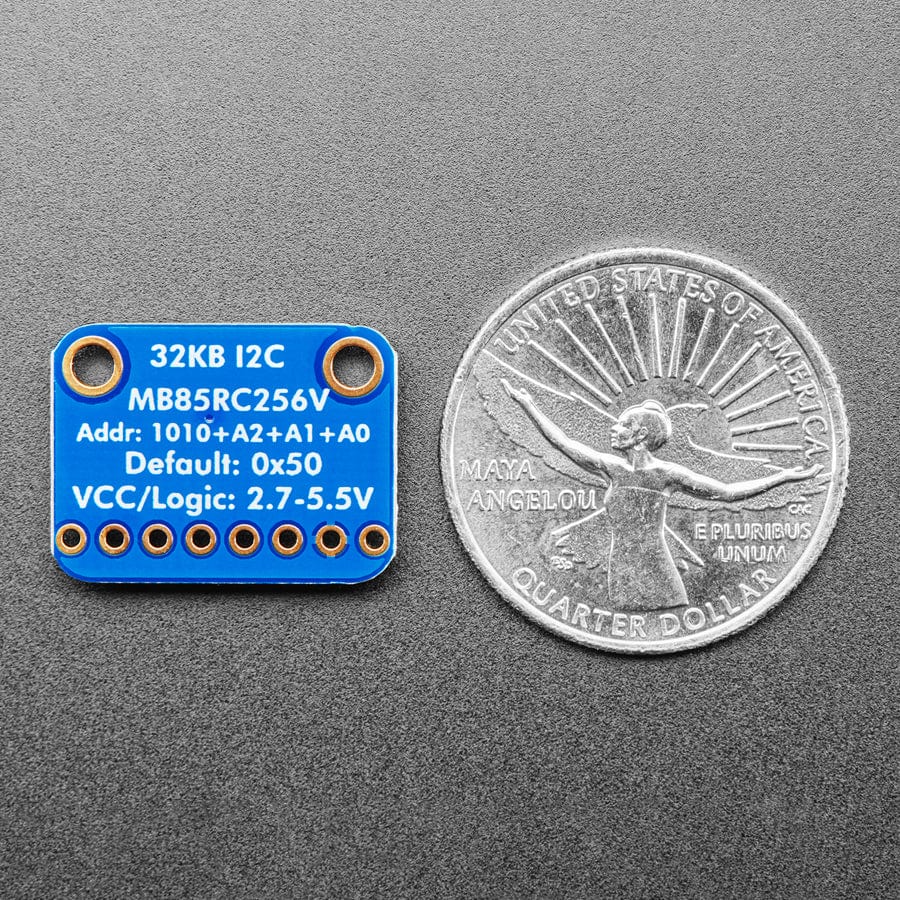

Dimensions: 15.5mm x 20mm x 2mm / 0.6" x 0.8" x 0.1"
