*pew* *pew*! This board is like a little ray gun for infrared light, with two high-powered LED outputs. When controlled with the onboard N-Channel FET driver, you'll be blasting 100mA-200mA of current pulsing through each LED for 10+ meters of range! This is the easiest way to get great IR emitter range without wiring up a bunch of parts.

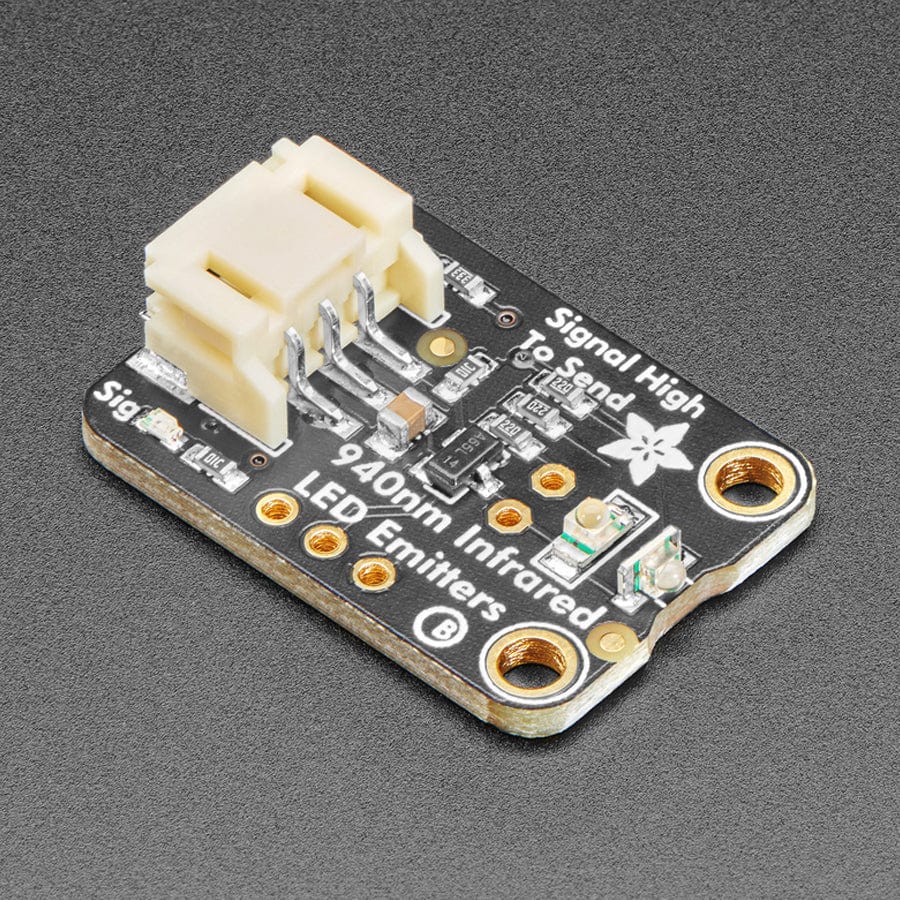

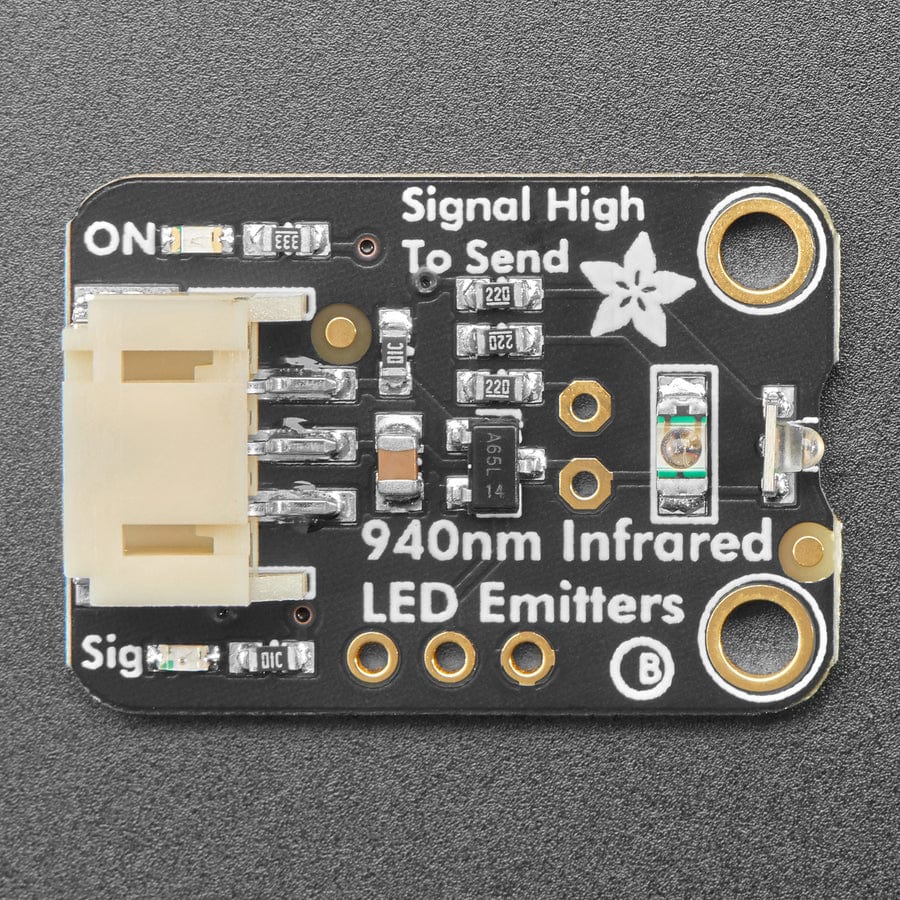

This board features a power transistor so you just need to provide about 3-5V DC power to the V+ power in, ground for ground, and then a 3-5V logic level signal on the input pin. When the pin is high, the LEDs are on, when the signal pin is low, the LEDs are off. Since humans don't see in IR, there's a red LED that will let you know when the IR LEDs are lit. Two LEDs are pre-soldered to the PCB, one pointing up and one pointing out. If you want even MORE coverage, there's a spot to solder in a separate 5mm IR LED (not included).
If powering with 5V, the board will draw about 200mA per LED (400mA total) when pulsing on. If powering with 3V the board will draw about 100mA per LED (200mA total). We don't recommend keeping the LEDs on for long periods at this current draw, they're for remote control transmission more than IR illumination.

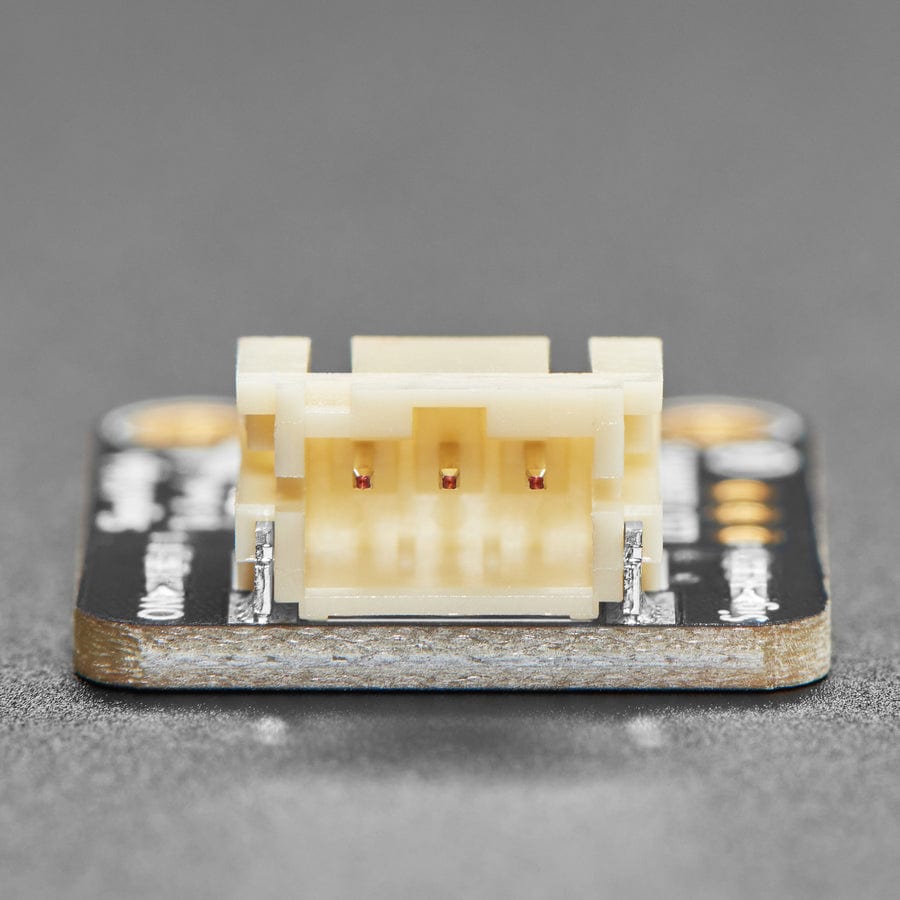

Each STEMMA board comes with a fully assembled and tested PCB but no cable. No soldering is required to use it, but you will need to pick up a 2mm pitch, 3-pin STEMMA JST PH cable. Alternatively, if you do want to solder, there's a 0.1" spaced header for power/ground/signal.
- Product Dimensions: 25.4mm x 17.7mm x 7.2mm
- Product Weight: 1.8g / 0.1oz
