Adafruit FPC Breakout for Raspberry Pi 5 DSI or RP2350 HSTX - 22 Pin 0.5mm

AdafruitSKU: ADA6014
Price:
Sale price £2.40
incl. VAT
excl. VAT
Stock:
Sold out
Notify me

Compatible with:

Awesome Extras

Half-Size Breadboard - White - The Pi HutHalf-Size Breadboard - White - The Pi Hut
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT
Raspberry Pi 5 - The Pi HutRaspberry Pi 5 - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £48 incl. VAT excl. VAT
Raspberry Pi Pico 2 - The Pi HutRaspberry Pi Pico 2 - The Pi Hut
Raspberry PiRaspberry Pi Pico 2
Sale priceFrom £4.80 incl. VAT excl. VAT
Adafruit Feather RP2350 with HSTX Port - The Pi HutAdafruit Feather RP2350 with HSTX Port - The Pi Hut
AdafruitAdafruit Feather RP2350 with HSTX Port
Sale price £11.40 incl. VAT excl. VAT
Adafruit RP2350 22-pin FPC HSTX to DVI Adapter for HDMI Displays - The Pi HutAdafruit RP2350 22-pin FPC HSTX to DVI Adapter for HDMI Displays - The Pi Hut
22-pin 0.5mm Pitch FPC Flex Cable for Raspberry Pi 5 and HSTX - The Pi Hut22-pin 0.5mm Pitch FPC Flex Cable for Raspberry Pi 5 and HSTX - The Pi Hut

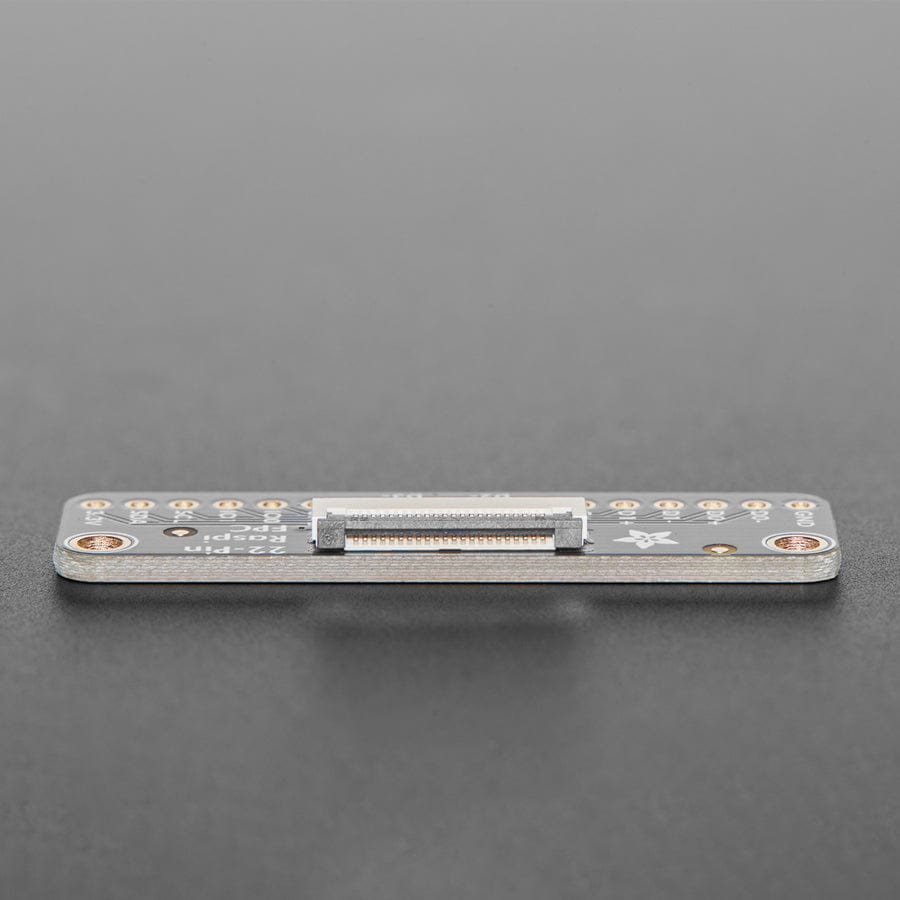

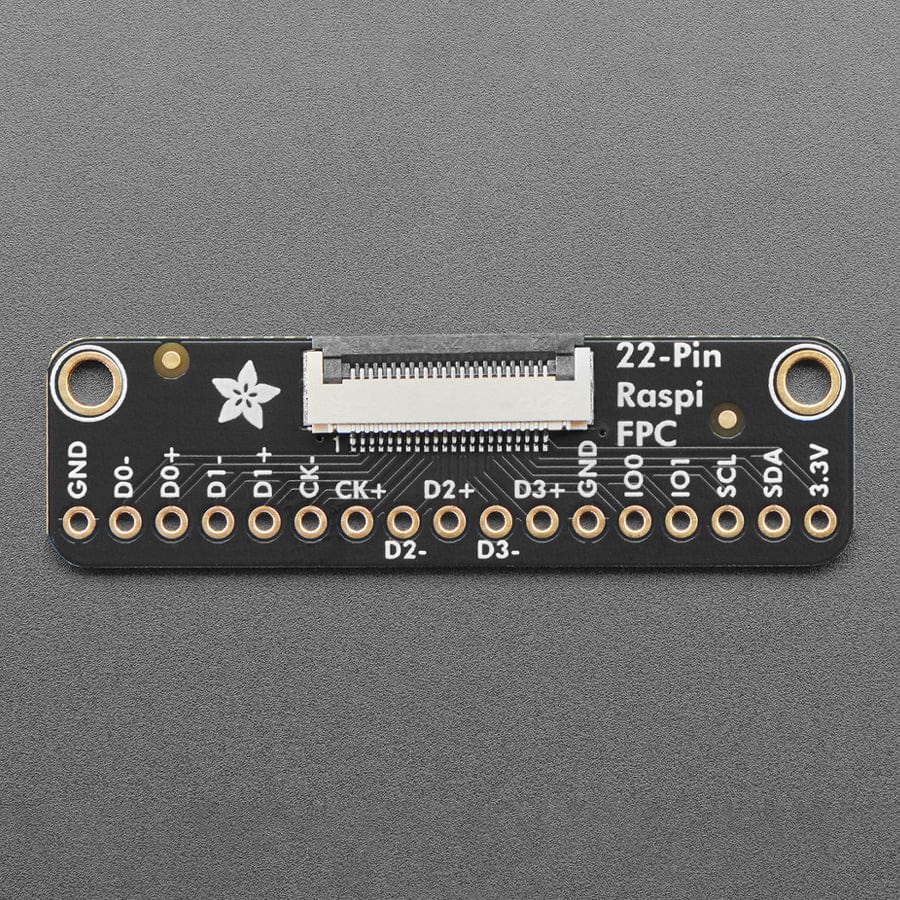

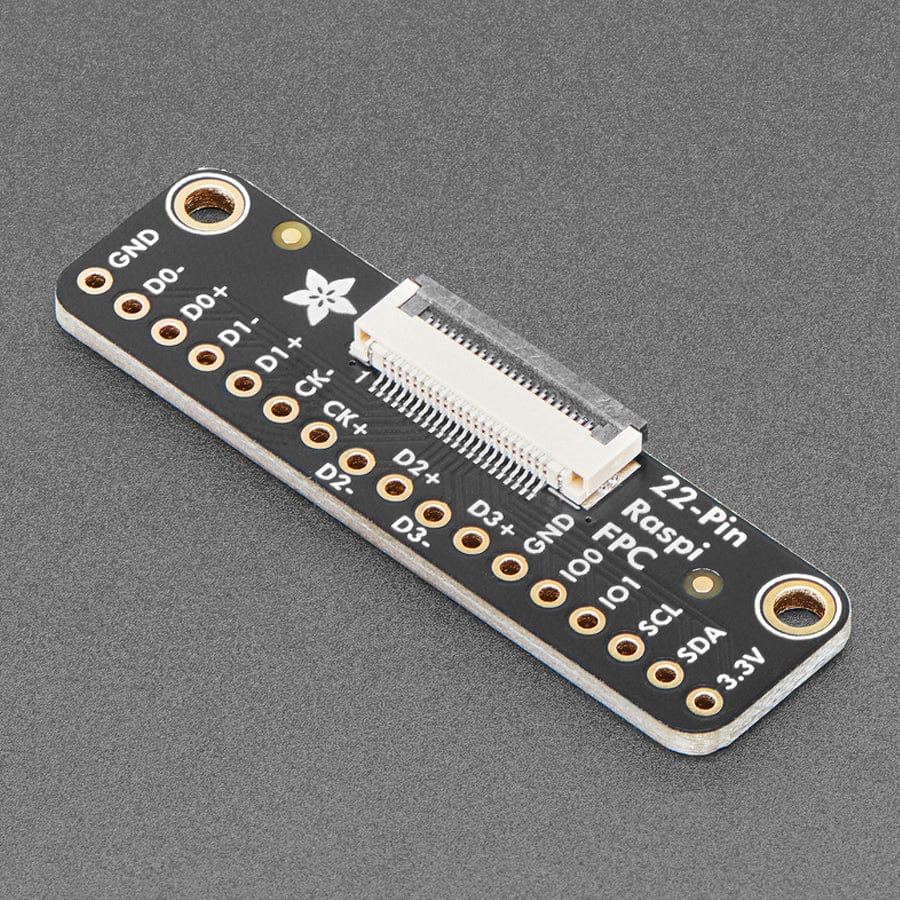

This little breakout board is specifically designed for use with Raspberry Pi 5 or our RP2350 boards that have an 'HSTX' connector. These devices use a semi-standard FPC connector to pipe high-speed data for video transmission over differential pairs. But maybe you want to make a custom setup or adapt to a different product? This doohickey is your pal.

You can use a 22-pin 0.5mm pitch FPC cable to connect between the two boards to access the four (Pi 5) or three (HSTX) differential data channels, plus the differential clock. There's also a 3.3V power output, I2C, and two GPIO. We placed a fairly big ground plane and we did our best to route the signals cleanly but any time you solder wires or use a bread/perf-board with a high-speed signal there's a risk of signal degradation!

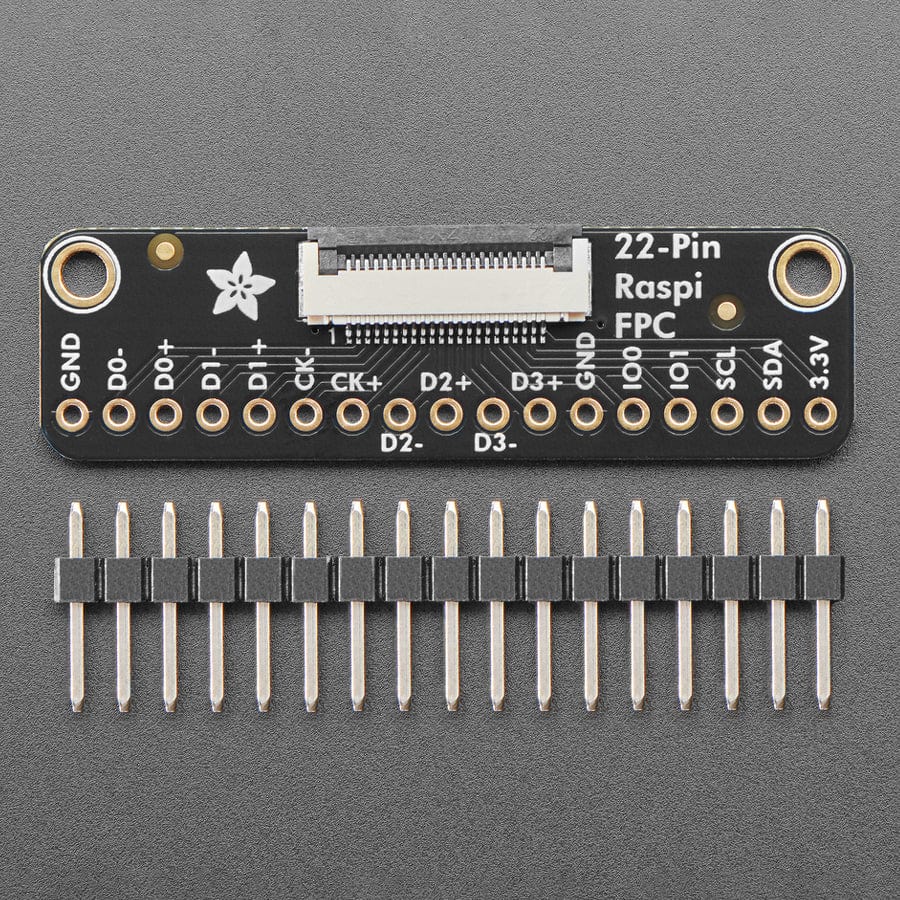

Each order comes with one breakout board, a 22-pin FPC cable is NOT included.

Specifications

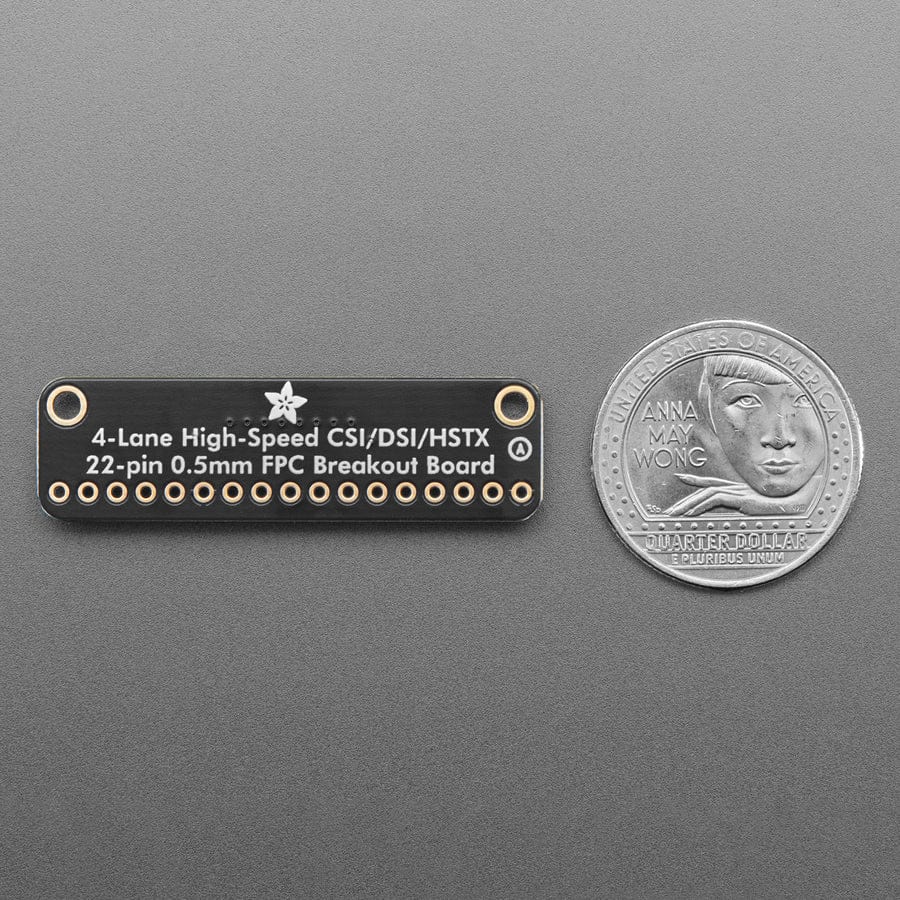

  • Dimensions: 44.8mm x 12.7mm 3.7mm
  • Weight: 2.1g
