Adafruit EYESPI Breakout Board - 18 Pin FPC Connector

AdafruitSKU: ADA5613
Price:
Sale price £1.90
incl. VAT
excl. VAT
Stock:
Only 17 units left
Quantity:

Awesome Extras

Adafruit 1.9" 320x170 Color IPS TFT Display (ST7789) - The Pi HutAdafruit 1.9" 320x170 Color IPS TFT Display (ST7789) - The Pi Hut
AdafruitAdafruit 1.9" 320x170 Color IPS TFT Display (ST7789)
Sale price £17.10 incl. VAT excl. VAT
EYESPI Cable - 18-pin 50mm Long Flex PCB (FPC) A-B Type - The Pi HutEYESPI Cable - 18-pin 50mm Long Flex PCB (FPC) A-B Type - The Pi Hut
EYESPI Cable - 18 Pin 100mm long Flex PCB (FPC) A-B type - The Pi HutEYESPI Cable - 18 Pin 100mm long Flex PCB (FPC) A-B type - The Pi Hut
EYESPI Cable - 18 Pin 250mm long Flex PCB (FPC) A-B type - The Pi Hut
Adafruit 1.47" 320x172 Round Rectangle Color IPS TFT Display (ST7789) - The Pi HutAdafruit 1.47" 320x172 Round Rectangle Color IPS TFT Display (ST7789) - The Pi Hut
Adafruit 1.69" 280x240 Round Rectangle Color IPS TFT Display (ST7789) - The Pi HutAdafruit 1.69" 280x240 Round Rectangle Color IPS TFT Display (ST7789) - The Pi Hut

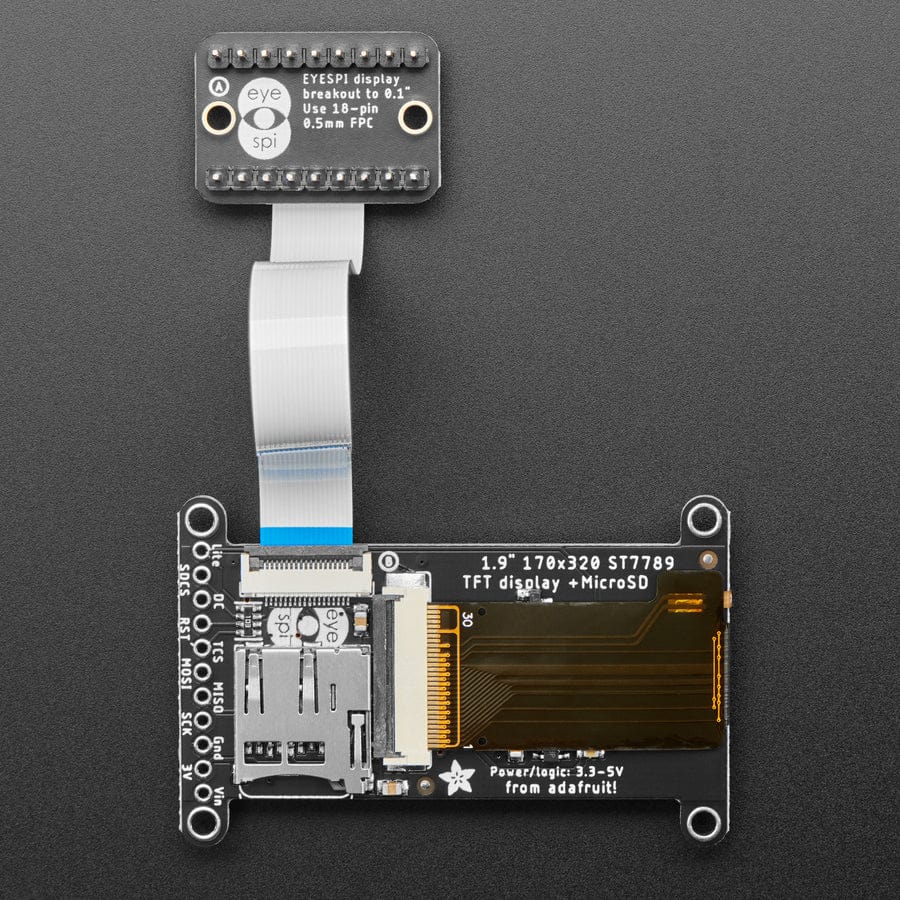

Our most recent display breakouts have come with a new feature: an 18-pin "EYE SPI" standard FPC connector with flip-top connector. This is intended to be a sort-of "STEMMA QT for displays" - a way to quickly connect and extend display wiring that uses a lot of SPI pins. In this case we need a lot of SPI pins, and we want to be able to use long distances so we go with an 18-pin 0.5mm pitch FPC.

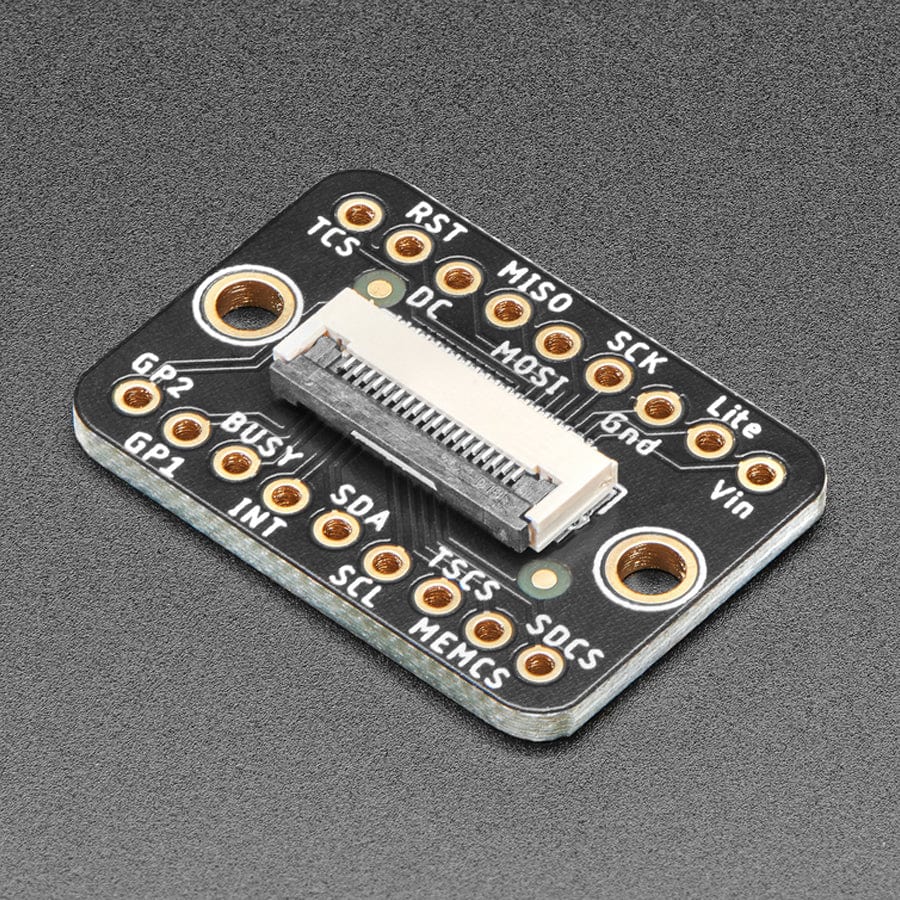

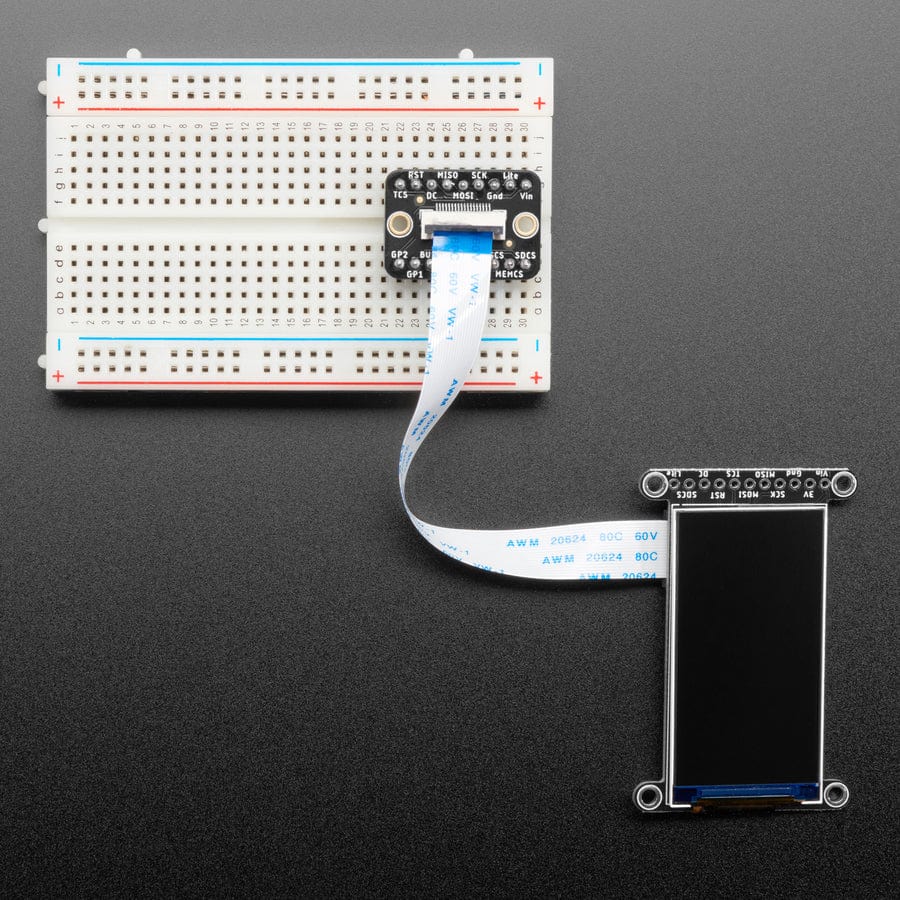

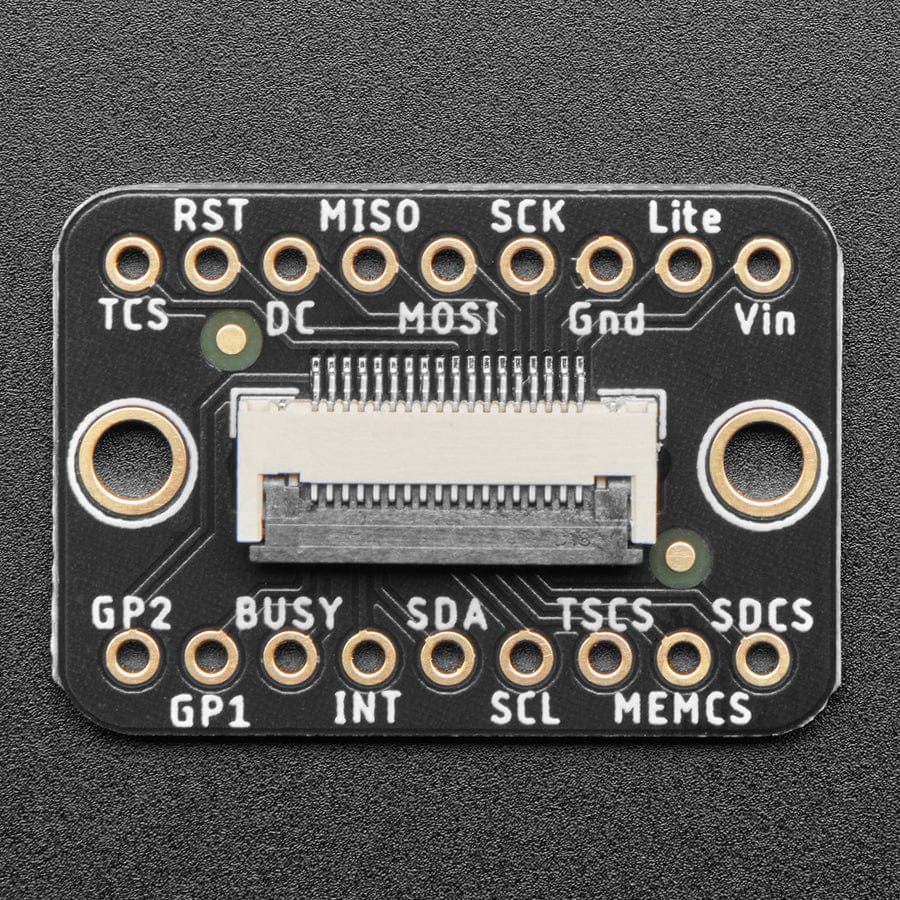

Now you can connect to the displays, but what goes on the other side of the FPC? Here is one possibility - a simple breakout board that brings all the GPIO to 0.1" spaced header, for breadboarding usage. Each pin usage is labeled, and for most display purposes you only need the left half of the display for power and SPI connectivity.

Don't forget you'll also want an 18-pin EYESPI FPC cable.

Specifications

  • Product Dimensions: 25.3mm x 17.7mm x 3.6mm
