Assembled Terminal Block Breakout FeatherWing

The Terminal Block Breakout connects every Feather pin through screw terminals, turning your microcontroller into a quick-wire prototyping hub.

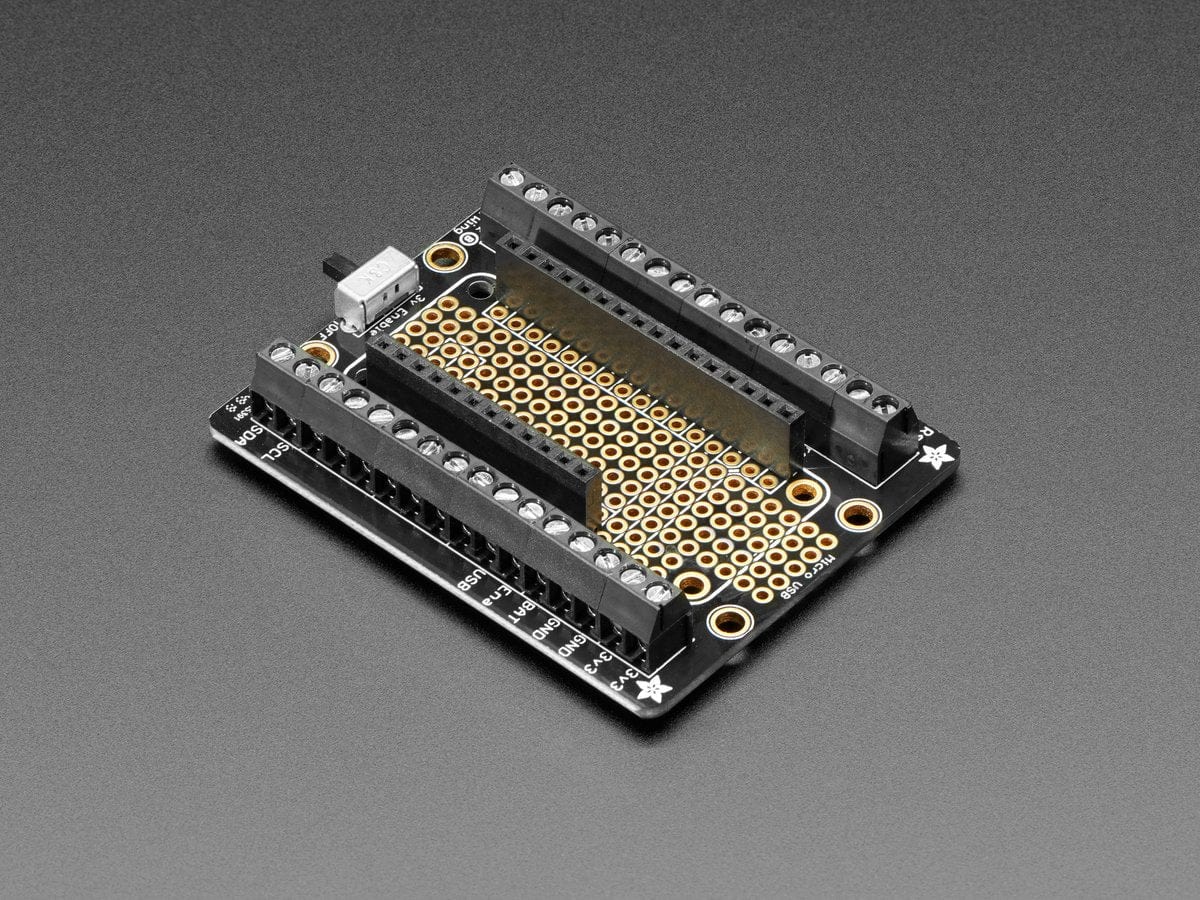

The Terminal Block Breakout FeatherWing kit is like the Golden Eagle of prototyping FeatherWings (eg. majestic, powerful, good-looking). To start, you get a nice prototyping area underneath your Feather, with extra pads for ground, 3.3V and SDA/SCL. Not one to stop there, we expanded the PCB out to 2" x 2.5" with 3.5mm pitch terminal blocks down each side. There's also four mounting holes so you can attach the breakout to your enclosure or project.

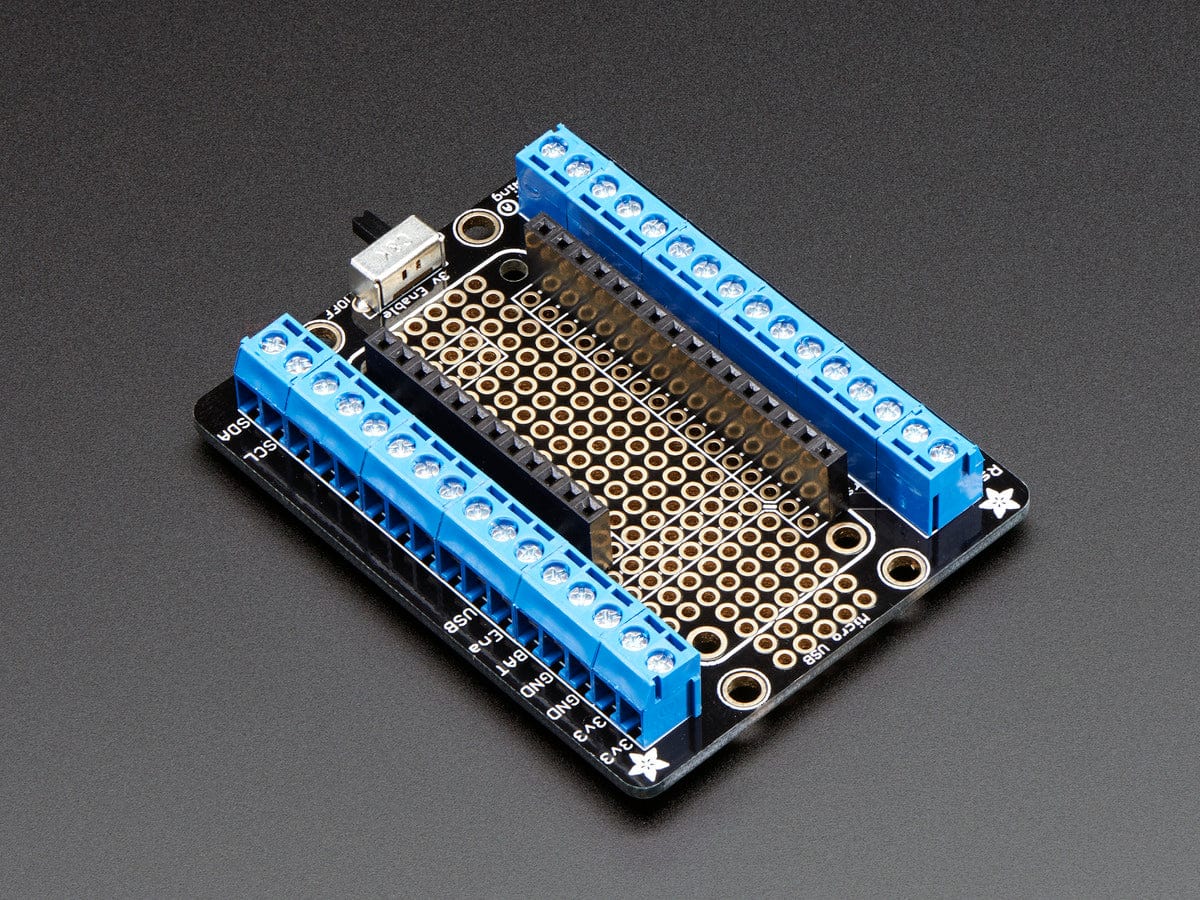

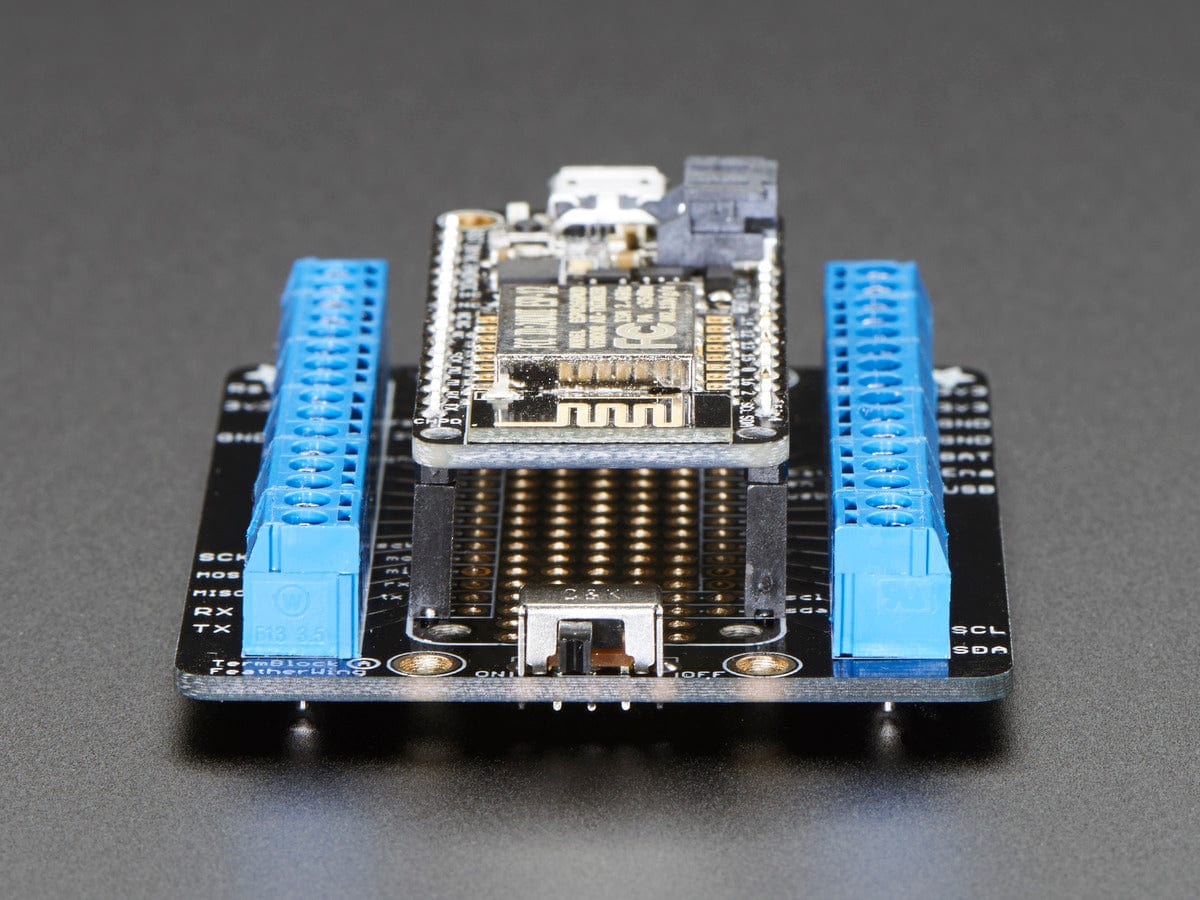

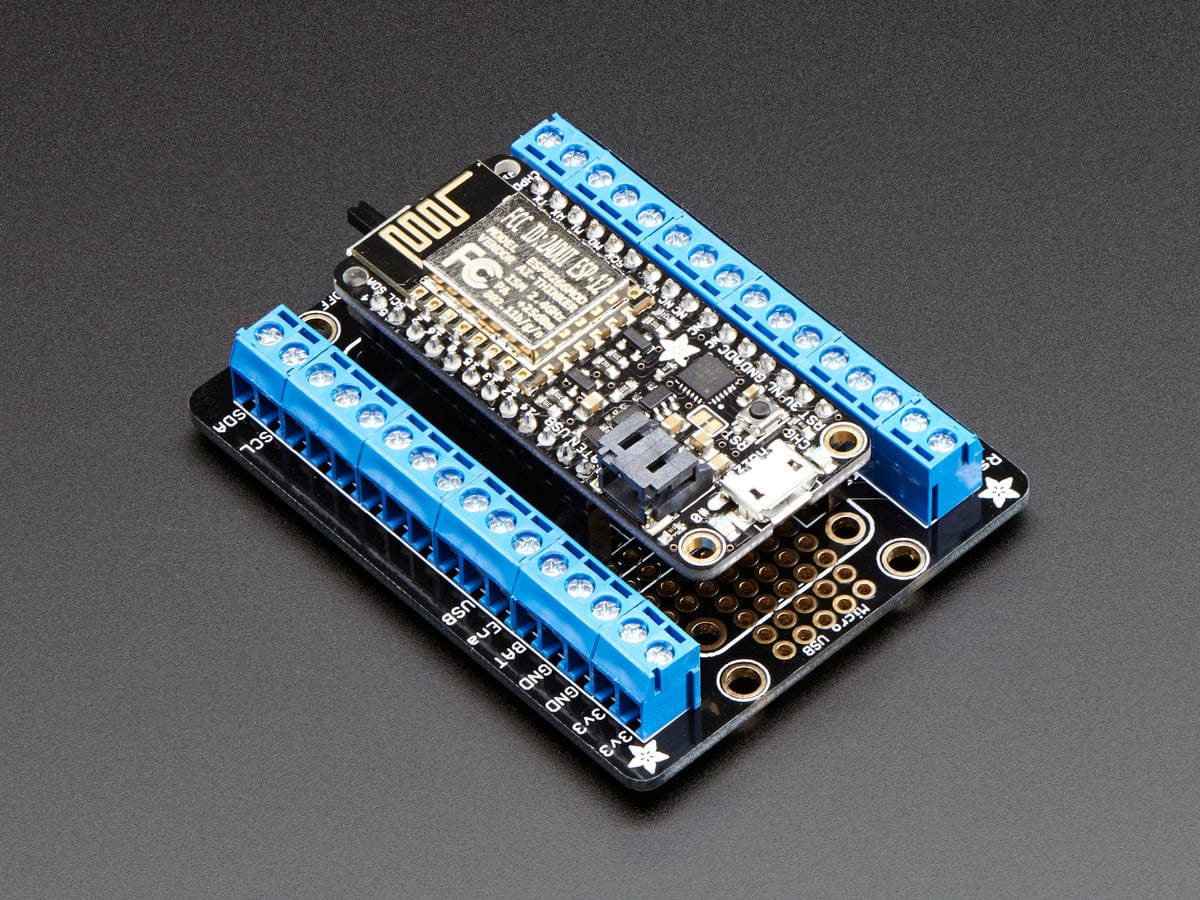

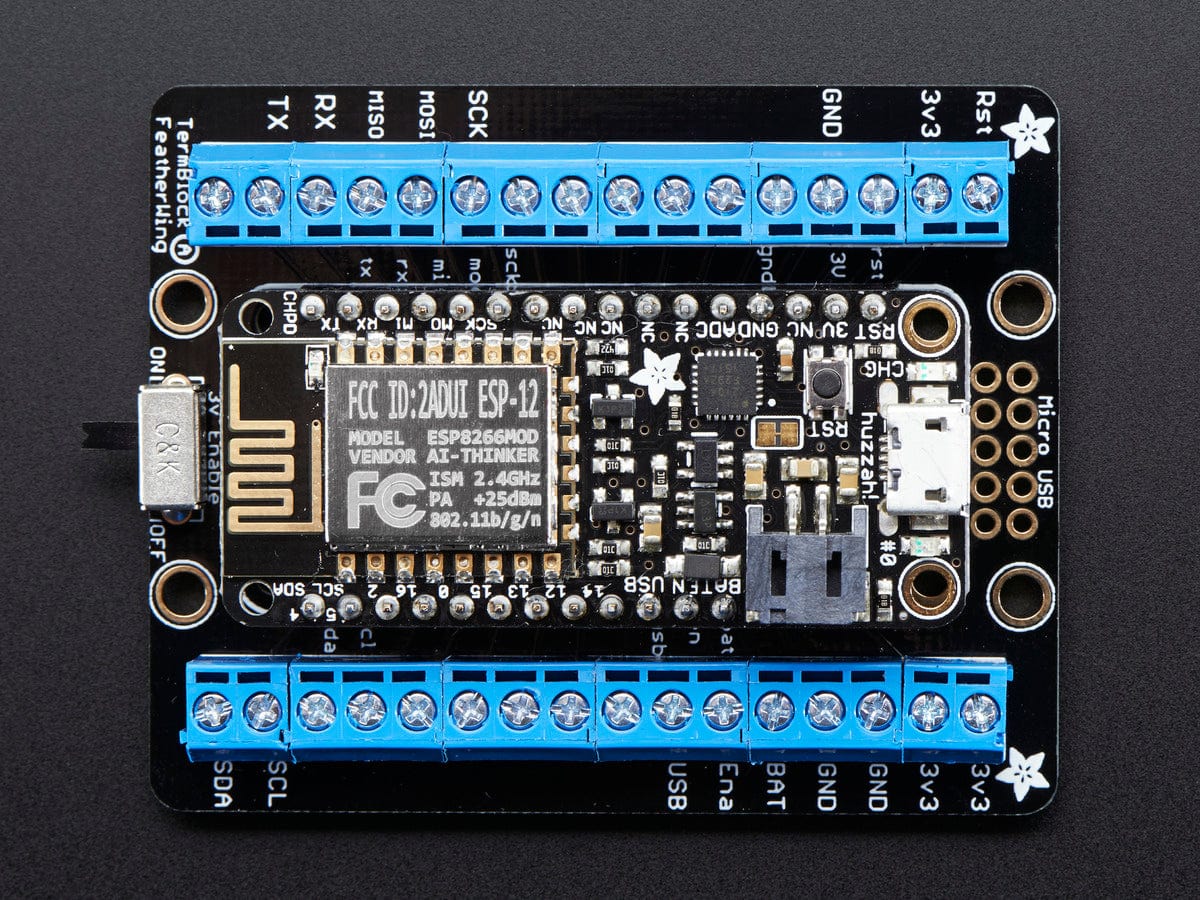

This product works with most of our Feathers! (Reverse TFT Feather boards don't work because they are 'upside down') The terminal blocks allow you to connect to any of the external Feather pins, great for wiring temporary or permanent installations. We also give you a few extra terminal block pins for ground and 3.3V connections since those are so useful.  The terminal blocks included with your product may be blue or black.

Finally, there's a slide switch, which connects the EN pin to ground when in the 'off' position, cutting off the 3.3V regulator.

Please note that the FONA Feather uses both VBat and 3.3V as power supplies so you wont be able to fully turn off the FONA Feather with this switch.

Features

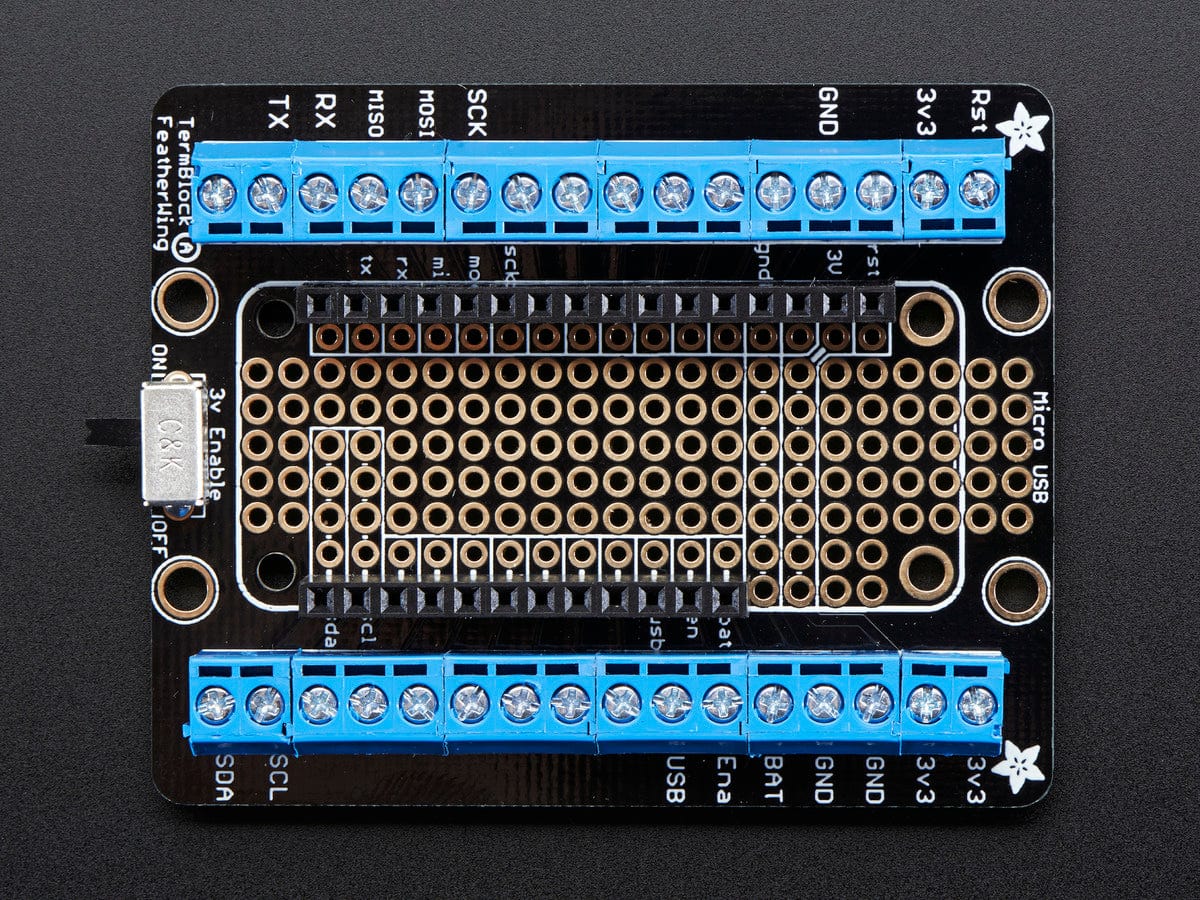

• Prototyping area with extra pads for ground, 3.3V, and SDA/SCL
• 2" x 2.5" PCB with 3.5mm pitch terminal blocks on each side
• Four mounting holes for enclosure or project attachment
• Compatible with most Feather boards (except Reverse TFT Feathers)
• Terminal blocks connect to all external Feather pins
• Extra terminal block pins for ground and 3.3V connections
• Slide switch to disable 3.3V regulator via EN pin
• Blue or black terminal blocks included

Specifications

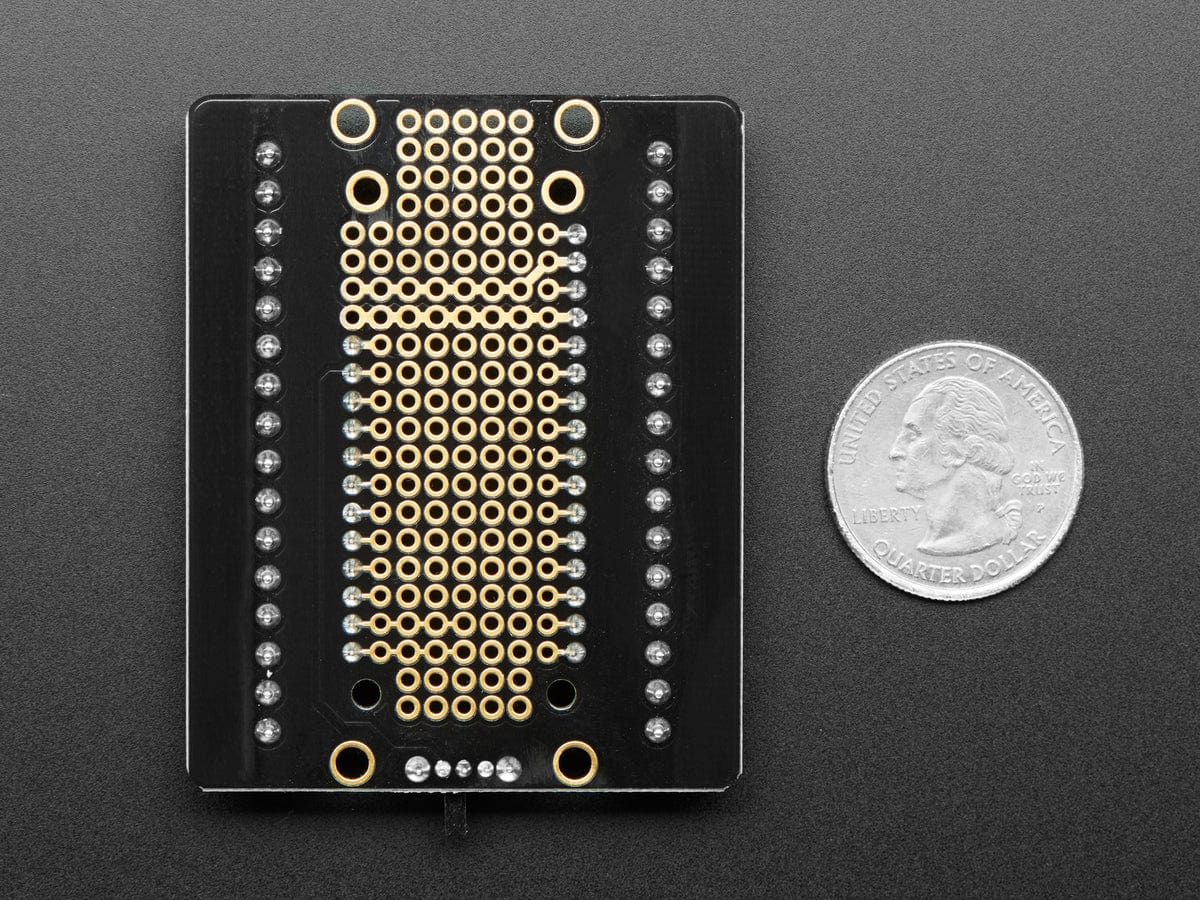

• Dimensions (assembled): 64mm x 51mm x 12mm

Revision History

• As of Thursday, December 15th 2016 - this product now comes fully assembled! Plug in your Feather and you're ready to go immediately.
• As of Feb 5, 2020 - We've made the trace to the enable pin thicker, and added a ground plane which helps keep the enable line clean some high-noise environments.

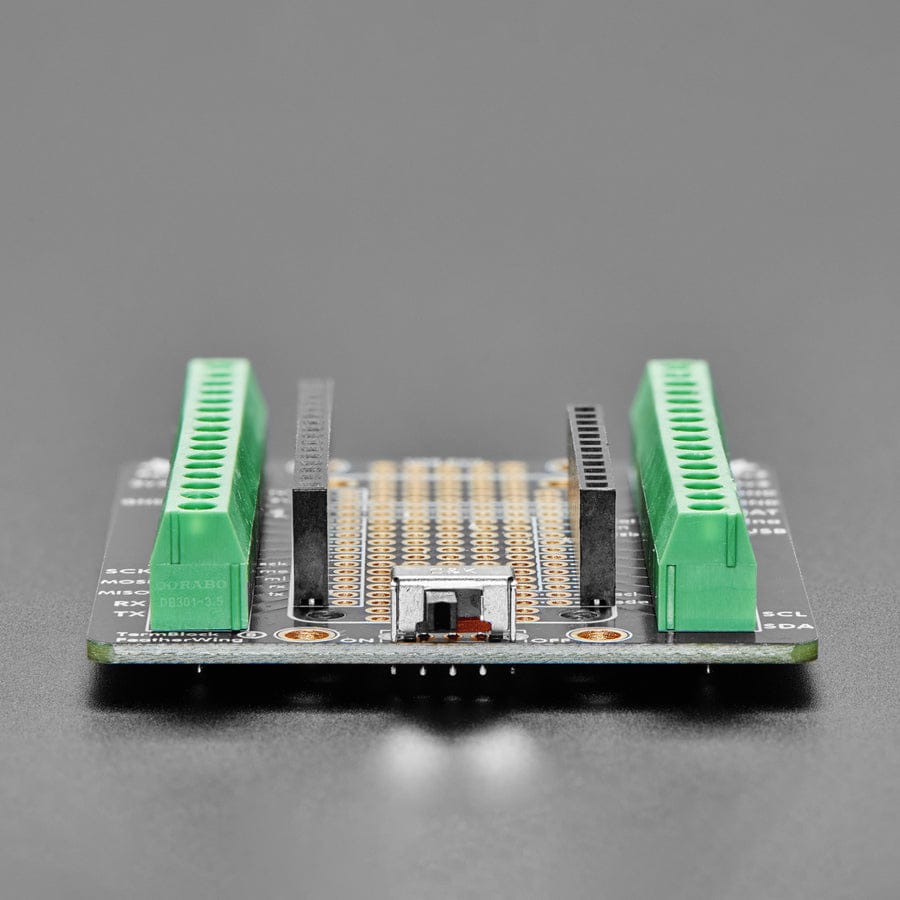

• As of August 22, 2024 - The terminal blocks are now green, and we updated this PCB with Adafruit Pinguin to make a lovely and legible silkscreen.

Resources

• Datasheet and Schematic

Package Contents

• 1x Assembled Terminal Block Breakout FeatherWing for all Feathers
