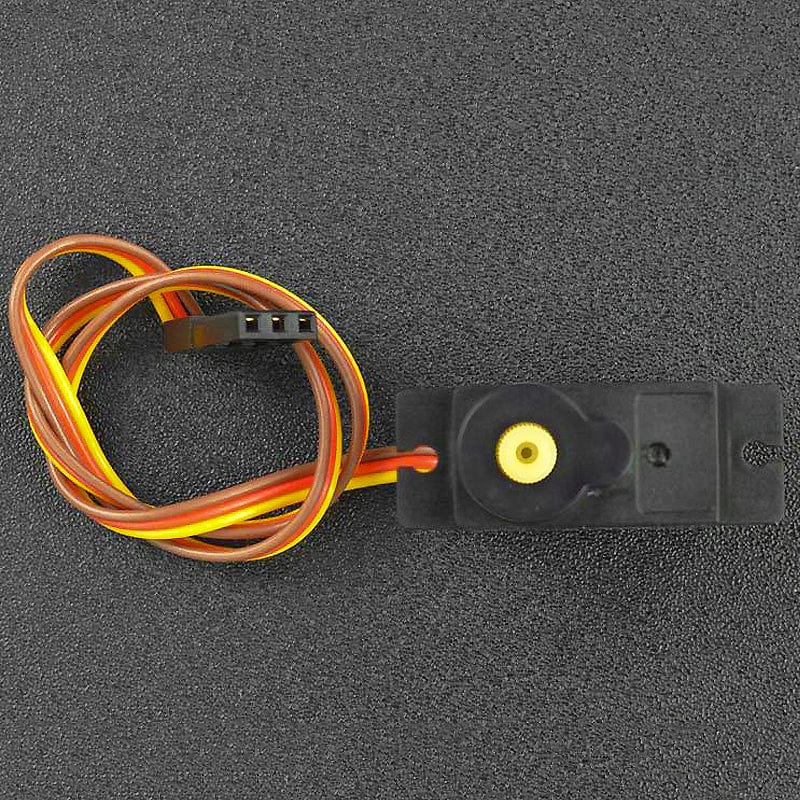

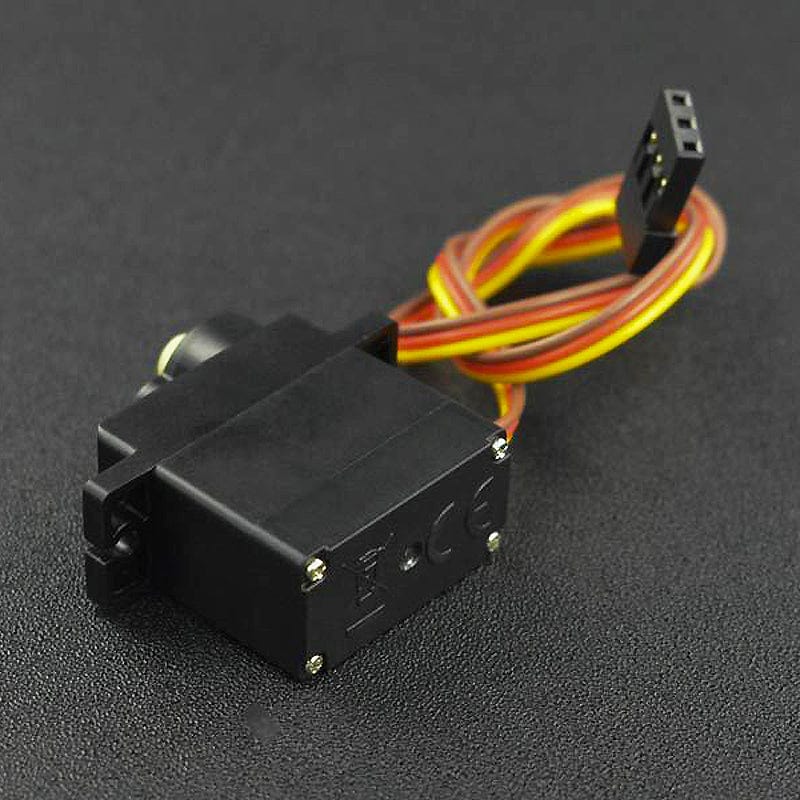

9g 180° Clutch Servo

DFRobotSKU: SER0049
Price:
Sale price £5
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.80 incl. VAT excl. VAT
DFRobotGravity: IO Sensor Shield For Arduino Mega Due
Sale price £9.50 incl. VAT excl. VAT
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

When a servo is operated under complex circumstances such as robot and model, it may get stuck, burned or damaged due to external forces, which could bother you a lot...

Now DFRobot is launching a series of servos with a clutch function and electronic protection that can solve your problems perfectly.

Clutch Function

When the angle of a servo is changed by external forces during normal operation, the servo can automatically reset and continue working through the clutch function, which prevents it from being damaged.

Electronic Protection

After being blocked for 5 seconds, the servo will automatically turn off its power to avoid getting burned.

Servo Internal Structure

This servo features large torque, stable performance, accurate running angle, and is easy to install. The operating voltage is 4.8~6V. When the servo is powered at 6V, its stall torque will exceed 1.2 kg. There are no limited switches inside the servo so it can rotate smoothly at 180 degrees (manually only). Meanwhile, the servo could operate fluently with minimal power, and you can just supply power to it by a normal battery or USB. In addition, users can directly control the servo using servo libraries in Arduino IDE and let it reach a maximum 180 degrees rotation angle within the pulse range of 500-2500μsec.

Mechanical Dimensions

Selection Guide for Clutch Servo

Model 6kg 180° 6kg 300° 9g 180° 9g 300° 2kg 180° 2kg 300°
SKU SER0051 SER0057 SER0049 SER0053 SER0050 SER0056
Operating Voltage 4.8-6VDC 4.8-6V DC 4.8-6V DC 4.8-6V DC 4.8-6V DC 4.8-6V DC
Quiescent Current ≤10mA at 6.0V ≤10mA at 6.0V ≤8mA at 6.0V ≤8mA at 6.0V ≤8mA at 6.0V ≤8mA at 6.0V
No-load Current ≤60mA at 6.0V ≤60mA at 6.0V

≤50mA at 4.8V

≤50mA at 4.8V

≤110mA at 4.8V

≤110mA at 4.8V

≤60mA at 6.0V

≤60mA at 6.0V

 ≤120mA at 6.0V

≤120mA at 6.0V

Stall Current ≤1.65A at 6.0V ≤1.65A at 6.0V

≤550mA at 4.8V

≤550mA at 4.8V

≤700mA at 4.8V

≤700mA at 4.8V

≤650mA at 6.0V

≤650mA at 6.0V

≤800mA at 6.0V

≤800mA at 6.0V

Rated Torque ≥4.4kg.com at 6.0V ≥4.4kg.com at 6.0V

≥0.32kgf·cm at 4.8V

≥0.32kgf·cm at 4.8V

≥0.45kgf·cm at 4.8V

≥0.45kgf·cm at 4.8V

≤0.4kgf·cm at 6.0V

≤0.4kgf·cm at 6.0V

≥0.55kgf·cm at 6.0V

≥0.55kgf·cm at 6.0V

Stall Torque ≥6kg·cm at 6.0V ≥6kg·cm at 6.0V

≥1.0kgf·cm at 4.8V

≥1.0kgf·cm at 4.8V

≥1.6kgf·cm at 4.8V

≥1.6kgf·cm at 4.8V

≤1.2kgf·cm at 6.0V

≤1.2kgf·cm at 6.0V

≥2.0kgf·cm at 6.0V

≥2.0kgf·cm at 6.0V

Operating Angle 180°±10° 300°±10° 180°±10° 300°±10° 180°±10° 300°±10°
Pulse Width Range 500~2500μs 500~2500μs 500~2500μs 500~2500μs 500~2500μs 500~2500μs
Communication Mode PWM PWM PWM PWM PWM PWM

Specifications

  • Operating Voltage: 4.8-6V DC
  • Static Current: ≤8mA at 6.0V
  • No-load Current: ≤110mA at 4.8V ≤120mA at6.0V
  • Stall Current: ≤700mA at 4.8V ≤800mA at 6.0V
  • Rated Torque: ≥0.45kgf·cm at 4.8V ≥0.55kgf·cm at 6.0V
  • Stall Torque: ≥1.6kgf·cm at4.8V ≥2.0kgf·cm at6.0V
  • Operating Angle: 180°±10°
  • Communication Mode: PWM
  • Pulse Width Range: 500~2500μs

Package Details

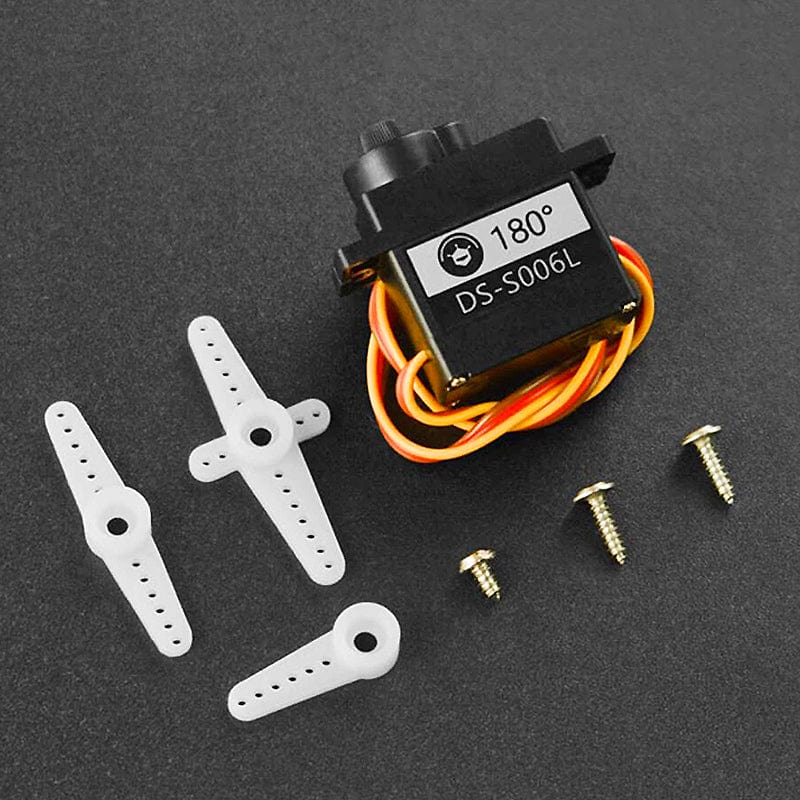

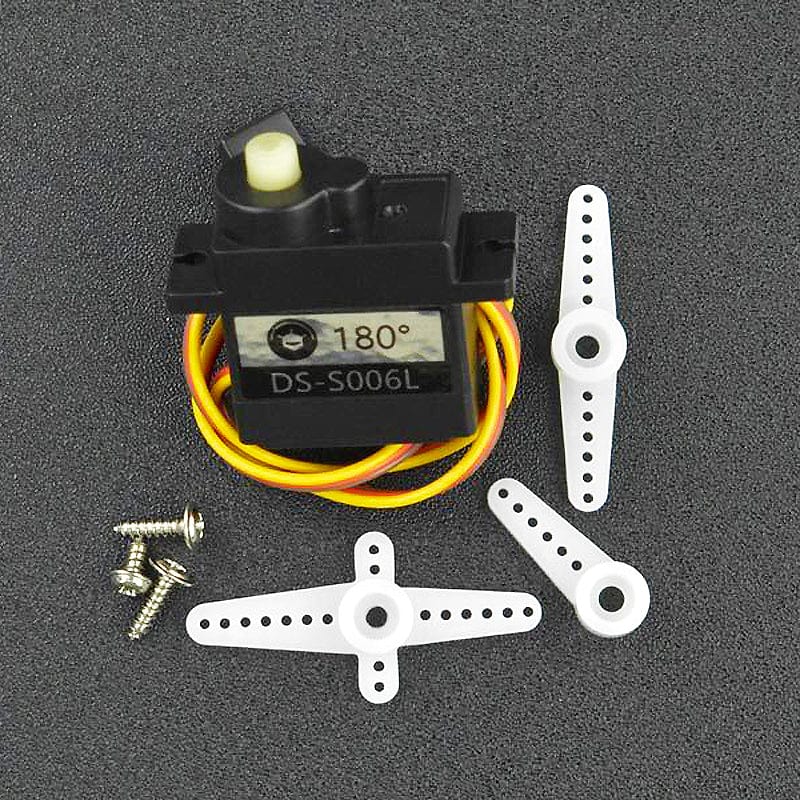

  • 1x 9g 180° Clutch Servo
  • 1x Servo Plate & Accessories set
