868/915MHz LPWA Outdoor IP65 SMA Antenna

868/915MHz LPWA Outdoor IP65 SMA Antenna

WaveshareSKU: WAV-24412

£2.90

incl. VAT

excl. VAT

In stock

Awesome Extras

SMA to uFL/u.FL/IPX/IPEX RF Adapter Cable by The Pi Hut - The Pi Hut

The Pi Hut SMA to uFL/u.FL/IPX/IPEX RF Adapter Cable

£3.40 incl. VAT excl. VAT

SMA Male to SMA Female Antenna Cable (0.3m) by The Pi Hut - The Pi Hut

The Pi Hut SMA Male to SMA Female Antenna Cable (0.3m)

£4 incl. VAT excl. VAT

Straight SMA Thru Hole RF Connector by The Pi Hut - The Pi Hut

Adafruit Straight SMA Thru Hole RF Connector

£1.90 incl. VAT excl. VAT

Right Angle SMA Thru Hole RF Connector by The Pi Hut - The Pi Hut

Adafruit Right Angle SMA Thru Hole RF Connector

£1.90 incl. VAT excl. VAT

This 868/915MHz LPWA outdoor antenna is designed for long-range, low-power wireless applications such as LoRa and LoRaWAN. It offers 5dBi gain and uses a standard SMA-Male connector.

LPWA stands for Low-Power Wide-Area, used by networks such as NB-IoT, LTE-M, LoRaWAN and Sigfox, designed for long-range, low-power IoT communication.

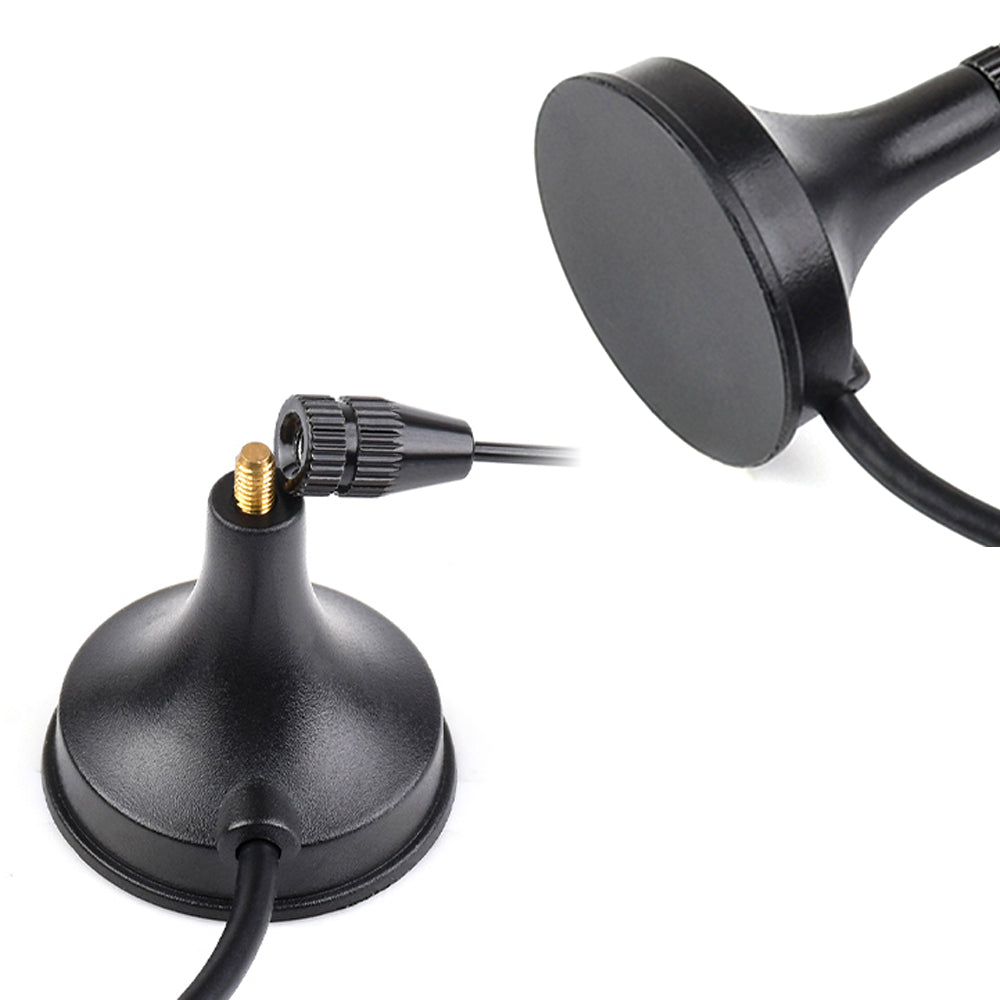

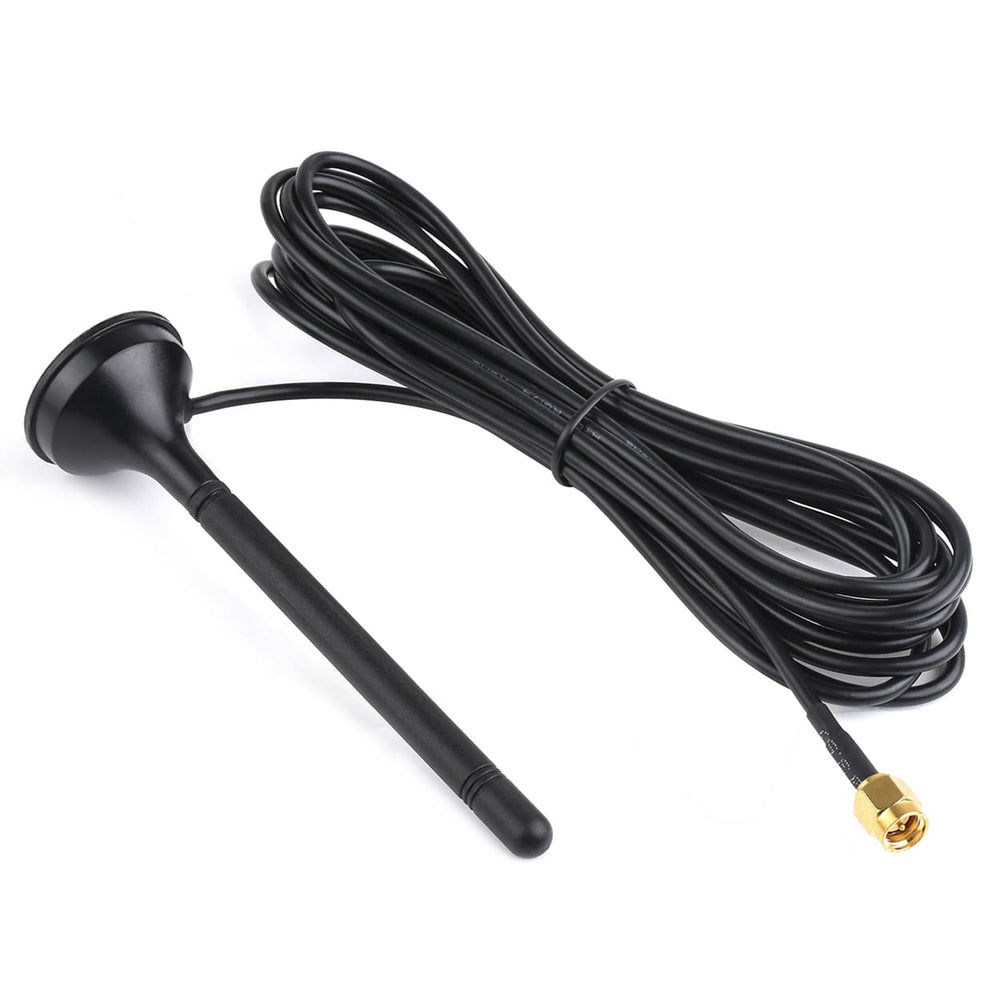

The antenna has an IP65-rated design for outdoor installations, with a magnetic base for mounting to suitable metal surfaces and an integrated ~3m cable for flexible positioning. It uses an SMA-Male connection.

Features

Designed for LPWA applications
Suitable for 868/915MHz LoRa and LoRaWAN hardware
5dBi antenna gain
IP65-rated for outdoor use
Magnetic mounting base
Integrated ~3m cable
SMA-Male connector
Vertical polarisation

Specifications

Network support	LPWA
Version	868/915MHz
Frequency range	690–2700MHz
Gain	5dBi
SWR	≤2.0
Polarisation	Vertical
Output impedance	50Ω
Maximum input power	10W
Connector	SMA-Male (inner pin)

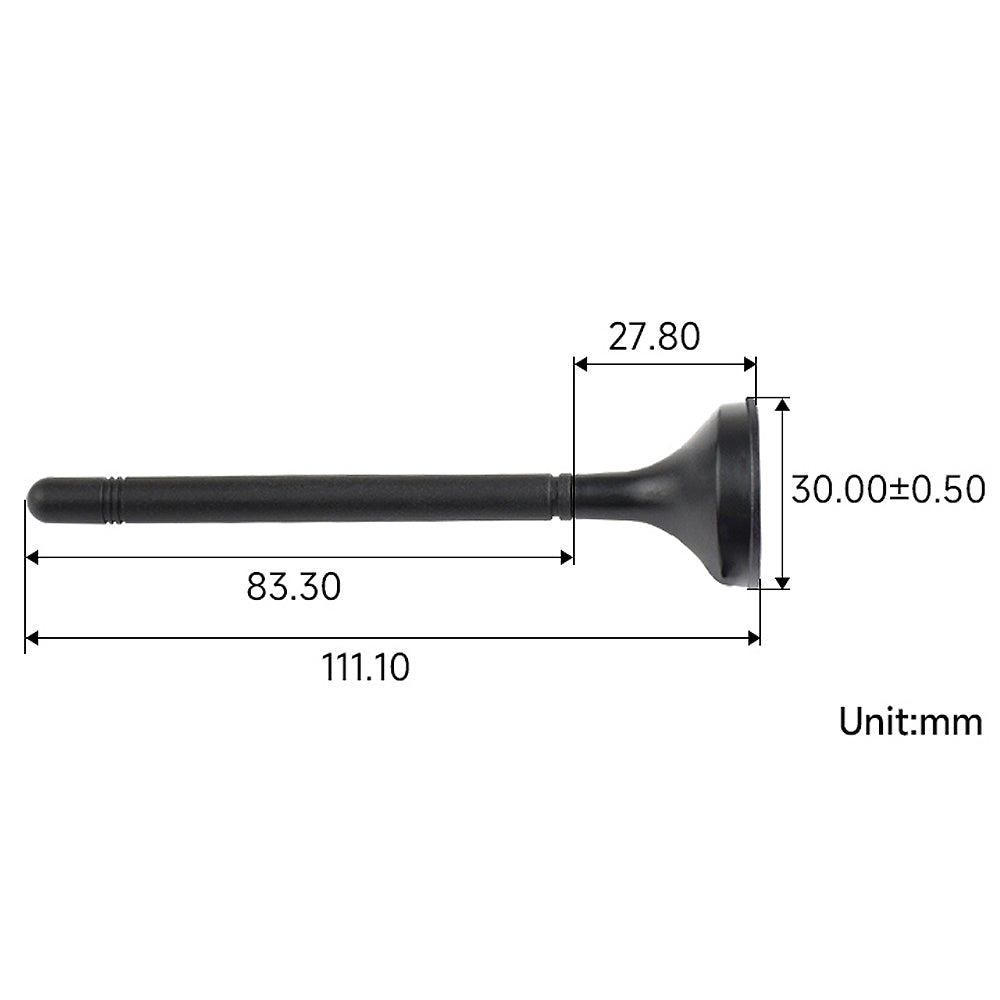

Antenna height	~110mm
Cable length	~3m
Ingress protection	IP65
Colour	Black
Weight	~49g

Package Contents

1x 868/915MHz LPWA Outdoor IP65 Antenna
