8" HD DSI Capacitive Touch Display for Raspberry Pi (1280x800)

This 8" HD Capacitive Touchscreen Display for the Raspberry Pi is ideal for projects that require a high-definition display with touch input. This display has the added benefit of using the same DSI interface as the Official Raspberry Pi Display.

Data connectivity is provided via the Raspberry Pi's onboard DSI port, meaning no bulky HDMI cables! The display features a 1280x800 resolution and ten-point capacitive touch (system/OS dependant) which is controlled by I2C via Pogo pins, keeping your GPIO header completely free and powering the display at the same time.

The Pogo pins also provide power for the entire system. Simply power your Raspberry Pi (ideally using an Offical Raspberry Pi power supply) and the pins will provide power for the display as well - no separate PSU required. Ace!

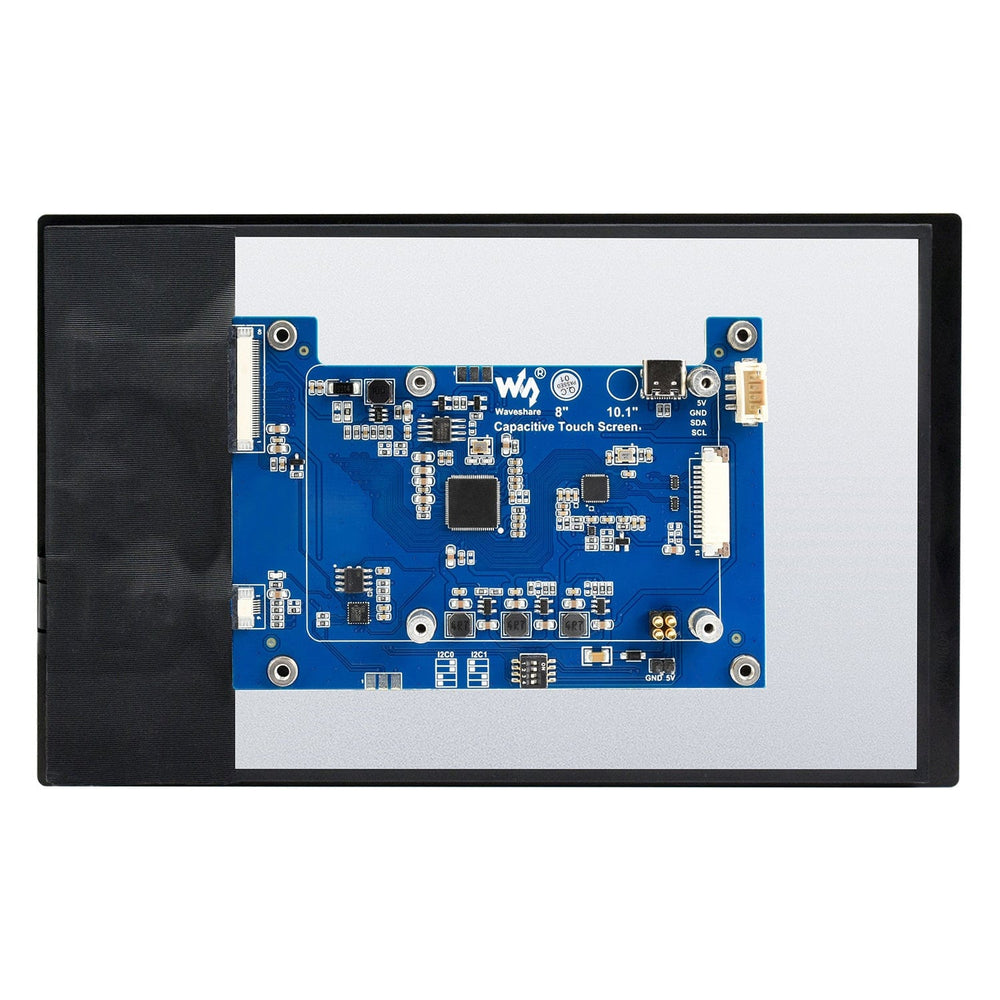

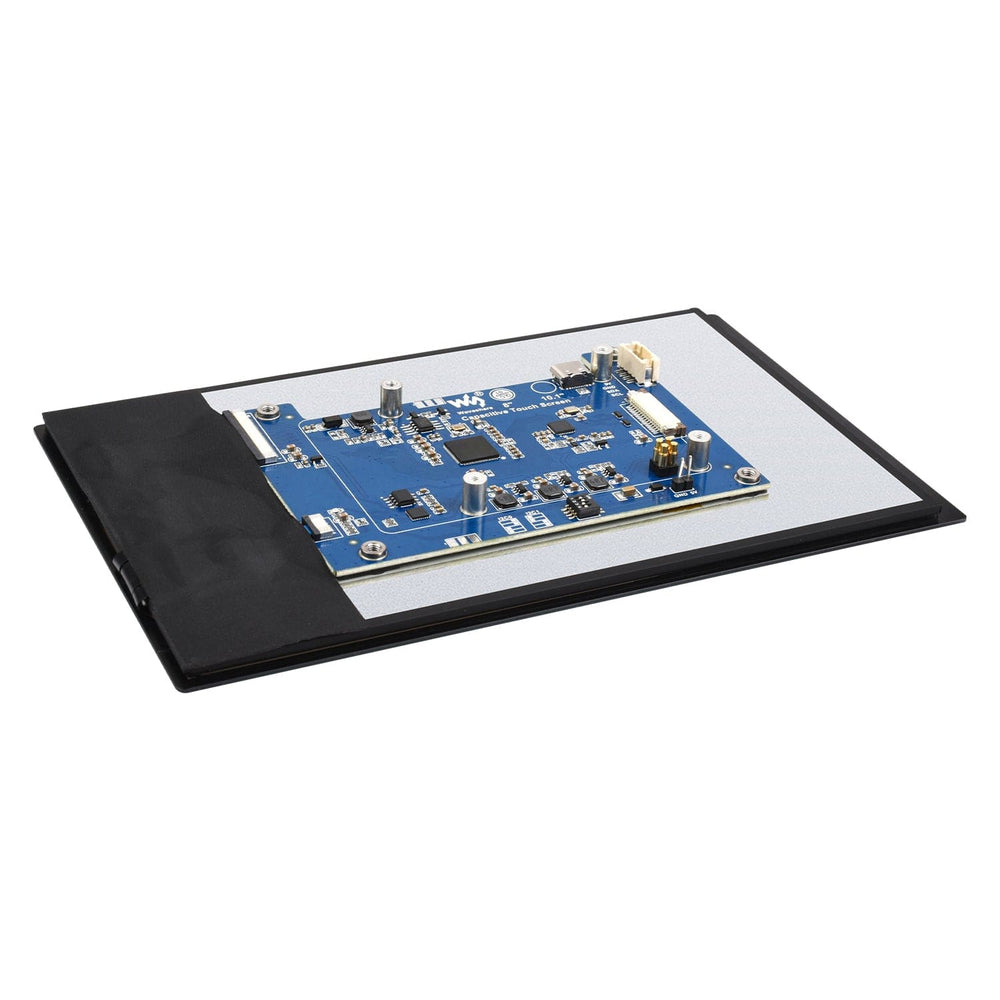

On the rear of the display, you'll find a 5V/GND output header for a fan or other 5V low-power devices, a separate data/power supply header (used when mounting the Raspberry Pi away from the display), touch port selection switch and a USB-C port for power (used when powering separately). There is also mounting hardware to attach the Raspberry Pi directly to the unit, with a slim bezel that makes it suitable for mounting into your own enclosure.

Raspberry Pi 5, 4B, 3B and 3B+ are supported. Online support material is available to help you configure your Raspberry Pi for the display.

Raspberry Pi and power supply not included

Features

• 8" IPS capacitive touchscreen display
• Hardware resolution of 1280x800
• Adopts optical bonding technique, clearer imaging
• Supports 10-point capacitive touch control
• Tempered glass touch panel with 6H hardness
• Drives directly through the Raspberry Pi DSI interface with a refresh rate of up to 60Hz
• Raspberry Pi OS system driver is provided
• Supports Pi 4B/3B+/3A+ (CM3+/4 works with DSI cable)
• Backlight is adjusted by software

Design Features

Specifications

• Connection Interface: DSI
• Resolution: 1280 x 800 pixels
• Display Size: 8"
• Dimensions (Overall): 194mm x 119mm
• Dimensions (Screen): 172.82mm x 108.24mm
• Touch Screen Type: Capacitive

Resources

• Product Wiki

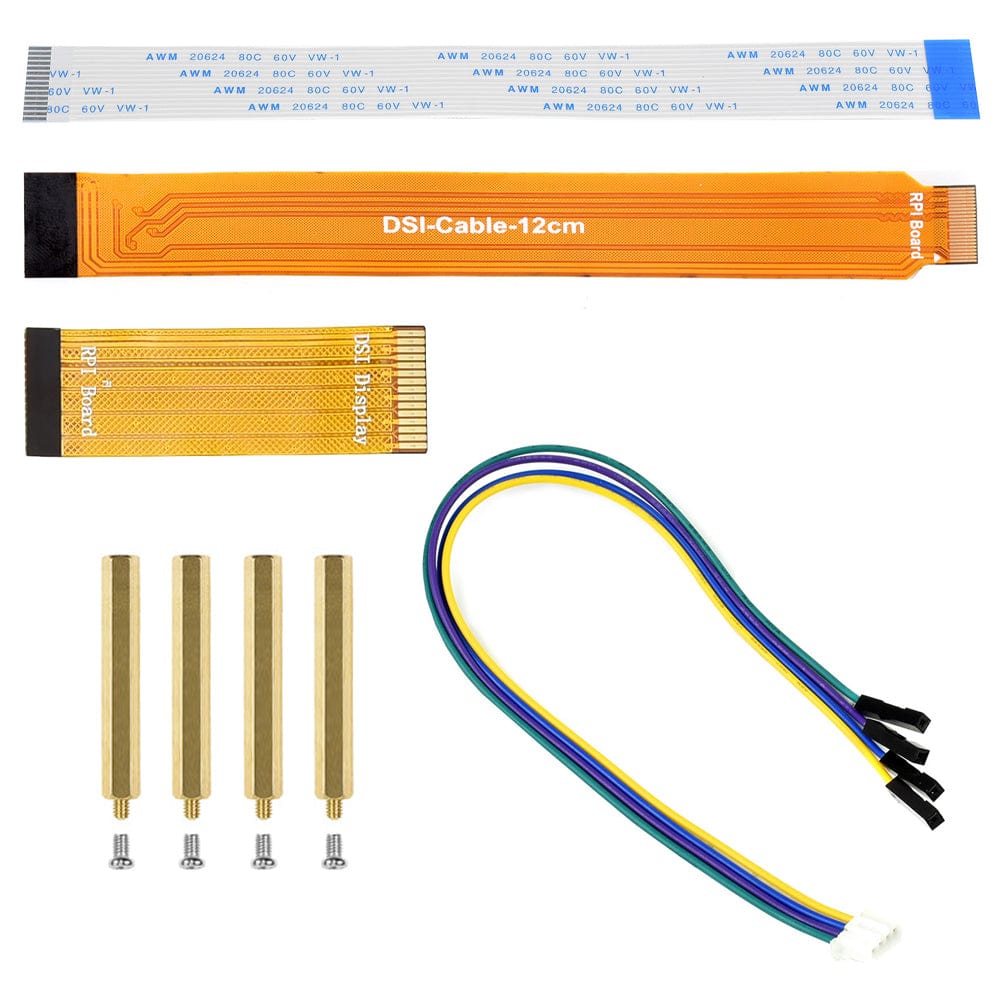

Package Contents

• 1x 8inch DSI LCD (C)
• 1x FPC 15PIN 1.0 pitch 50mm (opposite sides)
• 1x 12cm DSI Cable
• 1x 15-pin FPC 1.0 pitch 160mm (opposite sides)
• 1x PH2.0 4-pin cable 200mm
• 1x Screws pack

Raspberry Pi and power supply not included

Revision History

As of 18/09/2024 we are shipping an updated version which now includes additional cables for Raspberry Pi 5 compatibility.
