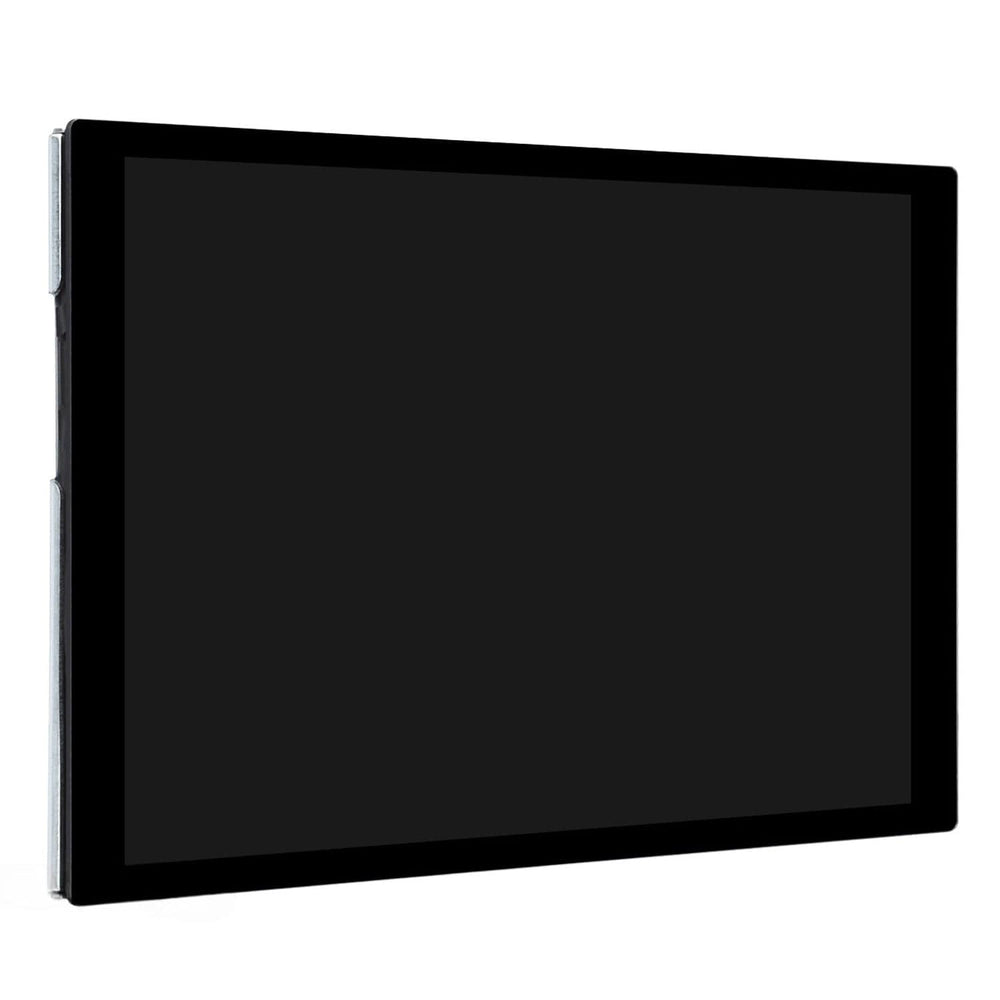

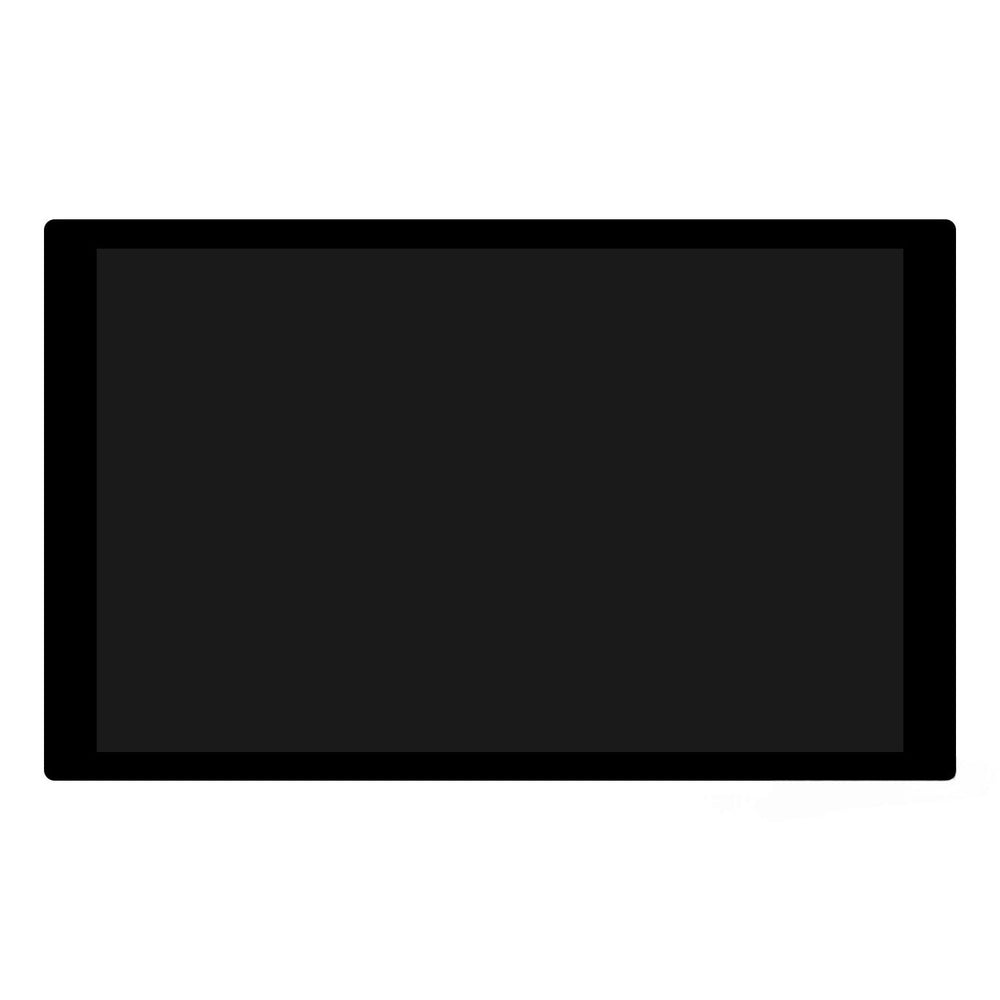

This 8" IPS display from Waveshare features an 800x1280 resolution IPS display with up to 10-point capacitive touch, with dedicated mounting points on the rear for a Raspberry Pi 5/4/3, using the DSI connection along with GPIO power using the included cables.

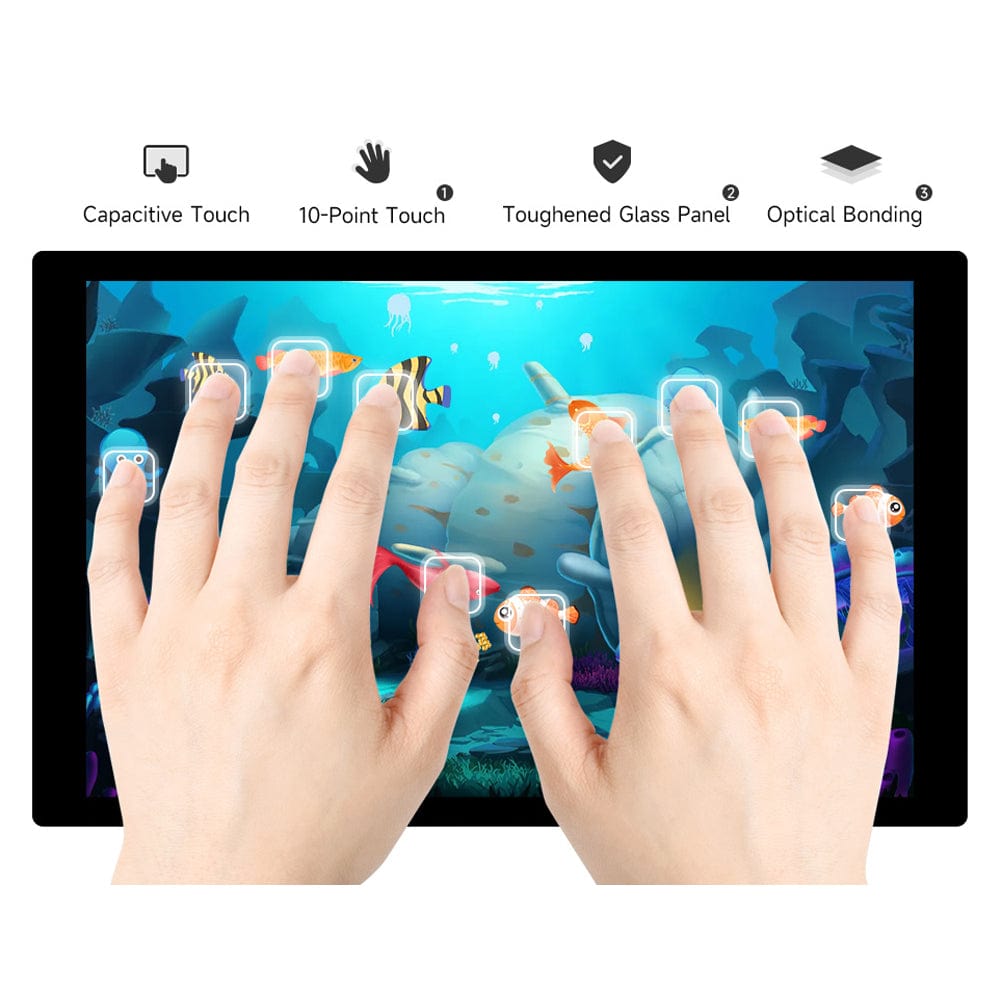

The IPS display ensures wide 178° viewing angles and accurate, vibrant colours, with backlight adjustment available via software. Up to 10-point touch is available (operating system dependent), supported by a toughened glasspanel with optical bonding, with up to 6H hardness rating.

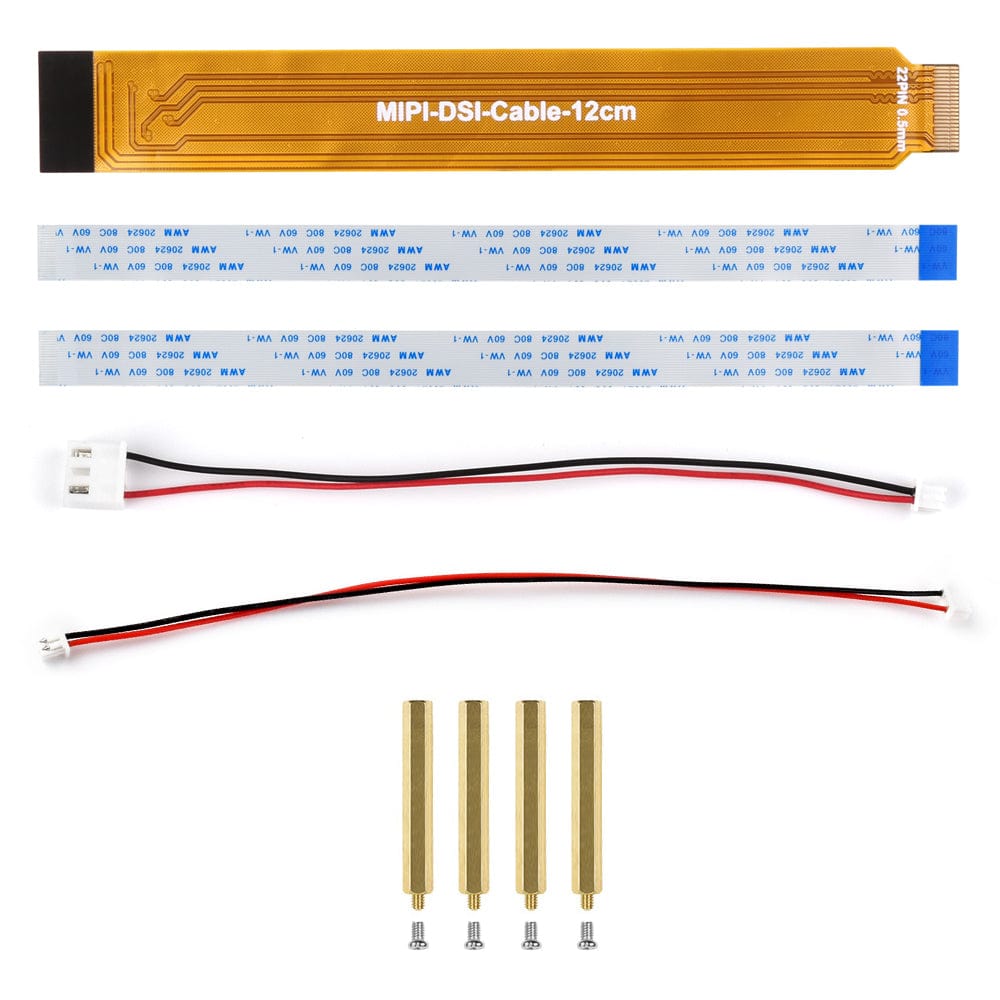

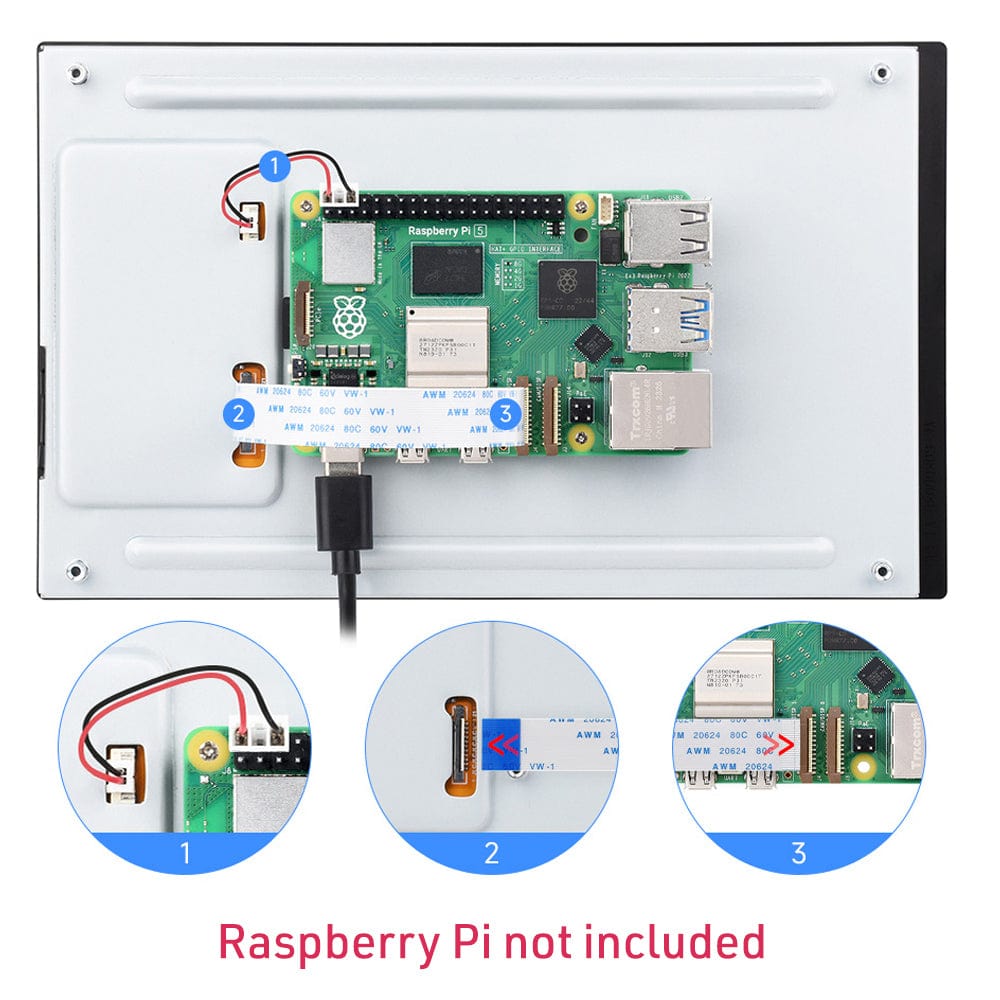

The display will work with any Raspberry Pi that has a DSI port (Pi 5, 4, 3, 2, B+), as different DSI cables are included to cover the various models, along with a GPIO power cable. Standoffs and screws are also included to allow you to mount your Raspberry Pi to the rear of the display.
Raspberry Pi not included.
Features
8" DSI touch screen with ten-point capacitive touch control
Compatible with Raspberry Pi 5, 4, 3, 2, B+
IPS display panel with a native resolution of 800×1280
Optically bonded toughened glass panel
Toughened glass 10-point capacitive touch panel with hardness up to 6H
LCD driven via the DSI interface, with a refresh rate of up to 60Hz

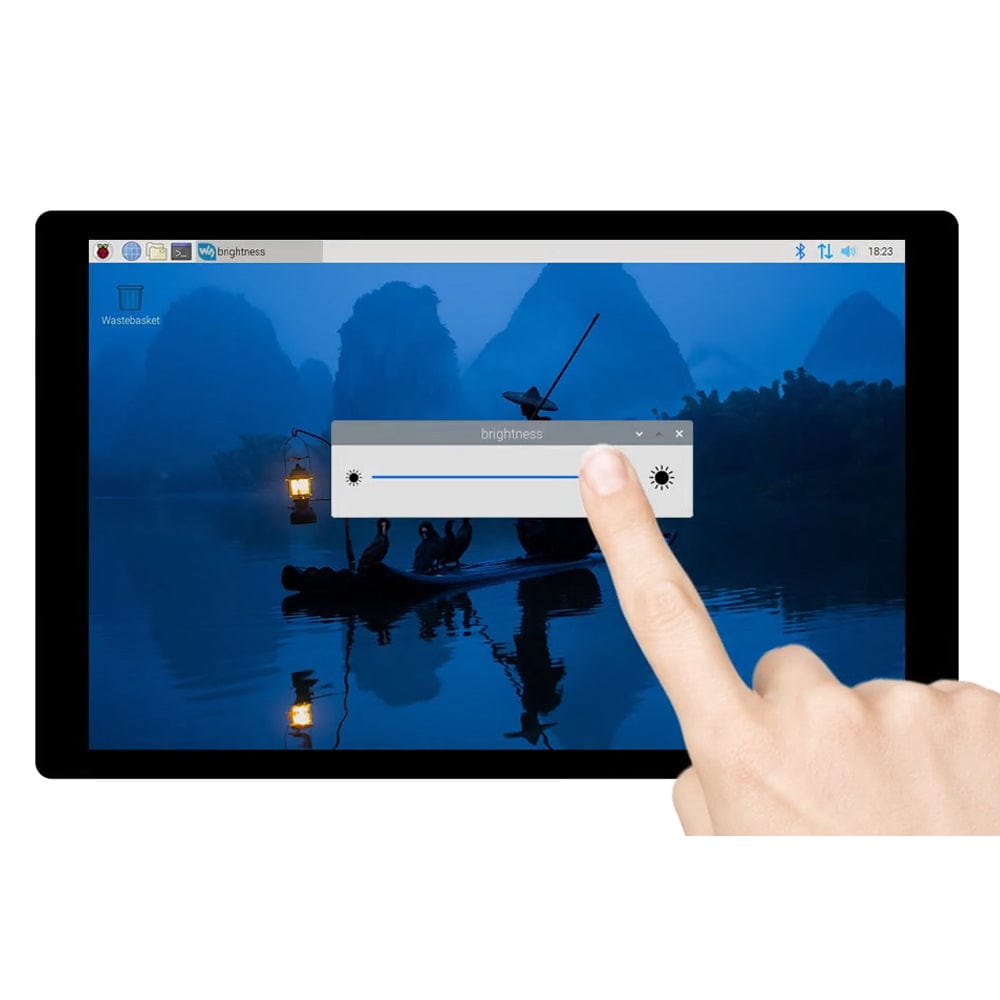

Supports software-controlled backlight brightness

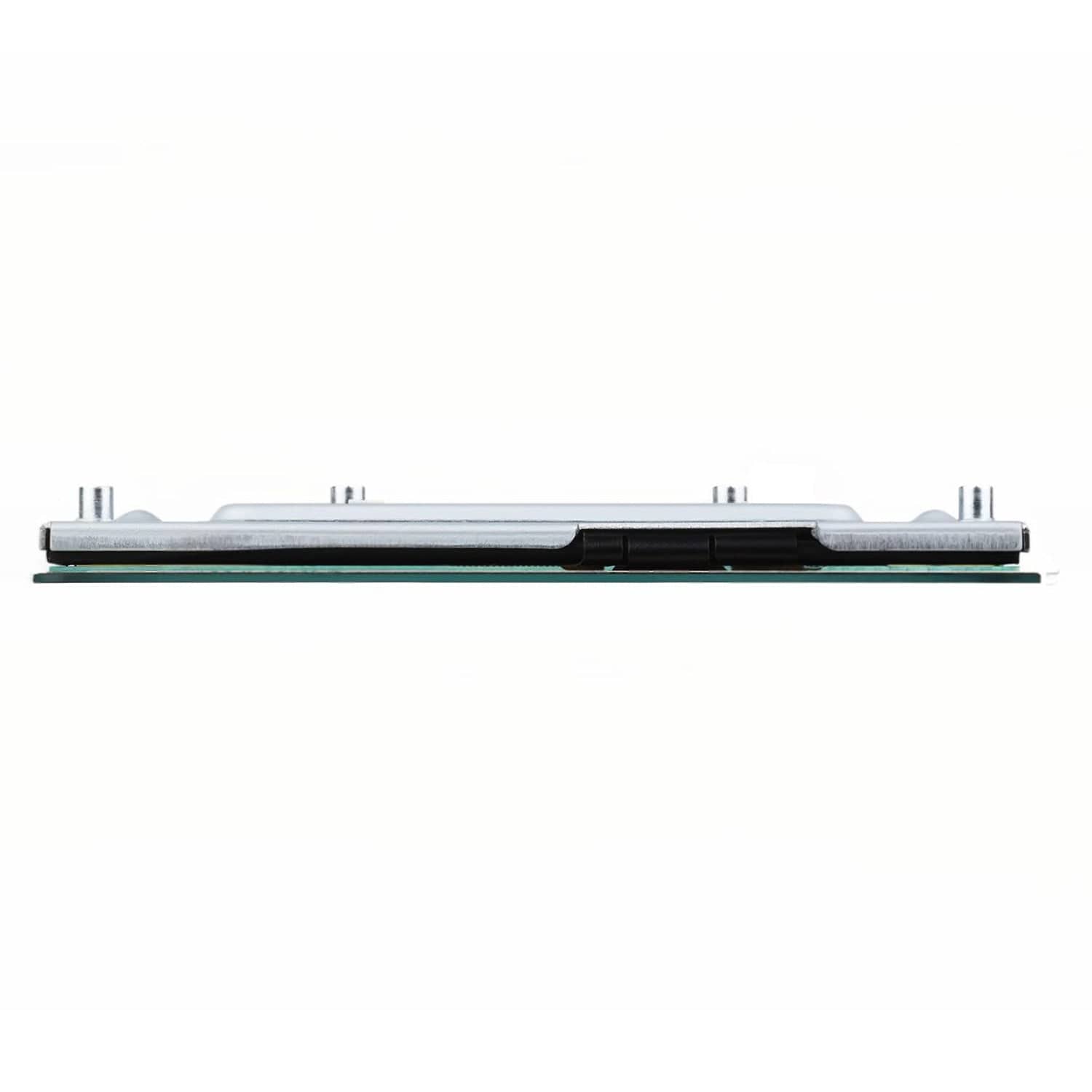

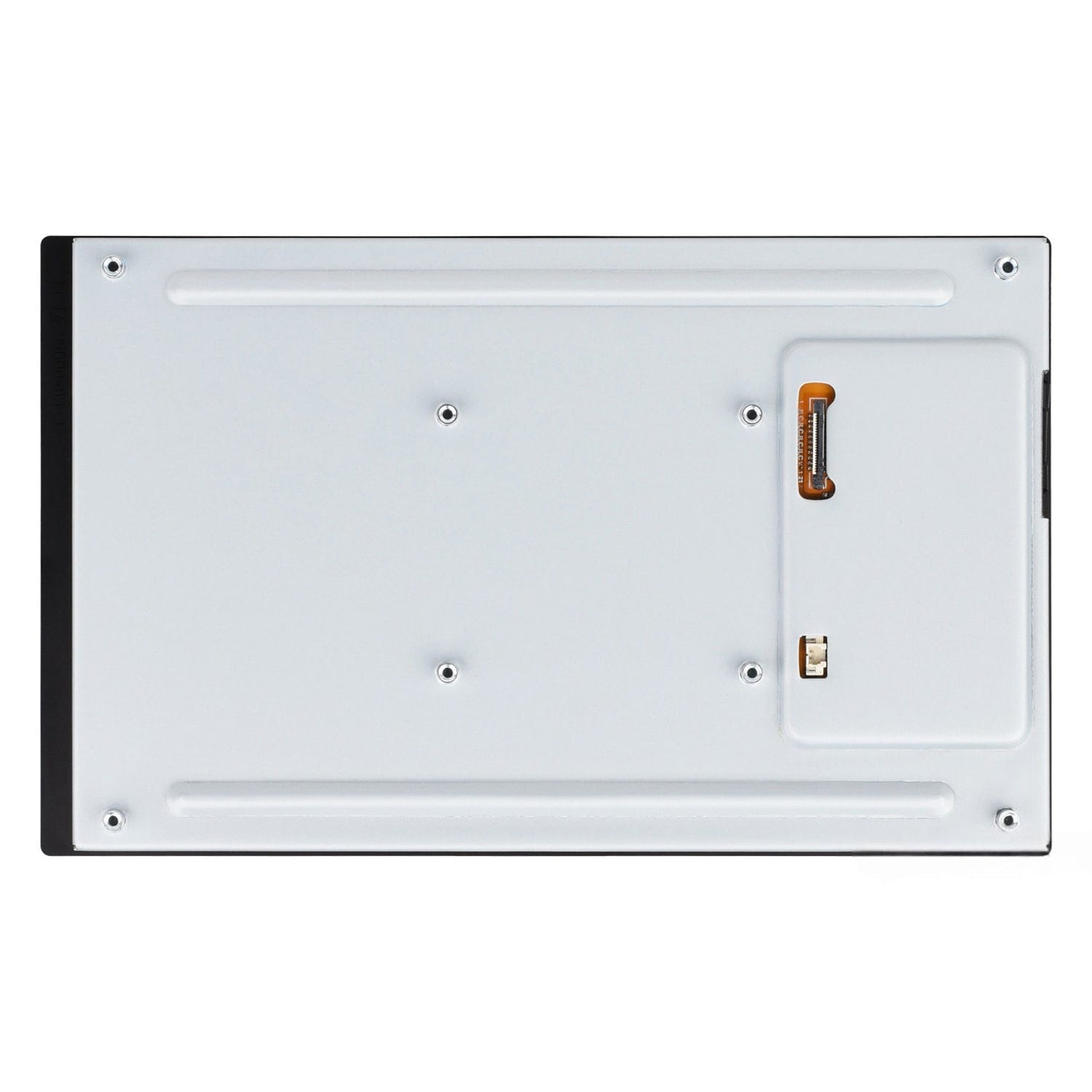

Aluminium alloy back cover with passive cooling design
Specifications
Minimum
Standard
Maximum
Unit
Note
Input voltage
4.75
5.00
5.30
V
1
Input current
-
0.8
TBD
A
2
Operating temperature
0
25
60
℃
3
Storage temperature
-10
25
70
℃
3
Note 1: Input voltages exceeding the maximum or improper operation may cause permanent damage to the device.
Note 2: The input current needs to be ≥ 0.8A, otherwise it will cause startup failure or display abnormality. Remaining in an abnormal state for a long time may cause permanent damage to the device.
Note 3: Do not store the display panel in a high-temperature or high-humidity environment for a long period. The display panel should operate within its specified limits; otherwise, it may be damaged.
