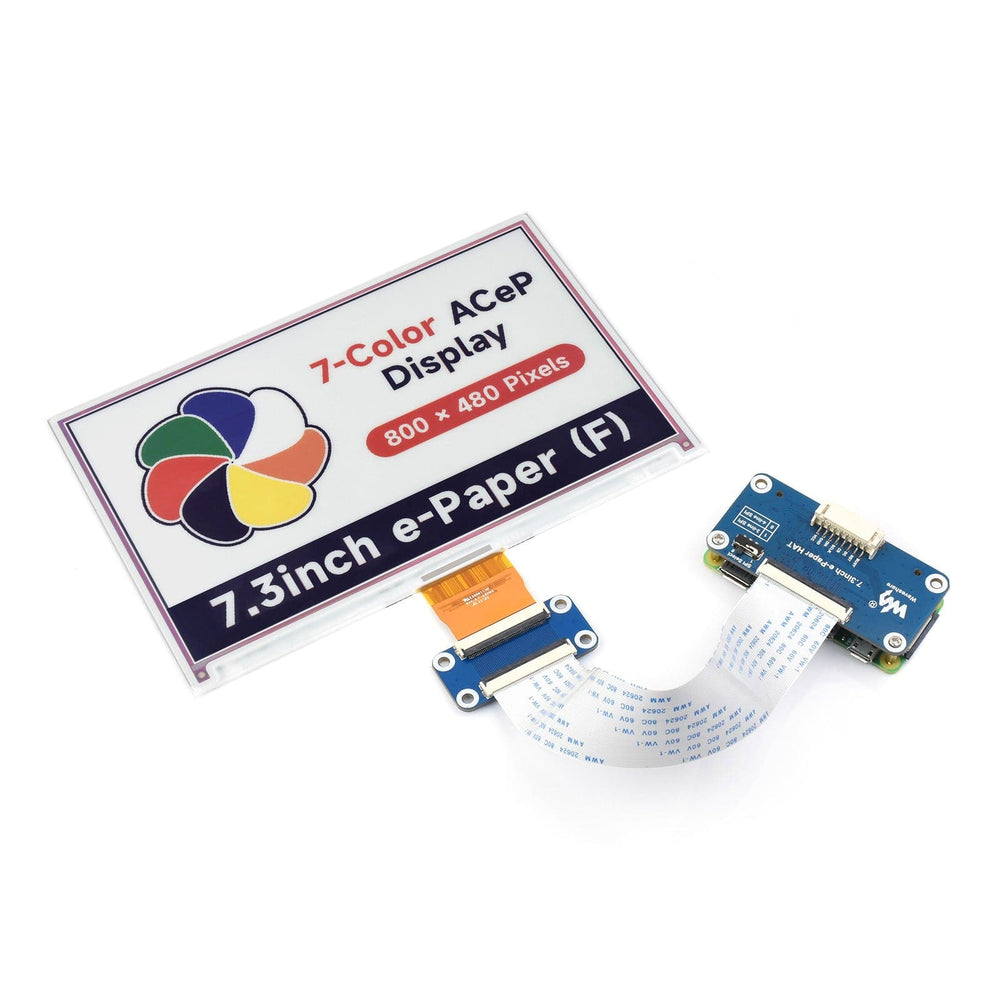

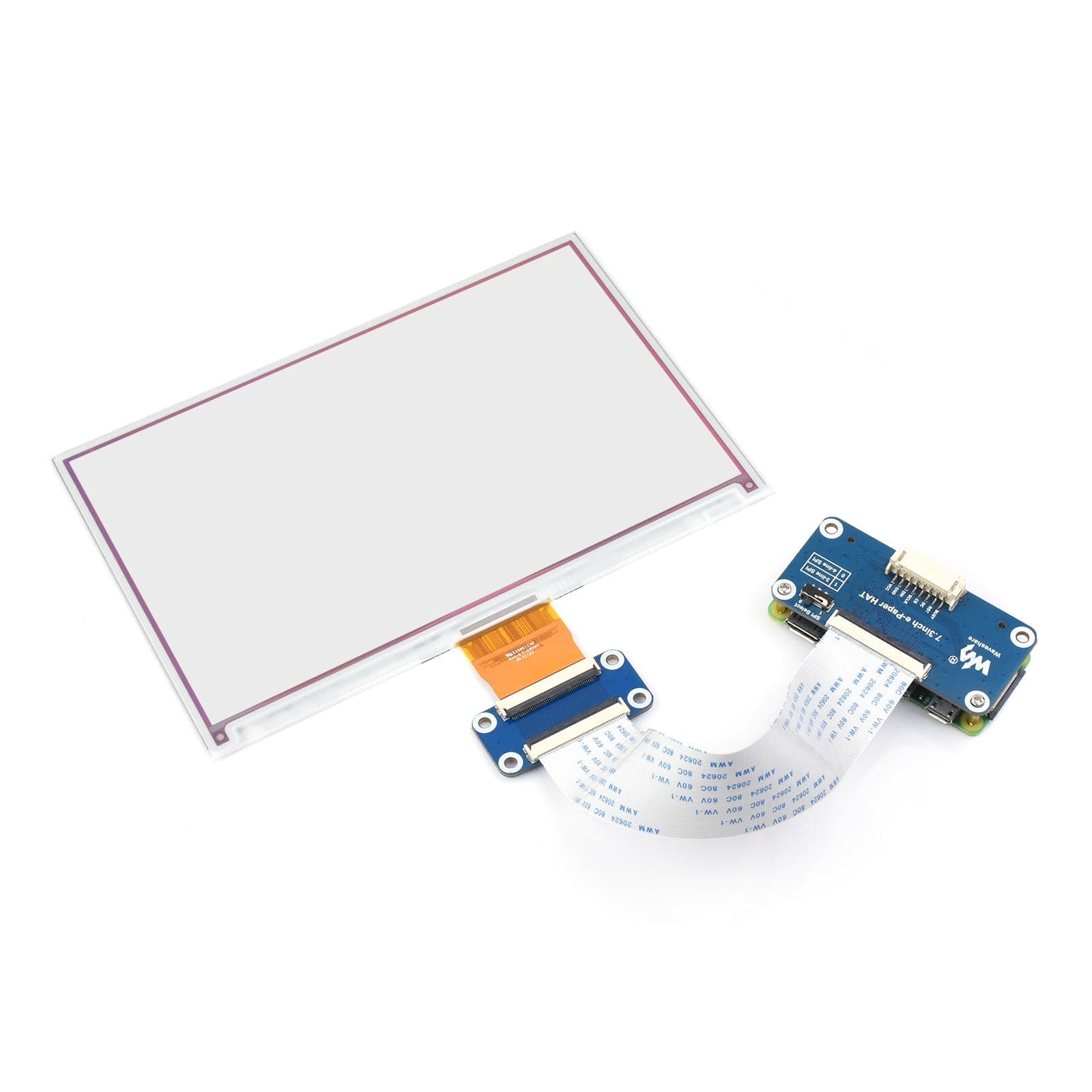

7.3" ACeP 7-Color E-Paper E-Ink Display Module (800×480)

WaveshareSKU: WAV-23434
Price:
Sale price £64.90
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £33.60 incl. VAT excl. VAT
The Pi HutFlex Cable for Raspberry Pi Camera/Display - 100mm
Sale price £0.80 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Pico
Sale priceFrom £3.80 incl. VAT excl. VAT

This 800x400 E-paper display module has advanced colour ePaper technology which makes it a more comfortable read than a conventional display, due to a stable image, not having to be refreshed constantly, a wider viewing angle, and the fact that it reflects ambient light rather than emitting its own light. Thanks to its low-power feature it can retain text and images even when the power is off.

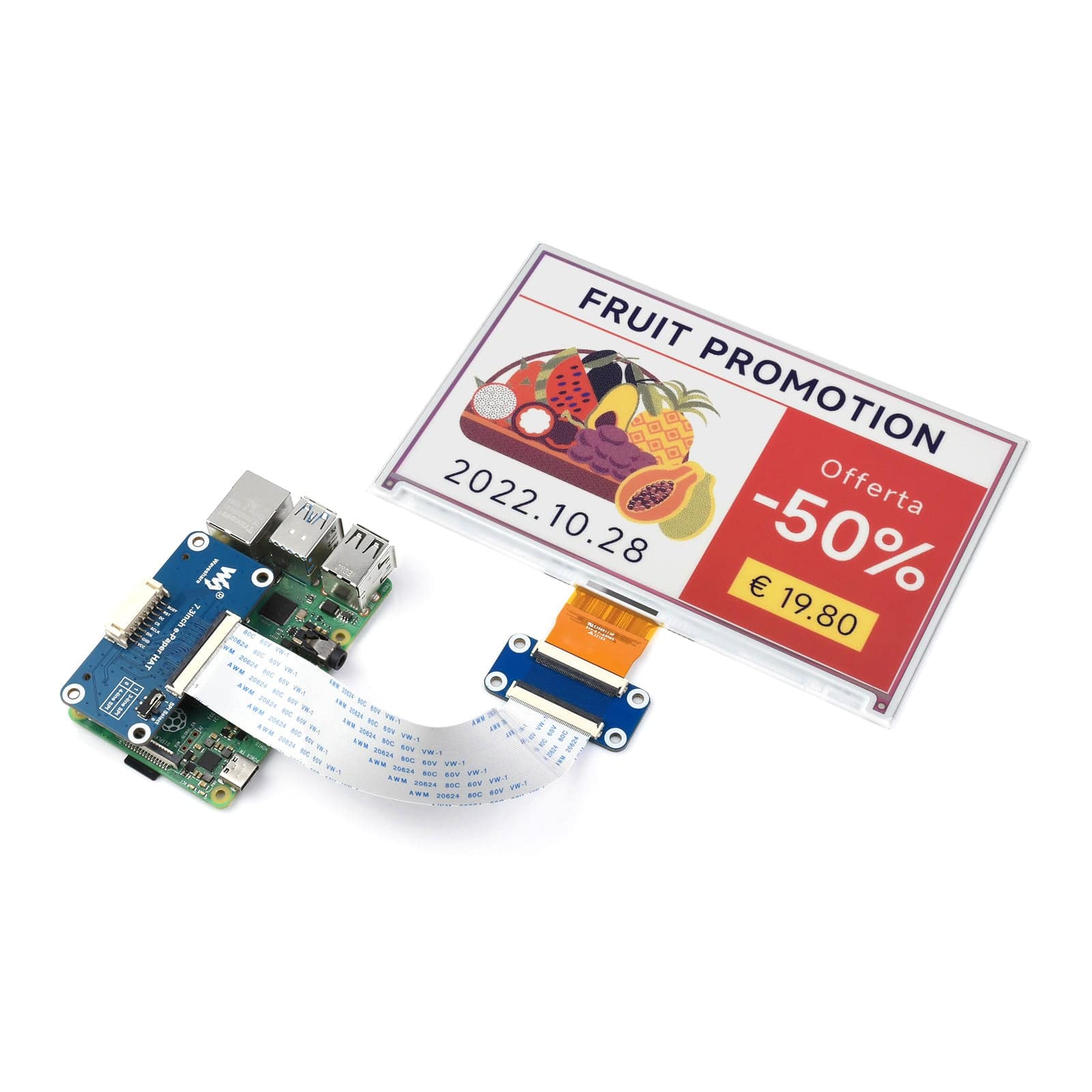

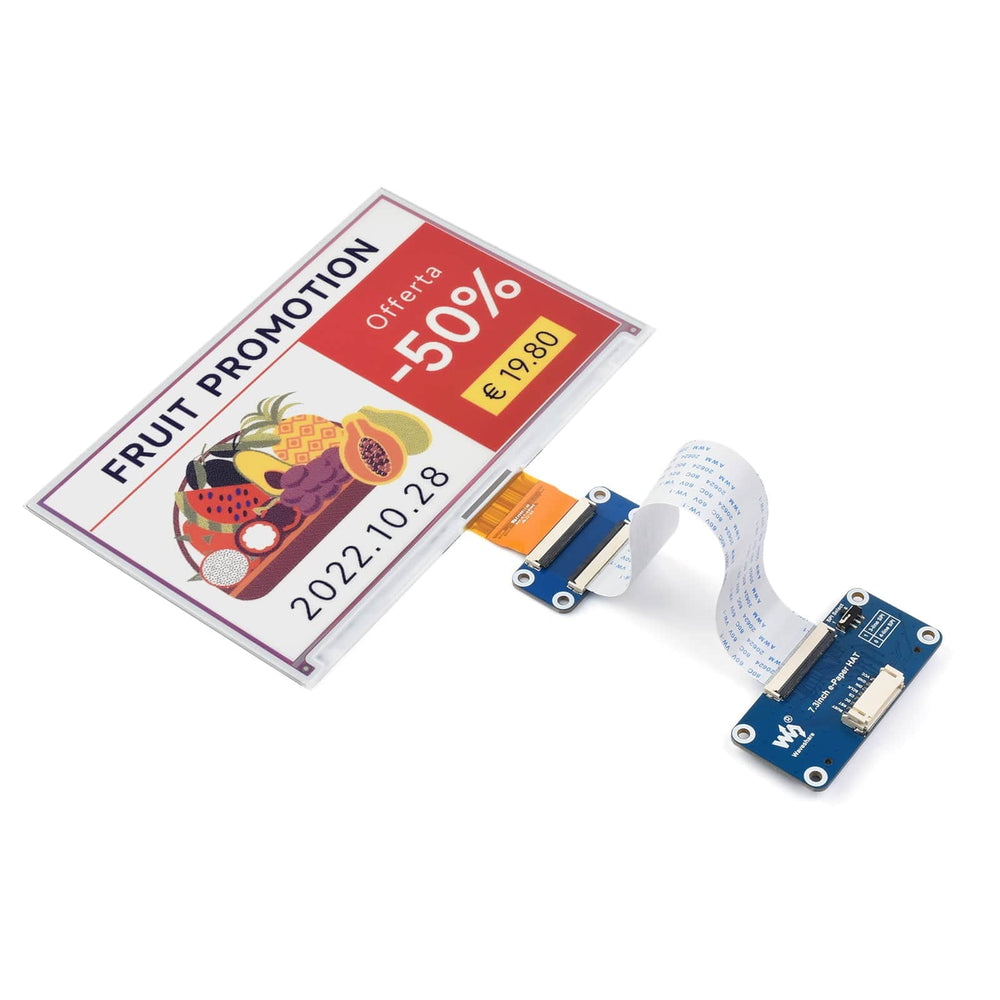

With an SPI control interface to use development boards like Raspberry Pi, Arduino, STM32 and others, a lovely 7-colour display, and a 40-pin GPIO header for an easy connection to your Raspberry Pi. This is a great display for lots of different projects, including price tags, shelf labels, industrial instruments, and many more!

Note: This does NOT come with the Raspberry Pi board

Features

  • Advanced Color ePaper (ACeP) technology, supports 7-Color display
  • No backlight keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
  • SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
  • Onboard voltage translator, compatible with 3.3V/5V MCUs
  • Comes with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications

Dimensions 7.3"

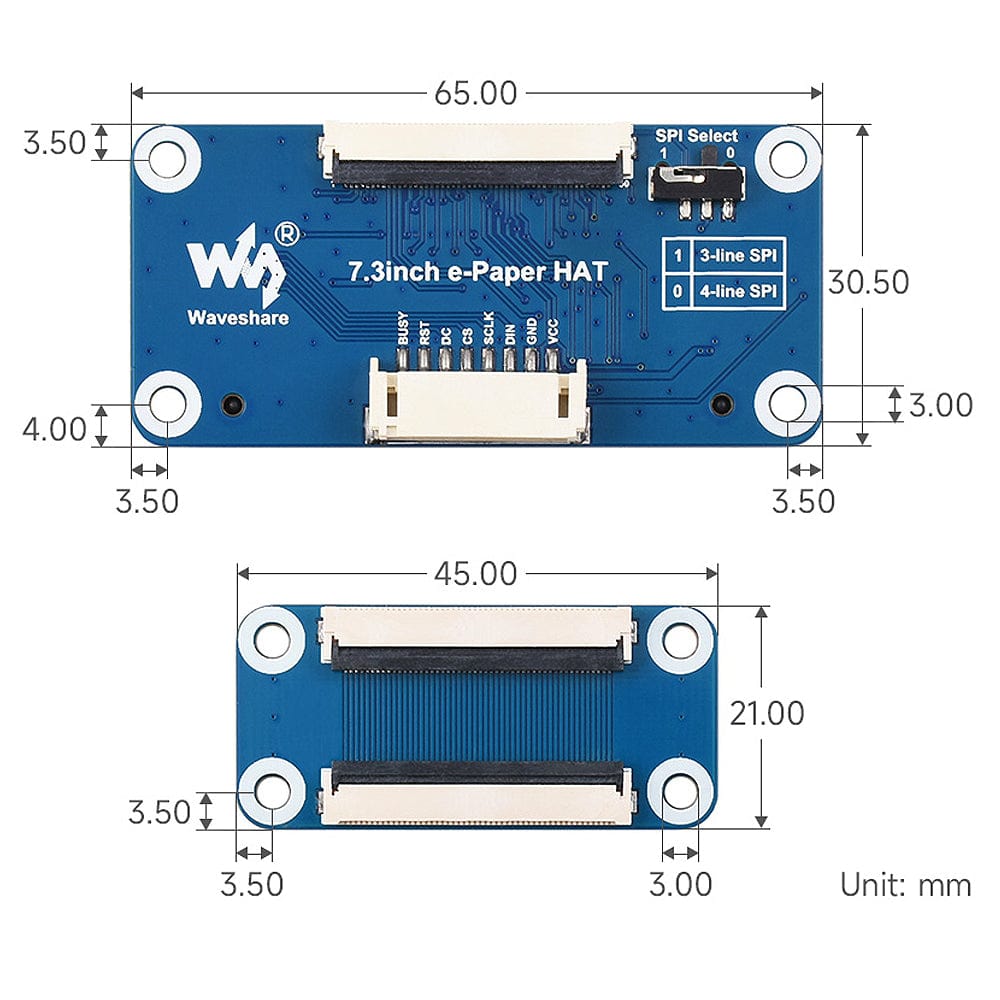

Outline dimension (driver board) 65.0mm × 30.5mm

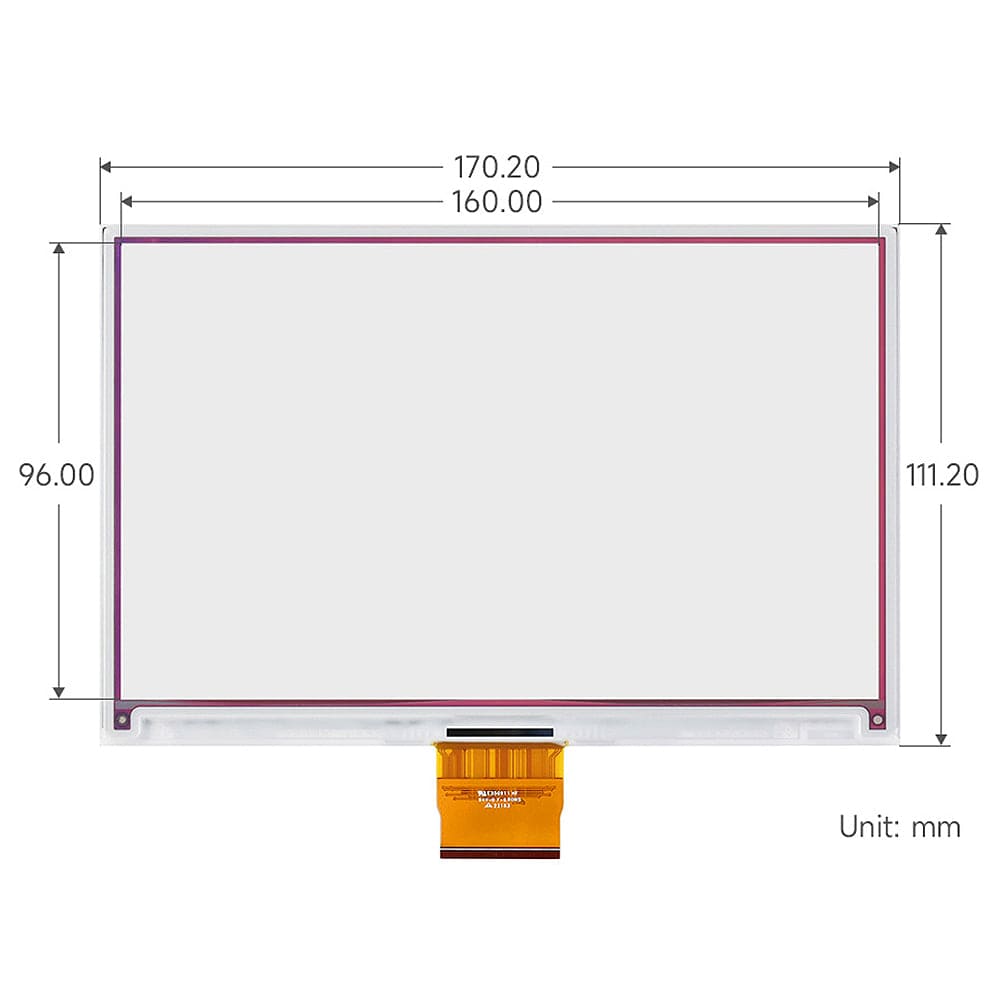

Display dimension 160.0mm × 96.0mm
Outline dimensions 170.20mm × 111.20mm × 0.91mm
Operating voltage 3.3V / 5V(Both power supply and signal need to be 5V)
Communication interface SPI
Dot pitch 0.2mm × 0.2mm
Resolution 800 × 480
Display color Black, White, Green, Blue, Red, Yellow, Orange
Grey scale 2
Refresh time 35s
Refresh power 49.4mW(typ.)
Standby current < 0.01uA (almost none)

Resources

Pinout



VCC Power (3.3V / 5V input)
GND Ground
DIN SPI MOSI pin
SCLK SPI SCK pin
CS SPI chip selection, low active
DC Data/Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output pin

Package Contents

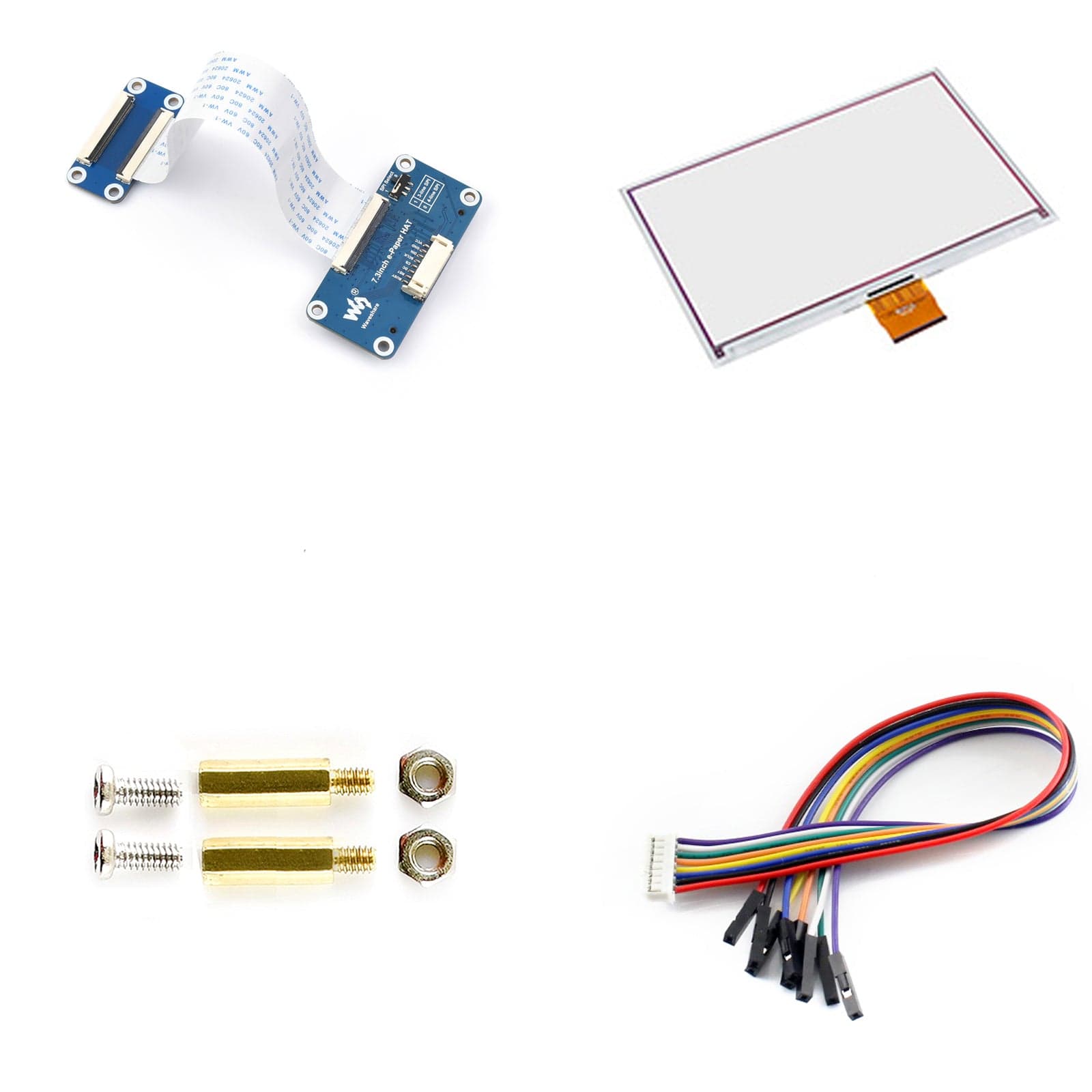

  • 1x 7.3inch e-Paper (F)
  • 1x Driver Board and FFC cable
  • 1x PH2.0 20cm 8Pin
  • 1x RPi screws pack (2pcs)
