5MP OV5640 Auto-Focus USB Camera Board

WaveshareSKU: WAV-21635
Price:
Sale price £21.83
incl. VAT
excl. VAT
Stock:
Only 8 units left
Quantity:

Compatible with:

Awesome Extras

The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £53.33 incl. VAT excl. VAT
The Pi HutSpy Camera for Raspberry Pi
Sale price £16.58 incl. VAT excl. VAT
The Pi HutZeroCam - Camera for Raspberry Pi Zero
Sale price £12.50 incl. VAT excl. VAT

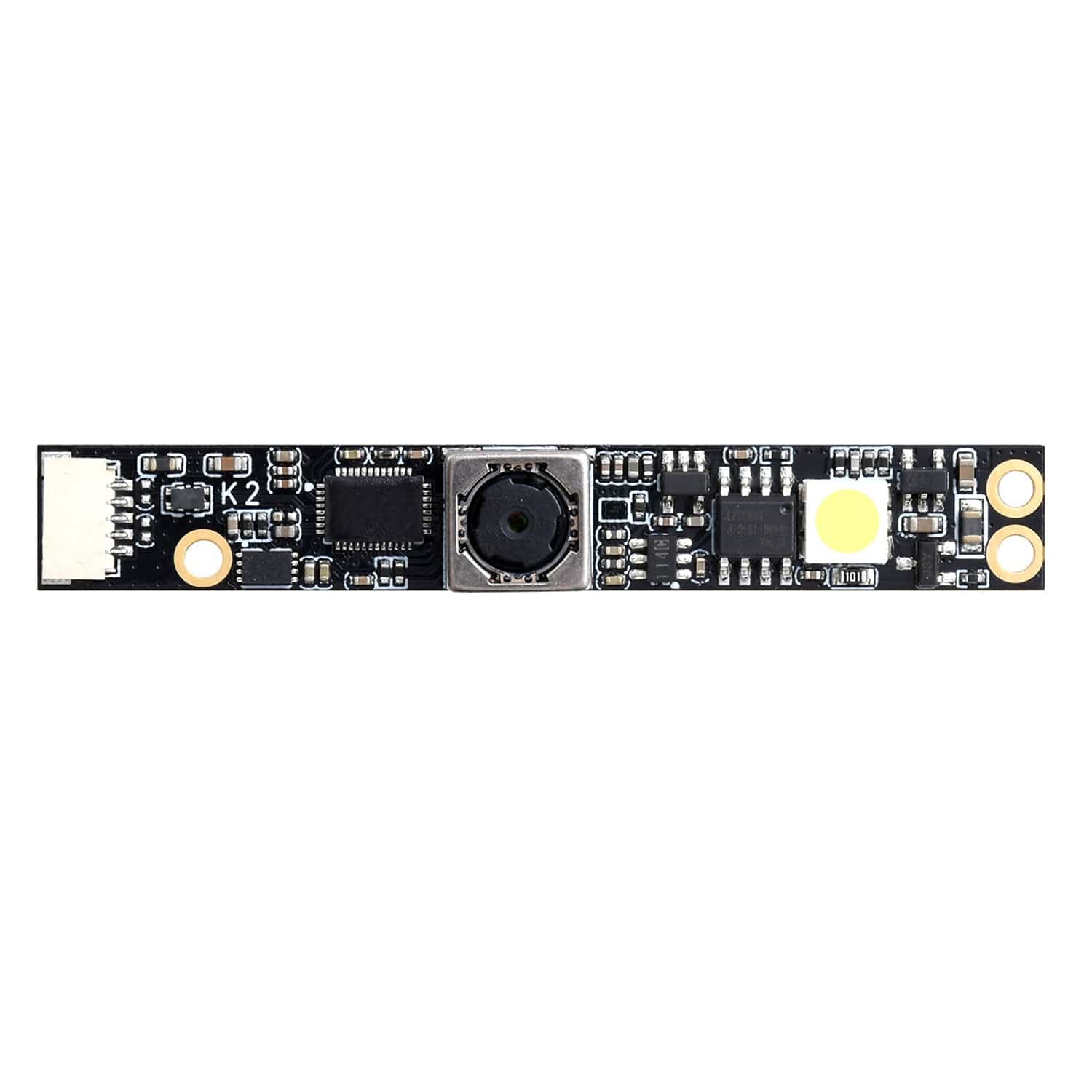

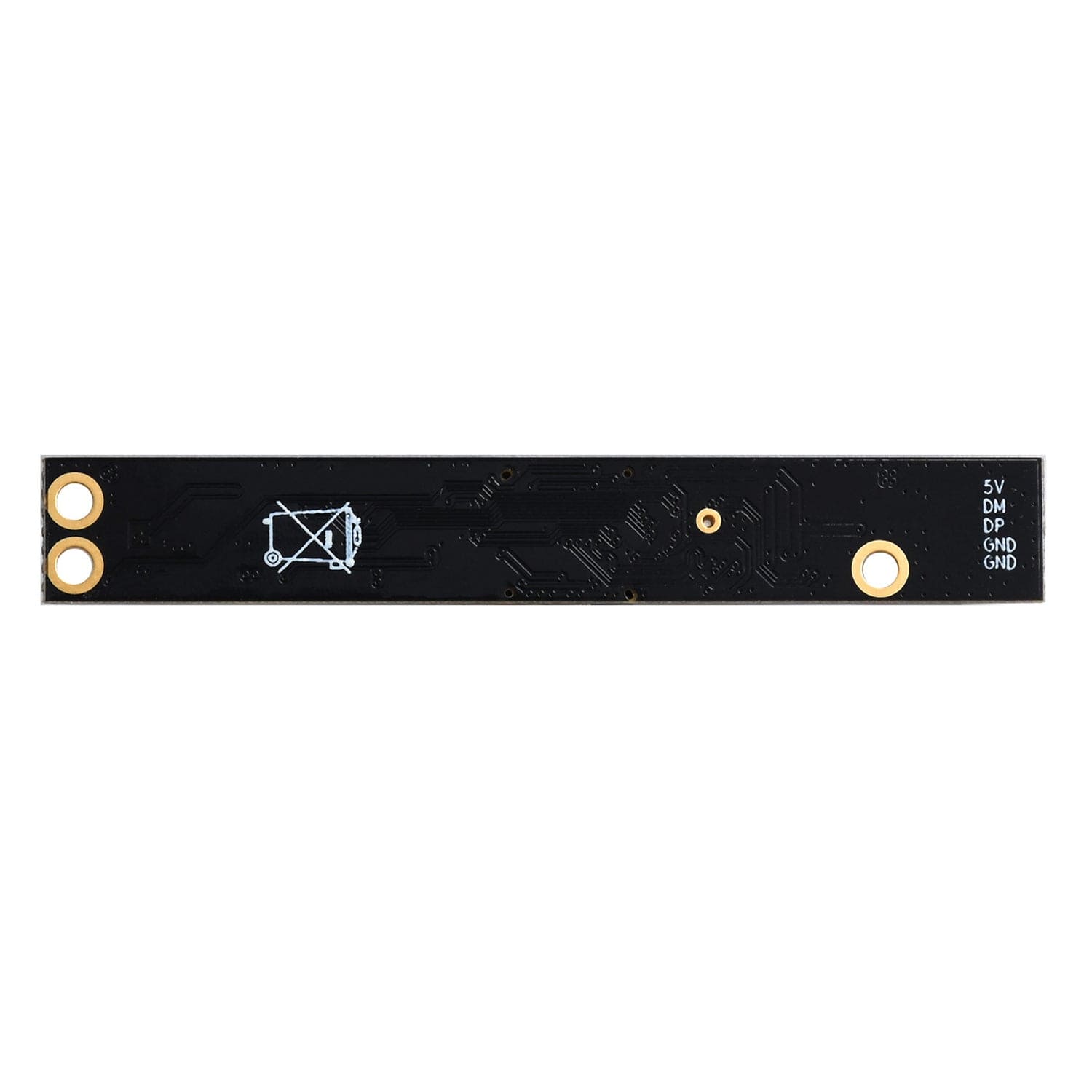

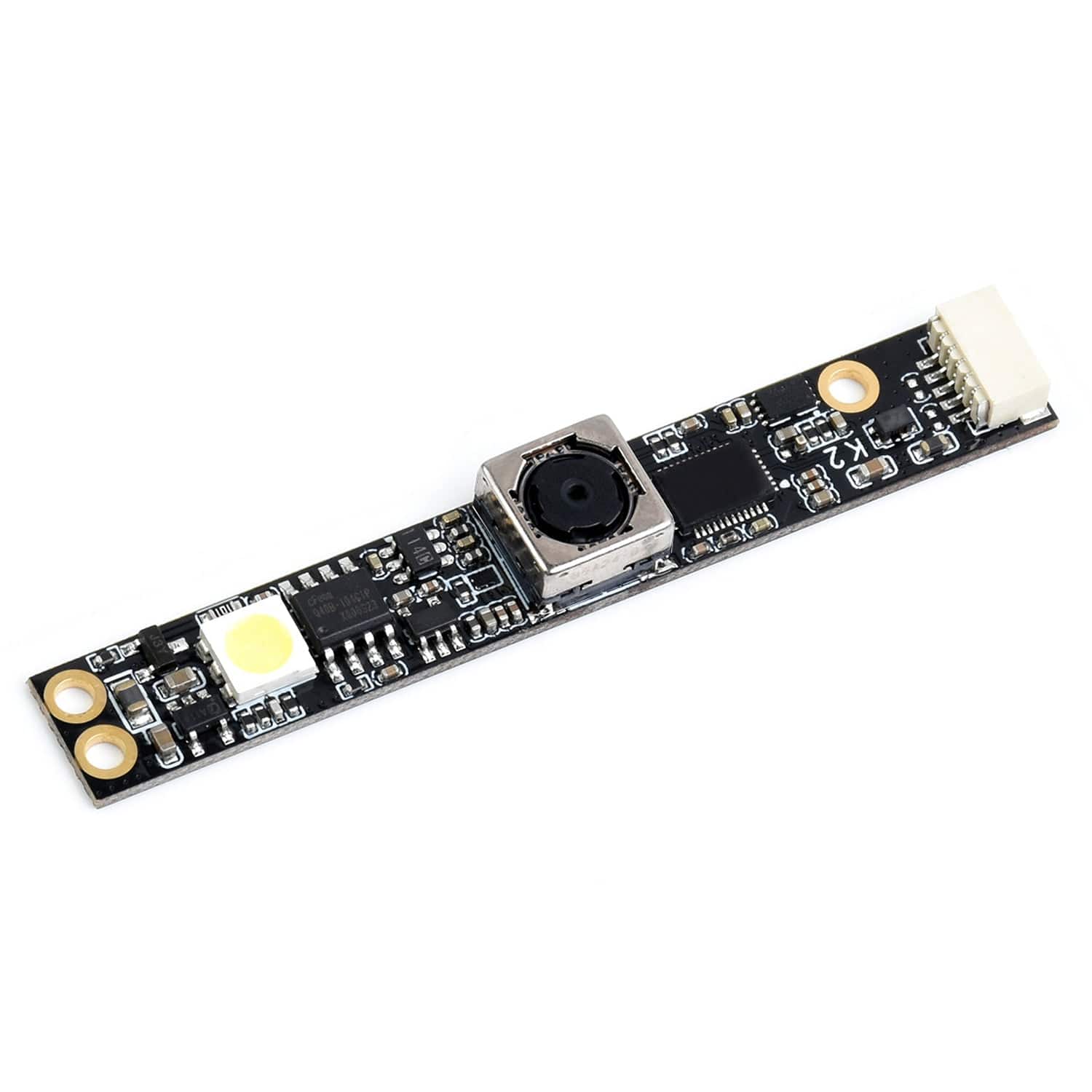

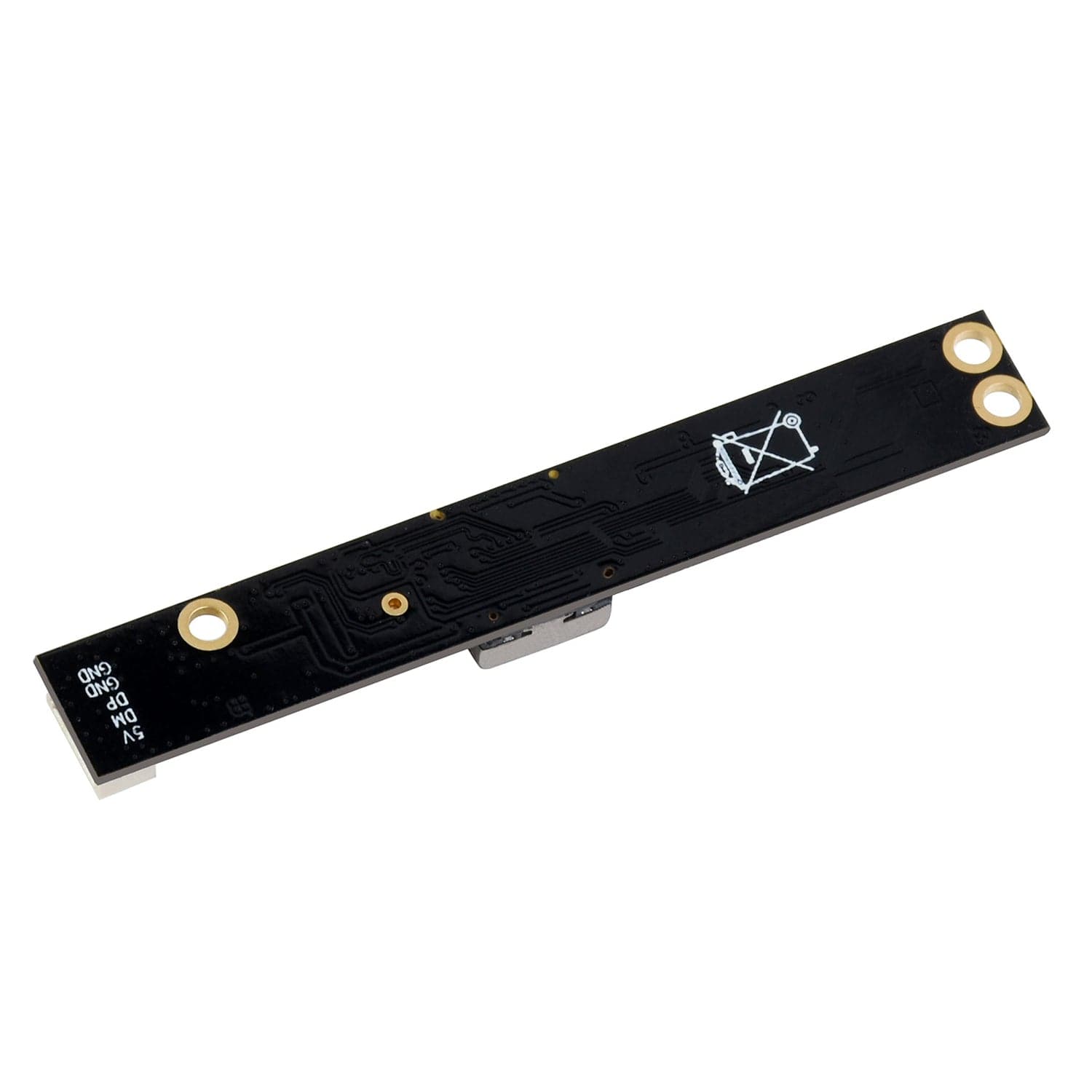

This USB camera board has a compact format with the convenience of a USB connection. The camera sensor is an OV5640 5MP with Auto-focus, offering a 2592x1944 static image resolution.

It's "officially" compatible with Windows, Raspberry Pi and Jetson Nano, however it'll most likely work on any system that accommodates UVC cameras.

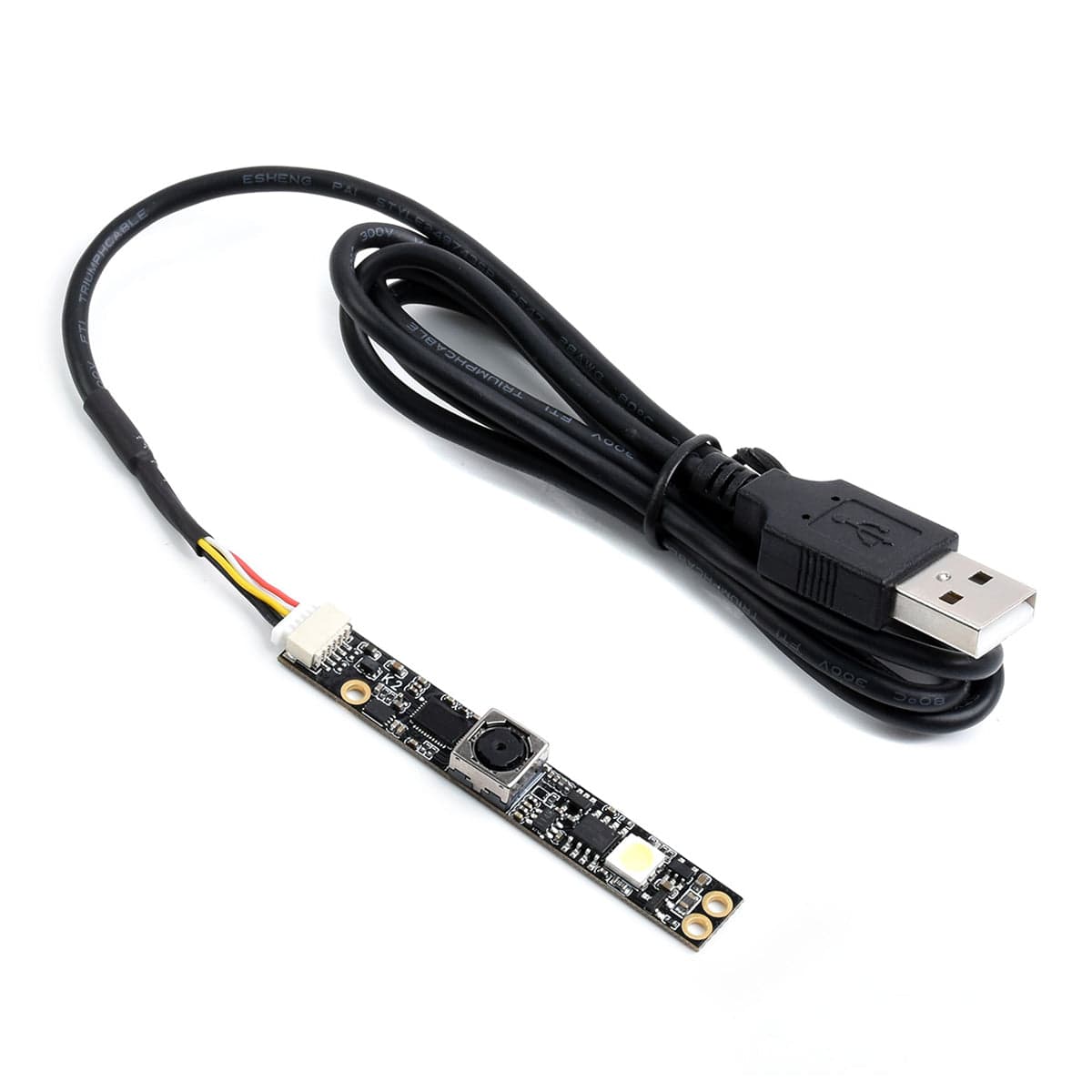

The camera board comes with USB cable complete with the matching connector. Please ensure you fully unwind the cable before using, as we found that with the cable still tied up, some interference was present.

The product Wiki details how to set up and use the camera, however on most systems it should be relatively plug n' play (then just check settings to ensure you're getting the full 5MP - such as with the Windows Camera app).

Note: This camera module can get hot during use - this is normal and expected.

Features

  • Compact USB Camera
  • OV5640 5MP sensor
  • Auto-focus
  • USB came includes
  • Compatible with Windows, Raspberry Pi and Jetson Nano (and most other UVC-compatible systems)

Specifications

Pixels 5MP
Sensor OV5640
Interface USB 2.0
Camera Sensor size 1/4 inch
Aperture (F) 2.8
Focal length (EFL) 3.29 mm
Field of view (FOV) 68°
Distortion < 1%
Focusing (B): AF Auto-Focus
(C): FF Fixed-Focus
Image Format support MJPG, YUV422
Static image resolution 2592 × 1944
Video recording 15 FPS 2592 × 1944
30 FPS 1920 × 1080
30 FPS 1280 × 720
Operating Voltage 5V ± 5%
Camera Size 8.5 × 8.5 mm
Module Size 9 × 62 mm

Package Contents

  • 1x OV5640 Camera Board
  • 1x USB cable

Resources
