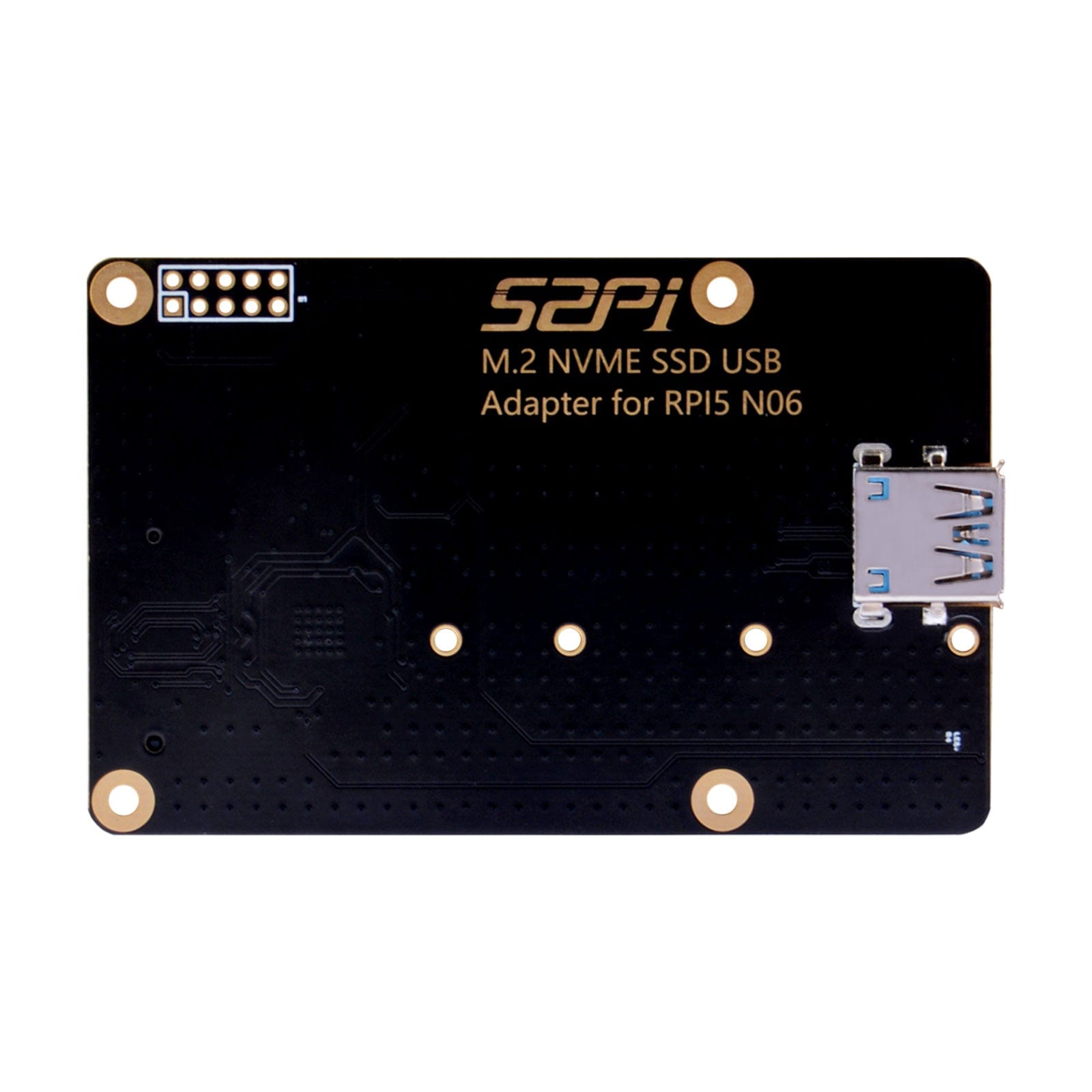

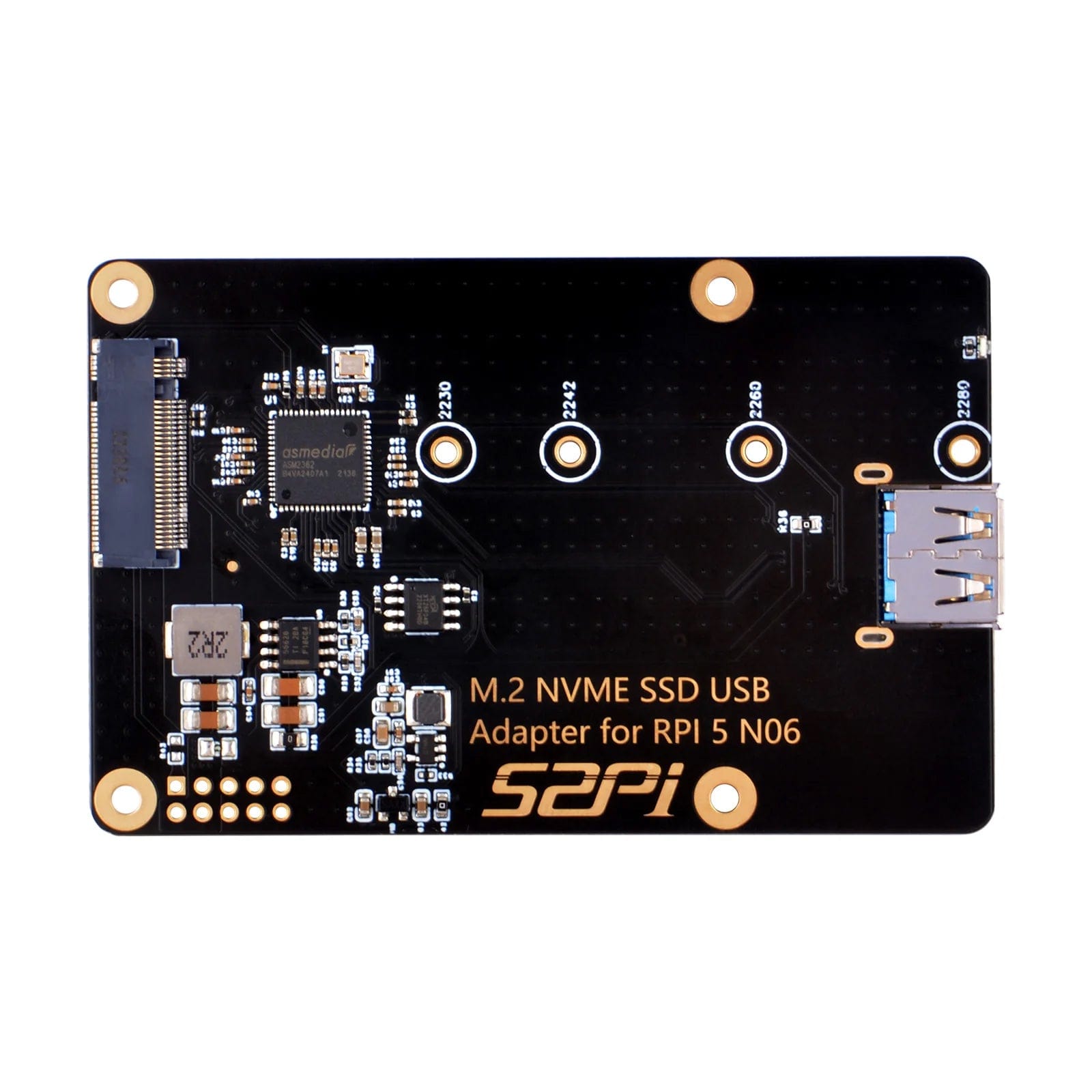

52Pi M.2 NVME SSD USB Adapter for Raspberry Pi 5

The 52Pi N06 M.2 NVME SSD USB Adapter is a compact USB storage expansion board for Raspberry Pi 5. It allows direct connection of M.2 NVMe SSDs via a USB 3.0 interface, supporting 2230, 2242, 2260, and 2280 drive sizes - such as the Raspberry Pi SSD. Designed to mount underneath the Raspberry Pi, it keeps your setup clean with no need for extra cabling or system modifications.

Unlike PCIe-based SSD solutions, this adapter uses USB 3.0 to handle both power and data over a single connection. While PCIe offers higher raw throughput, using USB offers key advantages for certain use cases - such as hot-swapping, simplified power management, or when running OS images from USB without altering the Pi’s PCIe setup.

For many applications, the 5 Gbps USB 3.0 bandwidth is more than sufficient; however, if you're after PCIe speeds, check out our SSD HAT section for a great range of options to choose from.

This board is plug-and-play with the Raspberry Pi 5 and doesn’t require additional drivers. It supports NVMe SSD capacities up to 4TB (depending on the drive used) and operates within a standard 0–70°C range.

This adapter only supports NVMe protocol SSDs and is intended for use with the included USB converter only.

Raspberry Pi and SSD not included.

Features

• Compact USB storage expansion board for Raspberry Pi 5
• Connects M.2 NVMe SSDs via USB 3.0 interface
• Supports 2230 / 2242 / 2260 / 2280 M.2 NVMe drive sizes

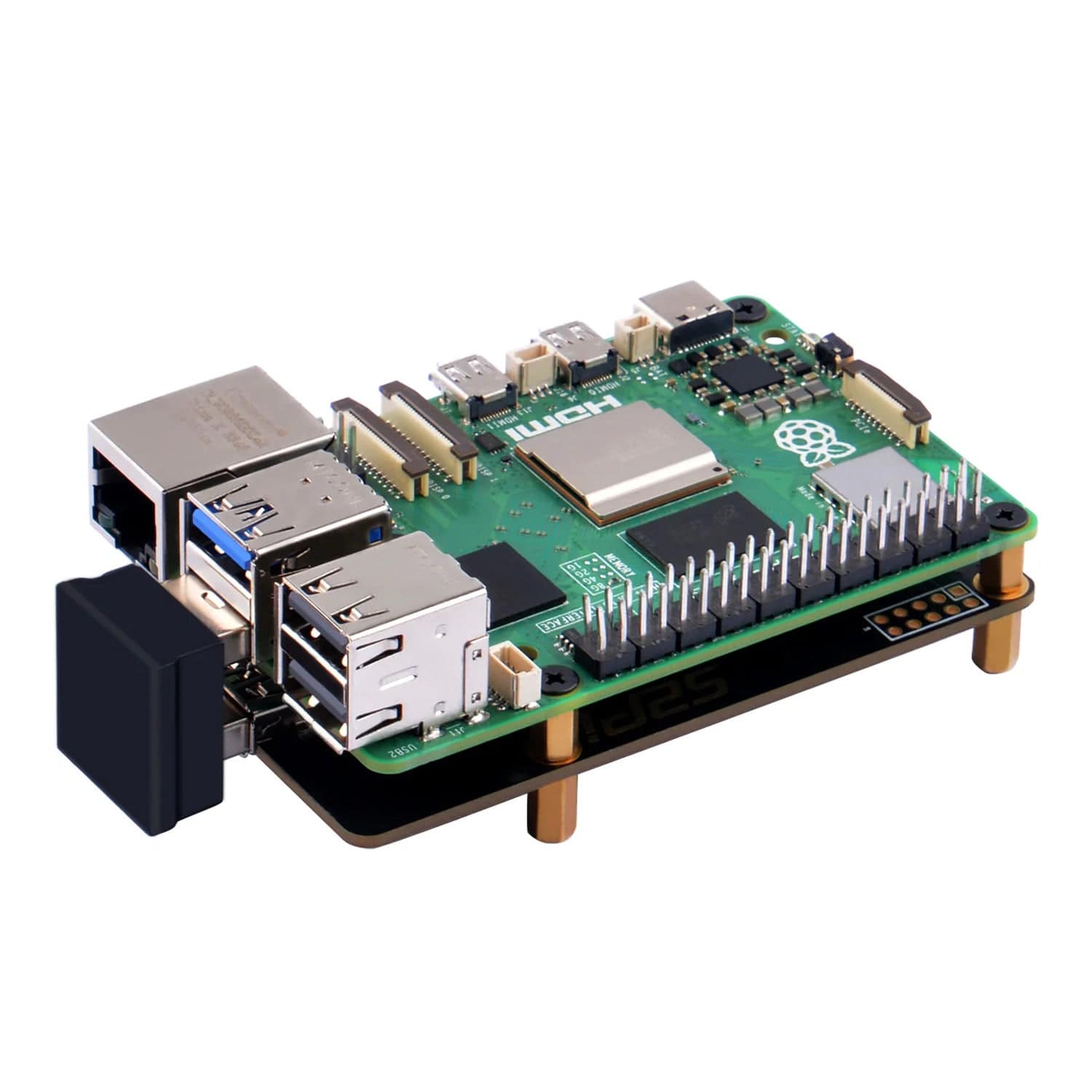

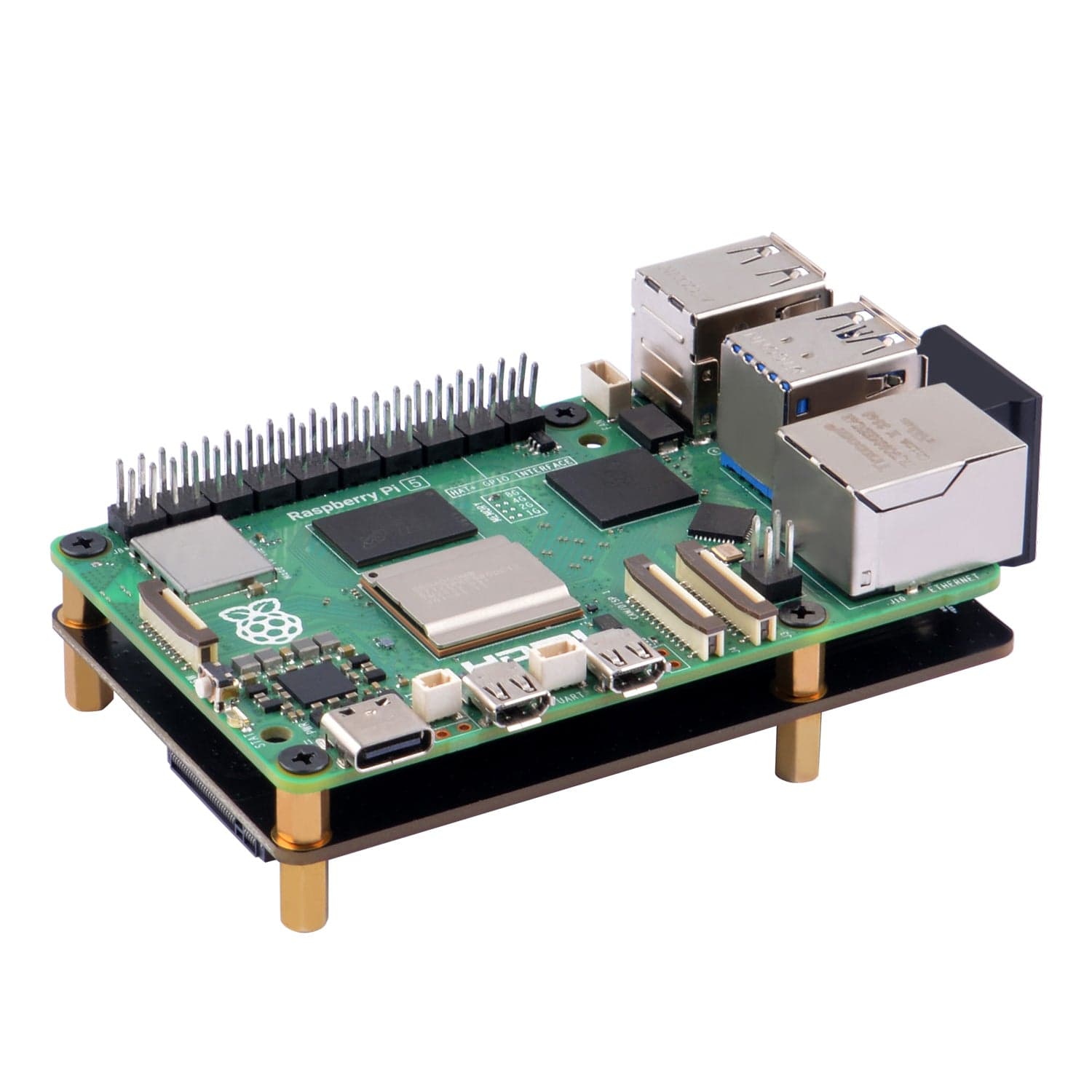

• Mounts underneath the Raspberry Pi for a tidy setup
• USB 3.0 handles both power and data – no extra cabling required
• Plug-and-play with no drivers or system changes needed
• Ideal for hot-swapping, USB boot setups, and simplified power management
• Supports SSD capacities up to 4TB (drive dependent)
• Operating temperature: 0°C to 70°C
• Note: NVMe SSDs only. For PCIe options, see our SSD HAT section
• Includes USB converter – Raspberry Pi and SSD not included

Specifications

Resources

• Product Wiki

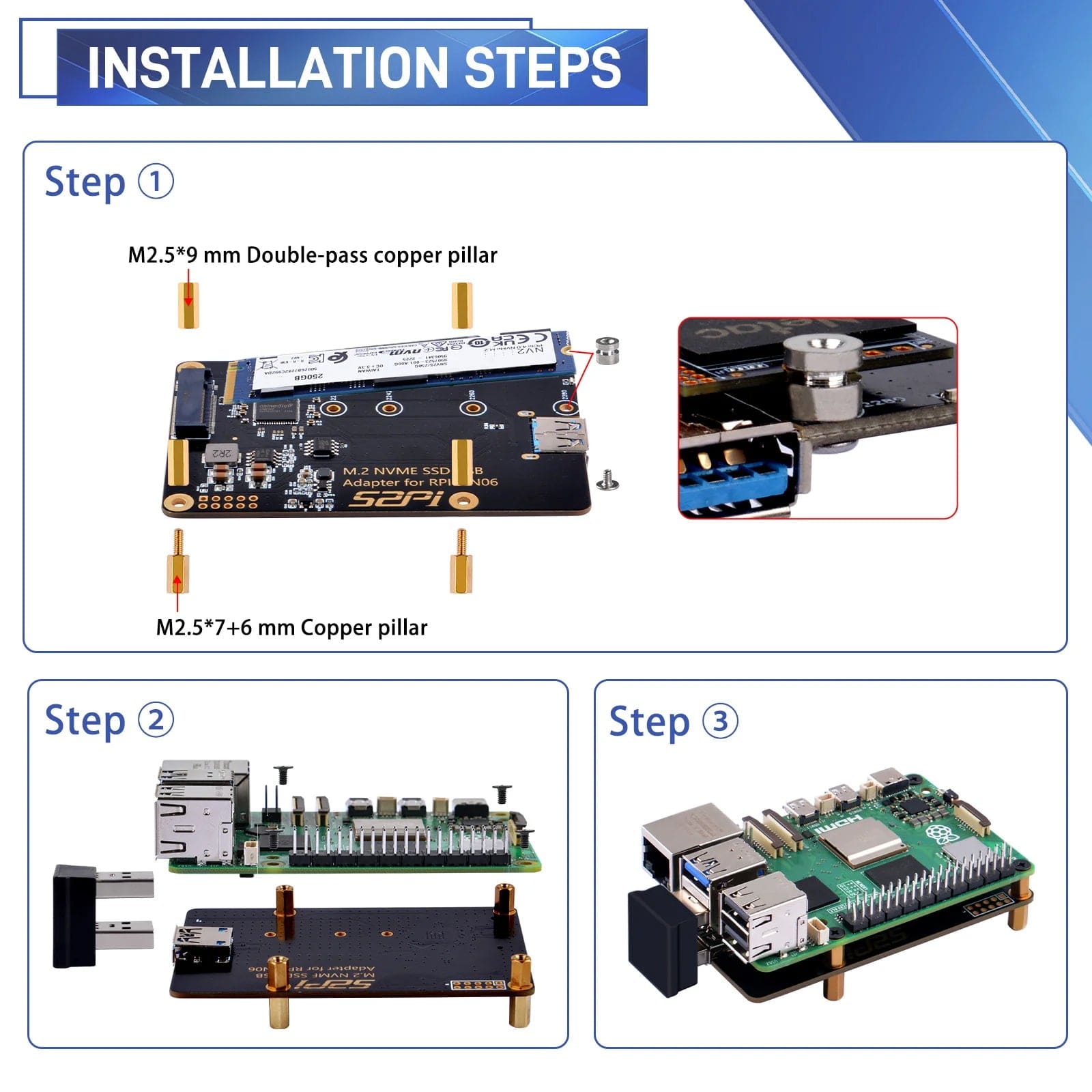

• Assembly

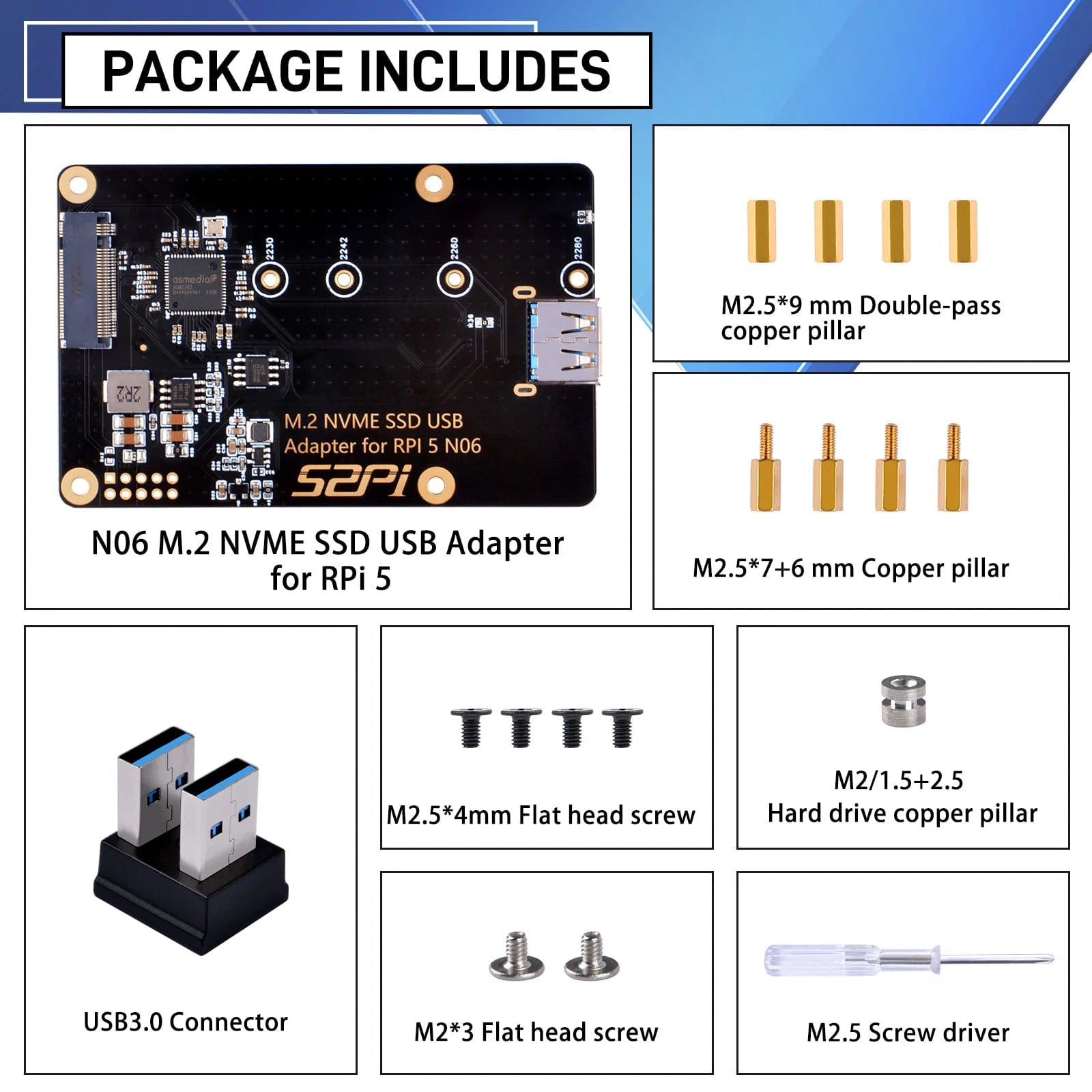

Package Contents

• 1x N06 M.2 NVME SSD USB Adapter
• 1x USB 3.0 Connector
• Standoffs and fixings
• 1x Screwdriver

Raspberry Pi and SSD not included.
