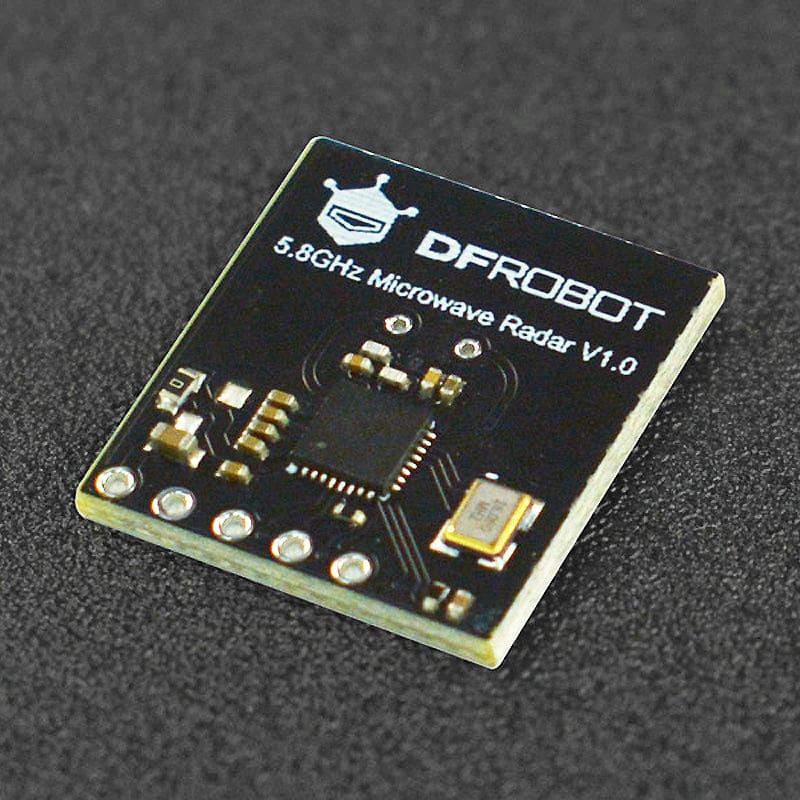

5.8GHz Microwave Radar Module

DFRobotSKU: SEN0521
Price:
Sale price £15
incl. VAT
excl. VAT
Stock:
Only 3 units left
Quantity:

Awesome Extras

Antex Lead Free Solder - 4m Tube
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT
The Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi HutThe Pi Hut Jumper Bumper Pack (120pcs Dupont Wire) - The Pi Hut
DFRduino Uno R3 - The Pi HutDFRduino Uno R3 - The Pi Hut
DFRobotDFRduino Uno R3
Sale price £16 incl. VAT excl. VAT
USB-A to Micro-USB Cable - The Pi Hut
The Pi HutUSB-A to Micro-USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT
Full-Size Breadboard - White - The Pi HutFull-Size Breadboard - White - The Pi Hut
The Pi HutFull-Size Breadboard - White
Sale price £5 incl. VAT excl. VAT
Prototyping Wire Spool Set - The Pi HutPrototyping Wire Spool Set - The Pi Hut
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

This DFRobot microwave sensor can transmit an electromagnetic wave of 5.8GHz. It can detect the difference between the transmitted wave and the reflection wave to identify whether there is an object moving in the detection area.

Different from the traditional sensors that can only detect human presence by detecting big body movements, this microwave sensor can perform well in detecting small movements like breathing so as to determine human presence even if the person is sitting or sleeping. The detected result can be output through the serial port or high/low level of the I/O port.

Featuring high reliability and sensitivity, and strong anti-interference, it is small and easy to integrate, which can be widely used in fields that require motion detection, such as lighting, security, home, home appliances, hotels, garages, buildings, traffic and more!

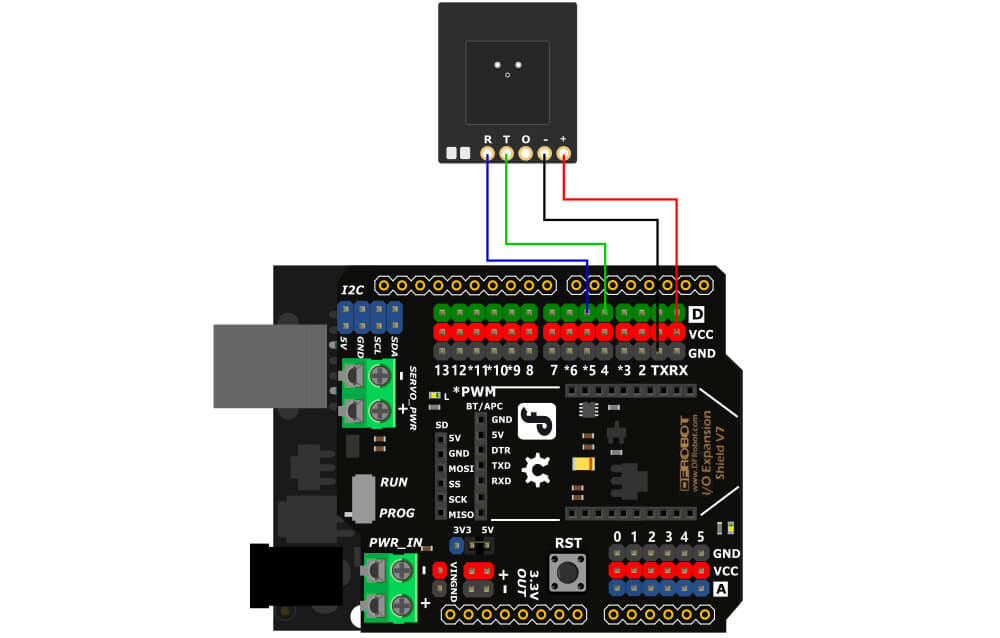

Connection Example - Arduino

Features

  • High reliability
  • High sensitivity
  • Strong anti-interference

Specifications

  • Operating Voltage: 4.5~5.5V
  • Operating Current: 22mA
  • Detection Distance: 11m
  • Equivalent Transmission Power: 3-5dBM
  • Beam Angle: 120x120°
  • Modulation Mode: FMCW, CW
  • Operating Frequency: 5.8GHz
  • Operating Temperature: -40~85℃
  • Baud Rate: 115200
  • Dimension: 20x18mm

Resources

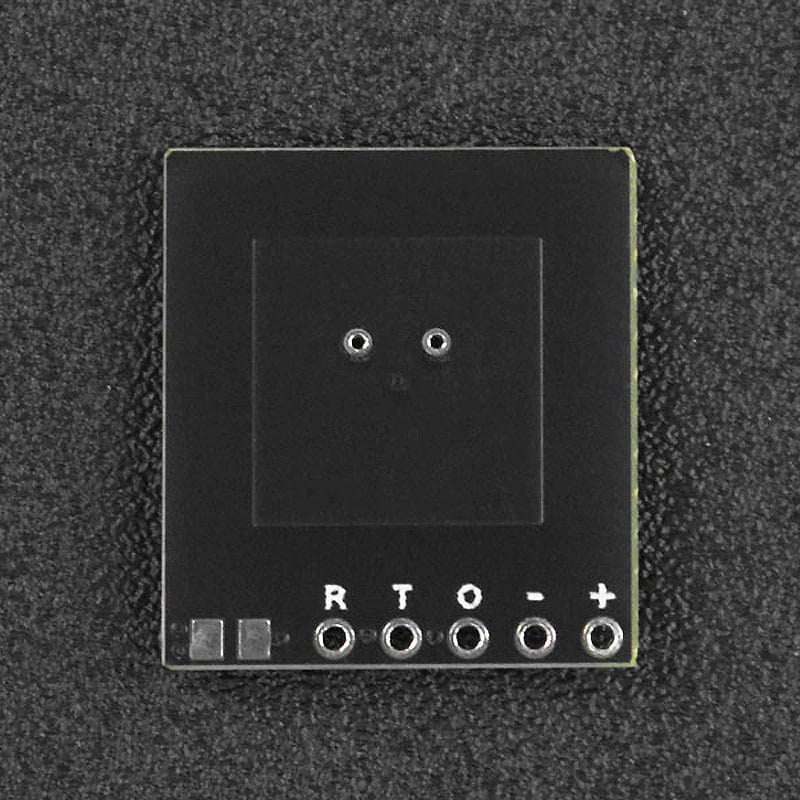

Pinout

Pin Label Description
R Sensor serial receive
T Sensor serial transmit
O Output control signal
- GND
+ VCC

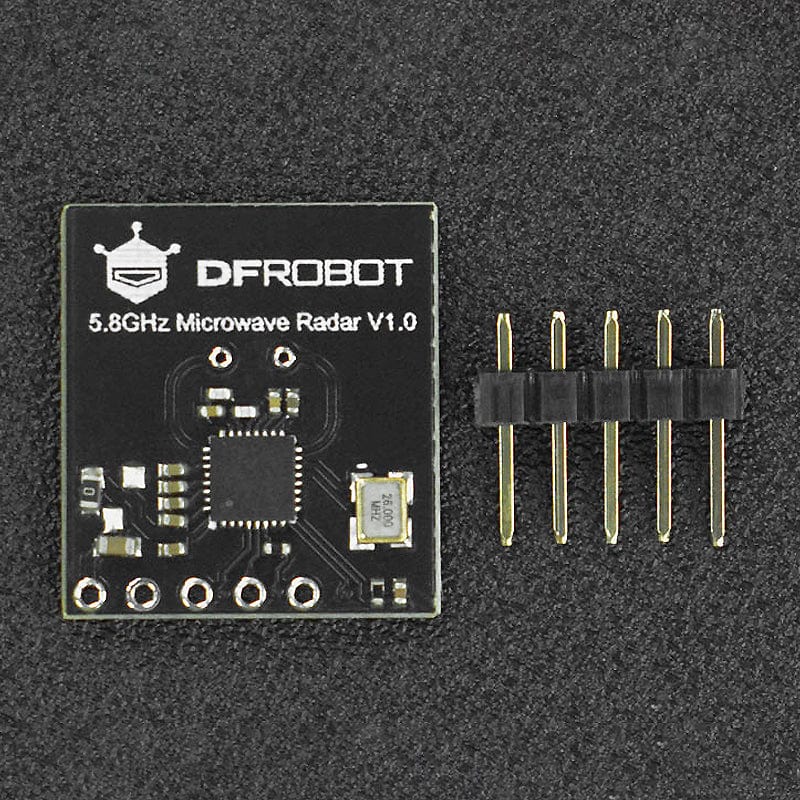

Package Contents

  • 1x 5.8GHz Microwave Radar Module
  • 1x 5-pin header
