5.79" E-Paper Display Module (792 x 272)
Price:
Sale price
£26.90
Stock:
Quantity:
Awesome Extras

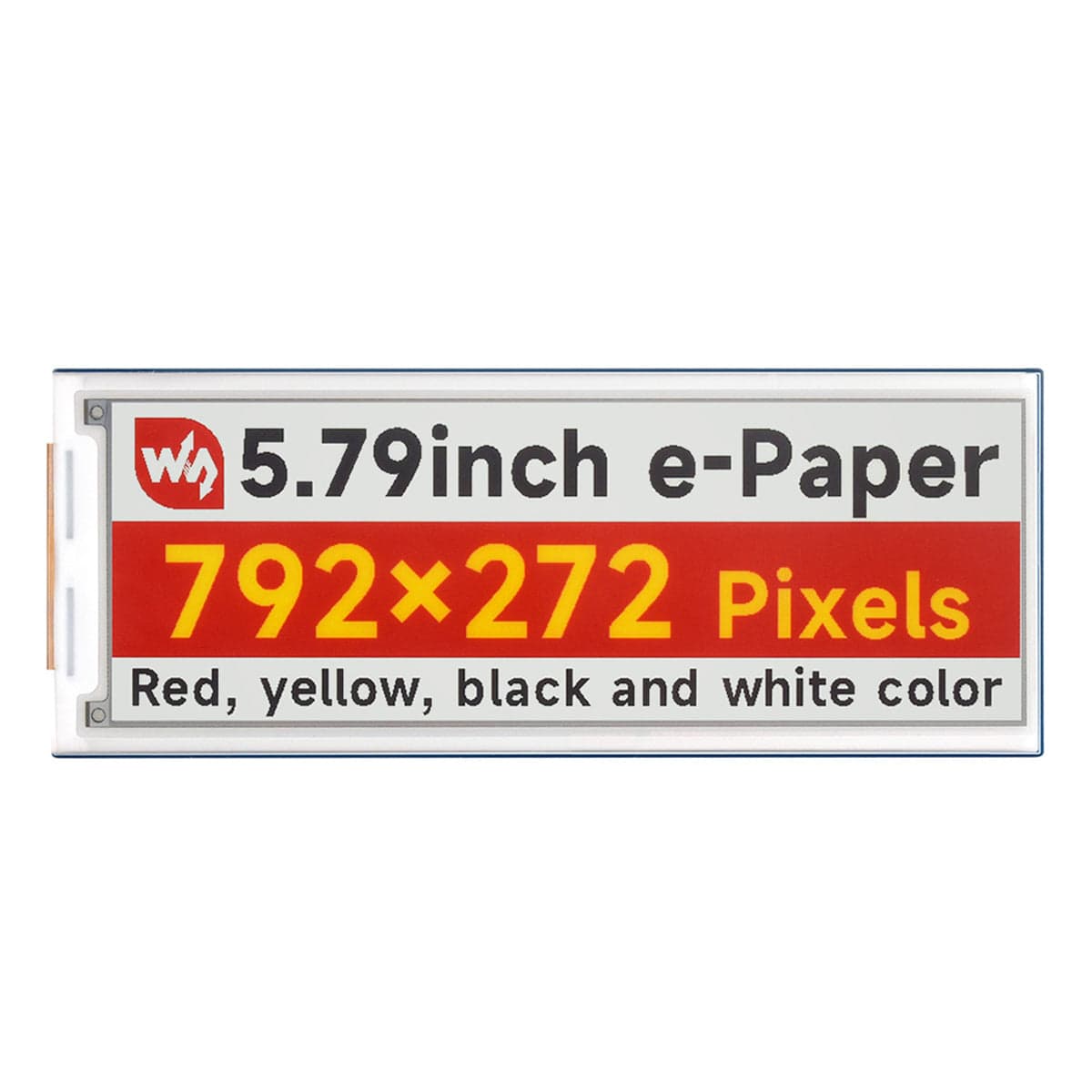

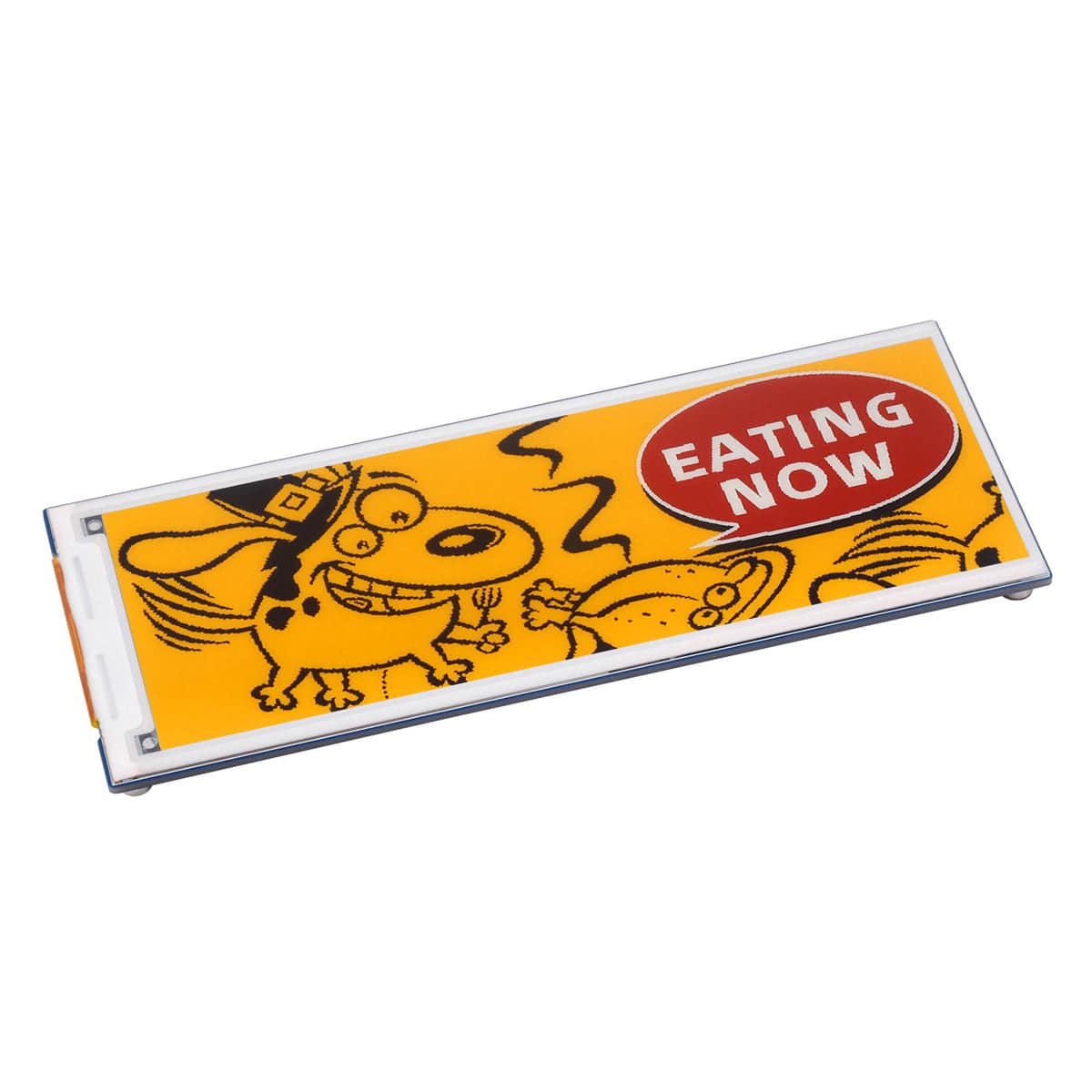

This 5.79" e-Paper module has a 792 x 272 resolution for a sharp and clear display and the e-ink display showcases four vibrant colours: red, yellow, black, and white. Its ultra-low power consumption makes sure it only uses energy during refreshes, making it ideal for projects such as price tags, shelf labels, and industrial instruments.
The display offers a >170° wide viewing angle and a paper-like appearance, remaining visible in ambient light without backlighting. It’s compatible with Raspberry Pi, Jetson series, Arduino, and STM32 via an SPI interface.
Note: Raspberry Pi 5 is NOT included
Features
- No backlight, keeps displaying last content for a long time even when powered down
- Ultra-low power consumption, basically power is only required for refreshing
- Comes with development resources and manual (driver board circuit diagram, examples for Raspberry Pi/Jetson Series/Arduino/STM32)
- Optional for e-Paper driver board:
- Adapting SPI interface for connecting with controller boards like Raspberry Pi/Jetson Series/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs

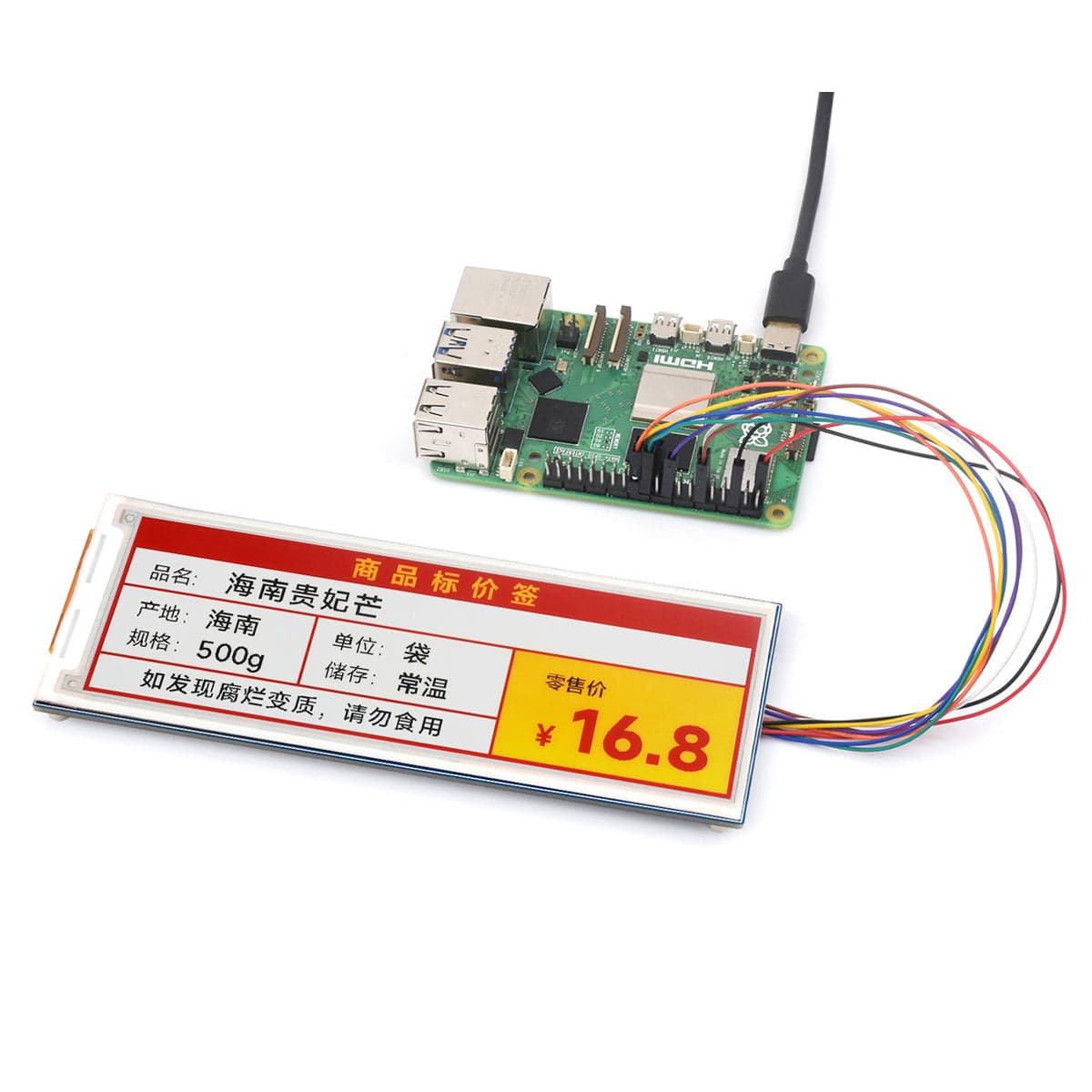

Connection Example - Raspberry Pi 5
Specifications
| Operating Voltage | Raw display: 3.3V |
| with driver board: 3.3V/5V | |
| Interface | 3-wire SPI, 4-wire SPI |

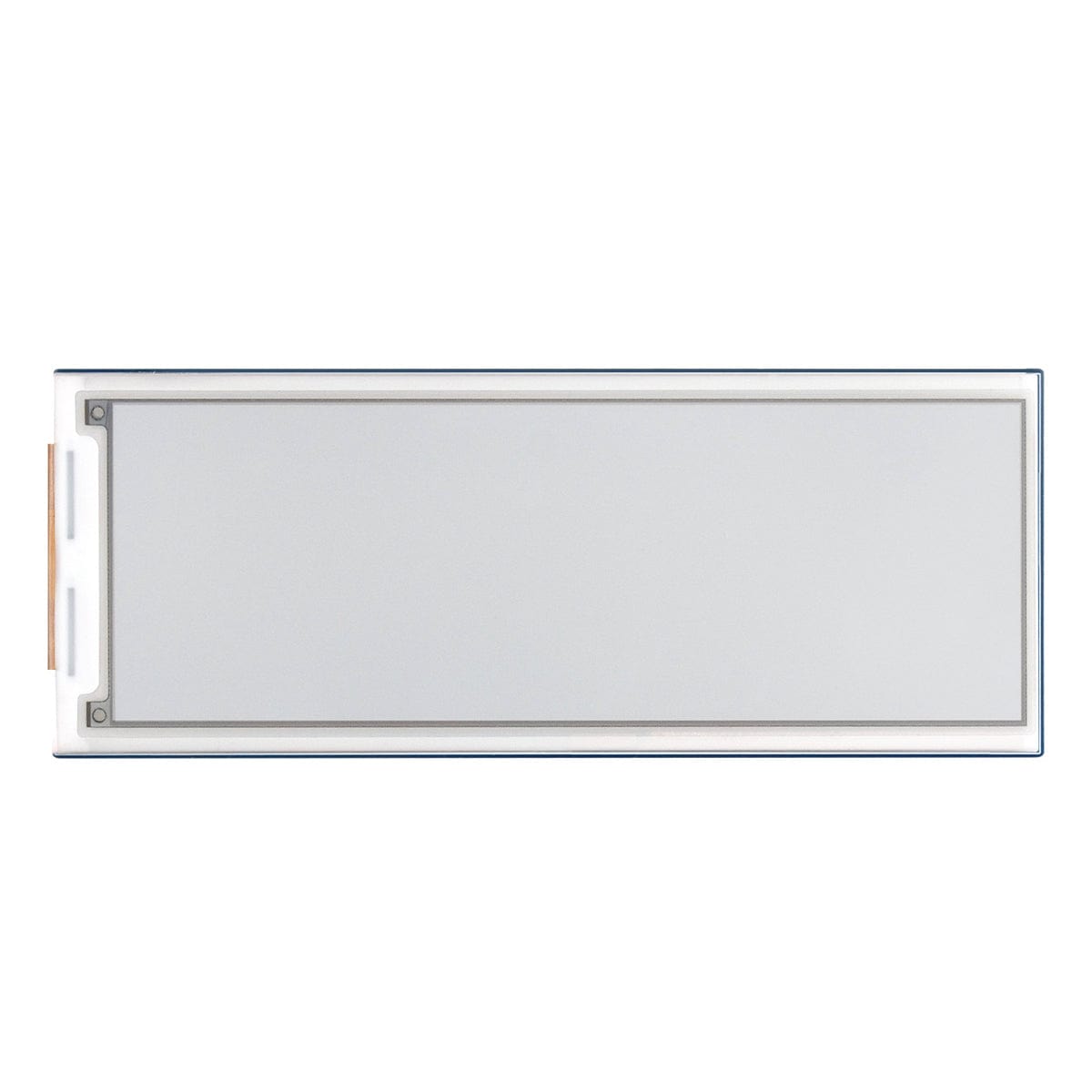

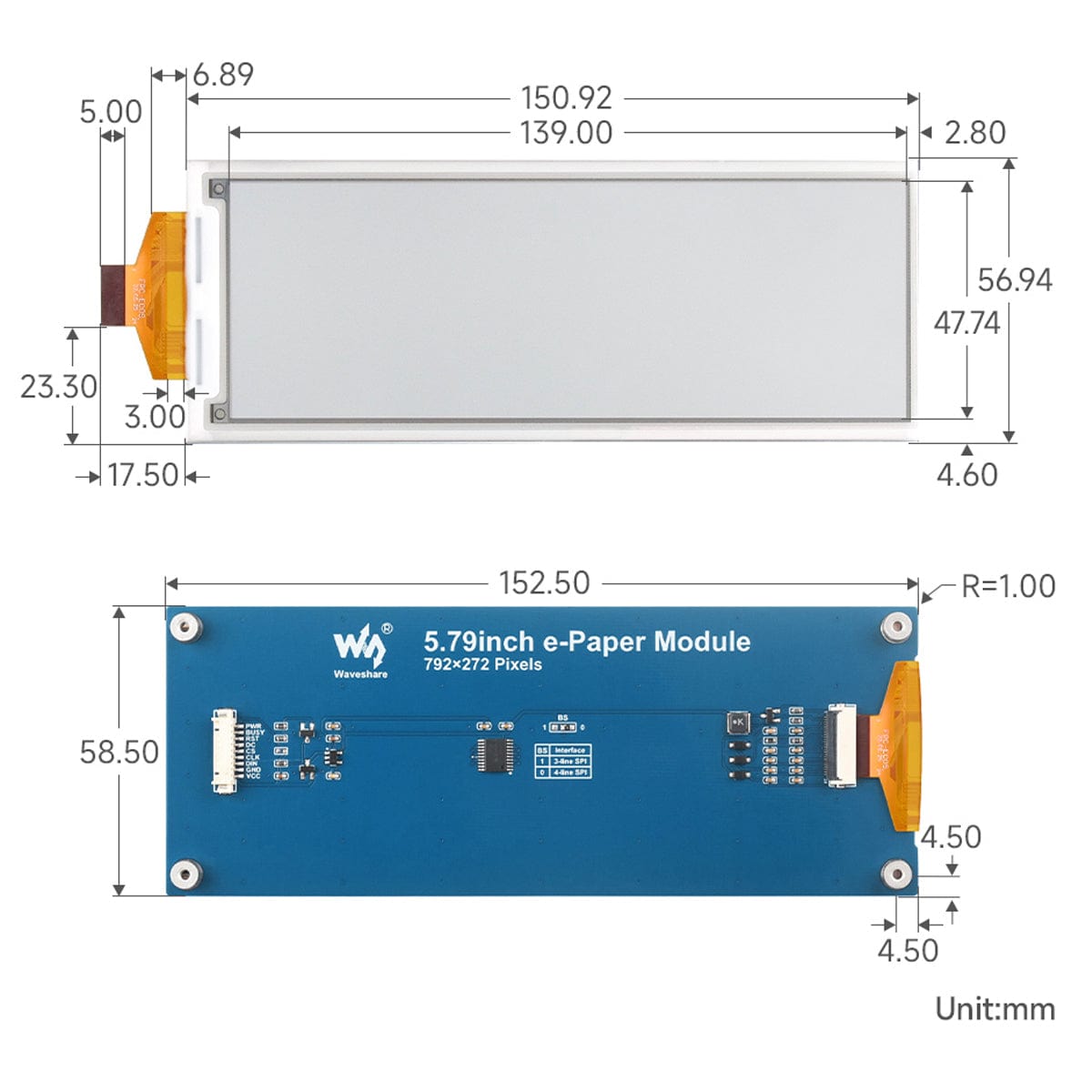

| Outline Dimensions | Raw display: 150.92 × 56.94 x 1.00mm |
| with driver board: 152.50 x 58.50mm | |
| Display Size | 139.00 x 47.74mm |
| Dot Pitch | 0.1755 x 0.1755mm |
| Resolution | 792 x 272 pixels |
| Display Colour | Red/Yellow/Black/White |
| Grey Scale | 2 |
| Full Refresh Time | 21s |
| Refresh Power | <30mW |
| Standby Current | <0.01uA (almost none) |
| Viewing Angle | >170° |
Resources

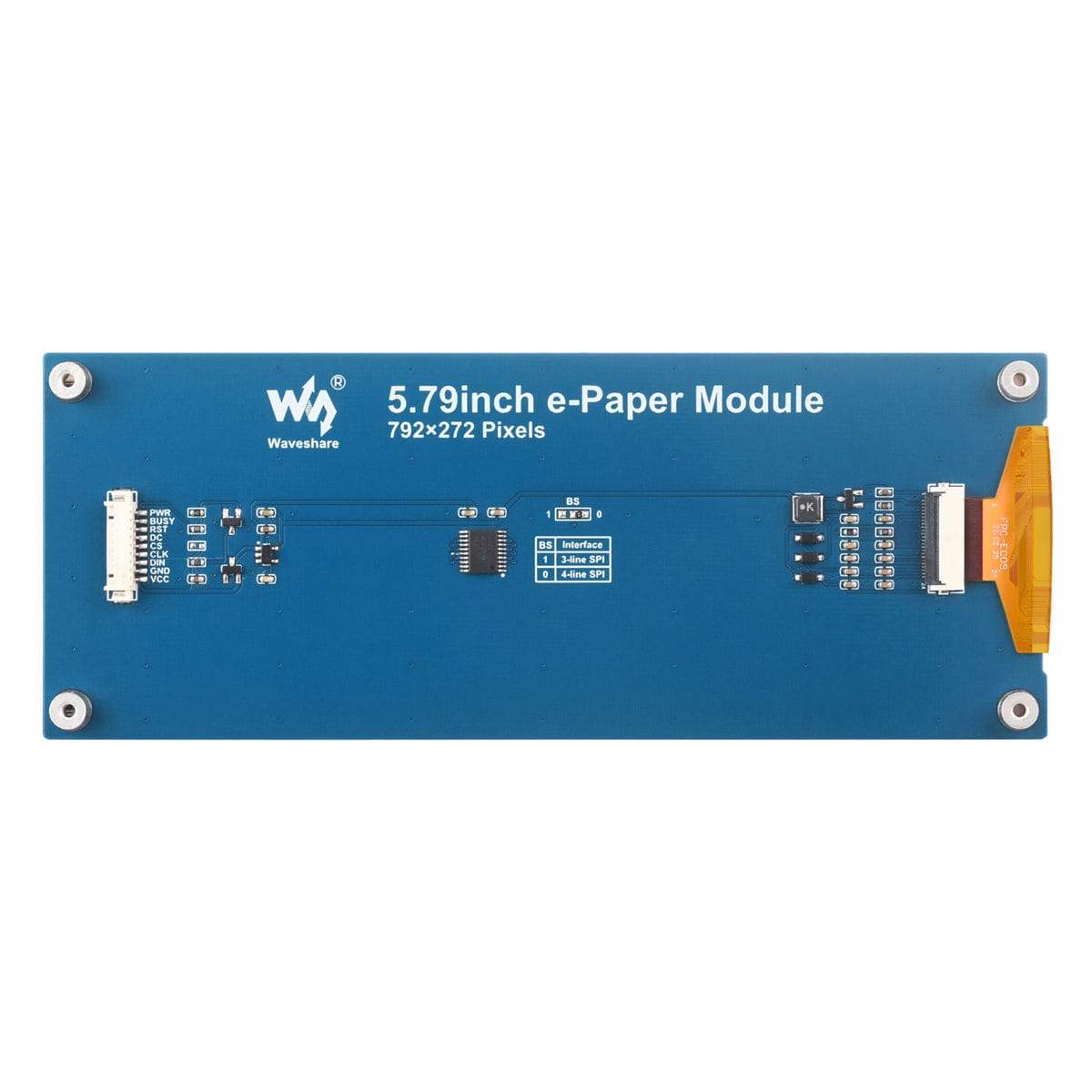

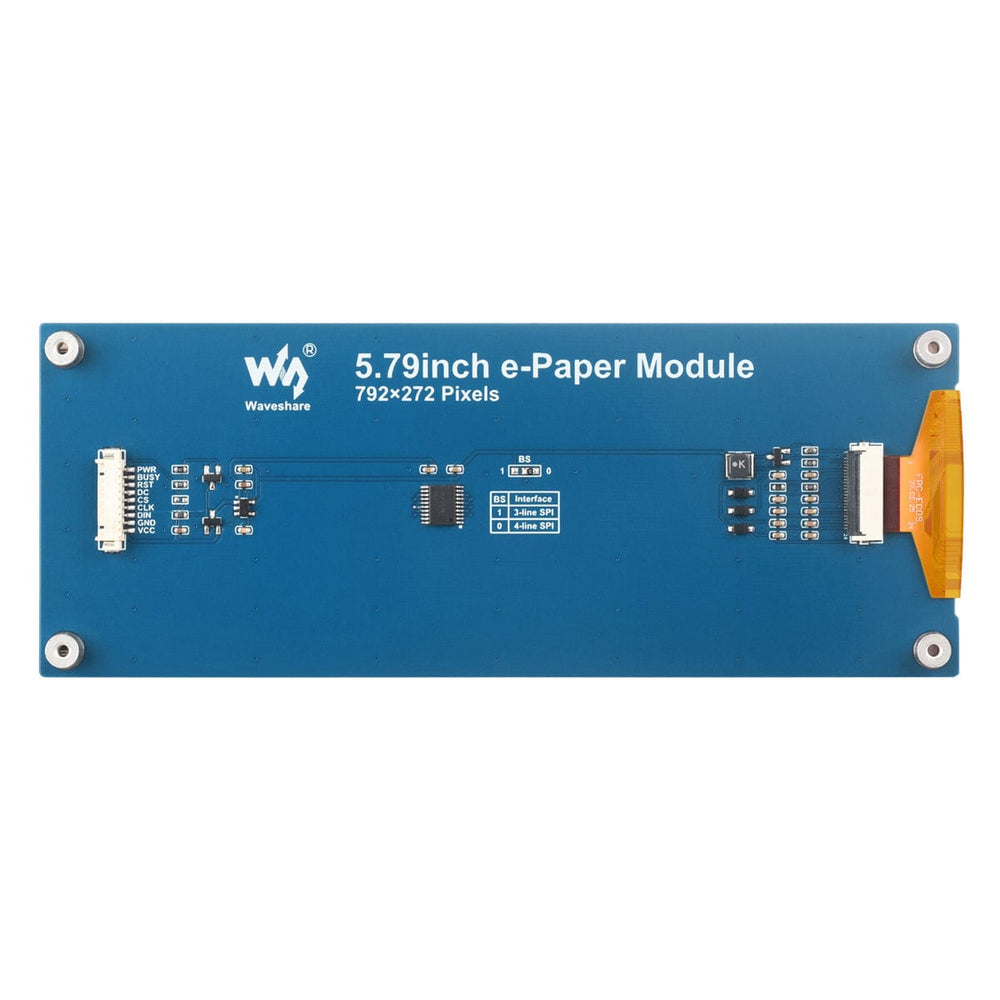

Pinout
| PWR | Power on/off control |
| BUSY | Busy status output pin |
| RST | External reset, low active |
| DC | Data/Command selection (high for data, low for command) |
| CS | SPI chip selection, low active |
| CLK | SPI SCK pin |
| DIN | SPI MOSI pin |
| GND | Ground |
| VCC | Power (3.3V / 5V input) |
Package Contents
- 1x 5.79" e-Paper Module (G)
- 1x GH1.25 9-Pin Cable 20cm
