Finally a 4G network-compatible pHAT for the Raspberry Pi! This pHAT accepts a 1.8V/3V sim card and supports a wide range of LTE Cat-4 network bands alongside 3G and 2G support, including phone calls via AT commands and SMS functionality!

Speeds of up to 50Mbps Uplink* and 150Mbps Downlink* are possible on a 4G network. The pHAT supports GNSS positioning via the GPS, Beidou, GLONASS and LBS Base satellite systems and includes an onboard audio jack and audio decoder support making telephone calls.

The onboard USB Hub chip provides 2x USB 2.0 connections and a USB solder pad for adding an additional connector.

It's possible to create a 4G/3G wireless router with this pHAT and Raspberry Pi OS or OpenWRT (with configuration) - turning your Raspberry Pi into a WiFi hotspot for other devices to access the sim card's network.

Included in the package is the pHAT, an LTE antenna, GPS antenna, USB cable and dedicated "pogo" pins for connecting a Pi Zero to the pHAT without the need for USB connections!

* Idealised data rate - actual data rate depends on factors like network coverage, traffic congestion, base station condition etc. Your mileage may vary.

Note: Raspberry Pi not included

Features

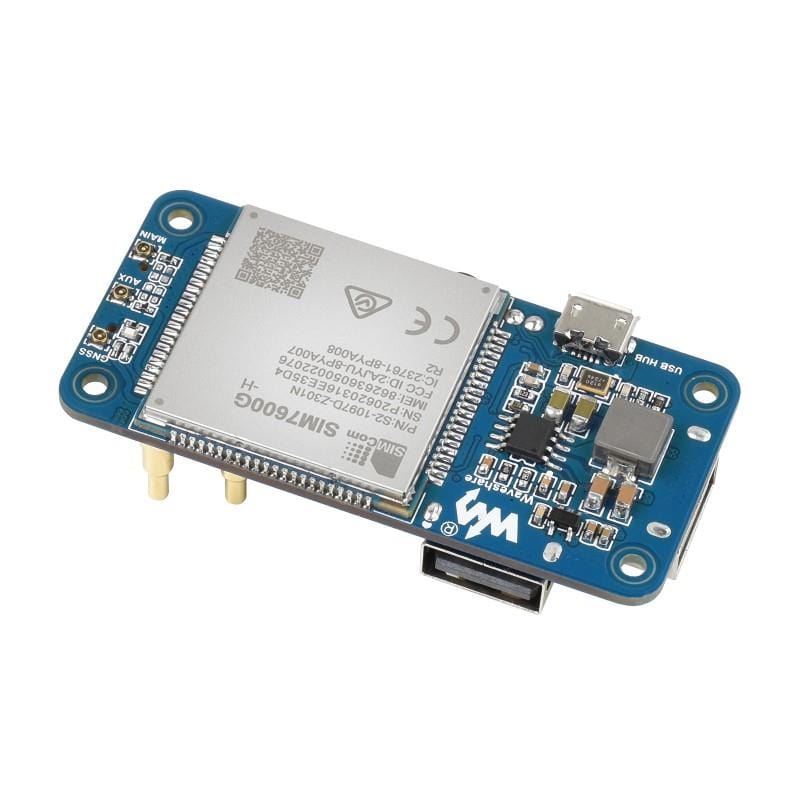

  • Incorporates SIM7600G-H global band 4G module, compatible with 2G/3G/4G network with global support
  • SIM card slot, supports 1.8V/3V SIM card
  • Supports GPS, BeiDou, Glonass, LBS base station positioning
  • Supports dial-up, telephone call, SMS, TCP, UDP, DTMF, HTTP, FTP, etc.
  • Onboard audio jack and audio decoder for making telephone call
  • Control via AT commands (3GPP TS 27.007, 27.005, and V.25TER command set)
  • Supports SIM application toolkit: SAT Class 3, GSM 11.14 Release 99, USAT
  • 2x LED indicators, easy to monitor the operating status

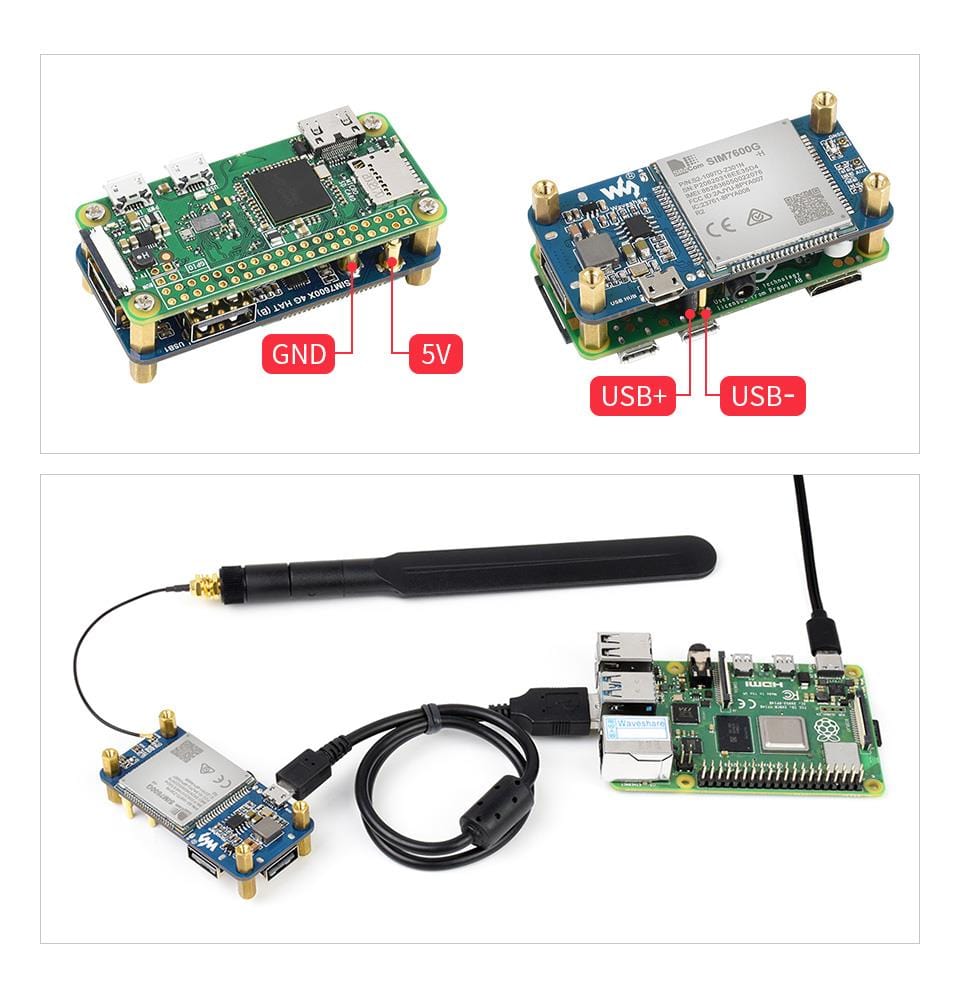

  • Connected to Raspberry Pi by either the pogo pin or Micro-USB connector
    • Dedicated pogo pin for Raspberry Pi Zero/Zero W
    • MicroUSB connector for other Raspberry Pi boards or PC
  • USB HUB connector for other Raspberry Pi boards or PC, providing USB extension and 4G network access
  • Online development resources and manual (examples for Raspberry Pi)

Network Band Support

LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz

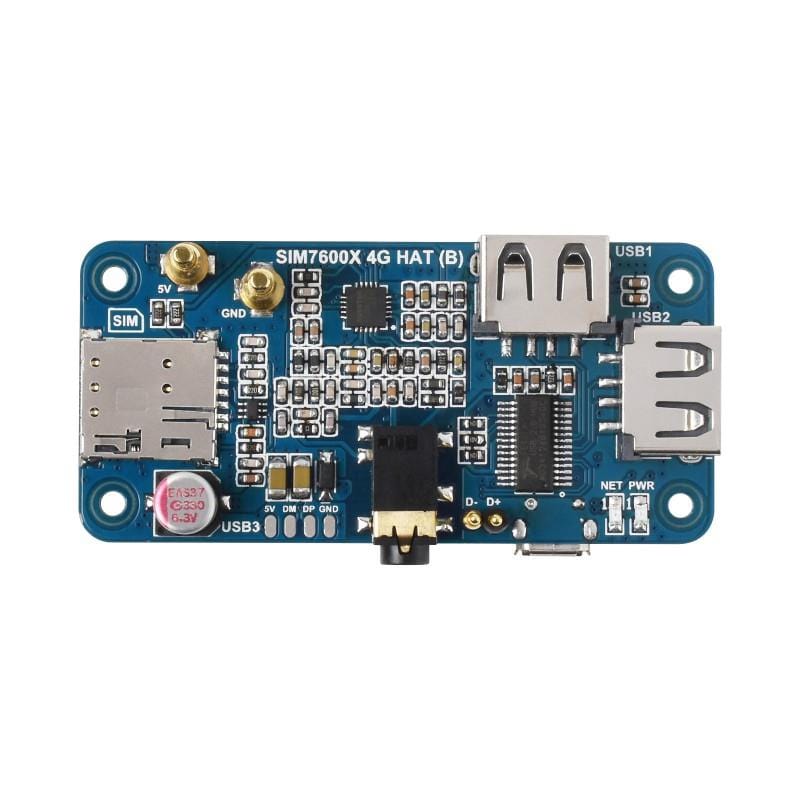

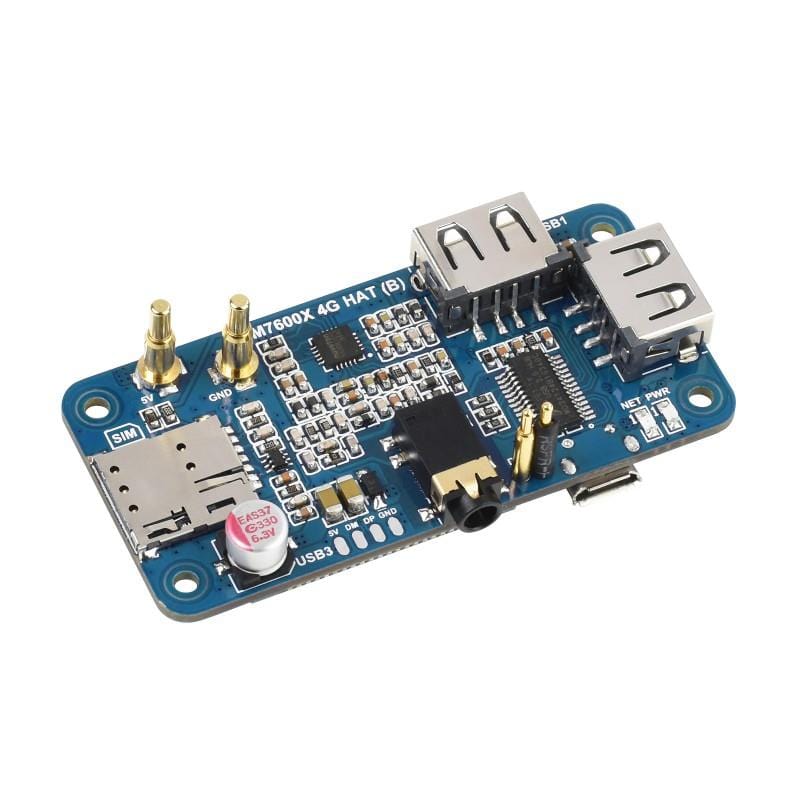

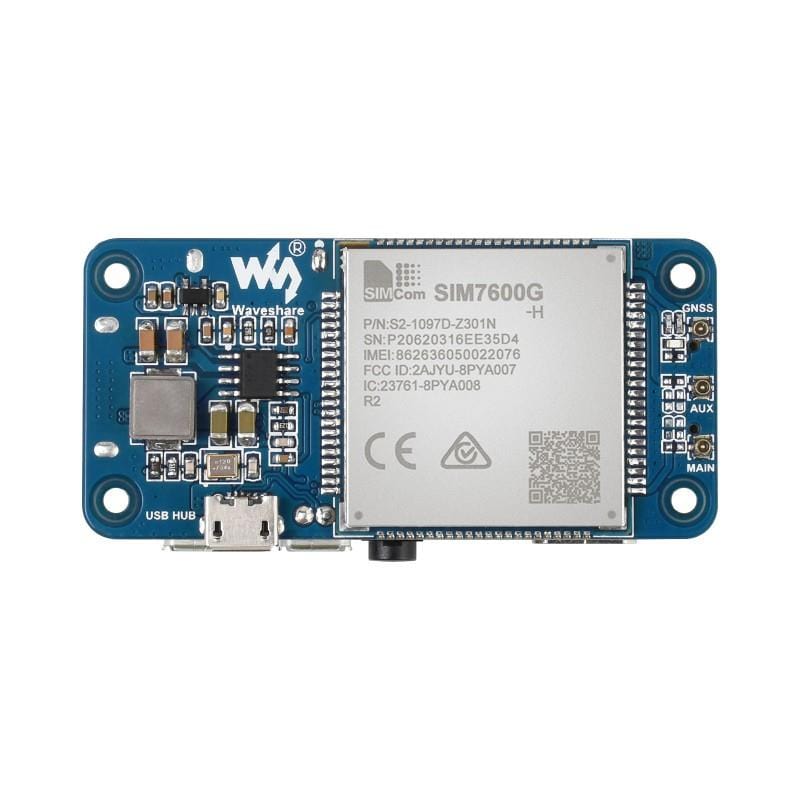

What's On Board

Raspberry Pi 4G pHAT Features

  • 1) SIM7600G-H
  • 2) FE1.1S USB HUB chip
  • 3) NAU8810 audio decoder
  • 4) MP1482 power chip
  • 5) RT9193-33 voltage translator
  • 6) USB HUB input
    • D+/D- pogo pin: for Raspberry Pi Zero/Zero W
    • MicroUSB connector: for other Raspberry Pi boards or PC
  • 7) Pogo pin power supply
    • 5V: connects to 5V pin of Zero/Zero W, up to 2A current
    • GND: connects to GND pin of Zero/Zero W

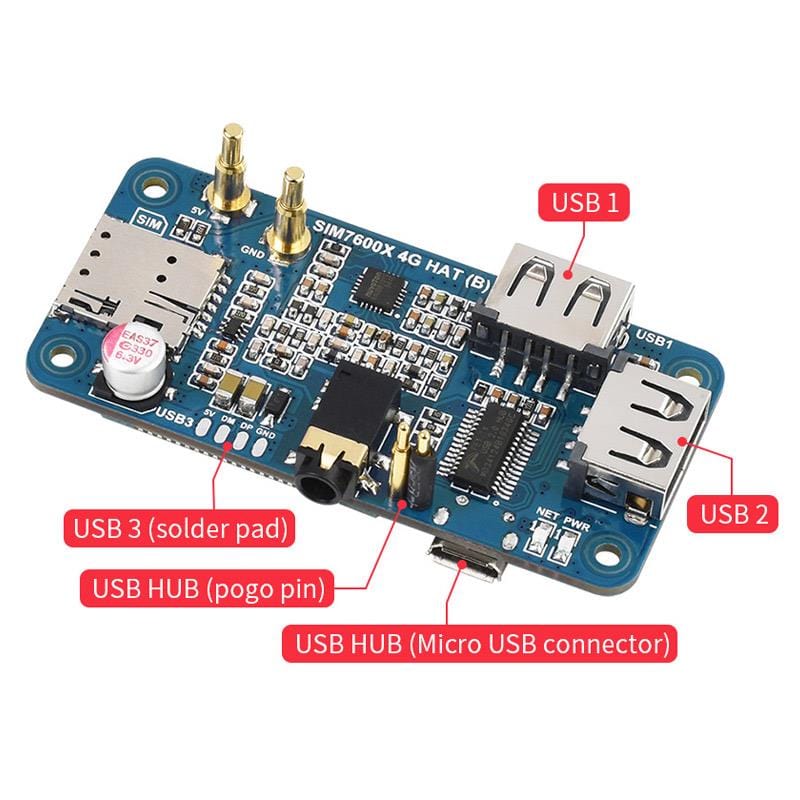

  • 8) USB extended ports
    • USB1~USB2: USB-A connectors
    • USB3: solder pad
  • 9) SIM card slot
    • supports 1.8V/3V SIM card
  • 10) 3.5mm earphone/mic jack
  • 11) MAIN antenna connector
  • 12) AUX auxiliary antenna connector
  • 13) GNSS antenna connector
  • 14) Power indicator
  • 15) Network status indicator

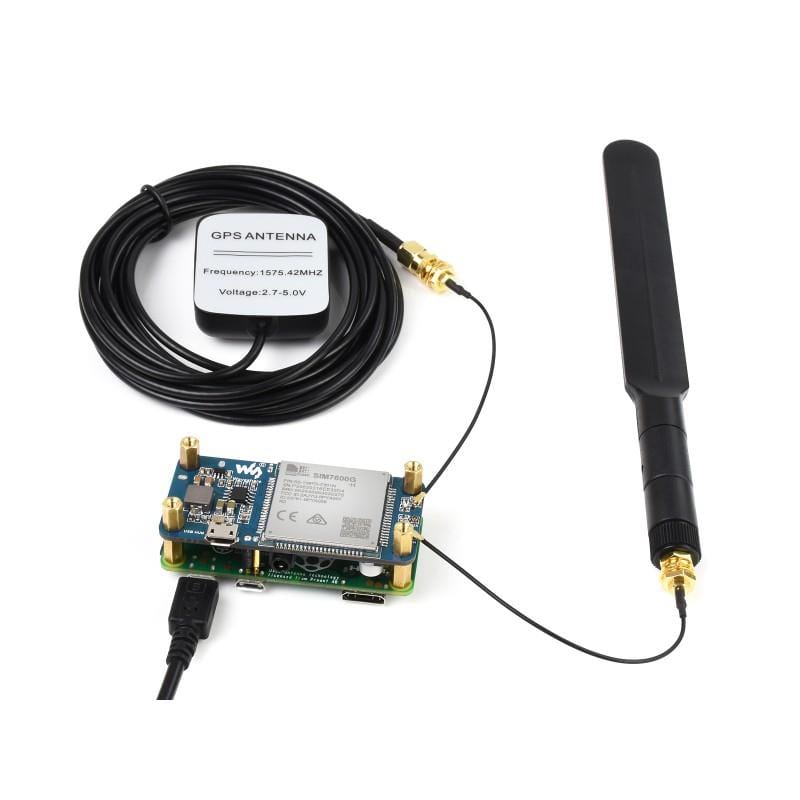

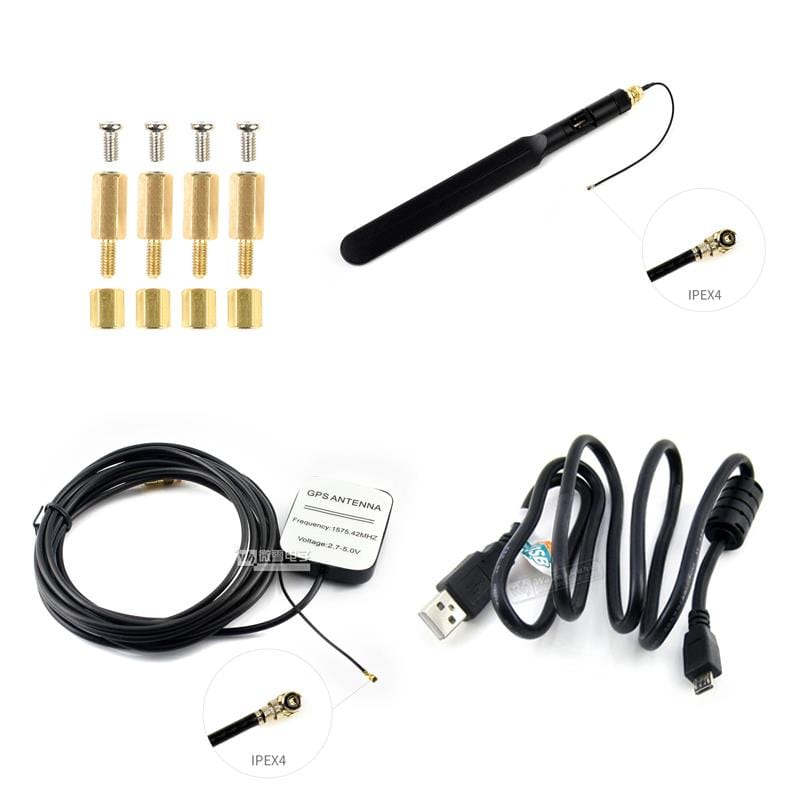

Package Contents

  • 1x SIM7600G-H 4G pHAT (B)
  • 1x LTE Antenna
  • 1x GPS Antenna
  • 1x USB-A to micro-B cable
  • 1x Screws pack

Raspberry Pi not included

Specifications

Network Band Support

LTE Cat-4 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66
LTE-TDD: B34/B38/B39/B40/B41
3G UMTS/HSDPA/HSPA+: B1/B2/B4/B5/B6/B8/B19
2G GSM/GPRS/EDGE: 850/900/1800/1900 MHz

GNSS

Satellite systems GPS/Beidou/GLONASS
Receiver type 16-channel
C/A Code
Sensitivity -159 dBm (GPS) / -158 dBm (GLONASS) / TBD (BeiDou)
Cold starts: -148 dBm
Time-To-First-Fix (open air) Cold starts: <35s
Hot starts: <1s

SMS & Audio

SMS Supported types: MT, MO, CB, Text, PDU
Audio feature Supports echo cancellation
Supports noise reduction

Other

Power supply 5V
Operating temperature -30°C ~ 80°C
Storage temperature -45°C ~ 90°C

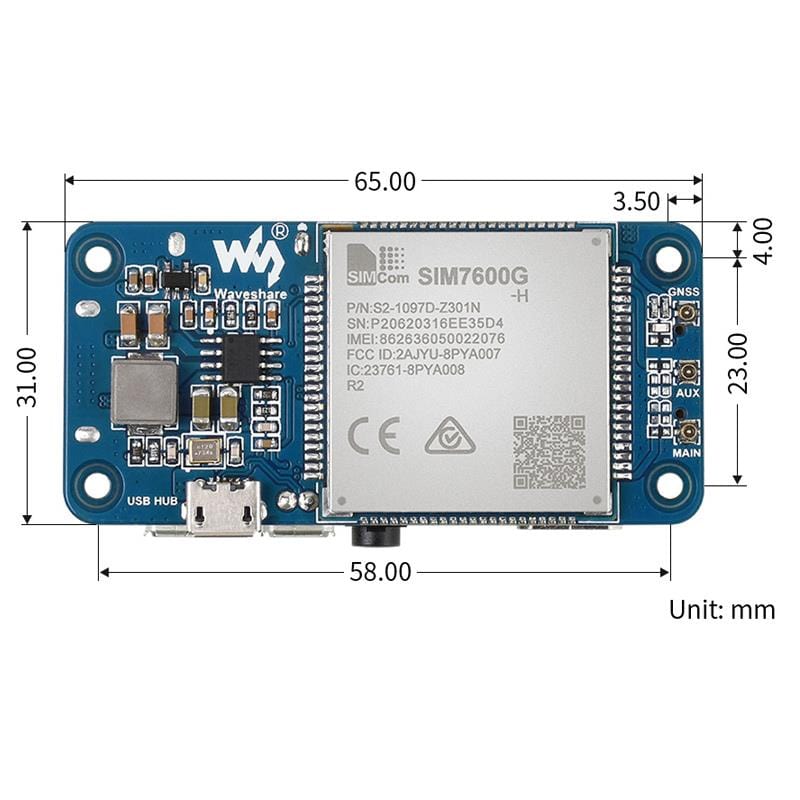

Dimensions 65mm × 31mm
