This 4G/3G/2G/LPWA outdoor antenna covers a wide 700–2700MHz frequency range and offers 12dBi gain. It's designed for cellular and low-power wide-area (LPWA) applications.
LPWAstands forLow-PowerWide-Area, used by networks such as NB-IoT, LTE-M, LoRaWAN and Sigfox, designed forlong-range, low-power IoT communication.

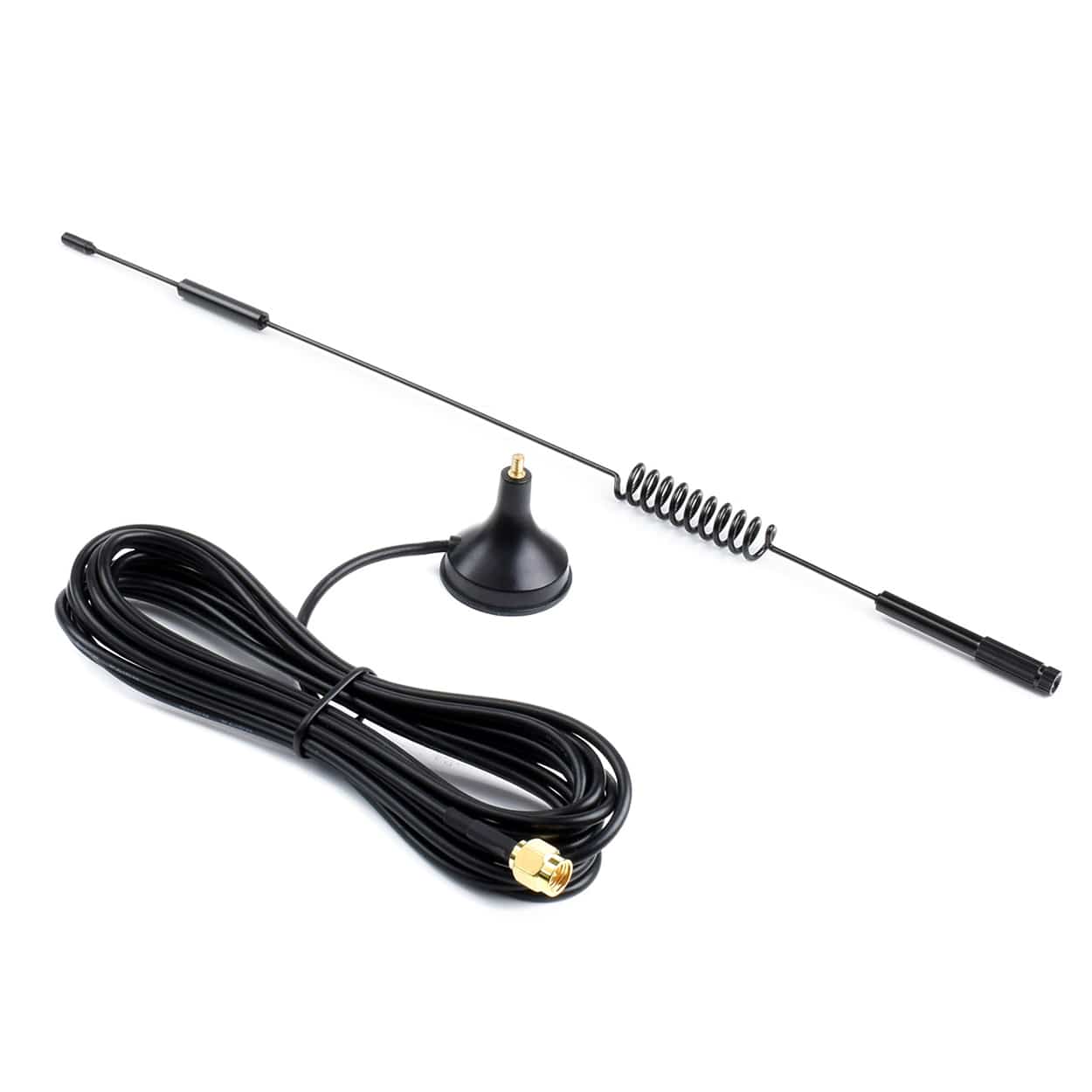

The antenna has an IP65-rated enclosure for outdoor installations, a magnetic base for mounting to suitable metal surfaces, and an integrated ~3m cable for flexible positioning. Connection is via an SMA-Male connector.

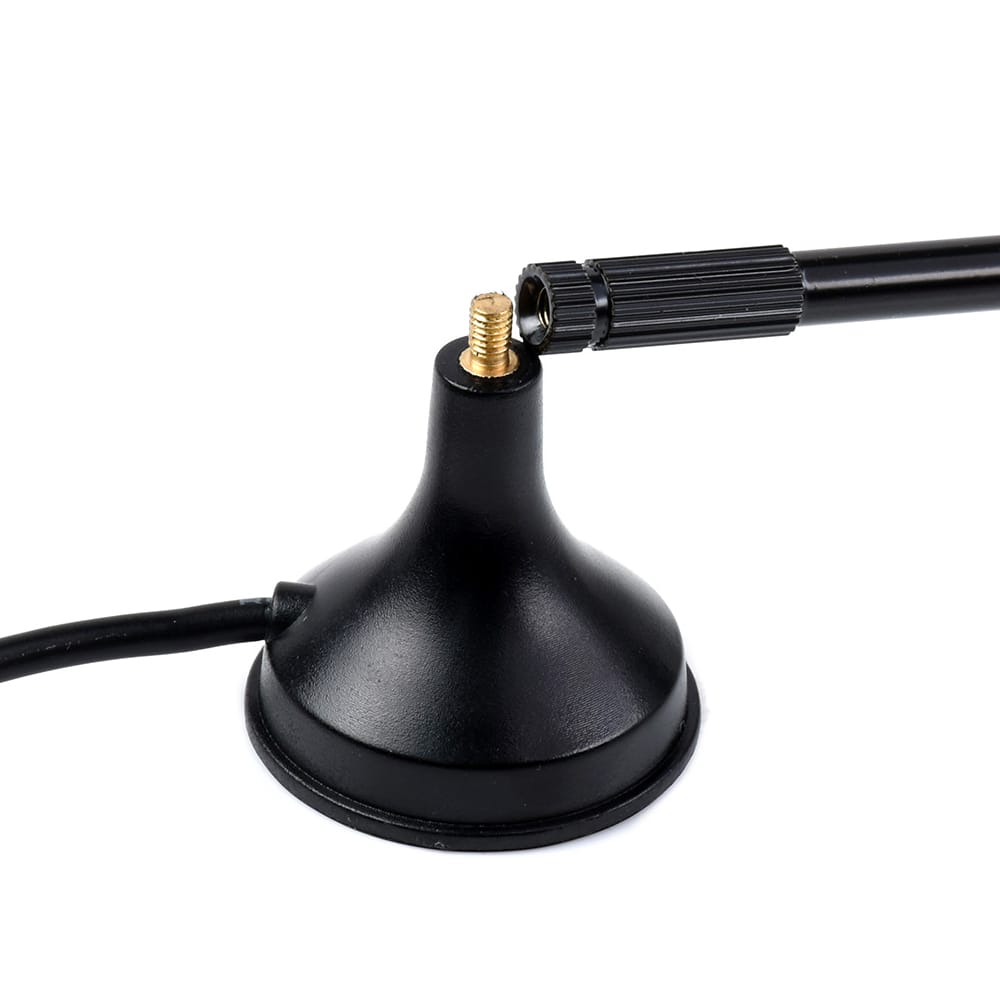

The antenna unscrews from the base, allowing easier/safer transport and swap-outs.
Features
Supports 4G, 3G, 2G and LPWA
700–2700MHz frequency coverage
12dBi gain
IP65-rated for outdoor use
Magnetic mounting base
Integrated ~3m cable
SMA connector with inner pin
Vertical polarisation
Specifications
Network support
4G/3G/2G/LPWA
Frequency range
700–2700MHz
Bandwidth
2300MHz
Gain
12dBi
VSWR
≤1.5
Polarisation
Vertical
Output impedance
50Ω
Maximum input power
10W
Connector
SMA-male (inner pin)

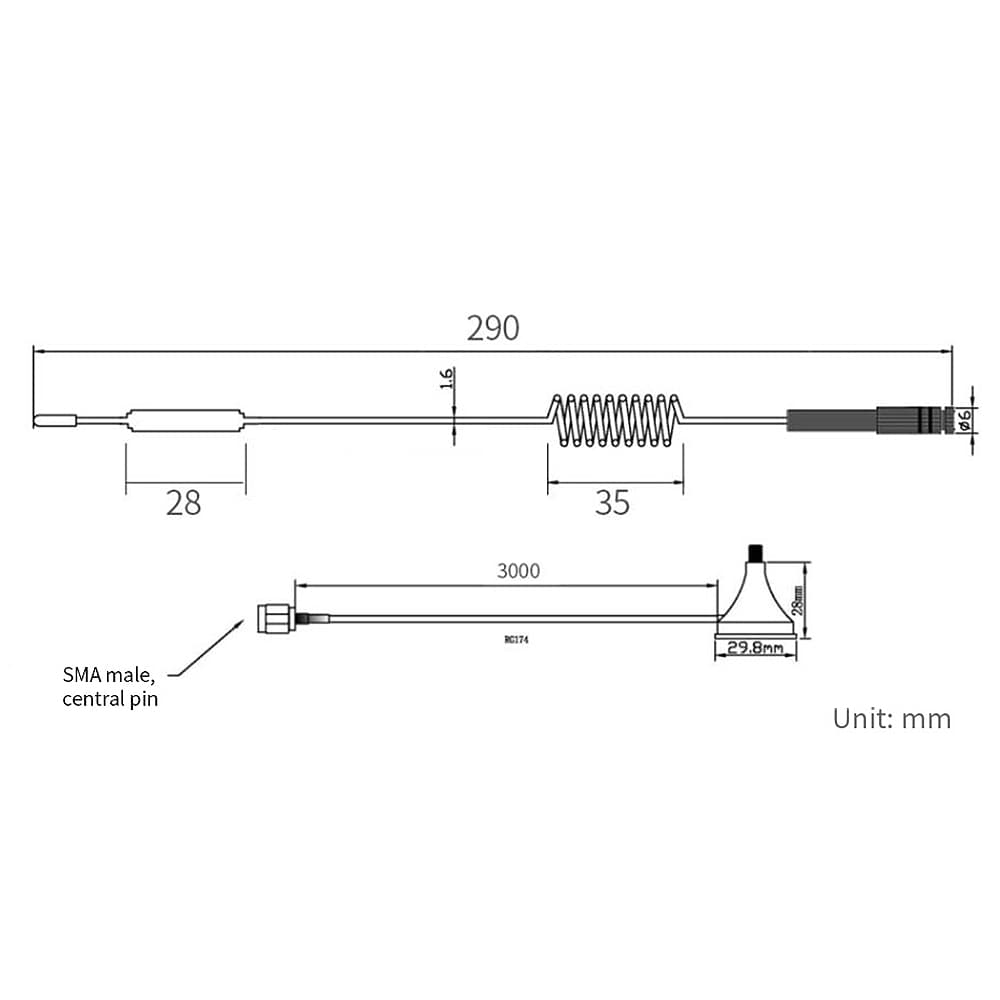

Antenna height
320mm
Cable length
~3m
Ingress protection
IP65
Operating temperature
-40°C to +85°C
Colour
Black
Weight
56g
Package Contents
1x 4G/3G/2G/LPWA Outdoor Antenna
