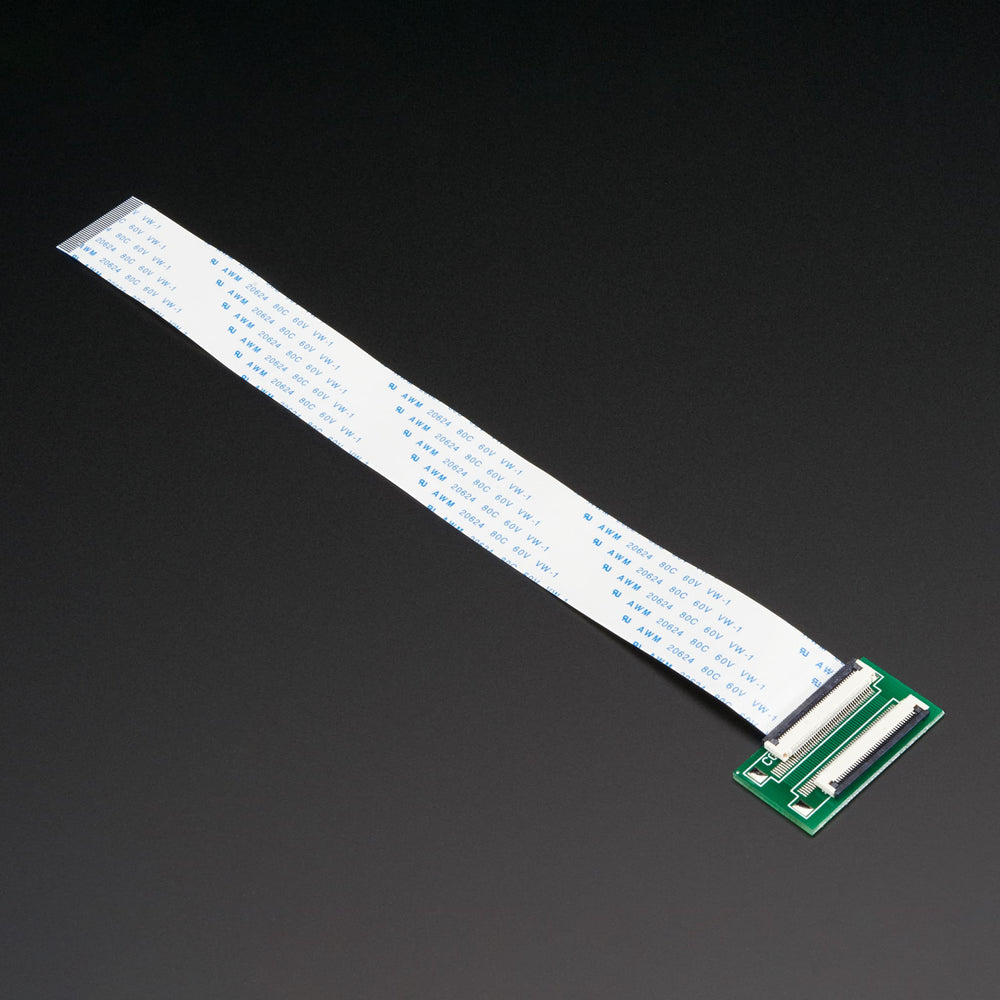

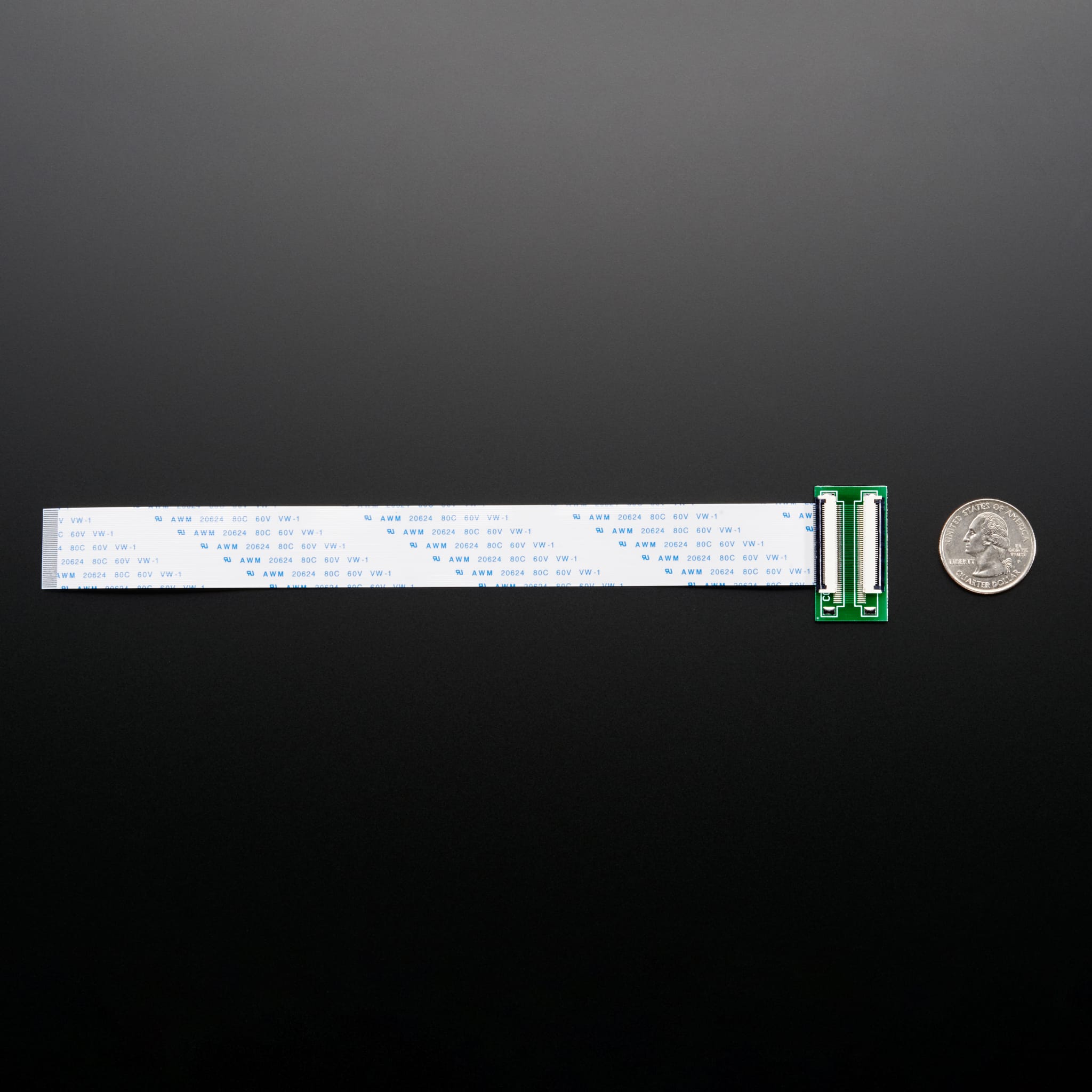

40-pin FPC Extension Board + 200mm Cable

This 40-Pin FPC Extension Board adds around 22cm of extra reach to 0.5mm pitch connections, with two 40-pin connectors and an included 20cm FPC cable.

Give your 40 pin, 0.5mm pitch, devices a strrrreeeetch with this extension board.

This 40-pin FPC extension board has two 40-pin flex connectors (both are bottom contact type), and an extension cable to add 22cm (20cm cable plus 2cm board) .

Each order comes with one board and a 20cm long, 40-pin 0.5mm pitch FPC cable.

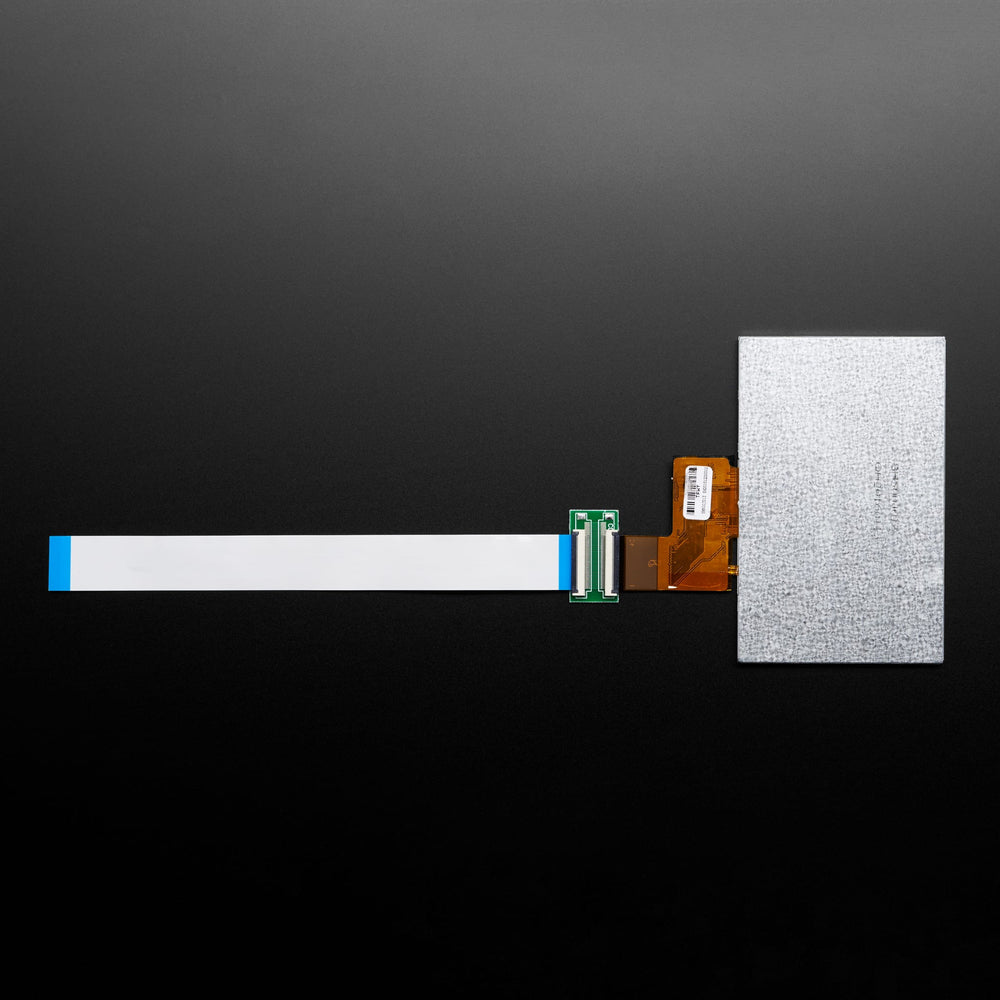

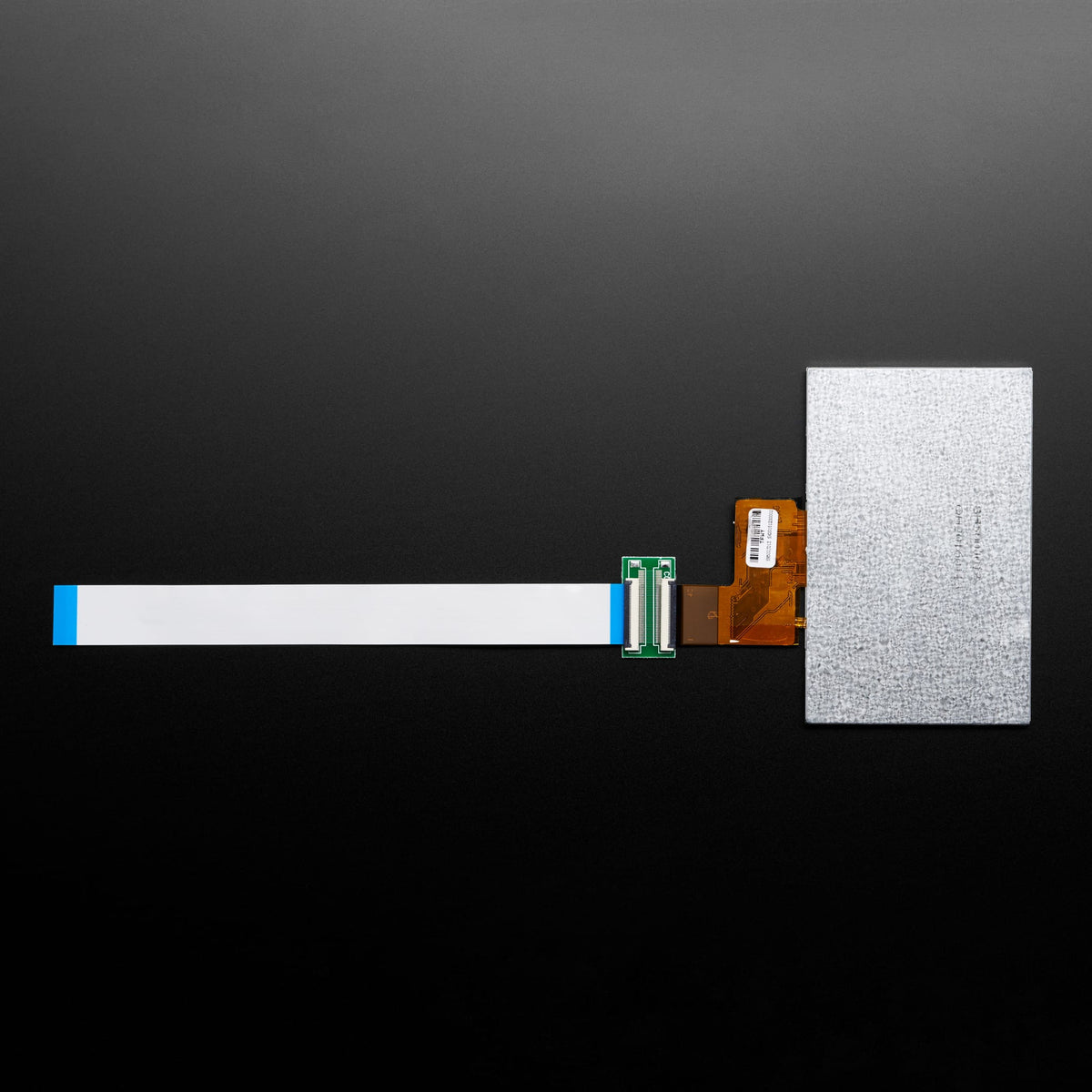

Works great with Adafruit's 40pin TFTs!

Features

• 40-pin FPC extension board with dual 40-pin flex connectors
• Bottom contact type connectors for reliable connection
• 0.5mm pitch spacing compatible with standard TFT displays
• Extends reach by approximately 22cm (20cm cable + 2cm board)
• Includes 20cm long 40-pin 0.5mm pitch FPC cable
• Compatible with 40-pin TFT displays
• One board per order
• Flexible cable design for angled or curved installations

Specifications

• 18mm x 34mm x 4mm

• Cable Length: 200mm

• Board Thickness: 1.5mm

• Weight: 2.7g

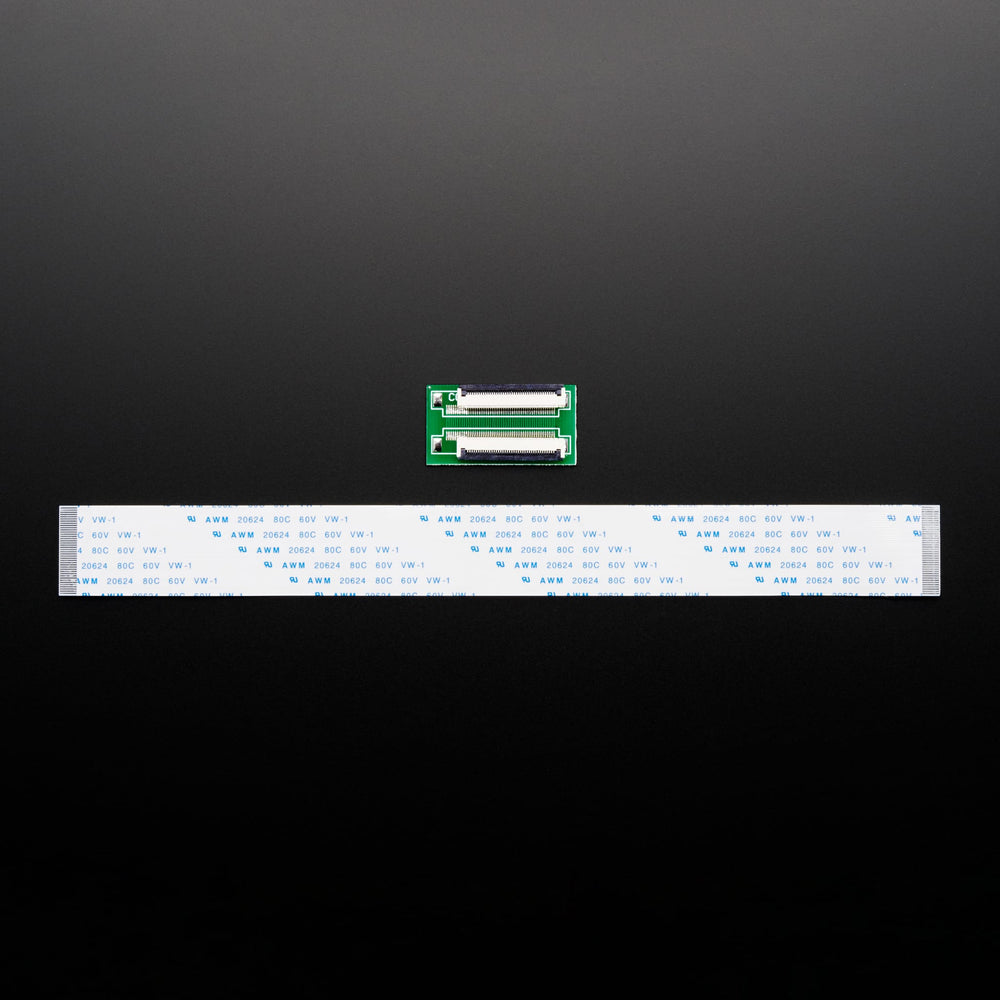

Package Contents

• 1x 40-pin FPC Extension Board + 200mm Cable
