4-Pin LED Strip Connectors (5 Pieces)

DFRobotSKU: FIT0862
Sale price £0.83
incl. VAT
excl. VAT
Only 9 units left

Awesome Extras

DFRobot4-Pin LED Strip Connector Cables (5 Pieces)
Sale price £2.33 incl. VAT excl. VAT
DFRobot4-Pin LED Strip Right-angle Connectors (5 Pieces)
Sale price £2.33 incl. VAT excl. VAT

Is there a way to join two pieces of cuttable LED strip together without soldering? Yes, there is!

These 4-Pin solderless strip connectors with a snap-down design make a firm and easy connection of 10mm wide 4-wire RGB LED strips.

Just align and snap them together, job done. Pack of 5!

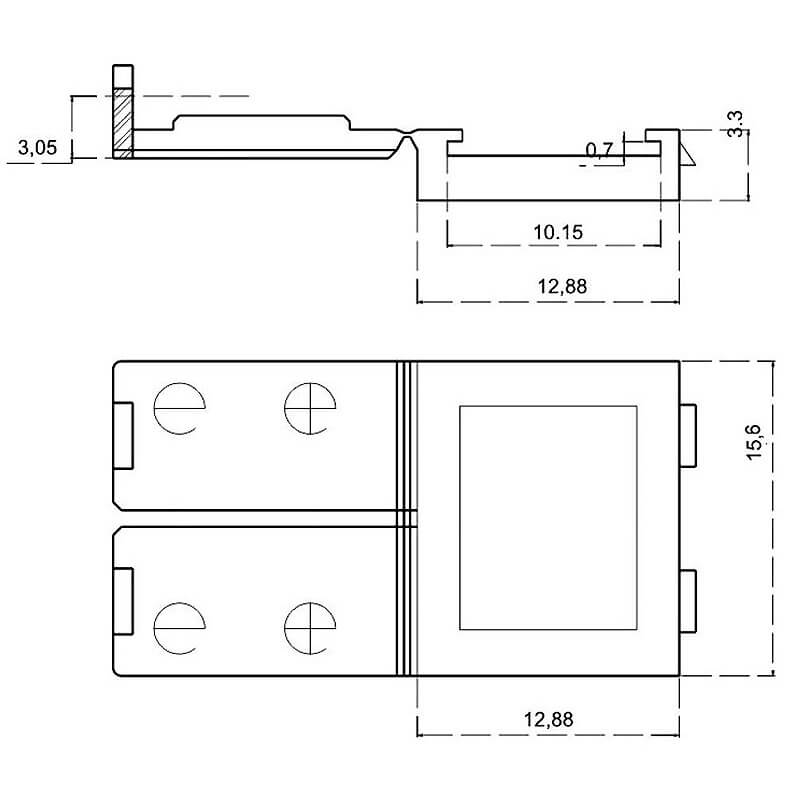

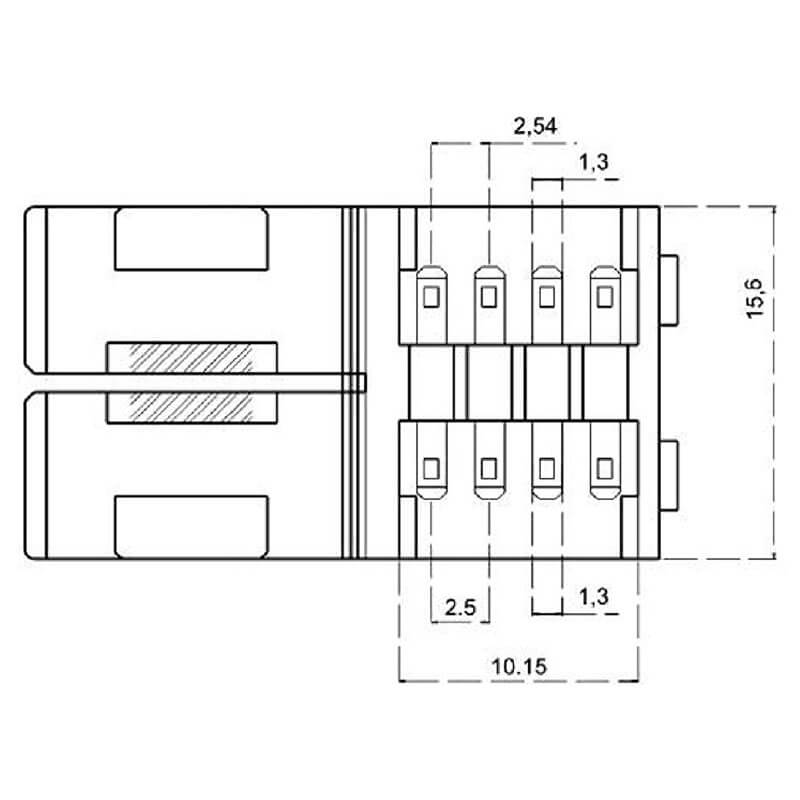

4-Pin LED Strip Connector Drawing


  • Snap-down design
  • Connect LED strips without soldering


  • Suitable LED Strip Width: 10mm
  • Suitable LED Strip Thickness: 0.2mm-0.4mm
  • Current: Max 5A
  • Operating Temperature: -45℃~+105℃
  • 4-Pin Connector

Package Contents

  • 5x 4-Pin LED Strip Connectors
