4" HDMI Round Touch Display for Raspberry Pi (720x720)

WaveshareSKU: WAV-27486
Price:
Sale price £85.30
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 5
Sale priceFrom £57.60 incl. VAT excl. VAT
Raspberry PiRaspberry Pi Zero 2 W
Sale priceFrom £14.40 incl. VAT excl. VAT

The 4" HDMI Touch Display has a 720 x 720 resolution for sharp images, a vibrant IPS panel, and a wide 170° viewing angle. It has a 10-point capacitive touch screen with toughened glass and optical bonding technology for a clear, durable, and responsive touch experience.

This display supports multiple devices, including Raspberry Pi, Jetson Nano, and PCs, and is driver-free for easy setup. This display is ideal for adding a high-quality, compact touch interface to your projects.

If you'd like your display to be a bit smaller, we also have a 3.4" version here

Note: Raspberry Pi is NOT included

Features

  • 4" round IPS screen with 720 x 720 hardware resolution.
  • 10-point capacitive touch with up to 6H hardness toughened glass panel.
  • Optical bonding technology, better-displaying effect.
  • Supports Raspberry Pi OS / Ubuntu / Kali and Retropie when used with Raspberry Pi.
  • Supports Windows 11 / 10 / 8.1 / 8 / 7 when used as a computer monitor.

What's on Board

Specifications

Item Description Unit
Size 4 "
Viewing Angle 170 Deg
Resolution 720 x 720 Pixels
Overall Size 126.00(H) x 126.00(V) x 17.00(D) mm
Display Area 101.52(H) x 101.52(V) mm
Colour Gamut 0.6 NTSC
Maximum Brightness 350 cd/m²
Contrast 50.00069444 /
Backlight Adjustment Button dimming /
Refresh Rate 60 Hz
Display Interface Standard HDMI Interface /
Power Port 5V Type-C Power Supply /
Power Consumption 1.8 Watt

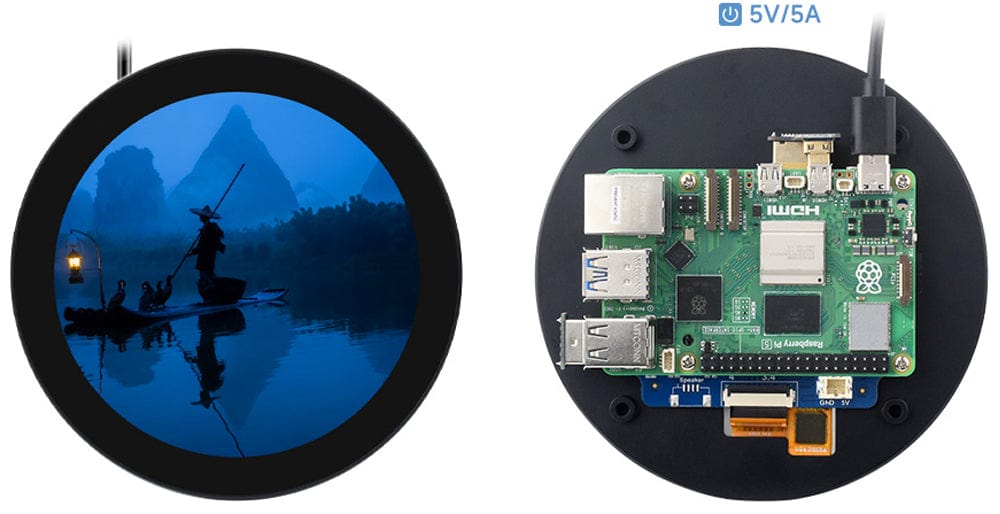

Connection Example - Raspberry Pi 5

Resources

Package Contents

  1. 1x 4" 720 x 720 LCD
  2. 1x Silver capacitive touch pen
  3. 1x USB-A to USB-C cable - 1m
  4. 1x HDMI flat cable - 1m
  5. 1x USB to Type-C adapter (C)
  6. 1x USB to Type-C adapter (B)
  7. 1x HDMI to Micro HDMI adapter
  8. 1x HDMI adapter
  9. 1x Screwspack
