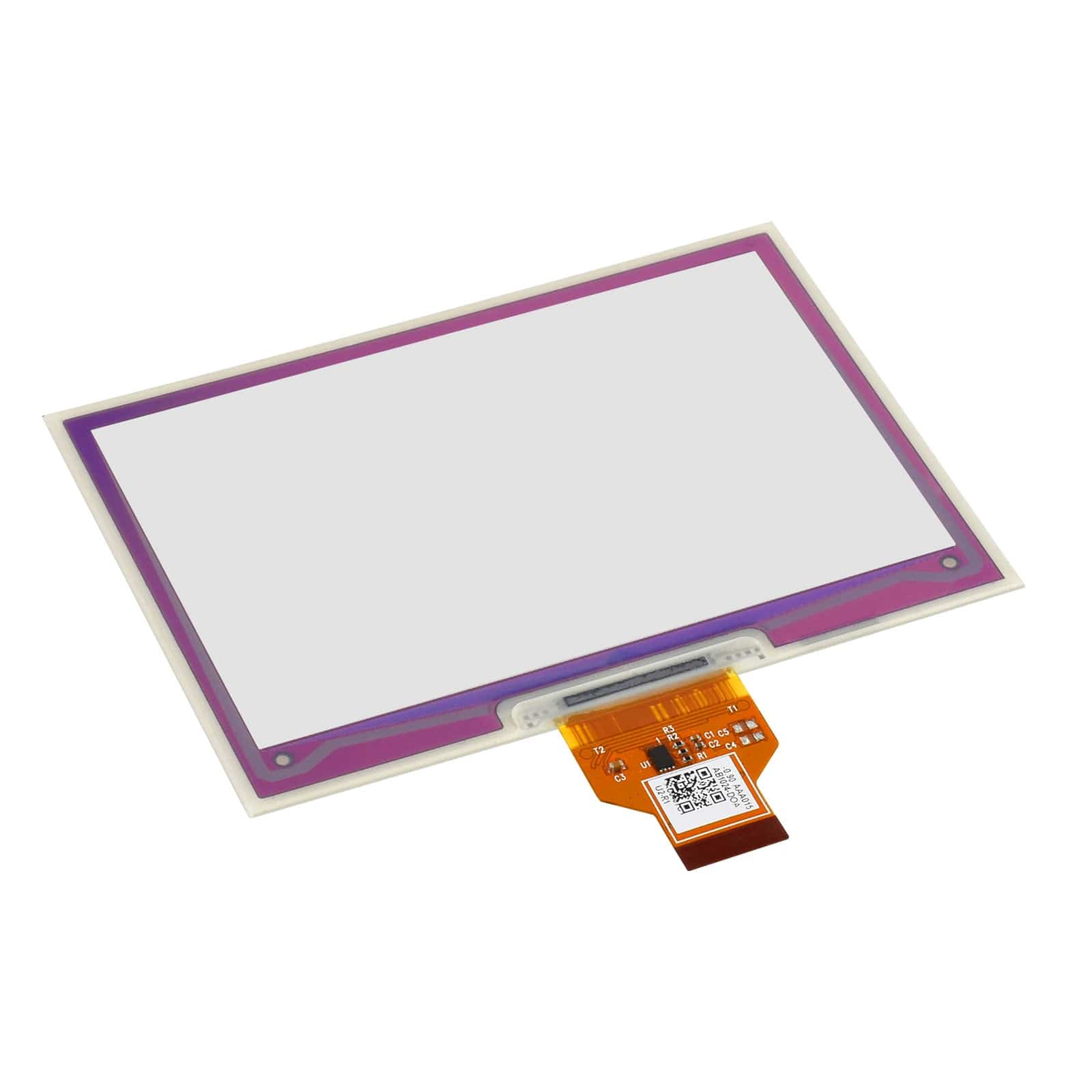

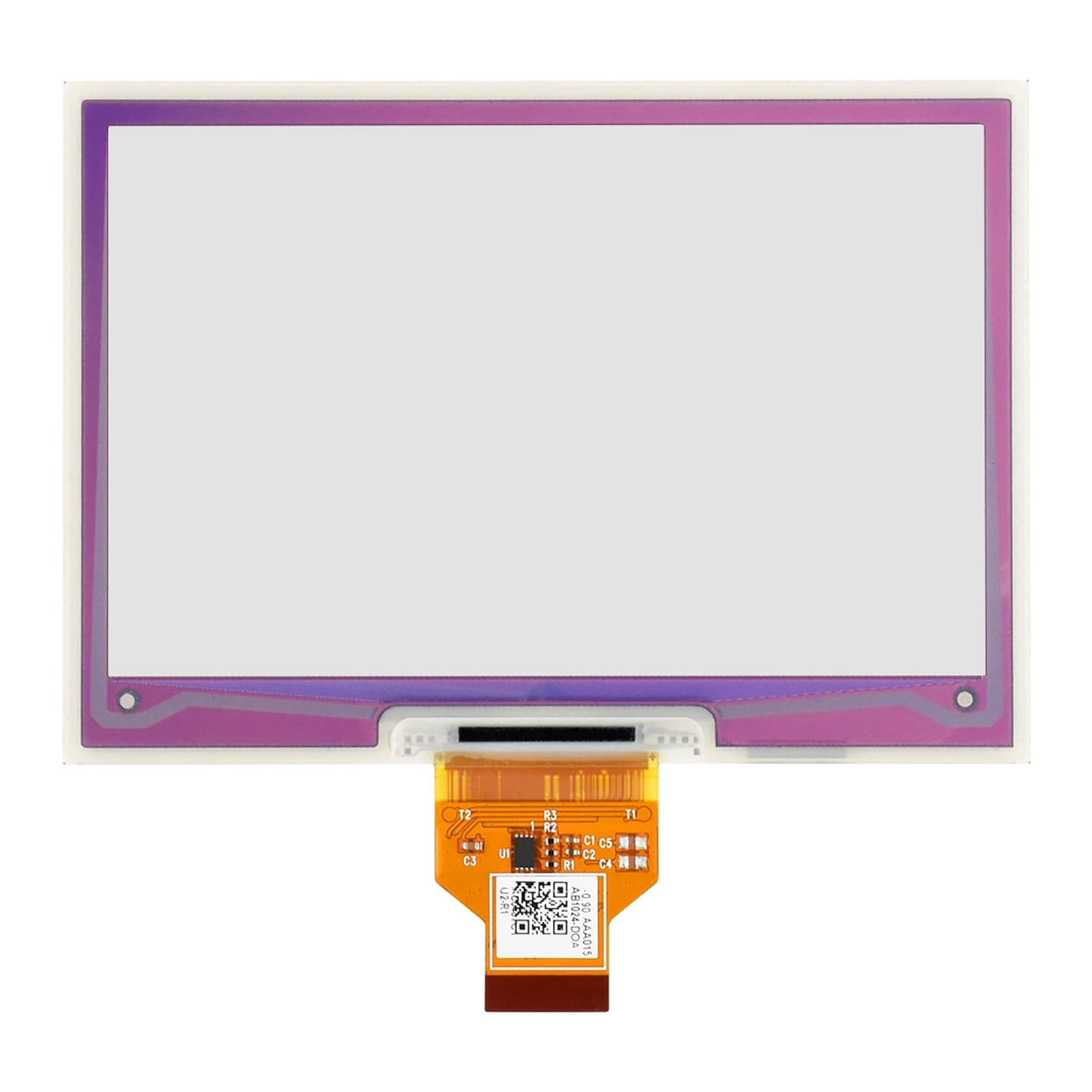

4.01" ACeP 7-Color E-Paper Display (without PCB) (640×400)

WaveshareSKU: WAV-19078
Price:
Sale price £35
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

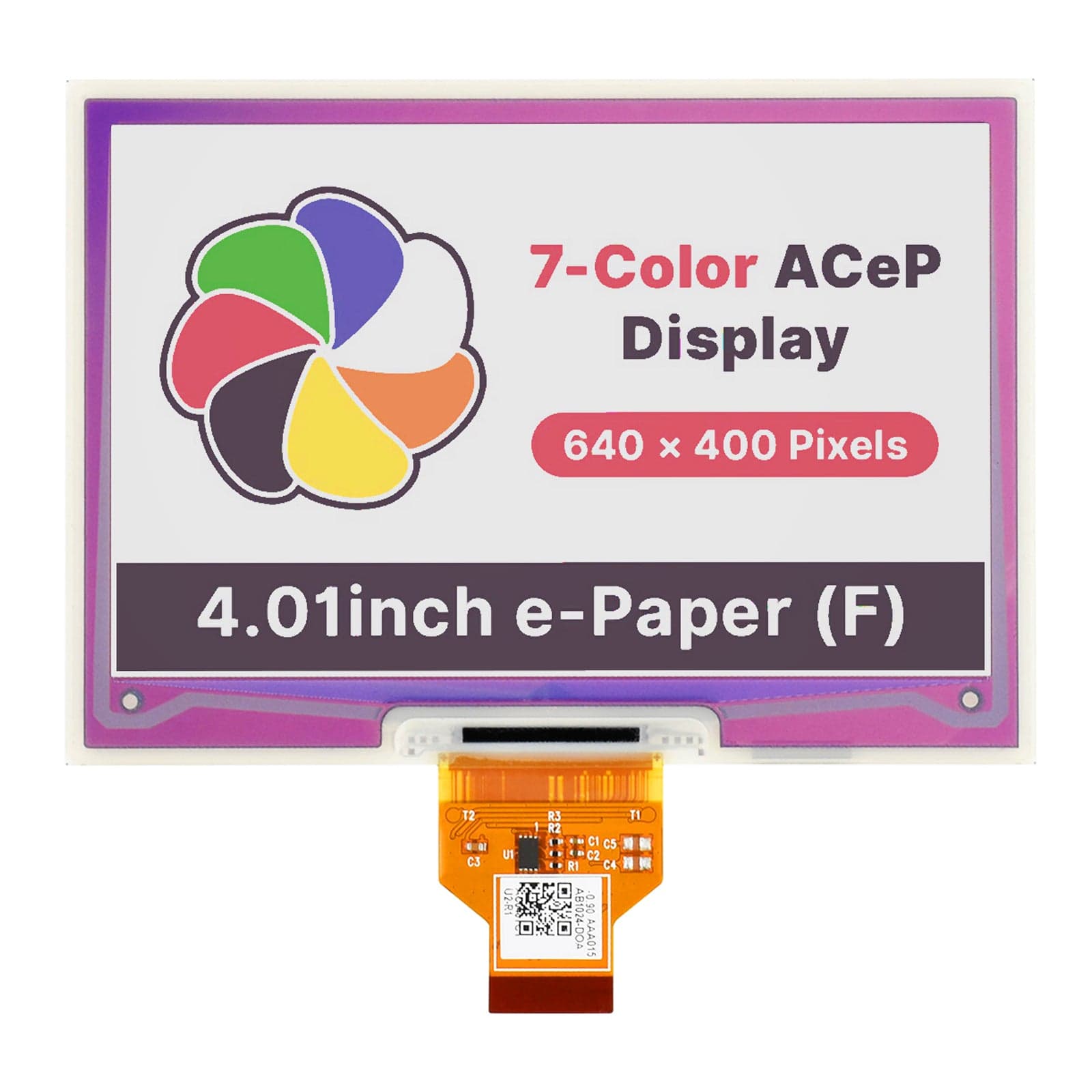

In need of a medium-sized, seven-colour e-paper/e-Ink display for your next project? Look no further! This raw-display 4.01-inch e-Paper e-Ink eInk/ePaper display from Waveshare , might be what you are looking for. Featuring a display resolution of 640x400, this ACeP 7-colour display is capable of displaying white, black, orange, yellow, red, green, and blue with a full refresh time of 15-seconds.

ePaper / eInk displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which loose their image when power is removed, eInk screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra low power, designed to have a wide viewing angle, and additionally have limited reflection under sunlight. The applications are limitless!

This is a raw display panel. An additional driver board is needed to make this display functional.

Features

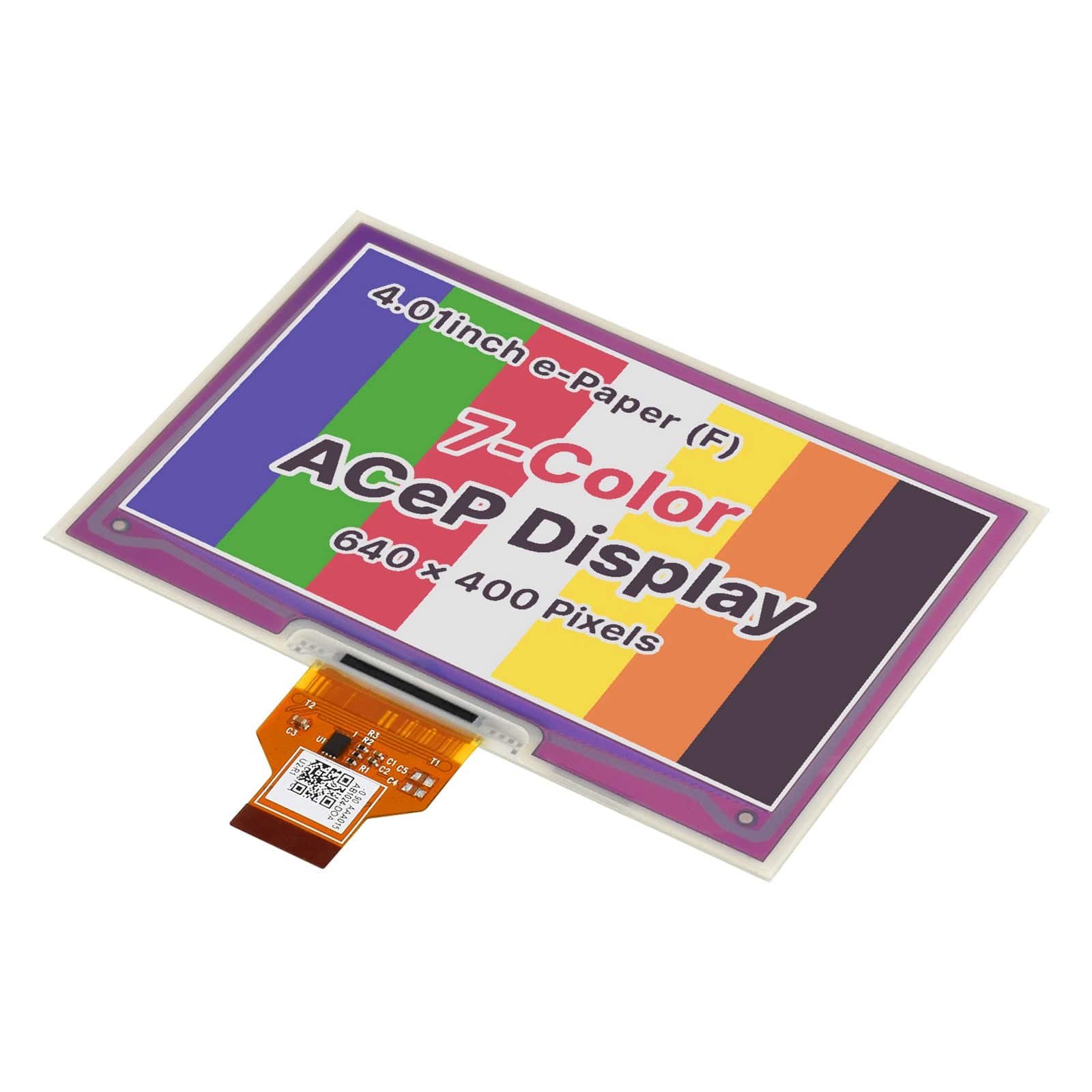

  • Advanced Color ePaper (ACeP) technology, supports 7-Color display
  • No backlight - keeps displaying the last image for a long time even when powered down
  • Ultra-low power consumption - power is only required for refreshing
  • SPI interface - requires minimal IO pins
  • 2x user buttons and 1x reset button for easy user interaction
  • Online development resources and manual available (Raspberry Pi Pico C/C++ and MicroPython examples)

Specifications

  • Operating voltage: 3.3V/5V
  • Display color: ACep 7-Color
  • Interface: 3-wire SPI, 4-wire SPI
  • Crey scale: 2
  • Display size: 86.40 × 54.00mm
  • Dot pitch: 0.135 × 0.135mm
  • Resolution: 640 × 400 pixels
  • Viewing angle: >170°
  • Full refresh time: 15s
  • Refresh power: 50mW(typ.)
  • Standby current: <0.01uA(almost none)
  • Outline dimension: 98.50 × 70.00mm

Package Contents

  • 1x - 4.01inch e-Paper (F)

Resources

Pinout

VCC - 3.3V/5V
GND - GND
DIN - SPI MOSI
CLK - SPI SCK
CS - SPI chip select (Low active)
DC - Data/Command control pin (High for data, and low for a command)
RST - External reset pin (Low for reset)
BUSY - Busy state output pin

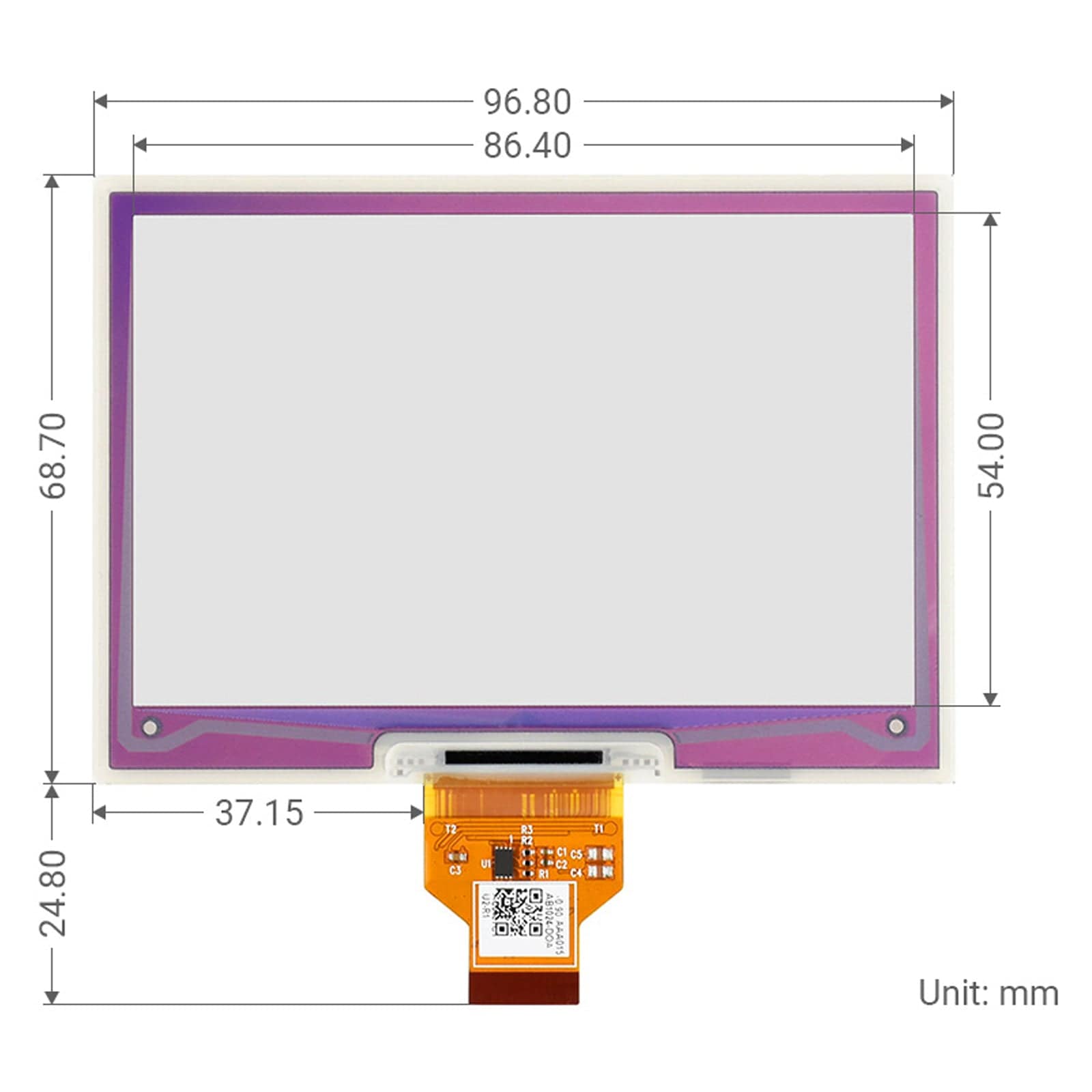

Dimensions
