This 3-9W RGB LED delivers up to around 300 lumens of powerful RGB lighting, with separate high-current red, green and blue LEDs mounted on an aluminium PCB for easier integration and cooling.
Better grab your sunglasses, your sunscreen, and a bucket hat because this 9W max RGB LED is so bright it's like like taking a beach vacation ON THE SUN. Maybe that's an exaggeration, but these are really bright.

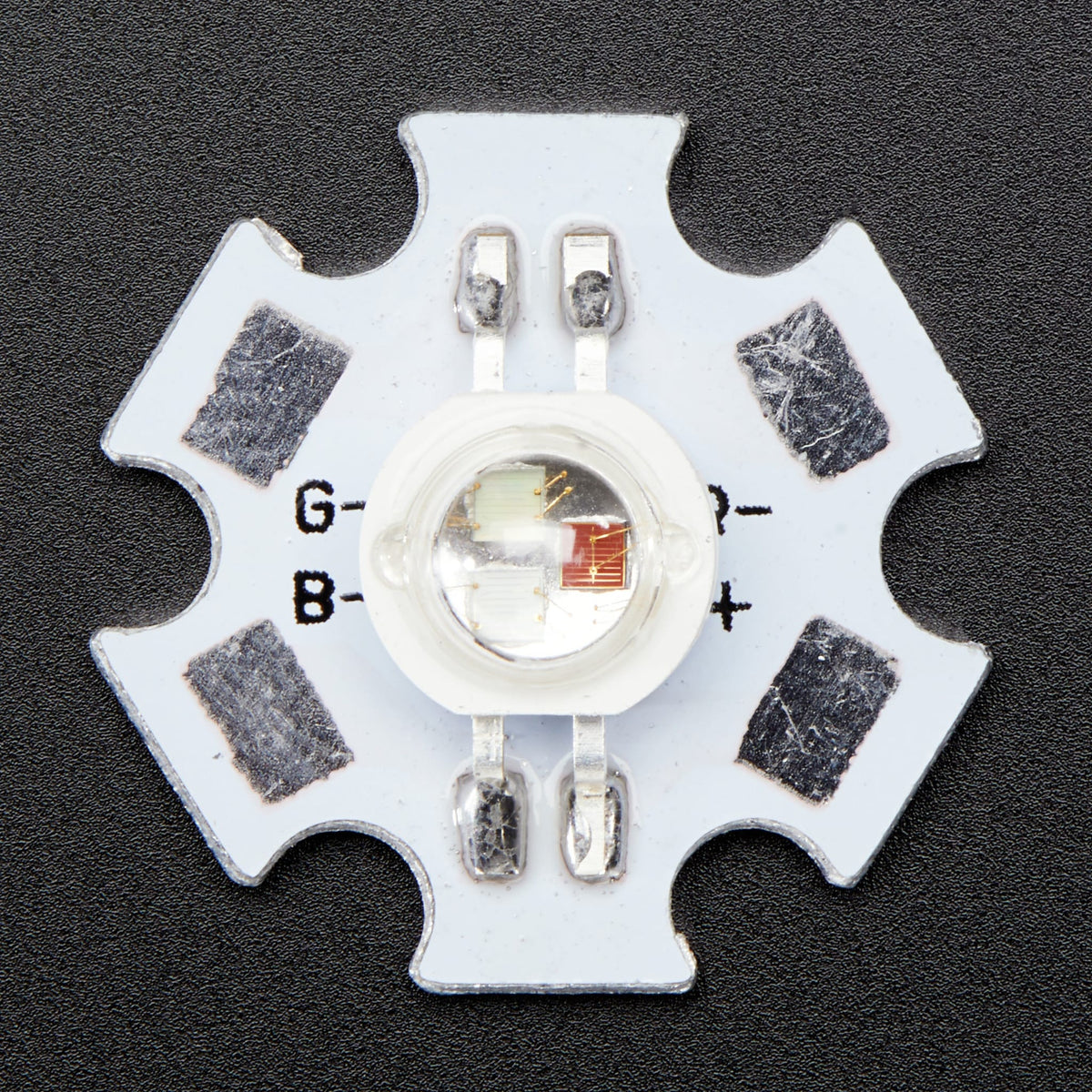

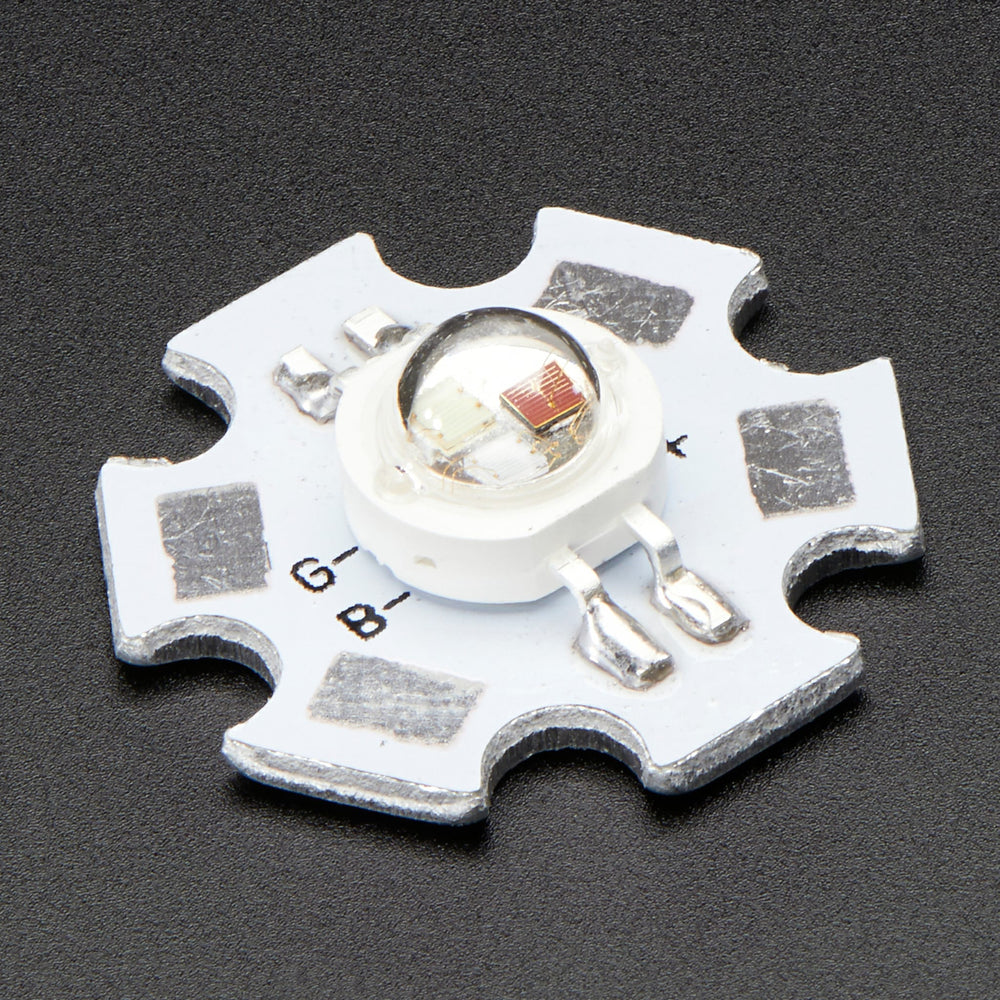

This is a 3-9W RGB LED, basically the same thing you've got on a little 5mm breadboard version, but with huge chunks of silicon that can handle large currents. Each of the red, green, and blue dice can handle continuous ~350-750mA current draw (with peaks of 2A) so you can drive this at an eye-blistering 9W. The light output is 150 lumens (150,000 millicandela) total at 3W, and ~300 lumens that at 9W.
Each order comes with one 3-9W LED on an aluminium PCB/holder/heatsilk. Please note that even though the PCB acts as a heatsink, 3-9W is a lot of power to dissipate as heat so you will need an additional heatsink or fan or other cooling mechanism! Adabot, Adafruit Metro, and components are not included.
If you're looking for an LED that draws less power and is a bit less bright, we also sell a 3W RGB version here.
Please note: Adabot, Adafruit Metro, and components are not included.
Features
9W maximum power RGB LED with three independently controlled colour channels
150 lumens output at 3W, 300 lumens at 9W (150,000 millicandela)
Red, green, and blue dice each handle continuous current of 350-750mA with 2A peak capability

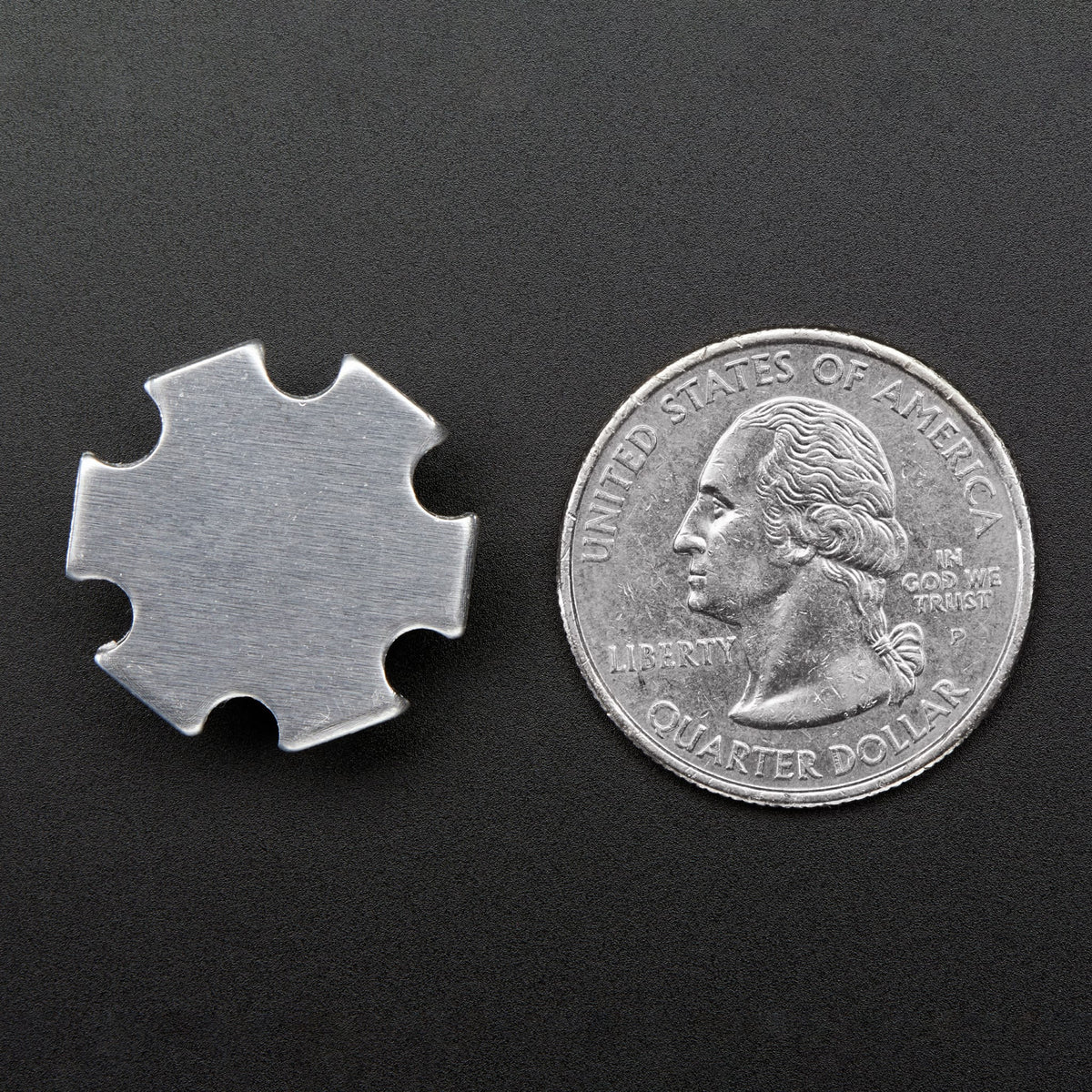

Mounted on aluminium PCB heatsink holder
Requires external heatsink, fan, or additional cooling mechanism for operation
One LED per order on aluminium PCB
Suitable for high-brightness lighting applications
