3.7" e-Paper e-Ink Display for Raspberry Pi Pico (480x280)

WaveshareSKU: WAV-20123
Price:
Sale price £29.10
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi Pico W - The Pi HutRaspberry Pi Pico W - The Pi Hut
Raspberry PiRaspberry Pi Pico W
Sale priceFrom £5.80 incl. VAT excl. VAT
Raspberry Pi Pico - The Pi HutRaspberry Pi Pico - The Pi Hut
Raspberry PiRaspberry Pi Pico
Sale priceFrom £3.80 incl. VAT excl. VAT
Essential Raspberry Pi Pico Kit - The Pi HutEssential Raspberry Pi Pico Kit - The Pi Hut
The Pi HutEssential Raspberry Pi Pico Kit
Sale price £6 incl. VAT excl. VAT
USB-A to Micro-USB Cable - The Pi Hut
The Pi HutUSB-A to Micro-USB Cable
Sale priceFrom £1.50 incl. VAT excl. VAT

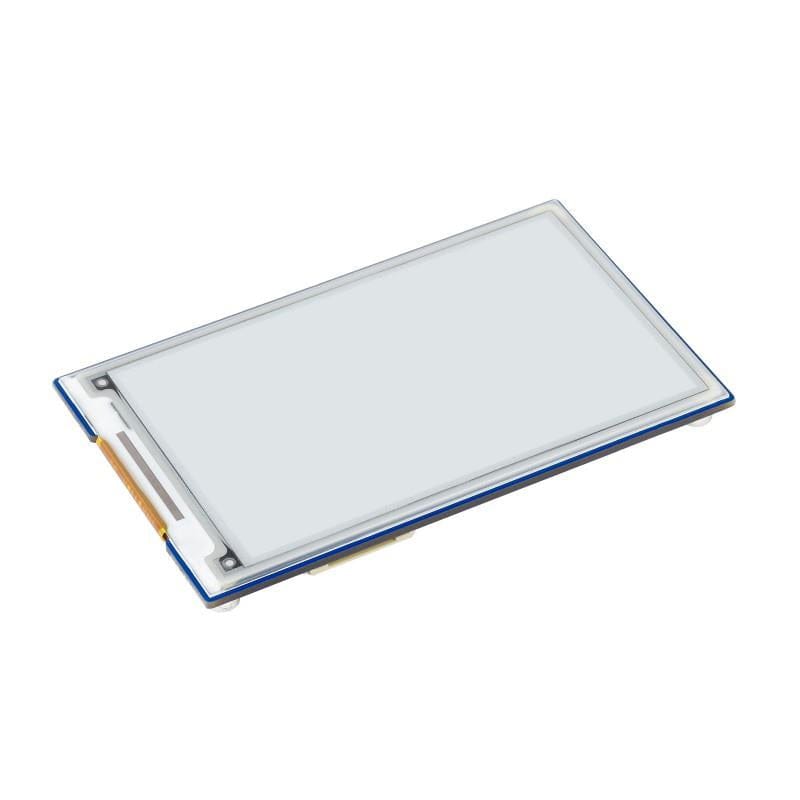

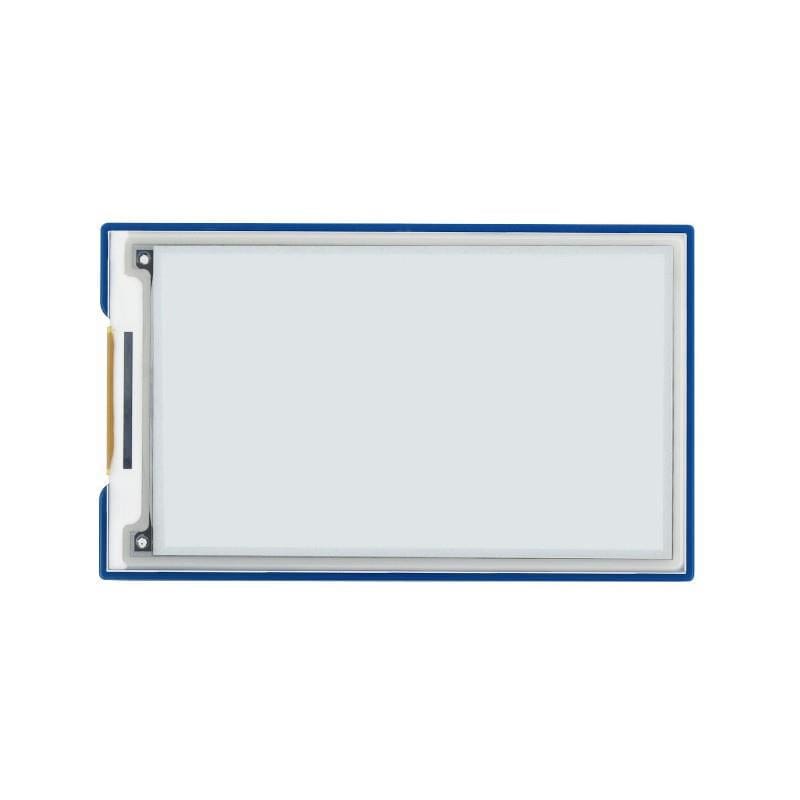

Looking for an e-Paper display for your Raspberry Pi Pico? Look no further! This 3.7" 480x280 black/white e-Paper display from Waveshare is perfect for adding a low-power display to your Pico.

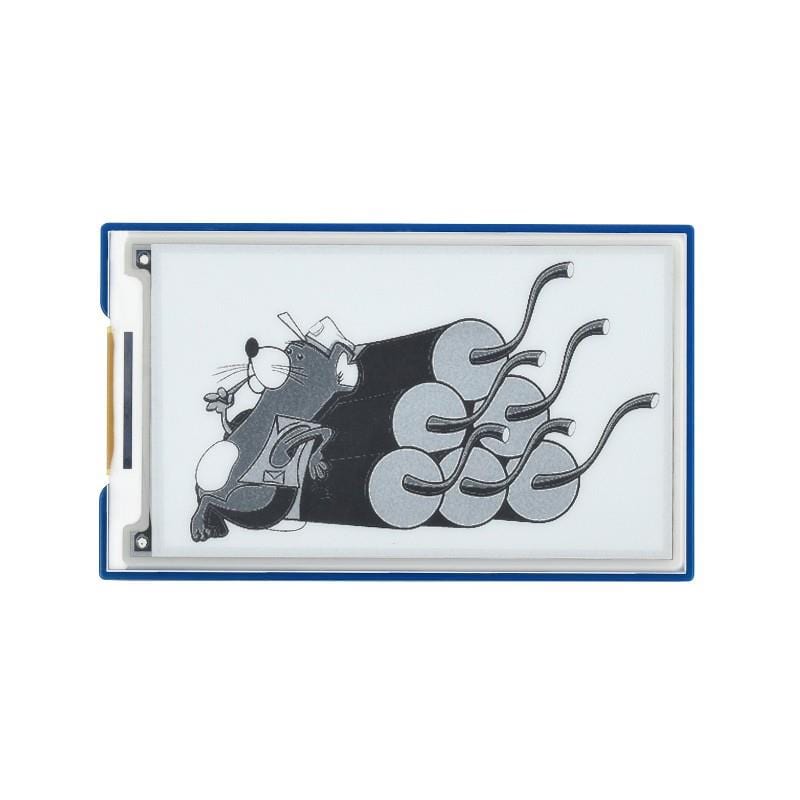

e-Paper displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, e-Paper displays are able to hold text and images indefinitely, even without power! ePaper screens are therefore ultra low power, designed to have a wide viewing angle and additionally have limited reflection under sunlight. The applications are limitless!

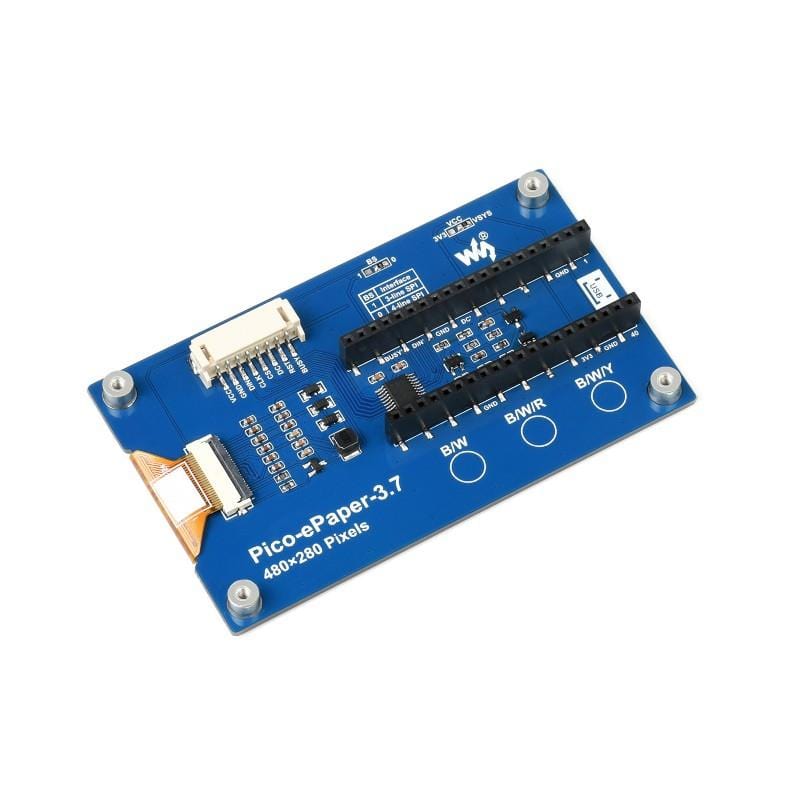

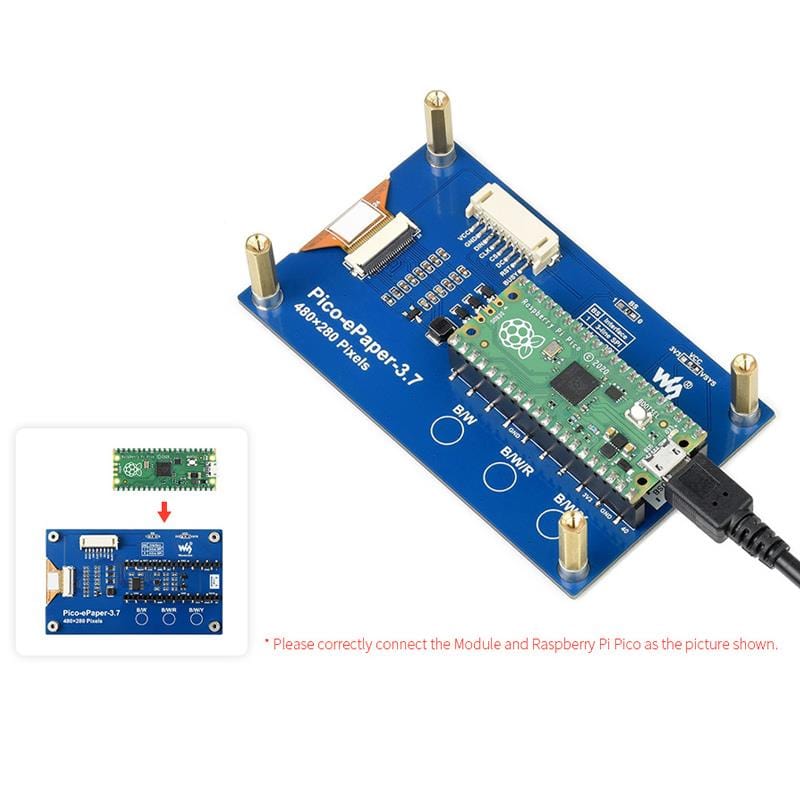

Your Raspberry Pi Pico slots into the female connectors on the back of the display, then you simply power the entire setup via the Pico's micro-USB connector - no need for additional power supplies. The display includes corner standoff mounting points and comes complete with 4 metal standoffs for fitting to your own panel or enclosure.

This display communicates via the SPI interface and supports partial refresh.

Note: Raspberry Pi Pico not included. You'll need a Pico with male headers soldered to it. You can grab a Pico here and Pico male headers here, or buy a Pico with pre-soldered headers.

Features

  • Compatible with Raspberry Pi Pico
  • 3.7" e-Paper display
  • 480x280 pixels
  • 170° Viewing Angle
  • No backlight - keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption, power is only required for refreshing
  • SPI interface - requires minimal IO pins
  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Online development resources and manual
  • Metal standoffs included

Specifications

  • Operating Voltage: 3.3V/5V
  • Resolution: 480x280 Pixels
  • Interface: 3-wire SPI, 4-wire SPI
  • Partial refresh time: 0.3s
  • Full refresh time: 3s

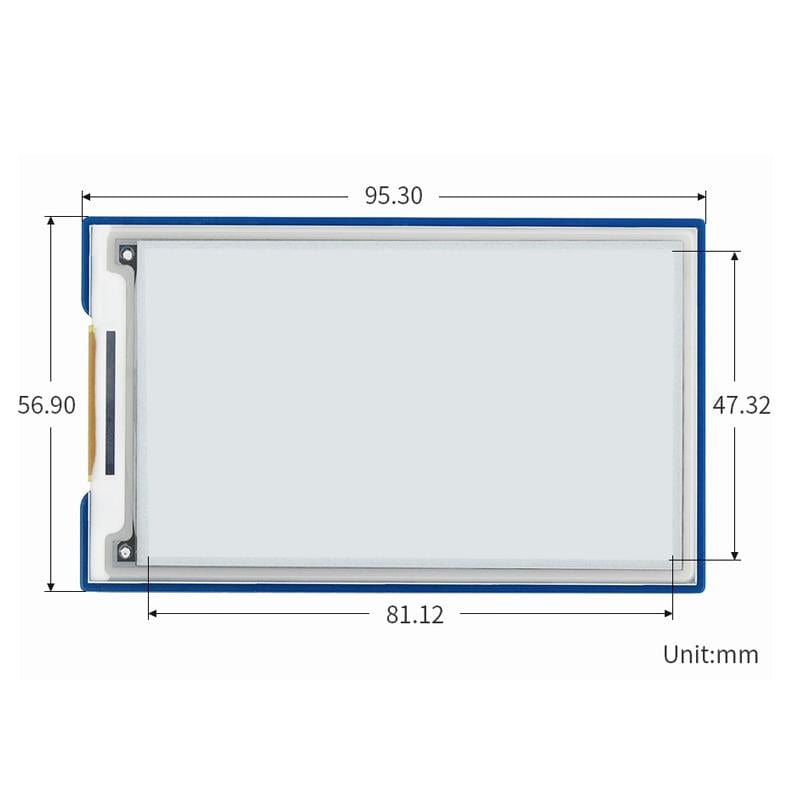

  • Outline Dimensions: 95.3mm x 56.9mm
  • Refresh Power: 26.4mW (typ.)
  • Dot Pitch: 0.169mm x 0.169mm

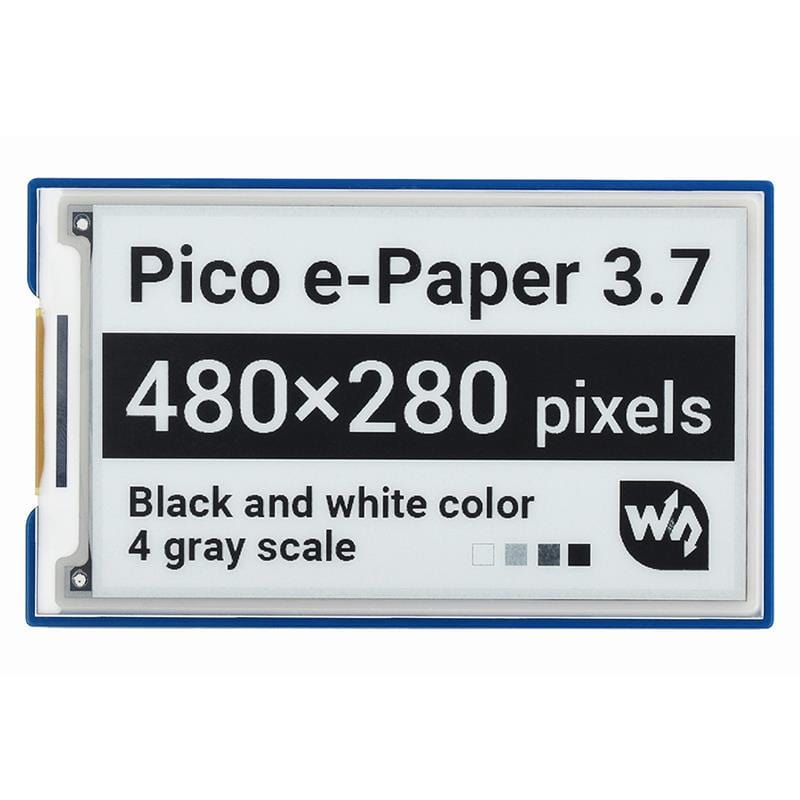

  • Display Colour: Black/white
  • Grey Scale: 4
  • Viewing Angle: >170°
  • Display size: 81.12mm x 47.32mm
  • Standby current: <0.01uA (almost none)

Resources

Package Contents

  • 1x 3.7" Pico e-Paper Display

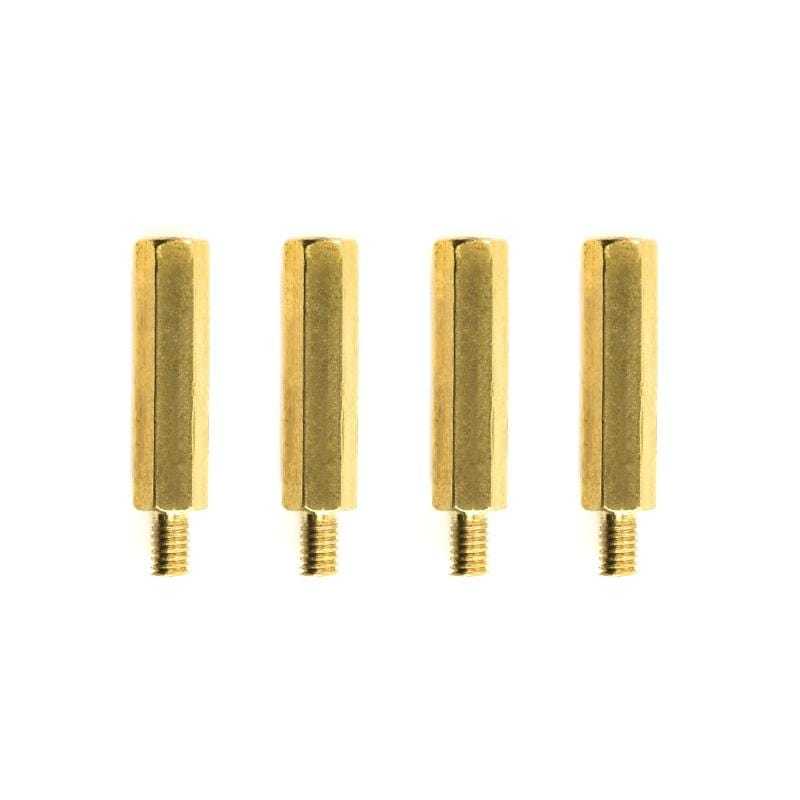

  • 4x Metal standoffs

Raspberry Pi Pico not included

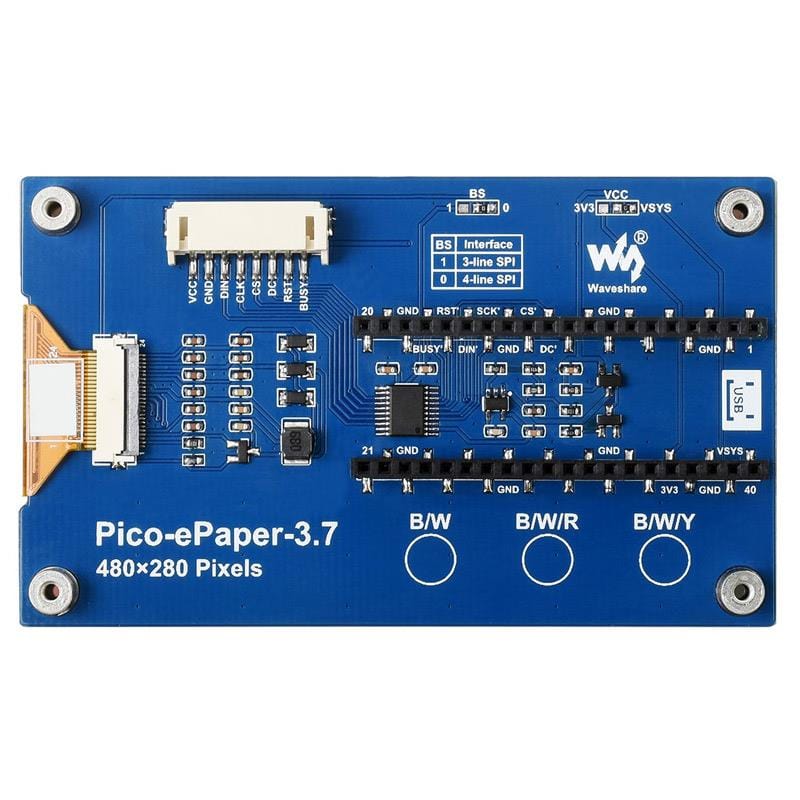

Pinout

Pico 3.7" e-Paper display pinout

SPI Interface

VCC 3.3V/5V
GND Ground
DIN SPI MOSI pin
CLK SPI SCK pin
CS SPI chip selection, low active
DC Data / Command selection (high for data, low for command)
RST External reset, low active
BUSY Busy status output
