2U 10" Rack Mount with 4x PCIe NVMe Boards for DeskPi RackMate

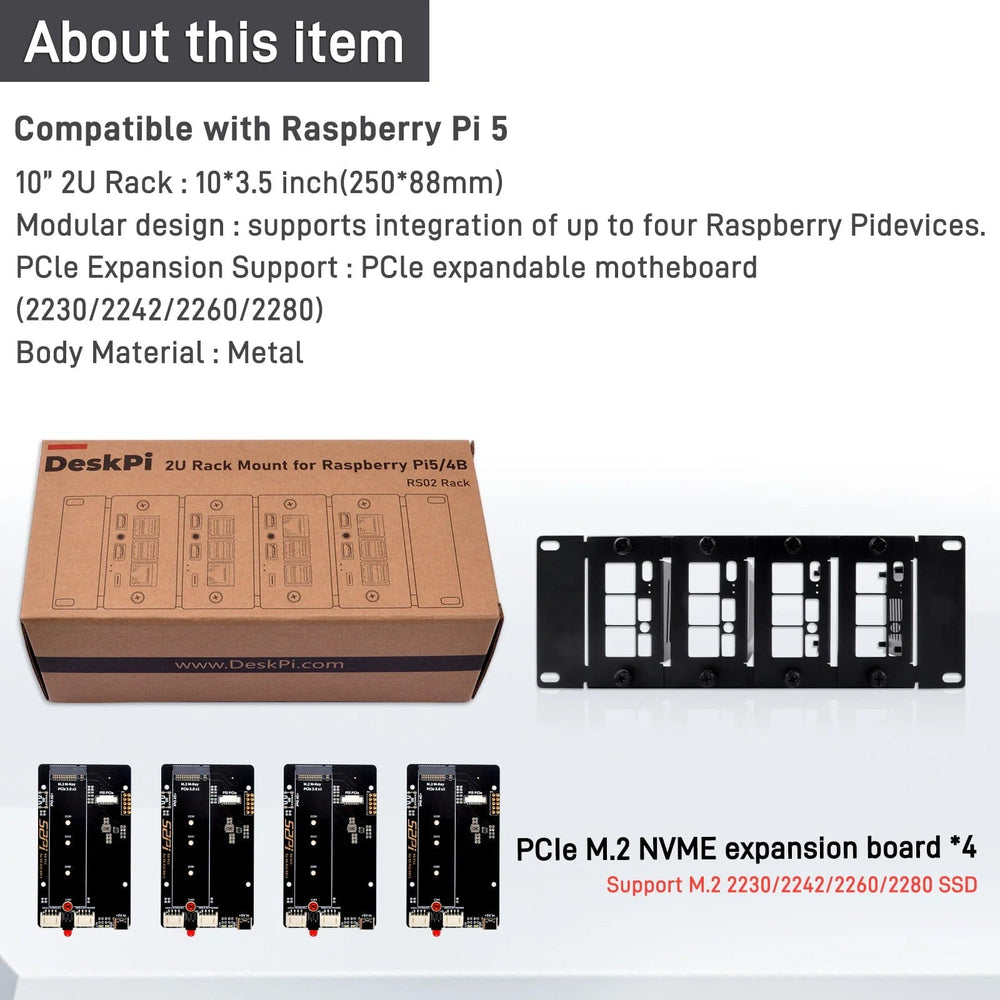

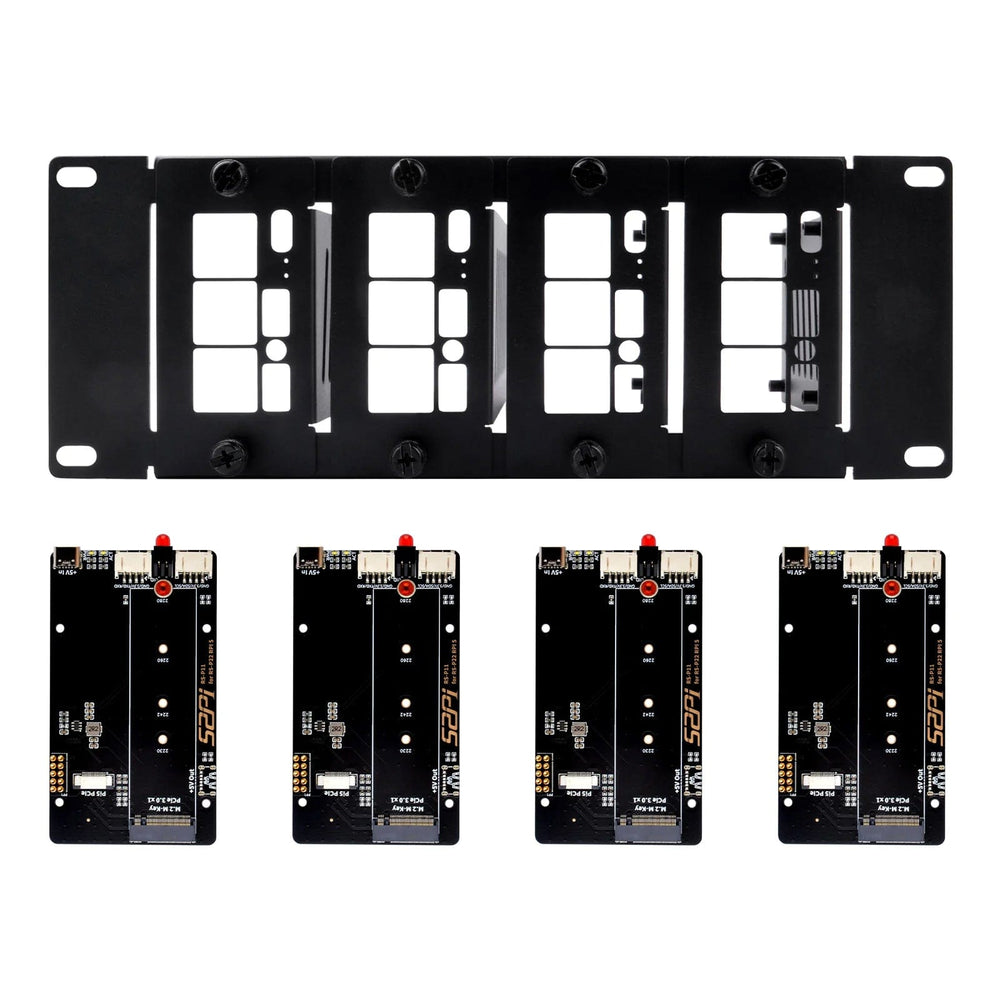

Designed for the DeskPi RackMate (or any other 10" server rack), this 2U rack mount includes slots for four Raspberry Pi 5 boards, and comes with 4x bottom-mounted PCIe NVMe add-on boards for adding fast SSDs and other M.2 devices to each of your Pi 5 boards!

Raspberry Pi boards not included!

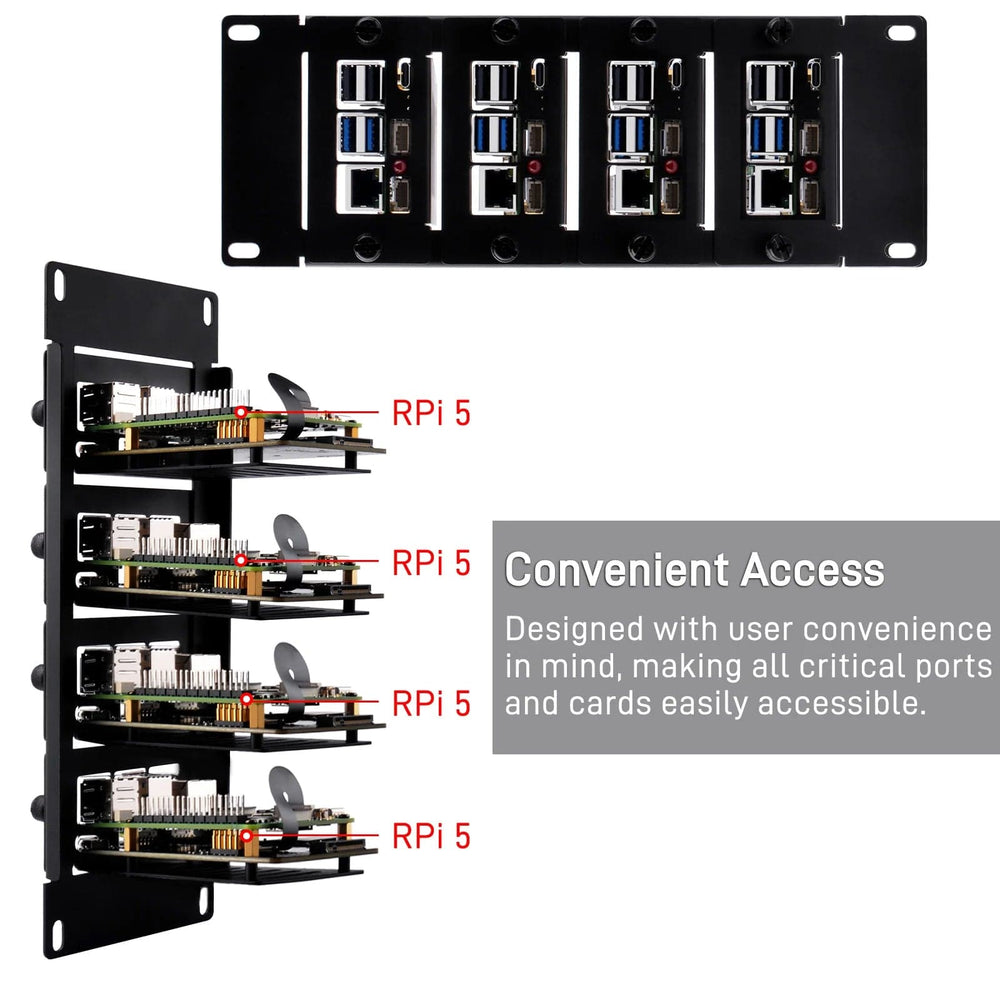

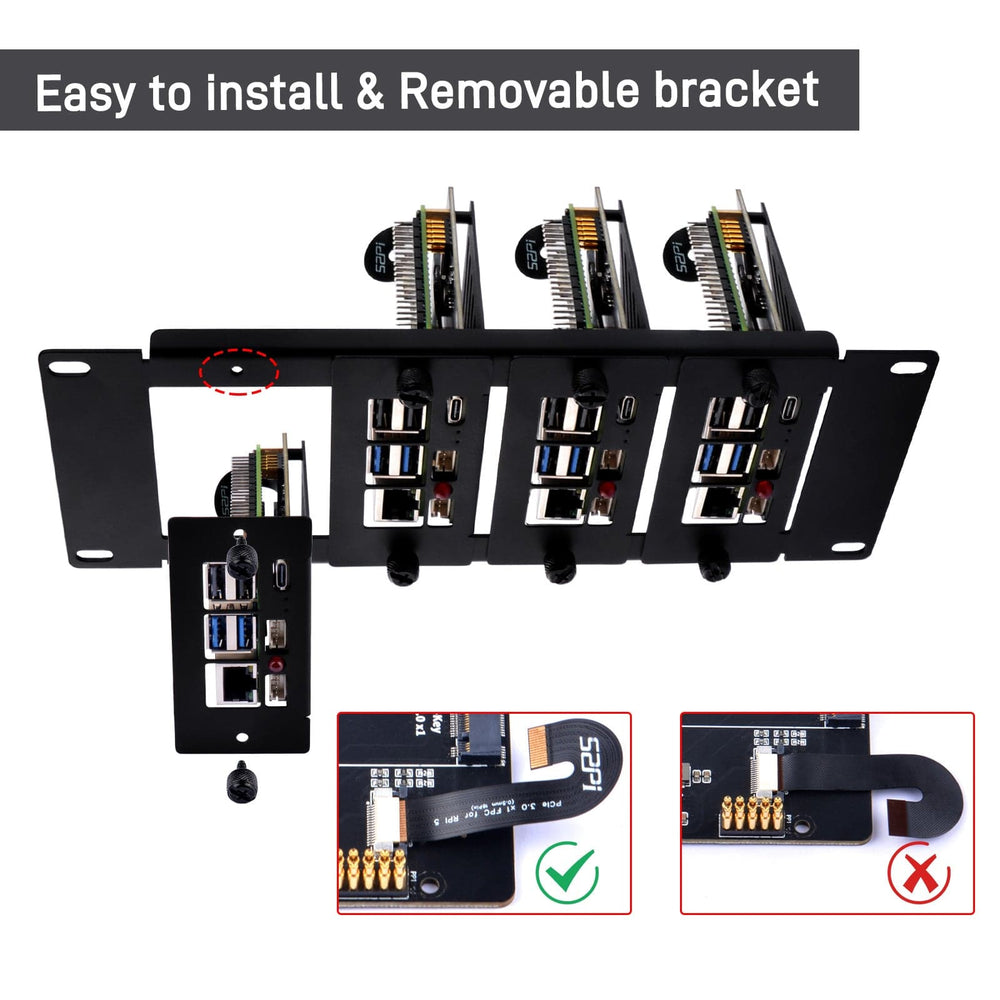

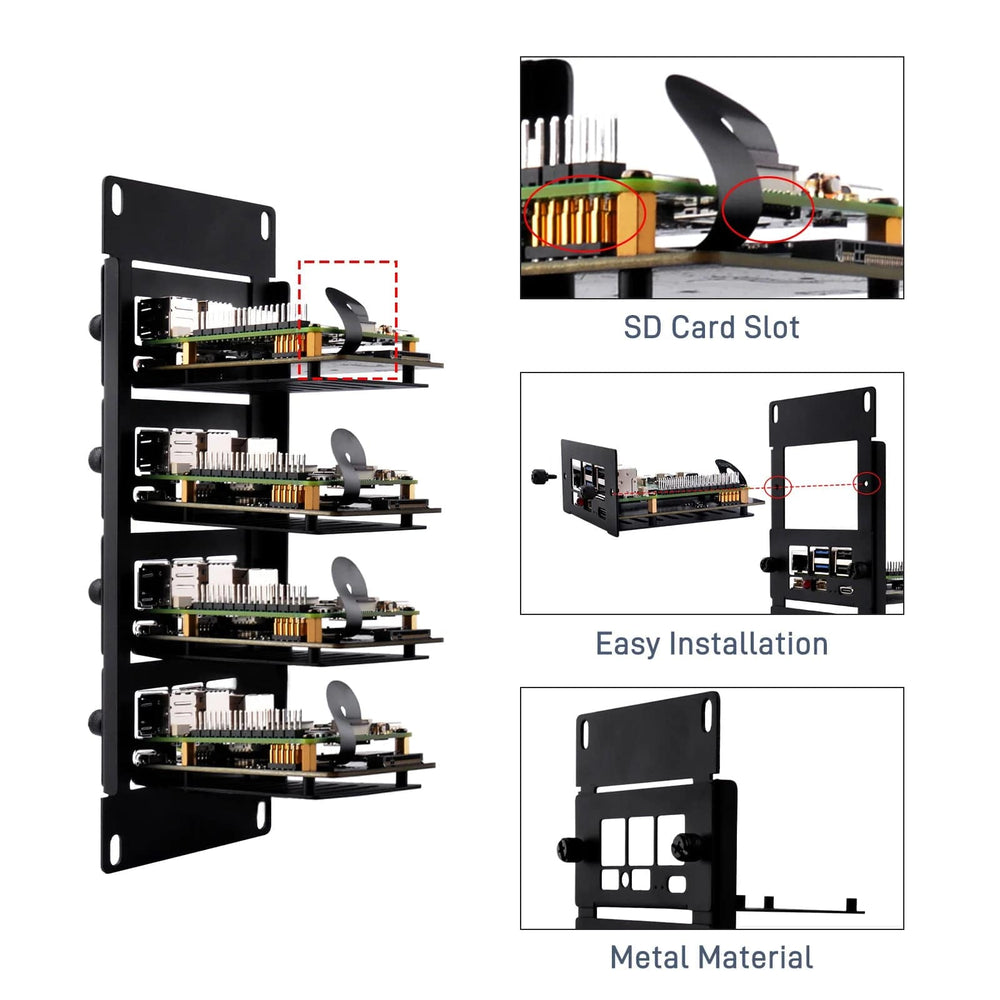

Each slot in the rack has a ventilated mounting plate for each Raspberry Pi 5 board, with ample space between each board for access to ports and pins. Installation and maintenance is easy as each Raspberry Pi mounting plate enters from the front of the rack and is secured by simple thumb screws.

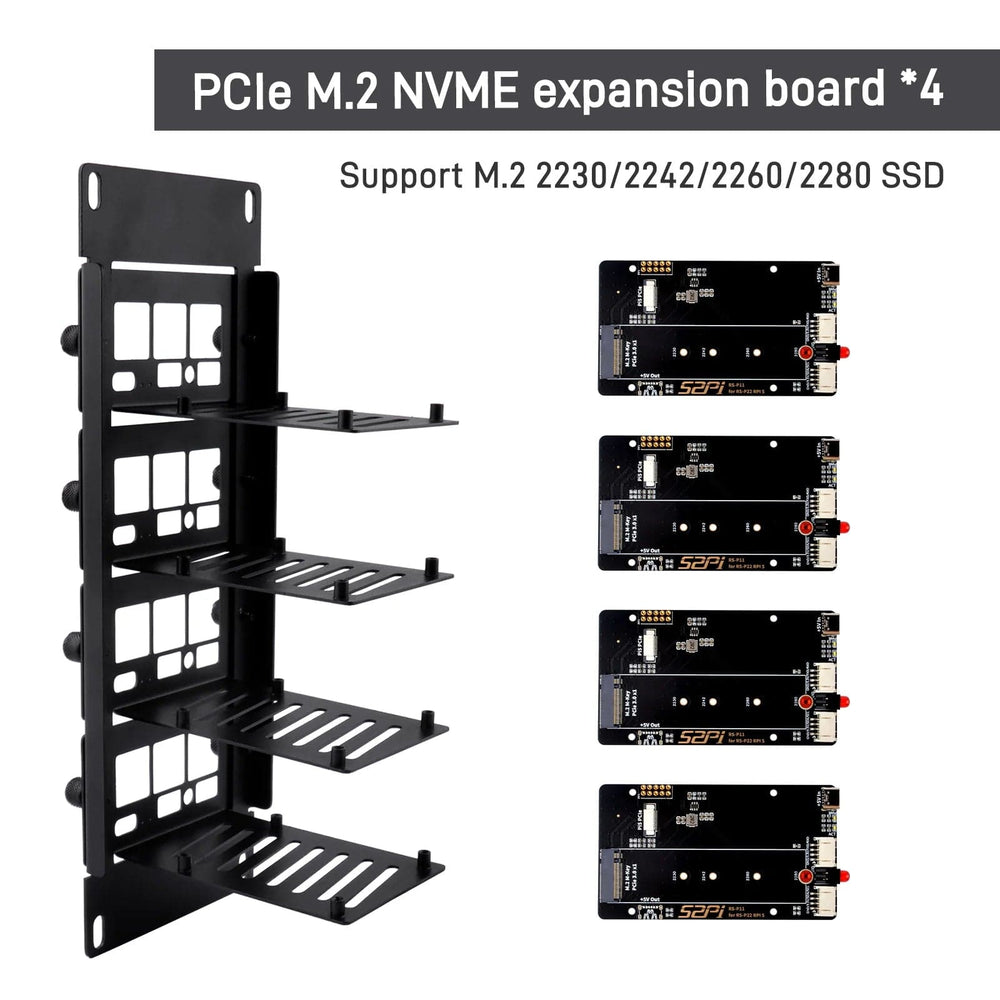

The included 4x PCIe NVMe HATs are bottom-mounted to each Raspberry Pi and support M.2 2230/2242/2260/2280 modules, such as the Raspberry Pi SSD, connecting to the Raspberry Pi via the included PCIe flex cables and a set of pogo pins. The bottom-mounted approach also keeps your GPIO pins free for other hardware. The included cables are shaped so as not to block the MicroSD slot.

The rack mount comes with all the fixings you need.

Be sure to check out other RackMate accessories in the range!

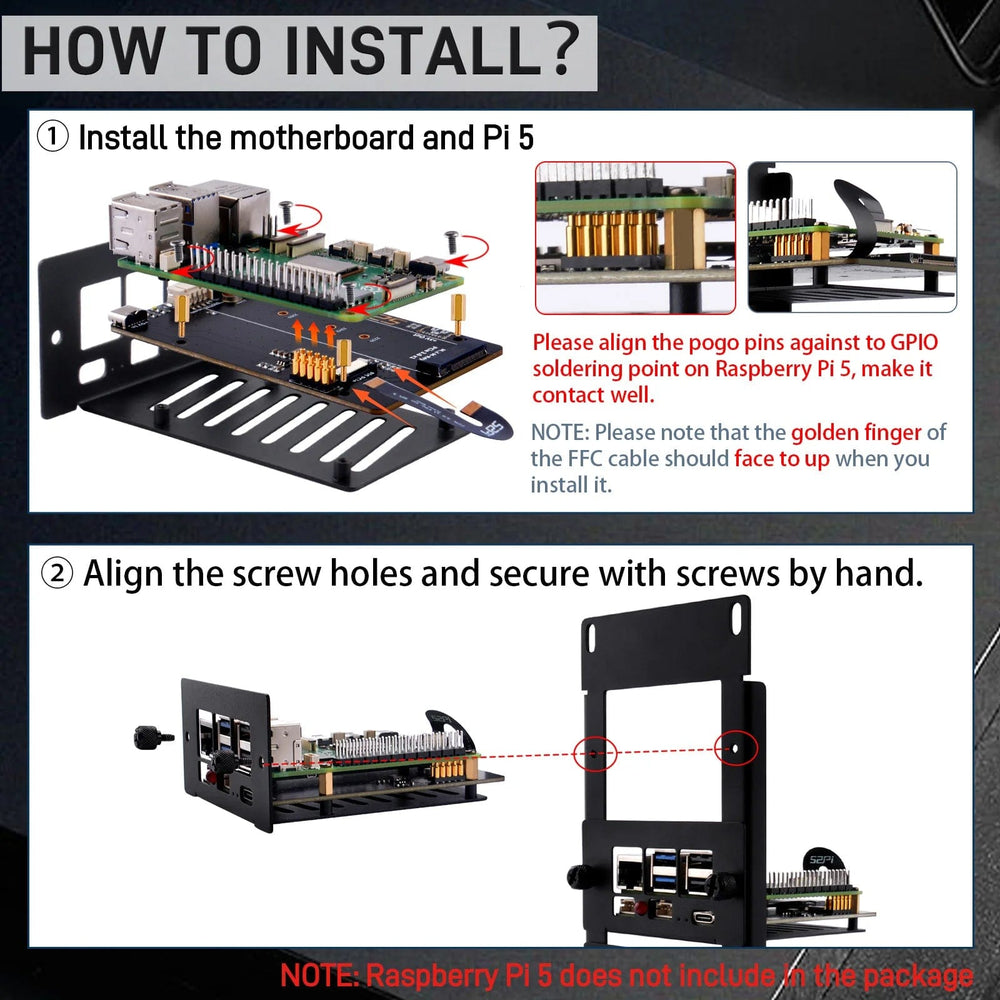

Assembly Video

Features

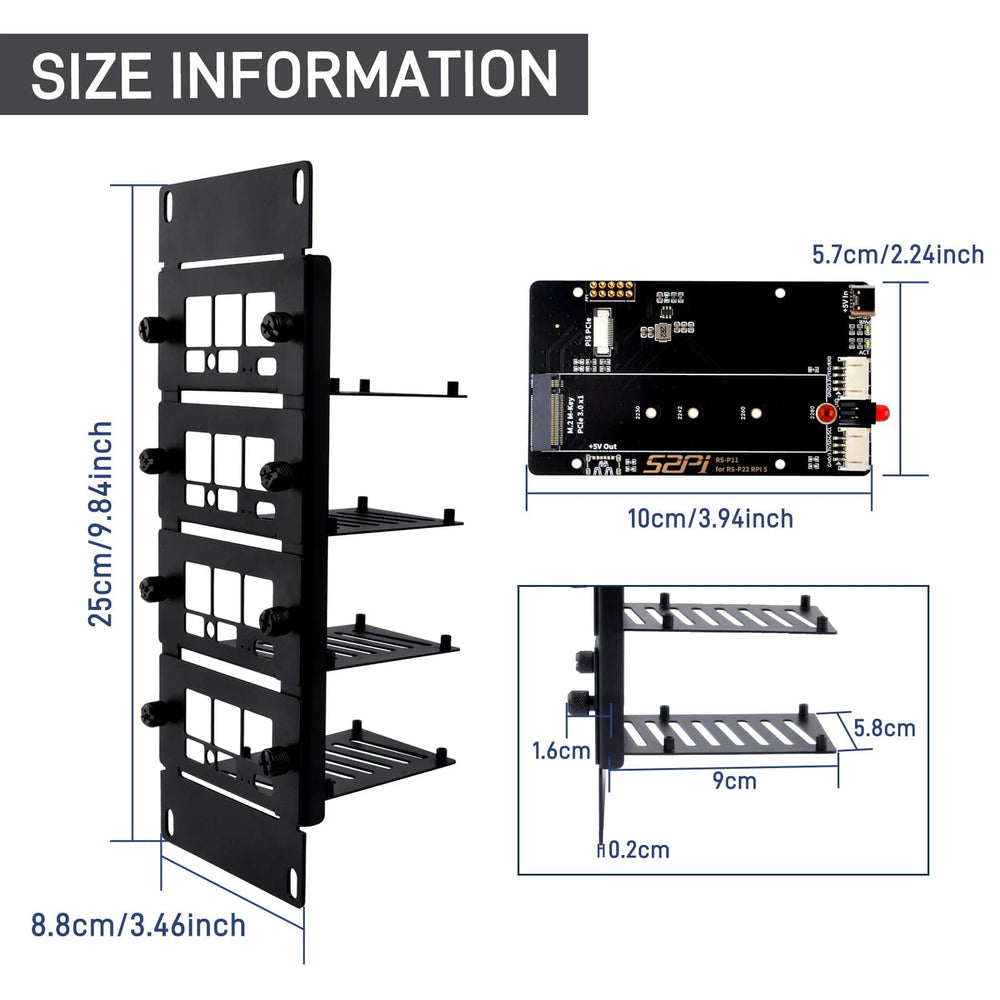

• Standard 10" 2U Size: Fits neatly into a 10" server rack to save space
• Designed for Raspberry Pi 5: Built specifically for the Pi 5

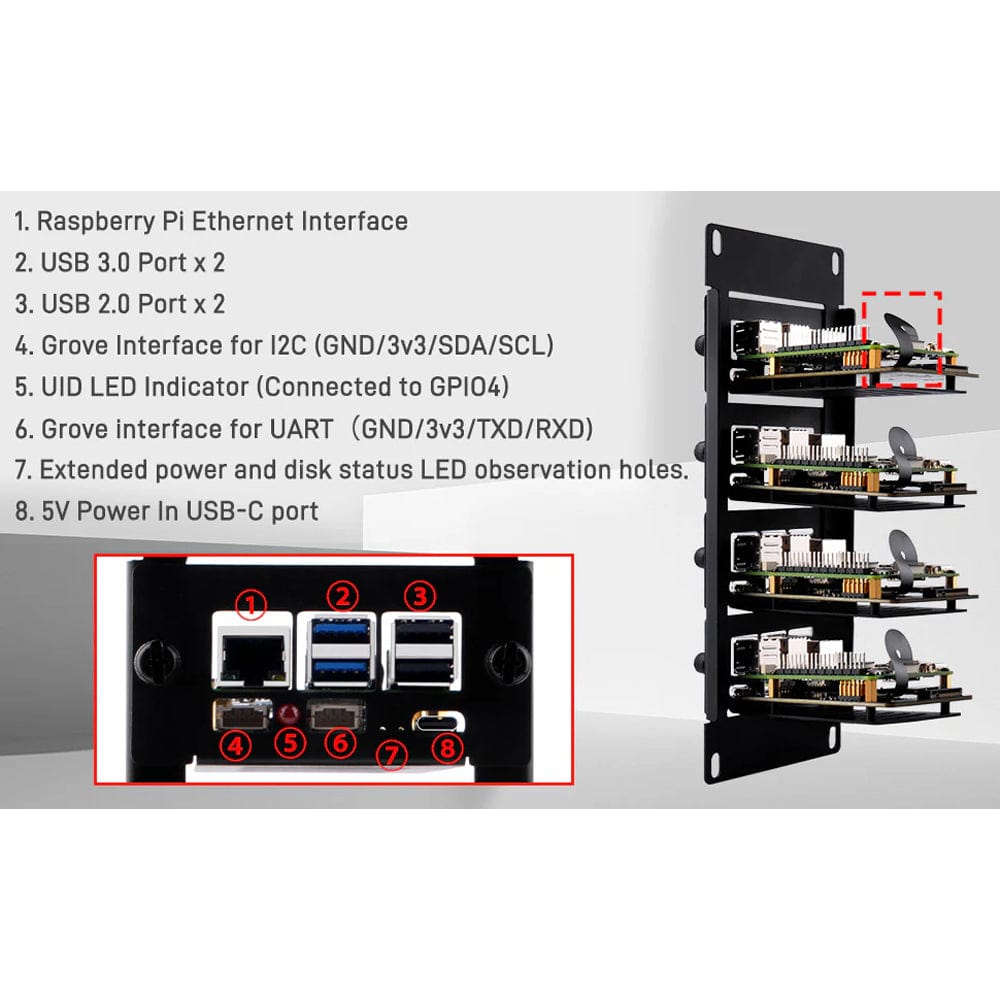

• Easy Access: All key ports and card slots are easy to reach for quick setup and maintenance
• Sturdy Build: Constructed from carbon steel with a matte black powder coat
• Good Cooling: Space between Raspberry Pis allows for effective heat dissipation
• Scalable Setup: Holds multiple Raspberry Pi 5 boards - ideal for building powerful compute clusters
• Tool-Free Maintenance: Uses hand-tightened screws for quick assembly and easy adjustments
• Rackmount Form Factor: Fits into standard 10" 2U rack slots, including in the DeskPi RackMate
• PCIe Expansion: Supports M.2 NVMe SSDs (2230, 2242, 2260, 2280 sizes) via PCIe interface for fast data access
  • Note: PCIe support is for Raspberry Pi 5 only

Resources

• Product Wiki

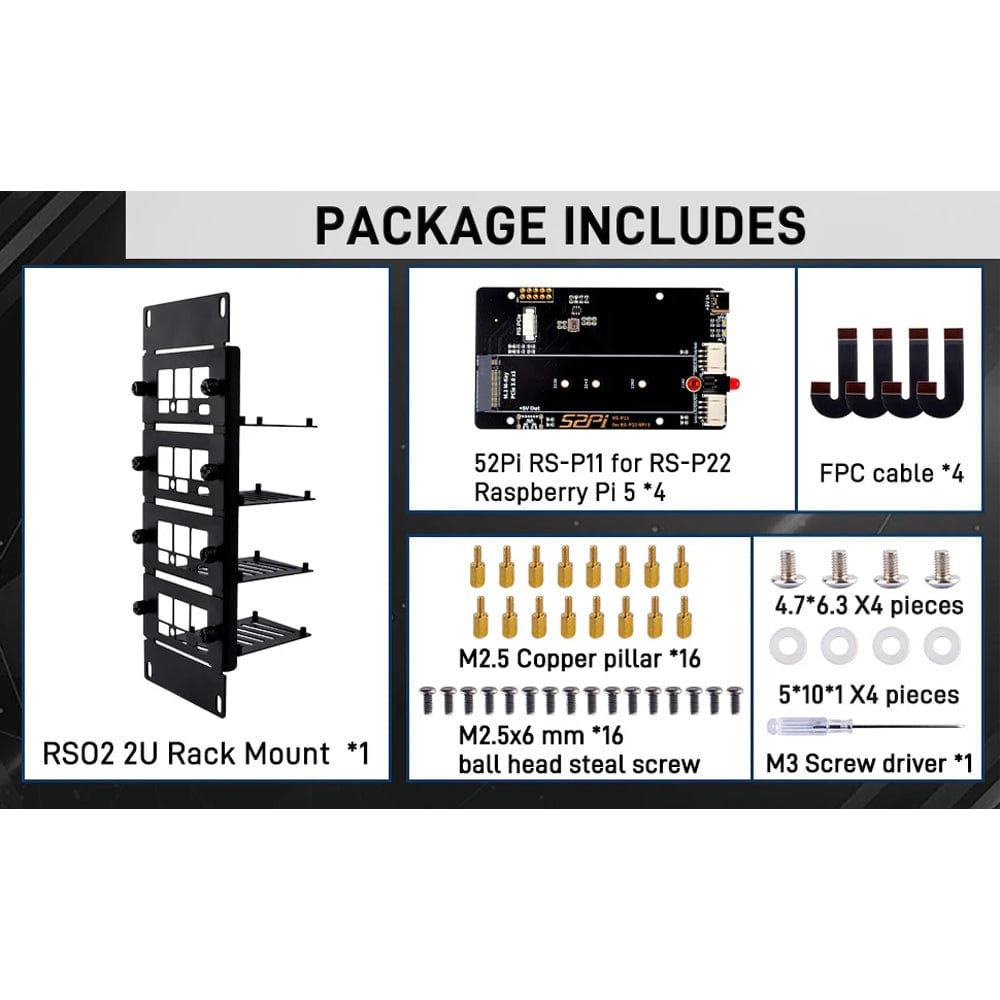

Package Contents

• 1x 2U Rack Mount
• 4x NVMe PCIe boards
• 4x PCIe FPC cables
• 16x M2.5 6mm screws
• 16x M2.5 standoffs
• 4x #10-32 screws
• 4x 5x10x1 washers
• 4x M2.5 pillars for SSD
• 5x M2x3 flat-head screws
• 1x M3 Screwdriver

Raspberry Pi 5 boards and DeskPi RackMate not included
