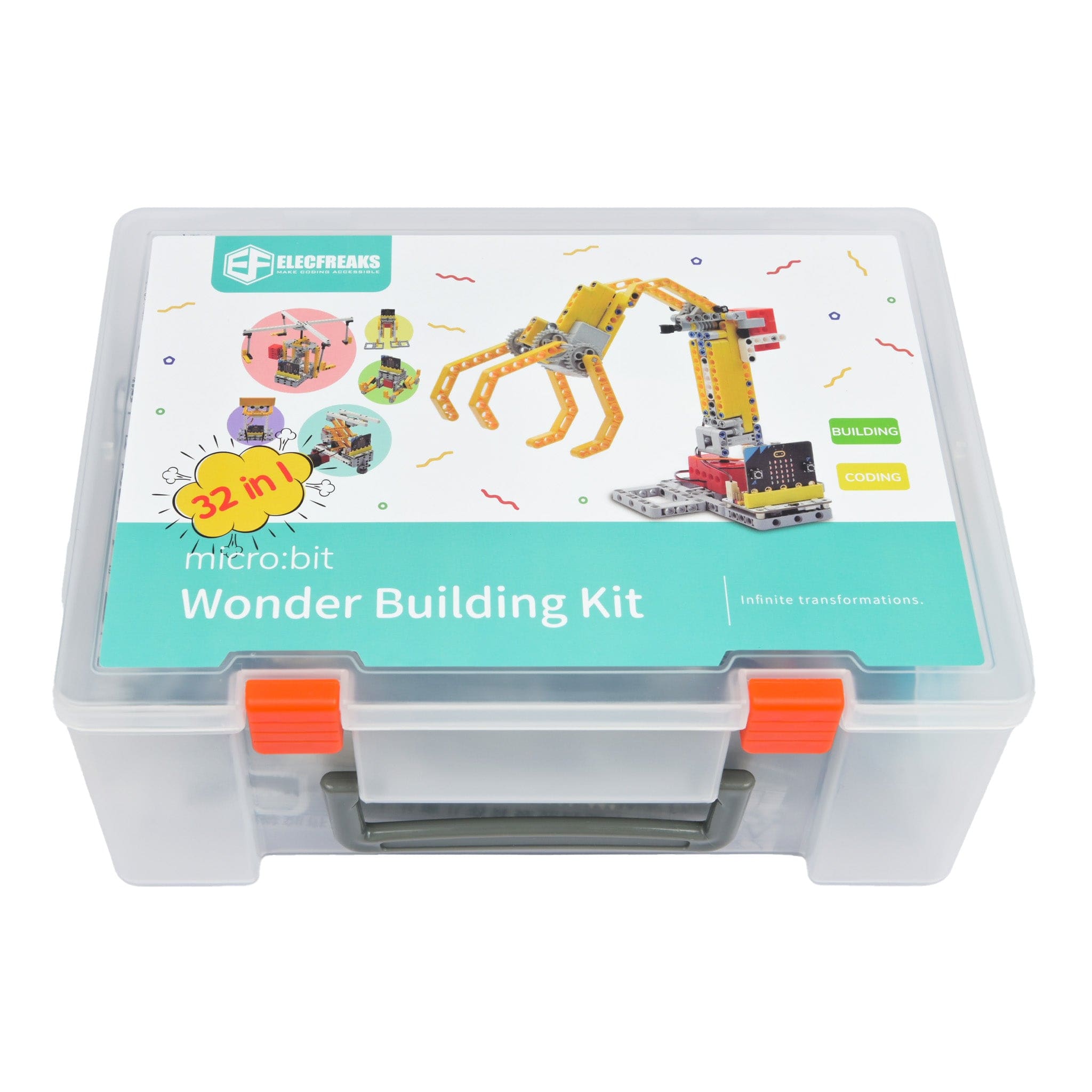

32-in-1 micro:bit Wonder Building Kit (micro:bit not included)
Price:
Sale price
£85
Stock:
Quantity:
Awesome Extras
The Elecfreaks Wonder Building Kit is a box jam-packed with creative building brick projects for your BBC micro:bit (not included) and the included sensors and components you need for 32 different projects! Learn how to code in the most fun and engaging way possible - by creating cool building brick projects that move and react using code YOU designed!
Including the popular 'Wukong' micro:bit expansion/driver board, over 400 building bricks, a range of different electronic sensors (line-following sensor, obstacle and water level), motors, servos, cables, fixings and more - it's a big ol' box of fun for micro:bit fans new and old!
The Wukong expansion board has a built-in 400mAh battery supporting 20-minute fast charging and can run a project for ~40 minutes (depending on the project and usage).
The board can drive 8 sensors, 8 servos and 2 motors, and includes a convenient on/off press switch, four programmable RGB LEDs, an integrated buzzer and ambient 'breathing' blue LEDs on the underside! It's also building brick compatible with a 7x5 brick-compatible baseboard!
Lithium Battery Shipping: Due to courier restrictions, this product can only be shipped within the United Kingdom. With this item in your cart your shipping options will be limited and may cost more than our usual rates. Why?

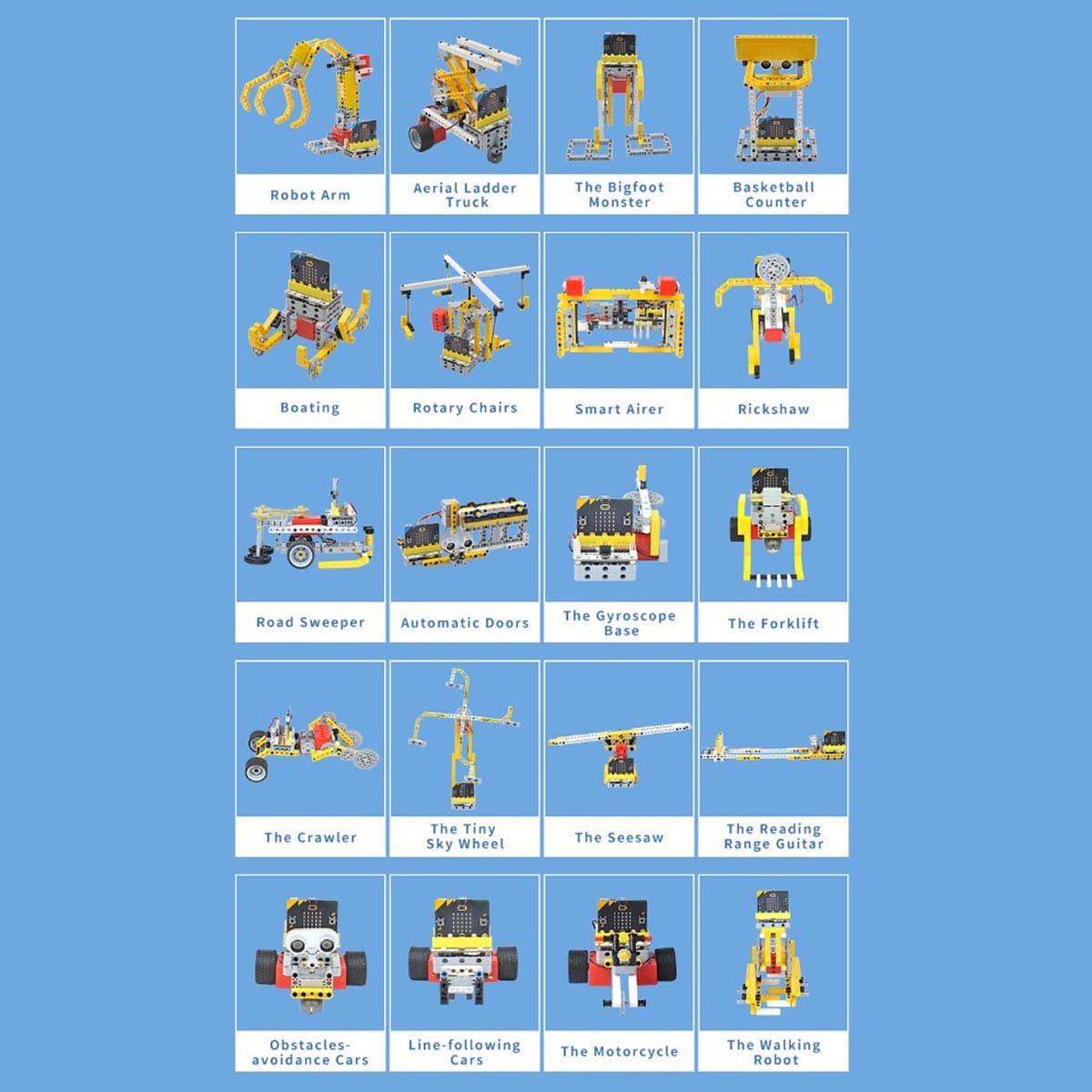

32 Building Projects!
Compatible with your own building bricks, the set includes 400+ bricks to build the 32 example projects including robot arms, a bigfoot monster, forklift and more!
All of the projects a coded with Microsoft MakeCode - the easy-to-use graphical drag n' drop programming environment
- Motorcycle
- Line-following car
- Gyroscope Base
- Obstacle-avoidance car
- Rotary chairs
- Bigfoot monster
- Basketball Counter
- Robot arm
- Automatic doors
- Boating
- Tiny sky wheel
- Forklift
- Seesaw
- Reading range guitar
- Walking robot
- Road sweeper
- Rickshaw
- Aerial laffer truck
- Crawler
- Smart Airer
- Spider walker
- Helicopter
- Locomotive
- Top emitter
- Egg beater
- Corsair
- Smart garbage can
- Wiper
- Stone thrower
- Ambient lighting
- Drawing machine
- Robot dog

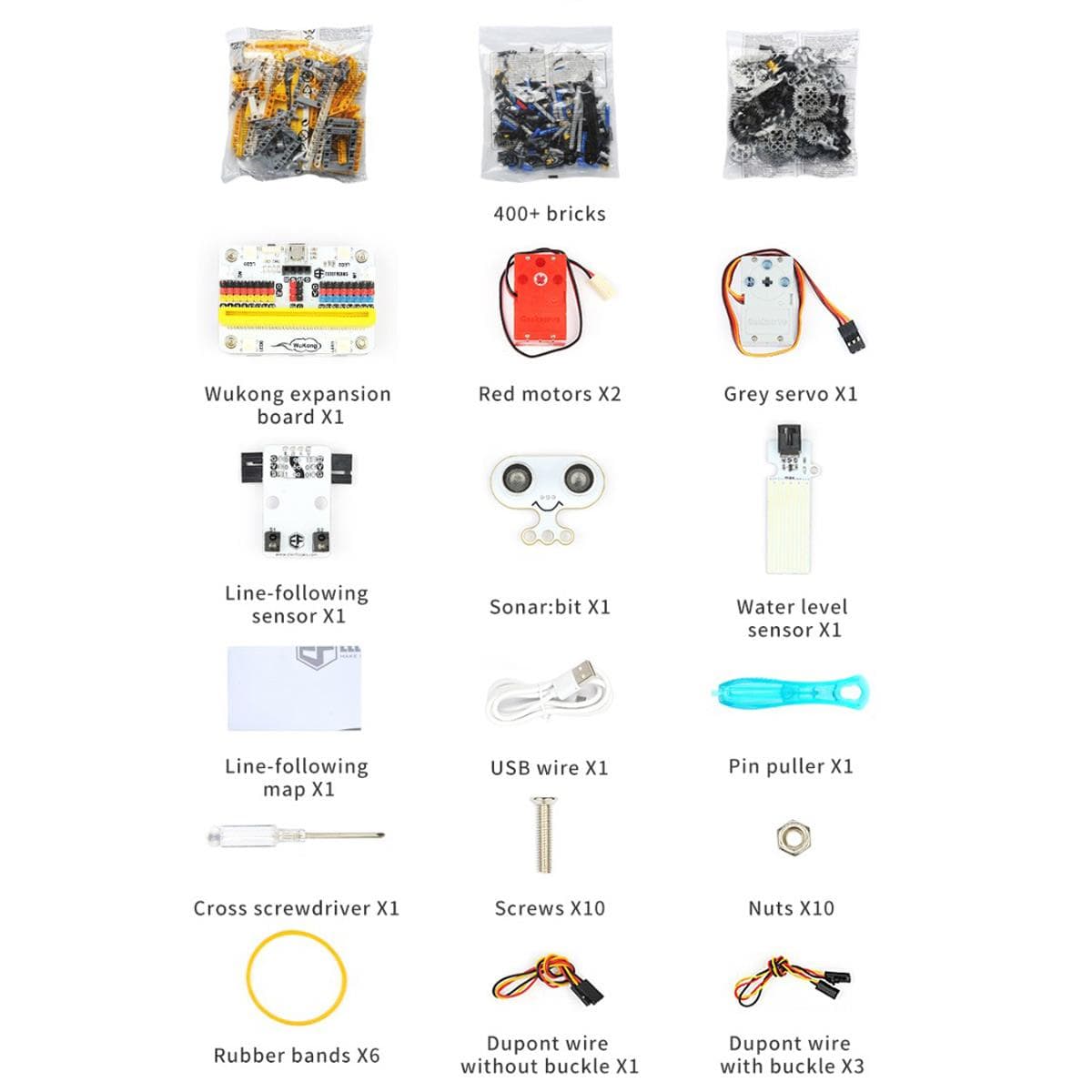

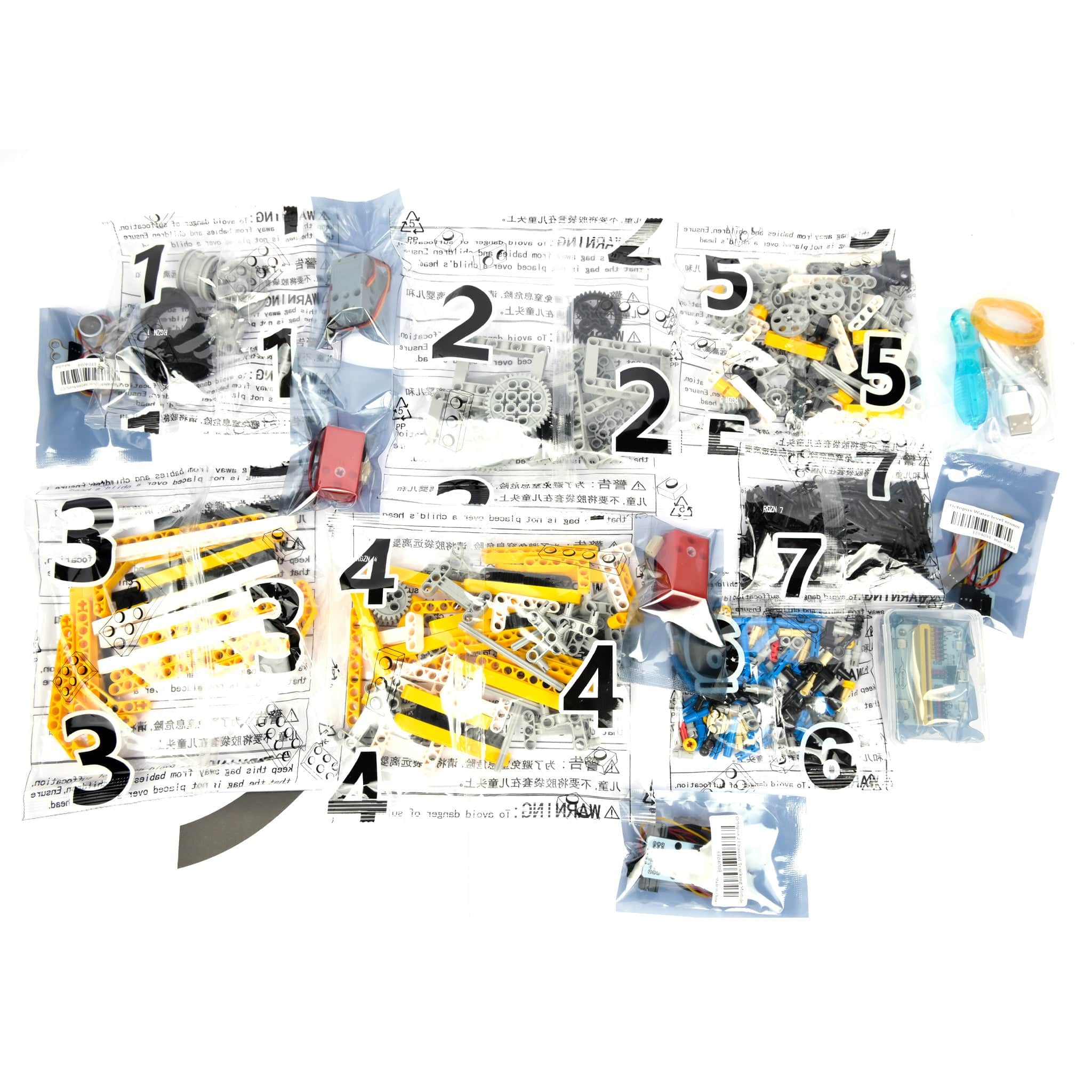

Kit Contents
- Wukong Expansion Board (building brick-compatible motor/servo driver with integrated battery and programmable LEDs)
- 400+ Building Bricks
- 2x Motors
- 1x Servo
- Sonar:bit object detecting sensor
- Line tracking sensor
- Water level sensor
- Line following map
- Micro-USB cable
- Pin puller
- Screwdriver
- Fixings
- Rubber bands
- Dupont wires
micro:bit not included!
Specification
General
- Sensors: Water level sensor, line-following sensor, Sonar:bit
- Bricks: Over 400pcs
- Control: micro:bit & Wukong expansion board
- Communication: USB port
- Size: 250 x 190 x 100mm
- Weight: 1150g
- Motor drive: 2 ways (M1,M2)
- Servo drive: 8 ways (S0~S7)
- Projects: 20
Wukong Expansion Board
- Power System: Click once to start, double-click to close
- Battery: 400mAh lithium polymer
- Working Voltage: 3.7v~5v
- Working Temperature: -20°C~60°C
- Size: 40mm x 58mm
- Weight: 41.6g
- Motor drive: 2 ways (M1,M2)
- Servo drive: 8 ways (S0~S7)
- IO Ports Breakout: P0/P1/P2/P8/P12/P13/P14/P15/IIC
- Rainbow LED: LED0/LED1/LED2/LED3
- Atmosphere LEDs: 4 programmable LEDs
- Building Brick Baseboard: Standard 7 x 5 baseboard
Resources
Revision History
- As of 12/01/2023 we are now shipping this kit with revised packaging that highlights the increased number of projects (32) now available to build (contents remains the same)
