2" Capacitive Touch IPS LCD Display (240 x 320)
Price:
Sale price
£13.80
Stock:
Quantity:

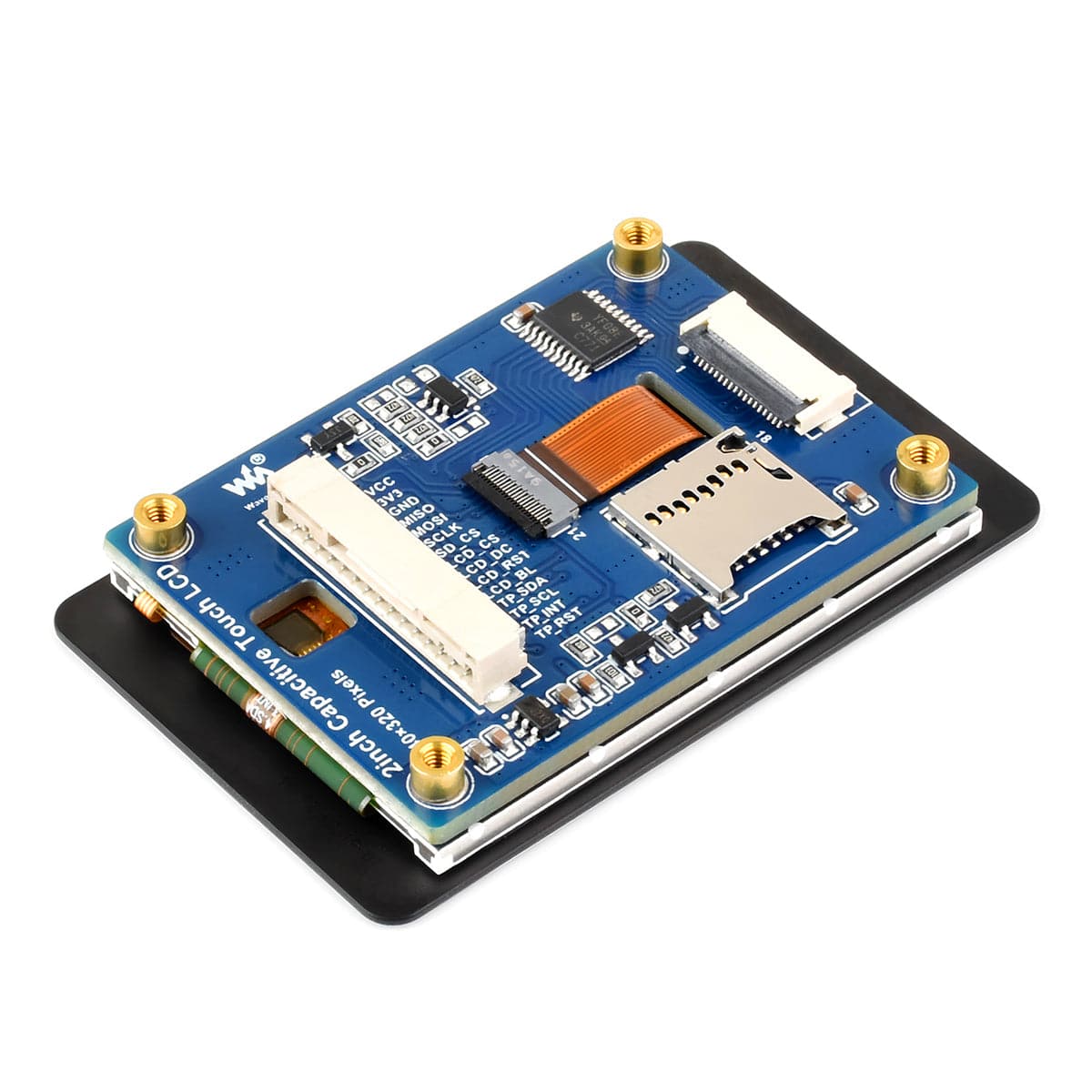

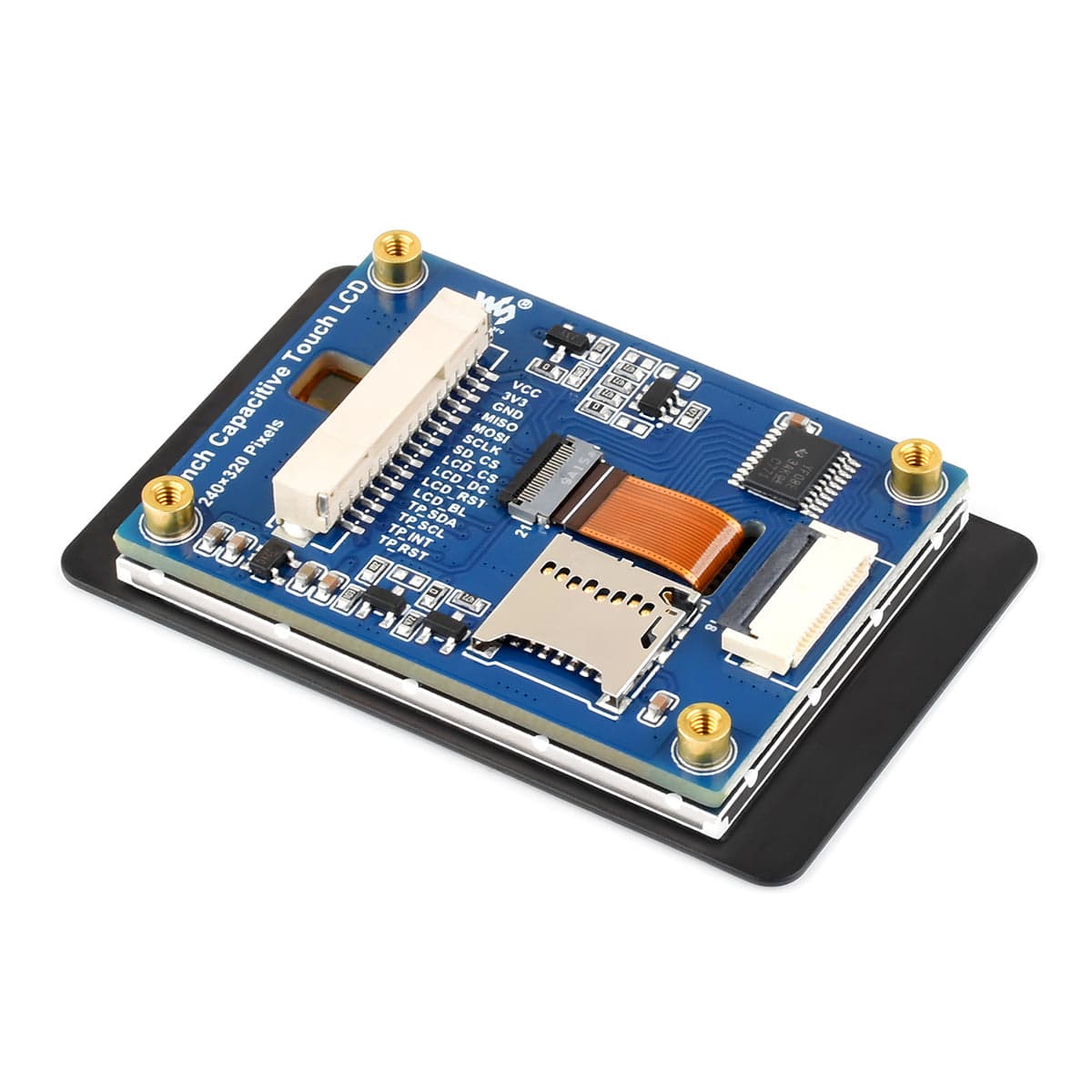

This 2" display is a small, colourful display with a resolution of 240 x 320 pixels and 262K colours. It uses an IPS panel which gives the screen a faster response, wider viewing angles, excellent colour accuracy and screen consistency.
It connects using a 4-wire SPI connection for visuals and I2C for the capacitive touch function, making it simple to use with boards like Raspberry Pi, ESP32, Raspberry Pi Pico, and Arduino. Speaking of connections, there is also a 15-pin connector and an 18-pin FPC slot for connecting the display to whichever compatible board you choose.
A built-in voltage translator lets it work with both 3.3V and 5V systems, so it’s compatible with different microcontrollers. There’s also an SD card slot for adding extra storage.
You’ll get access to online resources and manuals, including examples for Raspberry Pi, ESP32, Raspberry Pi Pico, and Arduino, making it easier to set up and start working on your project.
Features
- 240 x 320 resolution, 262K colours, clear and colourful displaying effect
- High touch screen transmittance, fast response and long lifetime
- Embedded with ST7789T3 driver chip and CST816D capacitive touch control chip, using SPI and I2C communication respectively, minimizes required IO pins
- 15-pin connector and 18-pin FPC slot for connecting the LCD module to the host board
- Onboard voltage translator, compatible with 3.3V / 5V operating voltage
- Comes with online development resources and manual (examples for Raspberry Pi / ESP32 / Raspberry Pi Pico / Arduino)
Specifications
| Operating Voltage | 3.3V / 5V |
| Display Driver | ST7789T3 |
| Display Interface | 4-wire SPI |
| Display Panel | IPS |
| Pixel Pitch | 0.1275 x 0.1275 (mm) |

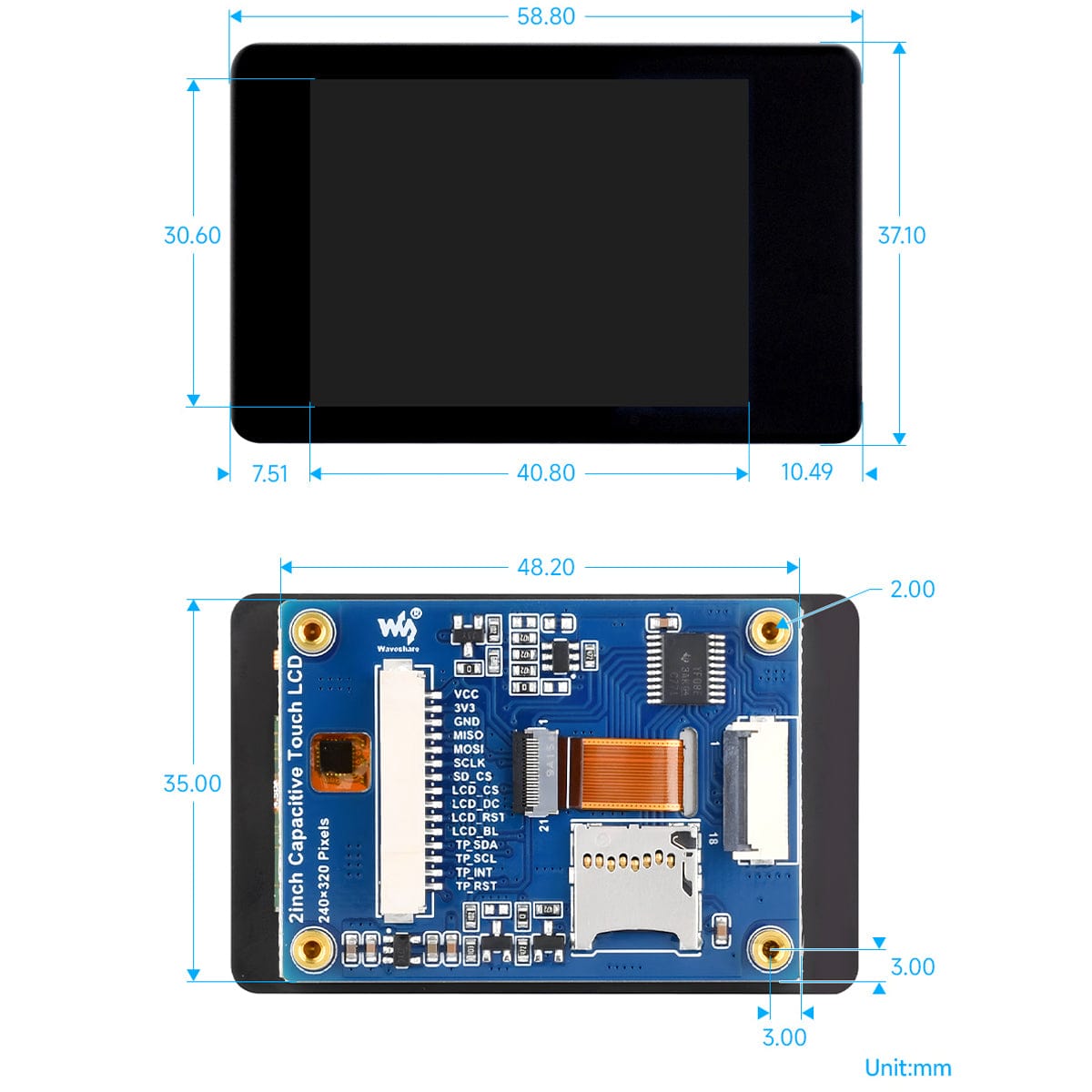

| Display Size | 30.6 x 40.8 (mm) |
| Resolution | 240 x 320 pixels |
| Touch Driver | CST816D |
| Touch Interface | I2C |
| Touch Type | Capacitive |
| Touch Points | Single Point Touch |
| Module Size | 37.1 x 58.8 (mm) |
Connection Example - Raspberry Pi 5
Note: Raspberry Pi 5 is NOT included
Resources
Pinout

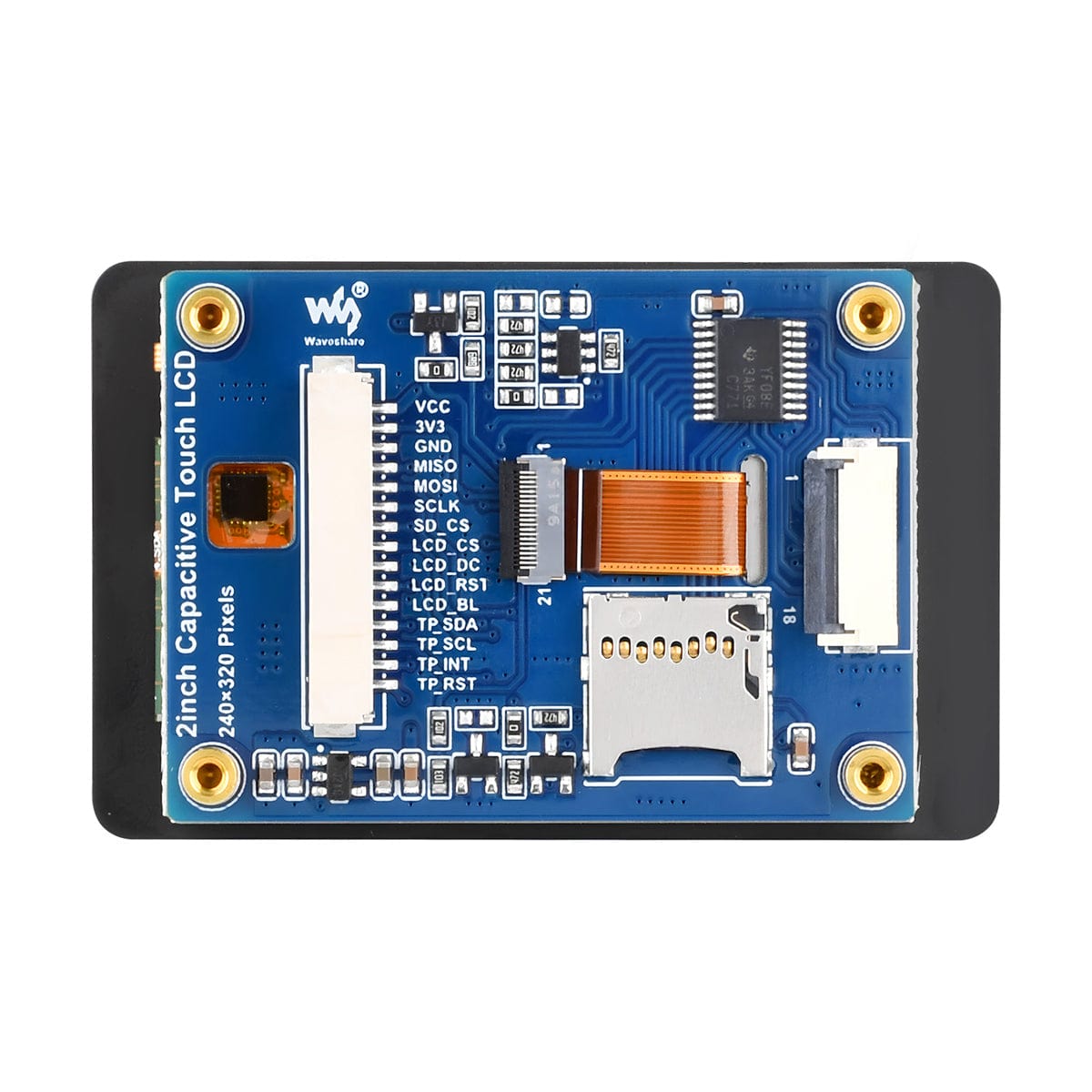

| Pin | Description | 15-Pin Pin No. | 18-Pin Pin No. |
| VCC | Power (3.3V / 5V input) | 1 | 1 |
| 3V3 | Power (3.3V input) | 2 | NC |
| GND | Ground | 3 | 3 |
| MISO | SPI MISO pin | 4 | 6 |
| MOSI | SPI MOSI pin | 5 | 5 |
| SCLK | SPI CLK pin | 6 | 4 |
| SD_CS | TF card chip selection, low active | 7 | 10 |
| LCD_CS | LCD chip selection, low active | 8 | 9 |
| LCD_DC | LCD data/command selection (high for data, low for command) | 9 | 7 |
| LCD_RST | LCD reset pin, low active | 10 | 8 |
| LCD_BL | LCD backlight pin | 11 | 2 |
| TP_SDA | Touch panel data pin | 12 | 14 |
| TP_SCL | Touch panel clock pin | 13 | 13 |
| TP_INT | Touch panel interrupt pin | 14 | 15 |
| TP_RST | Touch panel reset pin, low active | 15 | 12 |
Package Contents
- 1x 2" Capacitive Touch LCD
- 1x GH1.25 15-Pin Cable
