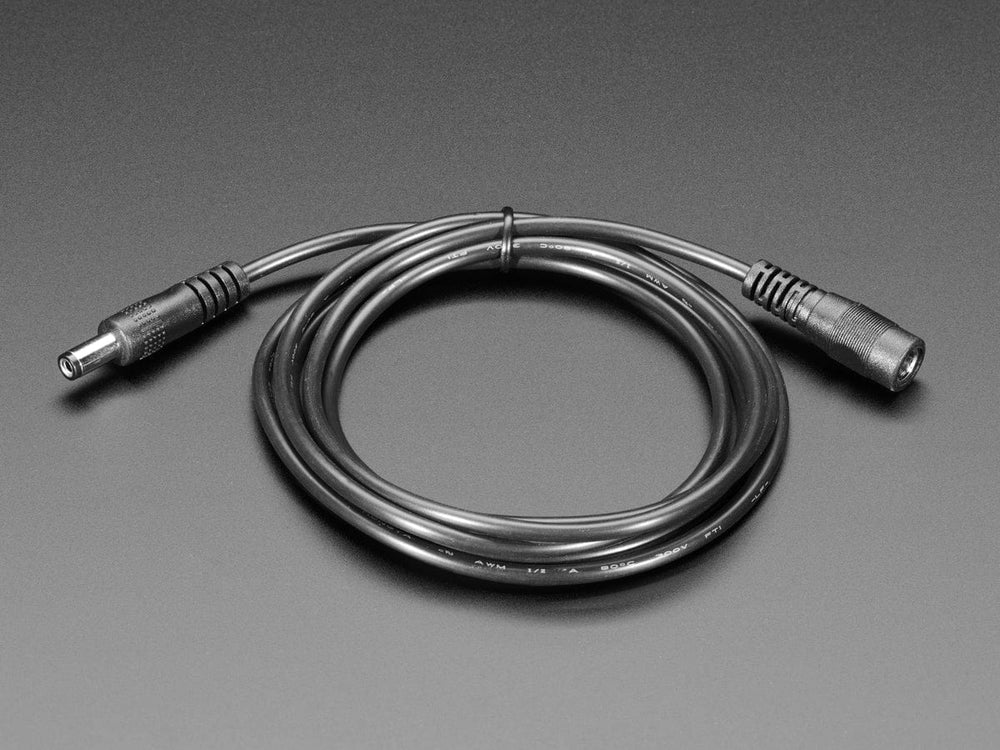

This 5.5mm/2.1mm DC Barrel Jack Extension Cable provides a 1.5m power extension with 24 AWG wiring rated for up to 5A, and can be cut into separate plug and socket cables for custom power connections.
This product is a 3-in-1 cable. By itself, it can act as an extension cord for any 5.5/2.1mm DC power cable. The heavy 24 AWG wires can handle up to 5A.
You can also cut it in half to make two barrel cables (one plug and one jack). This will allow you to connect a classic 'wall wart' to a breadboard or PCB without having to solder in a bulky power jack. Or you can use the plug half to connect some batteries to something with a 2.1mm jack.
Features
3-in-1 design functions as extension cord, barrel plug cable, or barrel jack cable
Compatible with 5.5/2.1mm DC power connectors
Heavy-duty 24 AWG wires rated for up to 5A
Can be cut in half to create separate plug and jack cables
Connect wall adapters directly to breadboards or PCBs without soldering
Pair batteries with devices featuring 2.1mm jacks
Eliminates need for bulky power jack components
Specifications
Length: 1.5m
Revision History
As of October 7th, 2015 we are selling a revised version of this cable with a 24 AWG.
