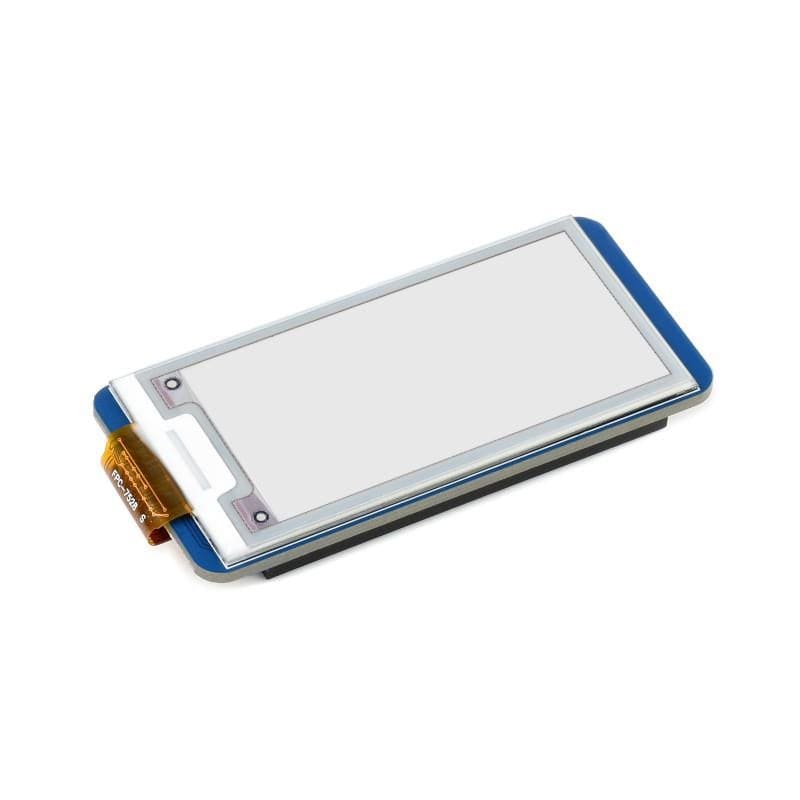

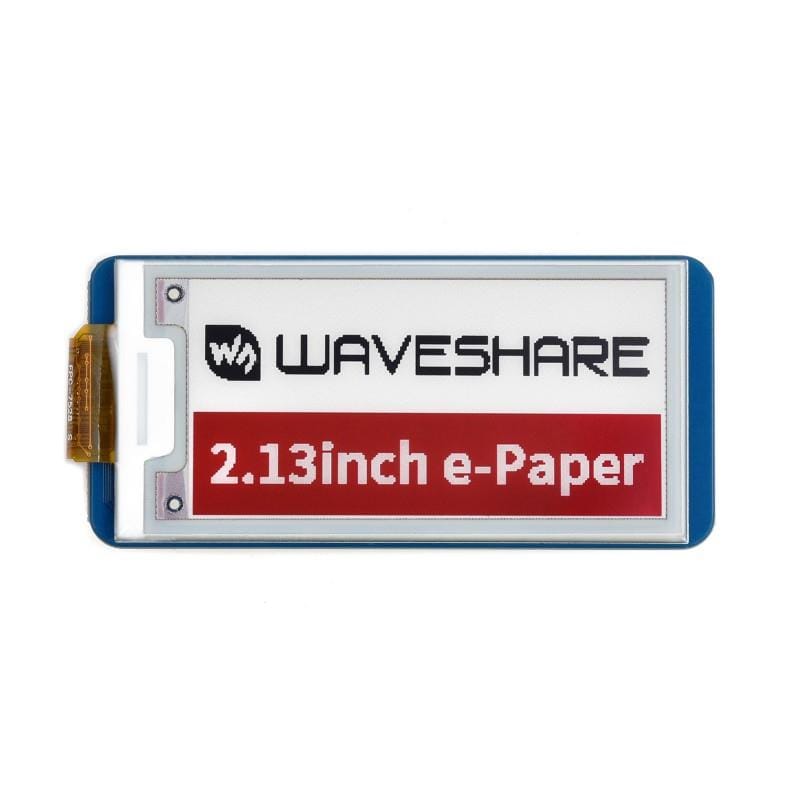

Looking for an eInk / ePaper display for your Raspberry Pi Pico? Look no further! This great little 2.13" red/black/white eInk/ePaper display from Waveshare is perfect for adding a colourful low-power display to your Pico project.

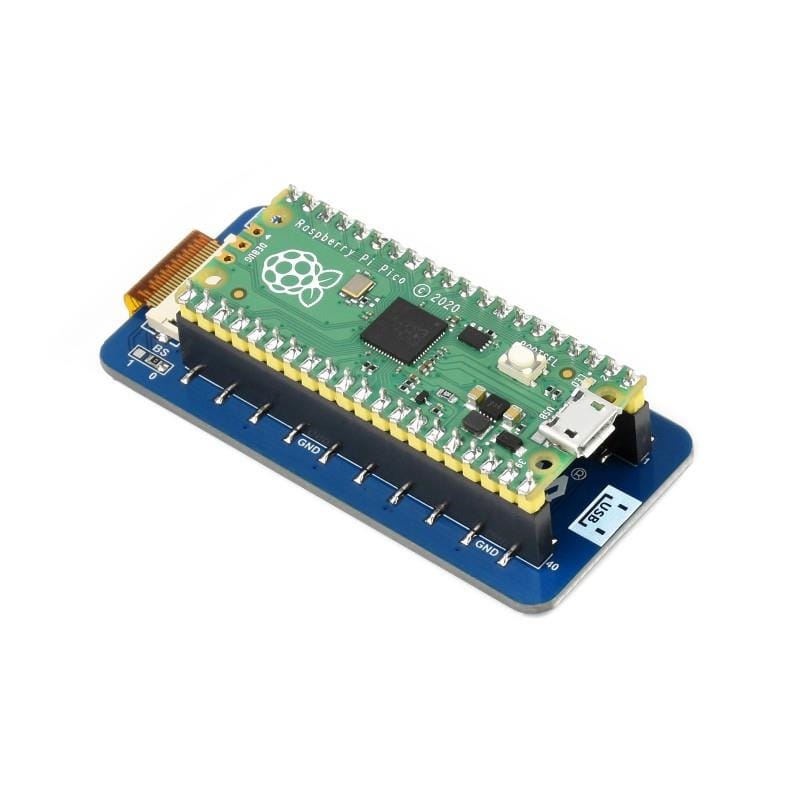

This display module has been designed specifically for the Raspberry Pi Pico - just push your Pico into the female headers and you're ready to go (Pico with male headers required).

ePaper / eInk displays are designed to replicate the appearance of ink on paper. Unlike regular displays, which lose their image when power is removed, eInk screens are able to hold text and images indefinitely, even without power. ePaper screens are therefore ultra low power, designed to have a wide viewing angle and additionally have limited reflection under sunlight. The applications are limitless!

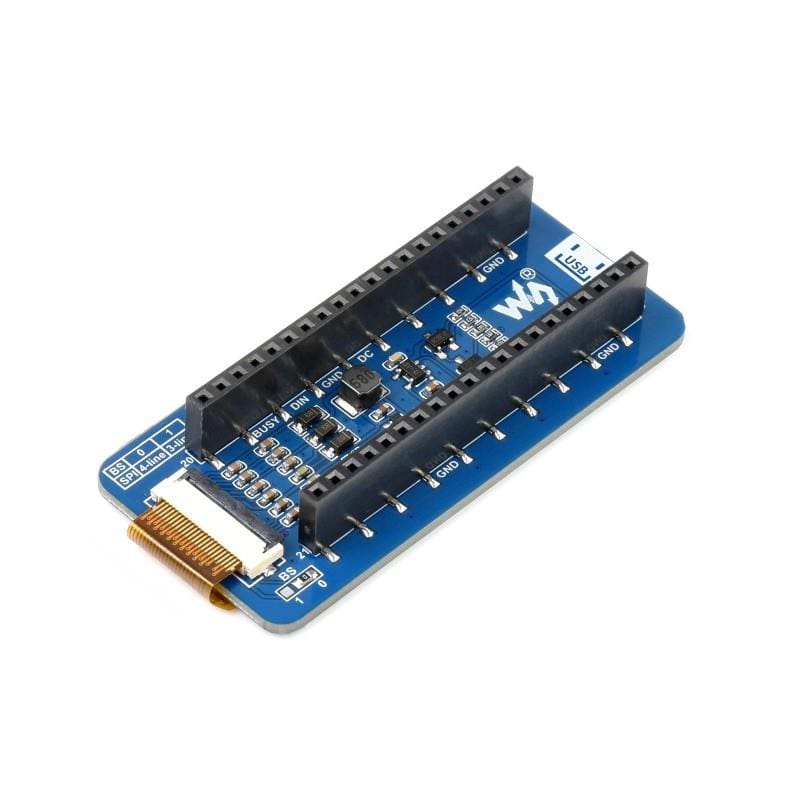

The E-Ink display modules from Waveshare come complete with an embedded controller PCB, communicating via SPI interface.

A Raspberry Pi Pico is not included - click here if you'd like to buy one. Your Pico will need to have male headers soldered to it with the pins pointing downwards (or grab one of our Pre-soldered Picos).

Features

  • Designed specifically for the Raspberry Pi Pico
  • No soldering required
  • 2.13" display
  • 212x104 resolution
  • 170° viewing angle
  • No backlight - keeps displaying last content for a long time even when power down
  • Ultra-low power consumption - power is only required for refreshing
  • SPI interface - requires minimal IO pins
  • Online development resources and manual available (Raspberry Pi Pico C/C++ and MicroPython examples)

Package Contents

  • 1x Red/Black/White E-Ink Pico Module

Resources

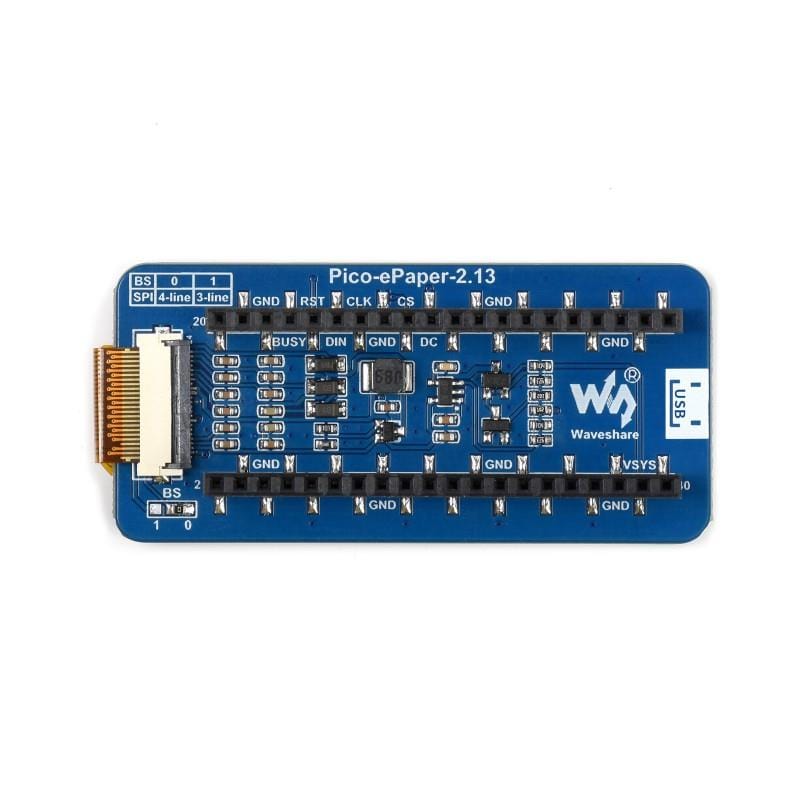

Pinout

Specification

Operating Voltage 3.3V
Interface 3-wire SPI, 4-wire SPI

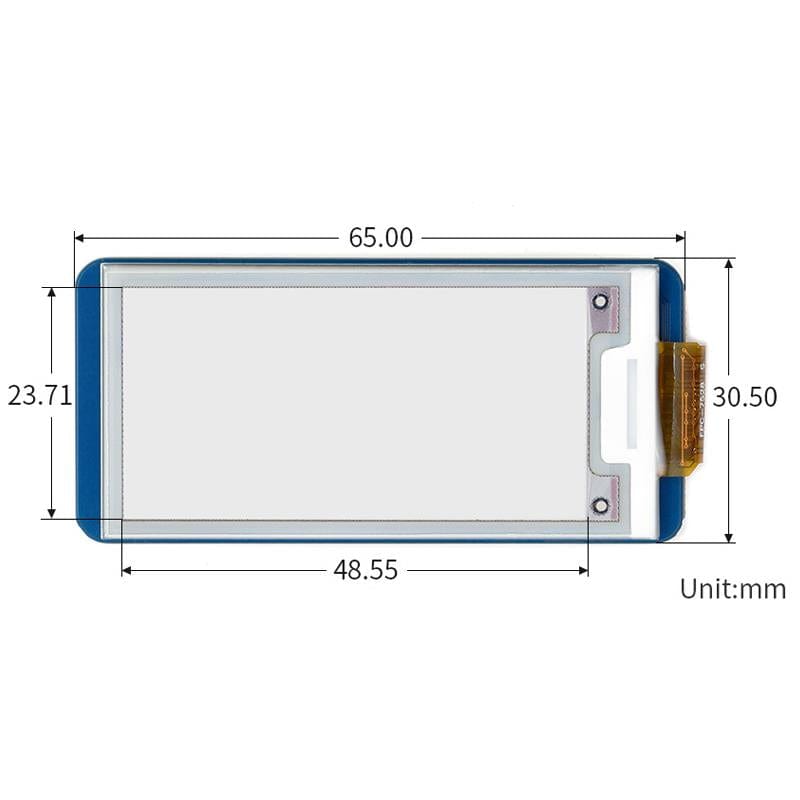

Outline Dimensions 65.00 × 30.50mm
Display Size 48.55 × 23.71mm
Dot Pitch 0.229 × 0.228mm
Resolution 212×104 pixels
Display Colour red, black, white
Grey Scale 2
Full Refresh Time 15s
Refresh Power 26.4mW (typ.)
Standby Current <0.01uA (almost none)
Viewing Angle >170°
