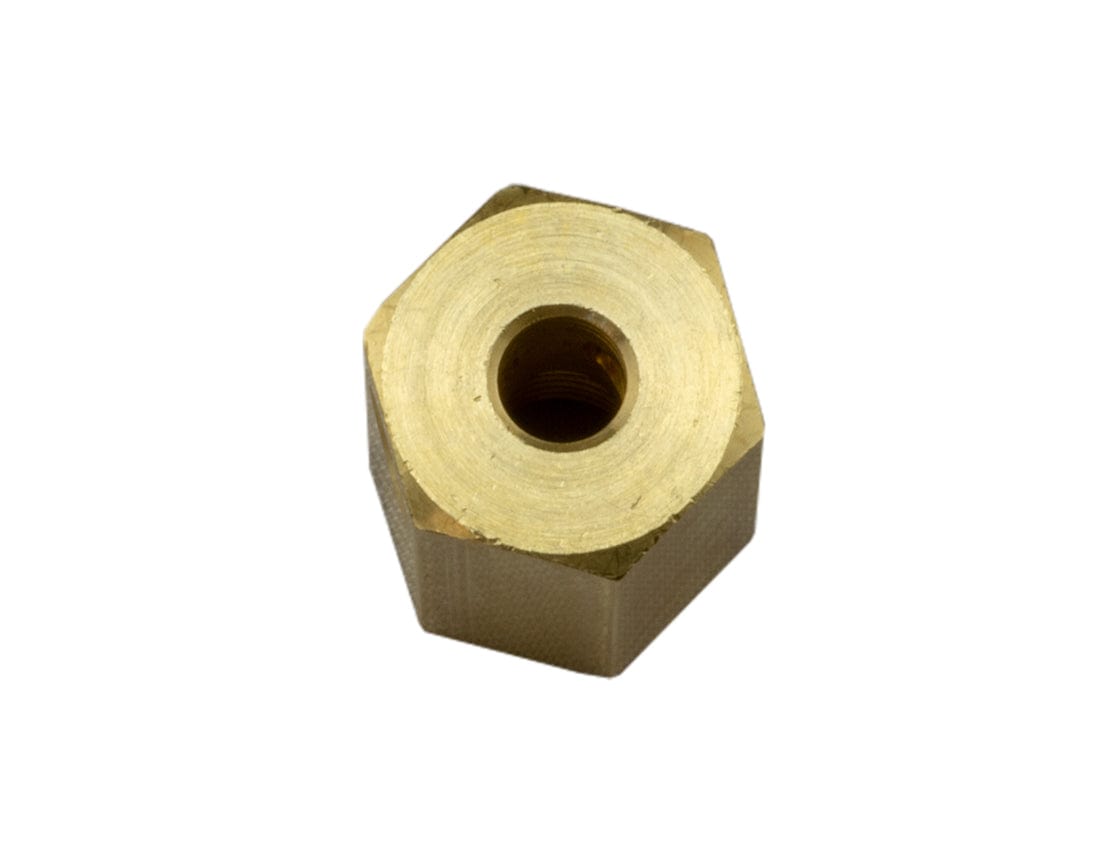

Brass hub kits for connecting wheels to motors! This is a specially made 17mm hex hub designed to fit our giant wheels.

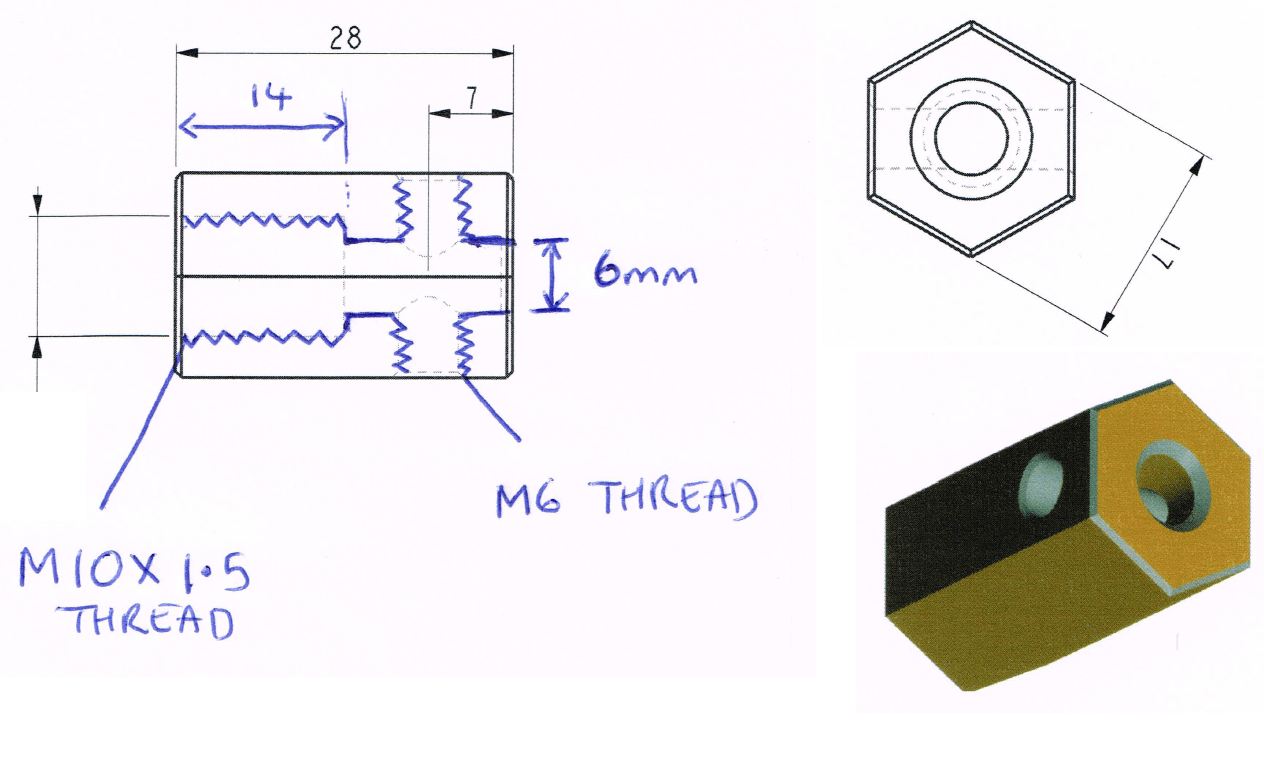

These are brass, rigid type couplers, which are great for small motor robotics, e.g. RC planes, boats, cars, robots. The hubs feature a motor shaft input hole on one end, and a 17mm hex and M10 screw point for fixing on the other. The coupler is designed to fit motors with a 6mm shaft, and uses M6 threaded grub screws to hold the shaft in place. The hub is 28mm in length.
Please Note. This is for the coupler and screws only. Mounting bracket, motors & wheels are not included.
We also stock other hubs with different sized motor shaft diameters ranging from 3mm to 7mm in 1 mm increments. Please measure your motor shaft size carefully before buying these hubs.
- 6mm Diameter Hole for 6mm Motor Shaft

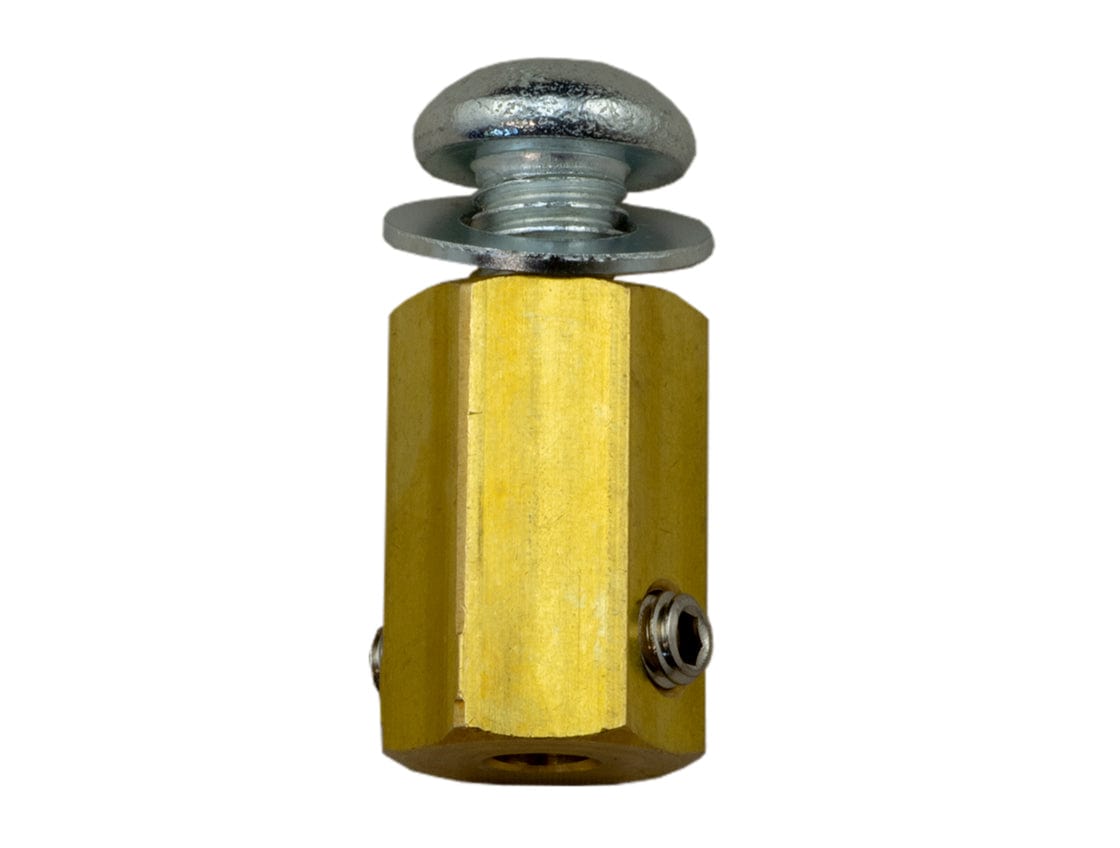

- 1 x 17mm Brass Coupler
- 1 x M10 Screw
- 1 x M10 Washer
- 2 x M6 Grub Screws
- Material: Brass (Gold Tone)
- Length: 28mm
- Hex Mount: 17mm
- Cylinder Outer Diameter: 16.75mm
- Motor Shaft Diameter: 6mm
- Motor Shaft Grub Fixing Thread: M6
- Hex Fixing Thread: M10
- Weight: 65g
