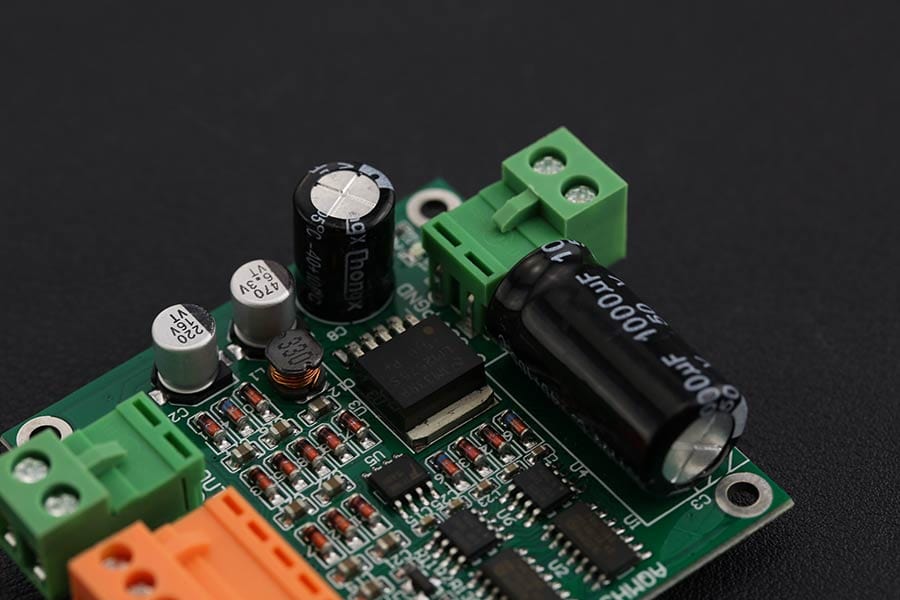

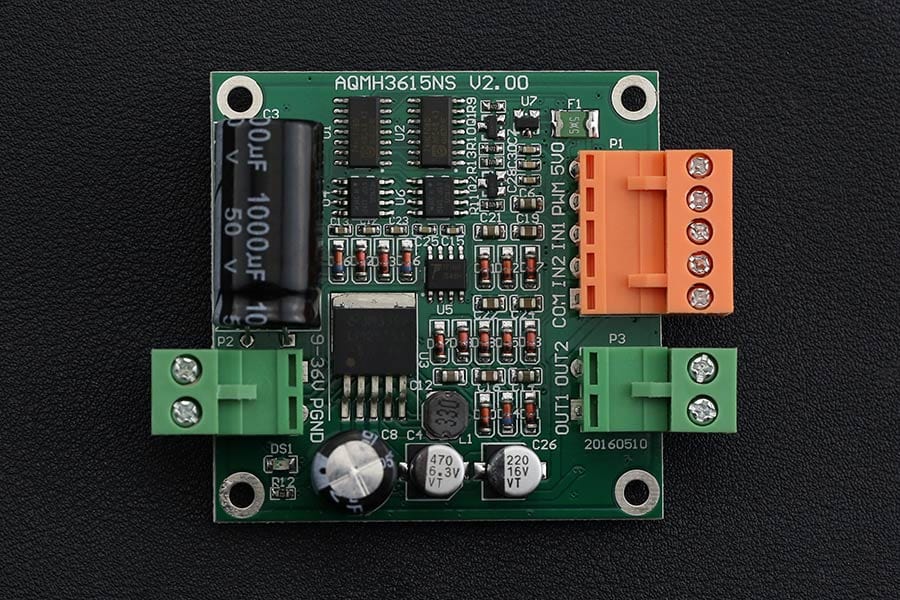

15A Single DC Motor Driver

Price:
Sale price £18.10
incl. VAT
excl. VAT
Stock:
Only 11 units left
Quantity:

This is an ultra-small DC motor driver for space-limited projects, while the impressive IC - LM2575 provides a powerful way to drive 36V 15A motors.

Its UVLO (Under Voltage Latch-Out) feature provides a safeguard for your system. It also has a 5V output for Arduino or other 5V devices, and its interface has ESD (electro-static discharge) protection.

Specification

  • Voltage supply: DC 12 ~ 36 V
  • Voltage supply limit: 6.5 ~ 40 V
  • Control signal Level (Compatible 3.3V/5V)
    • High: DC 2.0 ~ 5.5 V
    • Low: DC0 ~ 0.8 V
  • Maximum continuous operating current:
    • 12A (no heat sink)
    • 15A (with simple heat sink)
    • 20A (with Thick Heat Sink/ Cooling System)
  • Peak current: 110 A
  • Speed control: PWM
  • Minimum valid Pulse Width: 200 ns
  • Maximum Output Current @5V: 500 mA
  • Working Temperature: -25 ~ 85 °C
  • Mounting Hole: M3
  • Dimension (Length * Width * Height): 55 * 55 * 20 (mm)/ 2.165 * 2.165 * 0.787 (in)
  • Weight: 42g

Documents

Shipping List

  • 15A Single DC Motor Driver x1
