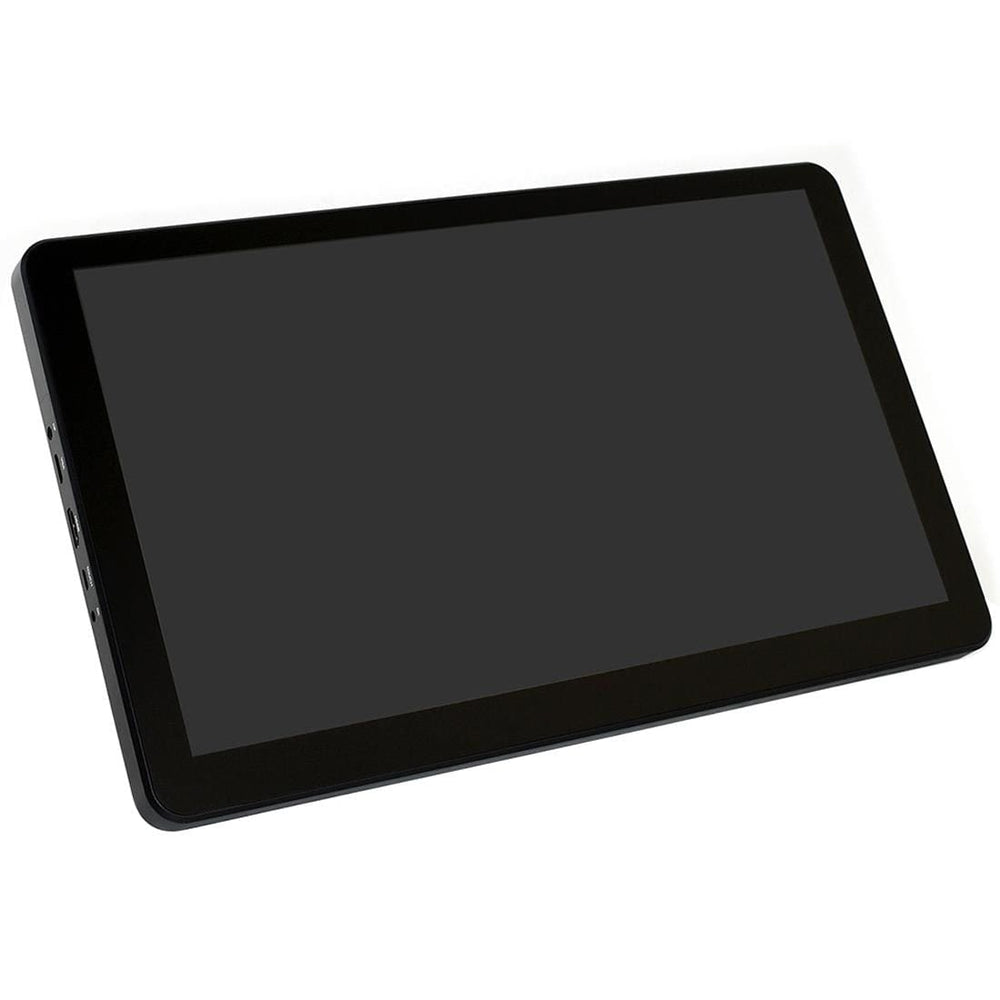

15.6" Capacitive Touchscreen IPS LCD (H) with Case (1920x1080)

WaveshareSKU: WAV-16641
Sale price £152.92
incl. VAT
excl. VAT
Only 9 units left

Compatible with:

Awesome Extras

Raspberry PiRaspberry Pi 400
Sale price £66.67 incl. VAT excl. VAT
The Pi HutRaspberry Pi 4 Case (With Cooling Fan) (v3.0)
Sale price £8.33 incl. VAT excl. VAT
The Pi HutVESA Mounting Plate for The Pi Hut Cases
Sale price £2.08 incl. VAT excl. VAT

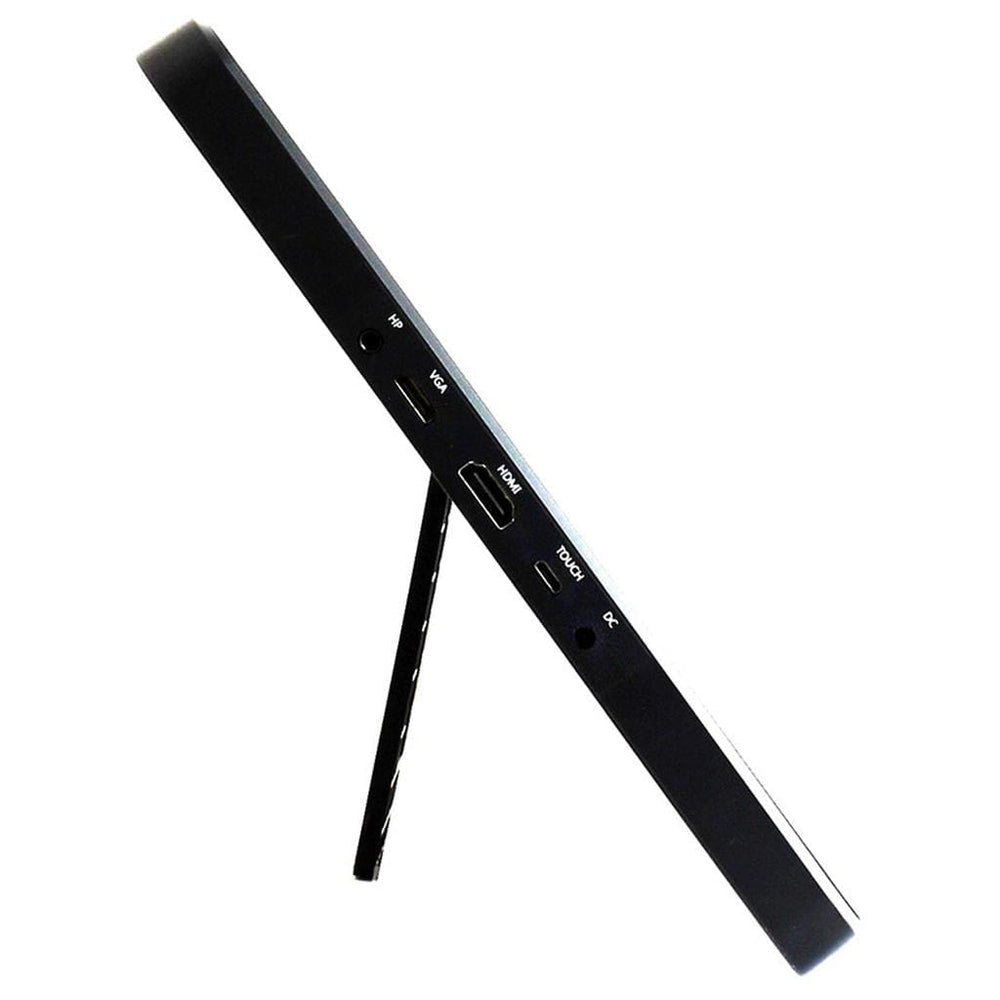

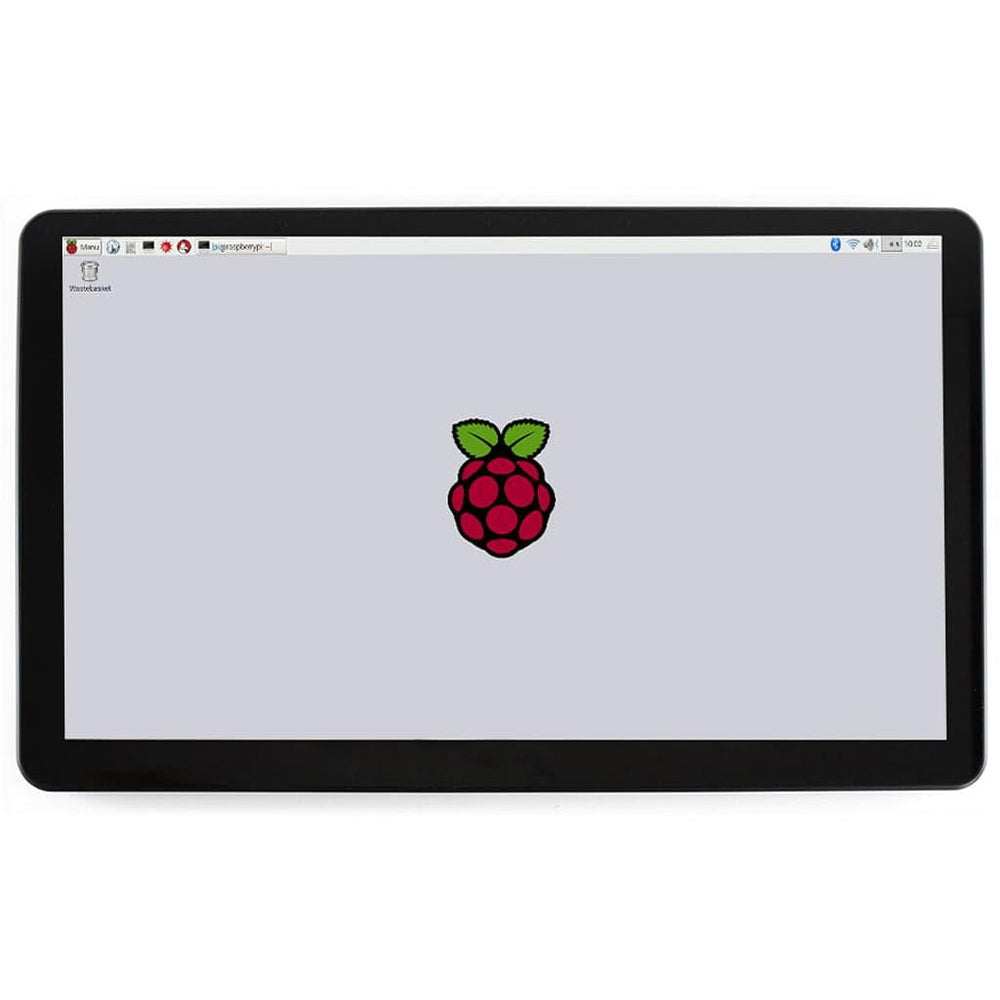

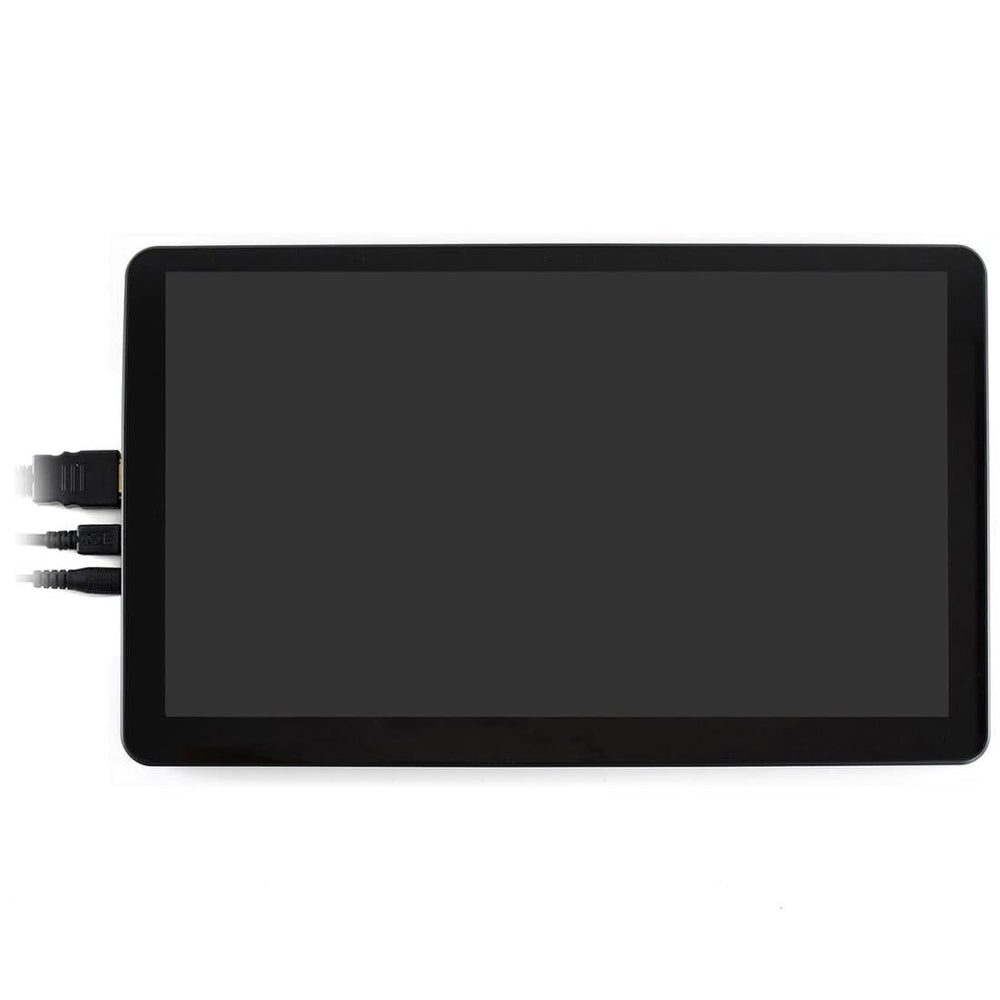

This 15.6" IPS display is ideal for use with the Raspberry Pi 400 as a permanent on-desk screen option, but compact enough to take on the go if needed. Thanks to the universal full-size HDMI input and USB touch port, you can also use this with a Raspberry Pi 4, Windows PC, games console, Jetson Nano and other HDMI/USB devices.

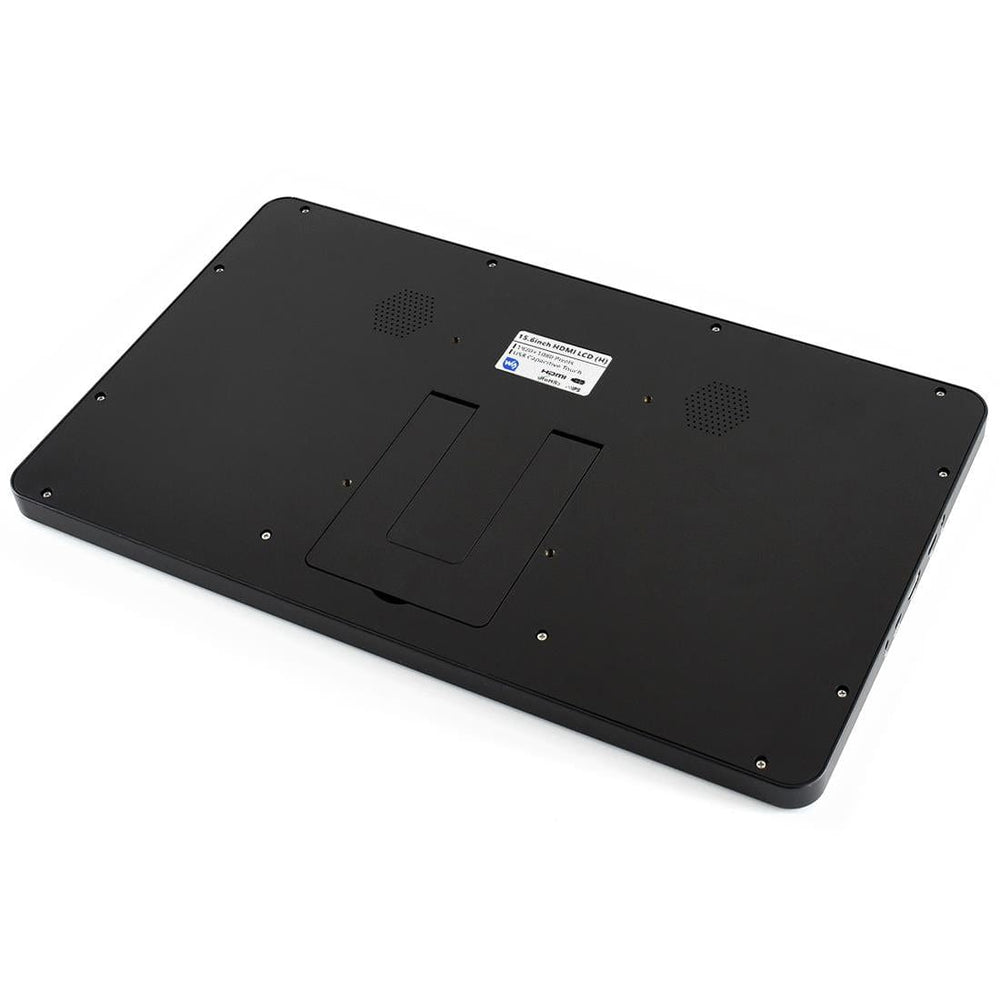

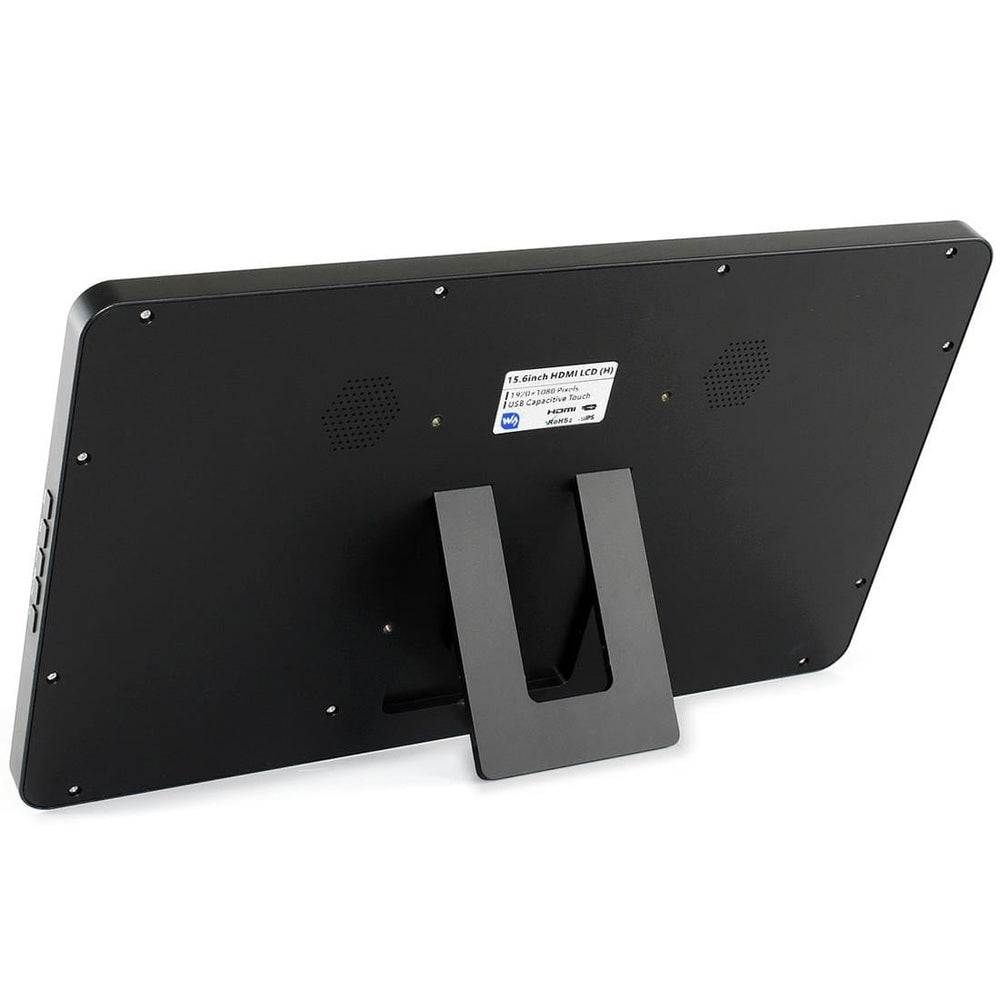

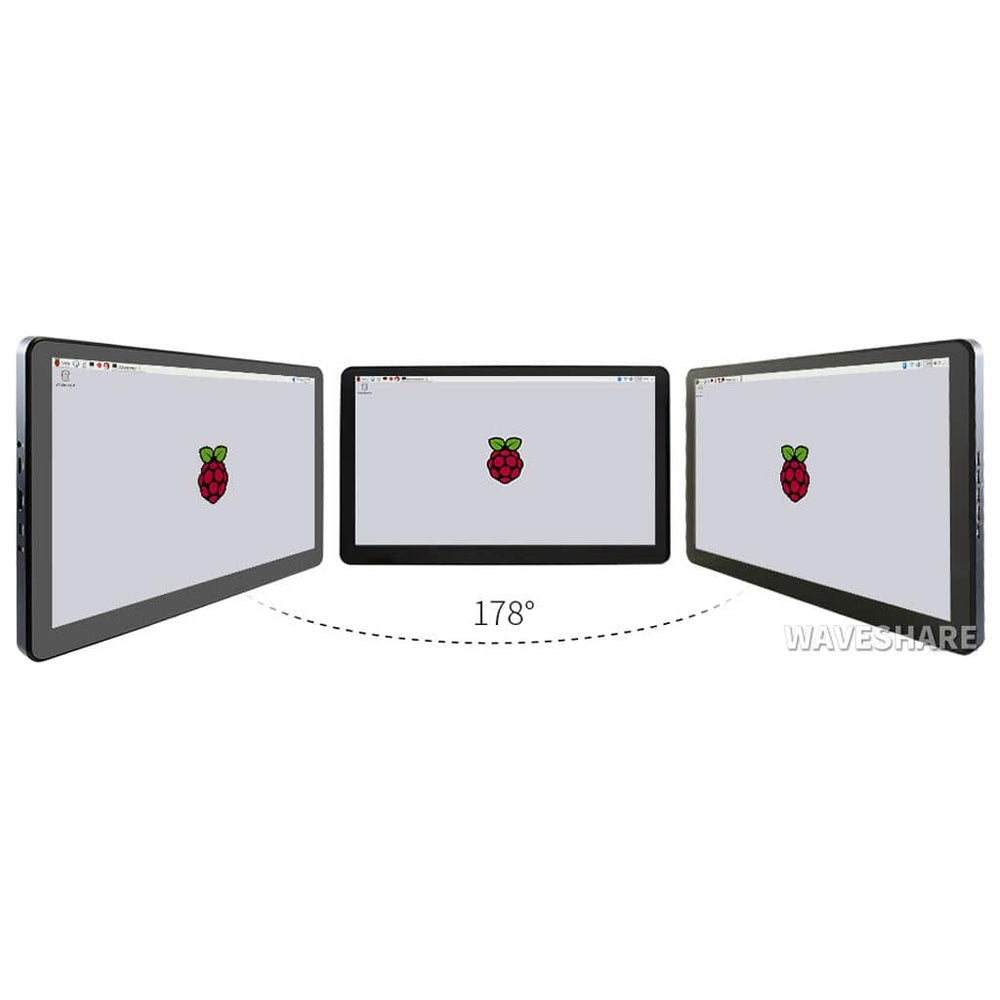

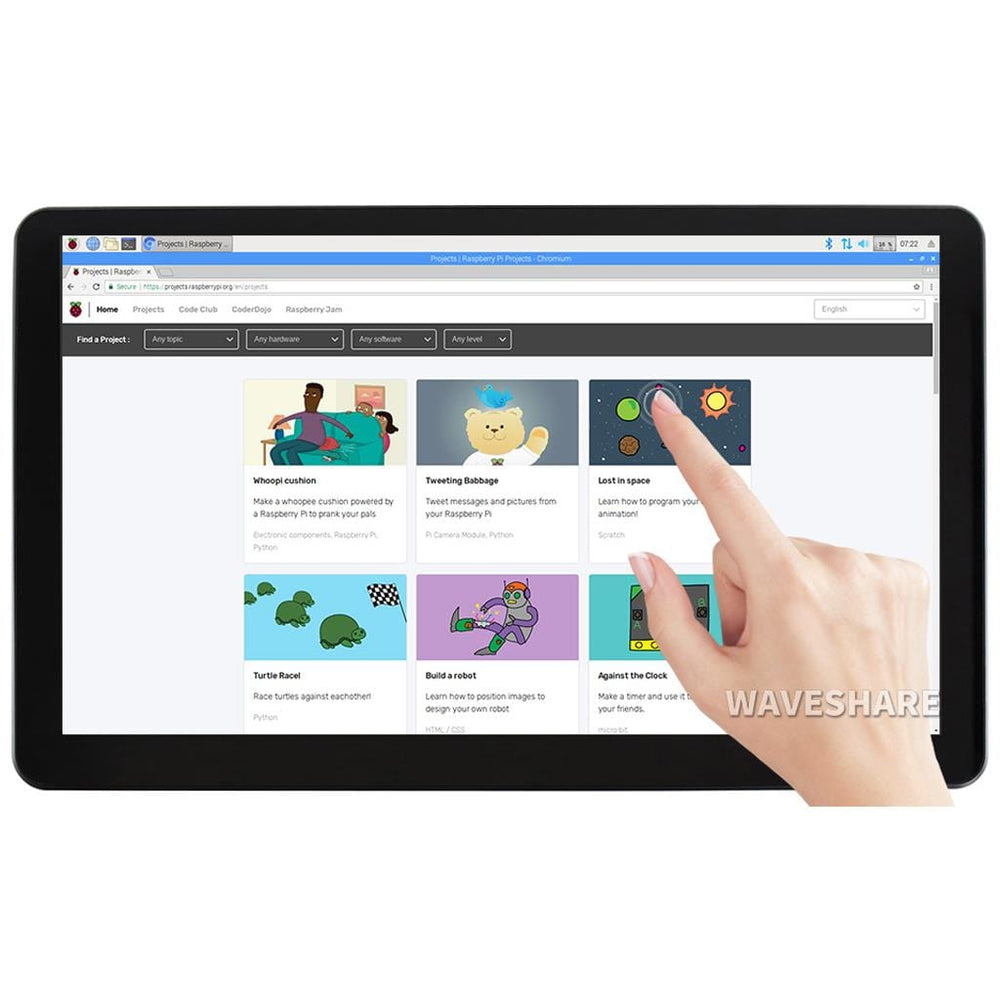

The display is a 1920x1080 IPS panel with capacitive 10-point touch (device and OS-dependent), toughened glass and wide 178° viewing angles. The display's casing includes a fold-away 75° stand making this ideal for travel, or use the 100x100 M4 VESA mounting points to attach this to a stand, wall mount bracket or even mount one of our laser-cut cases to the rear of the display with our VESA plate!

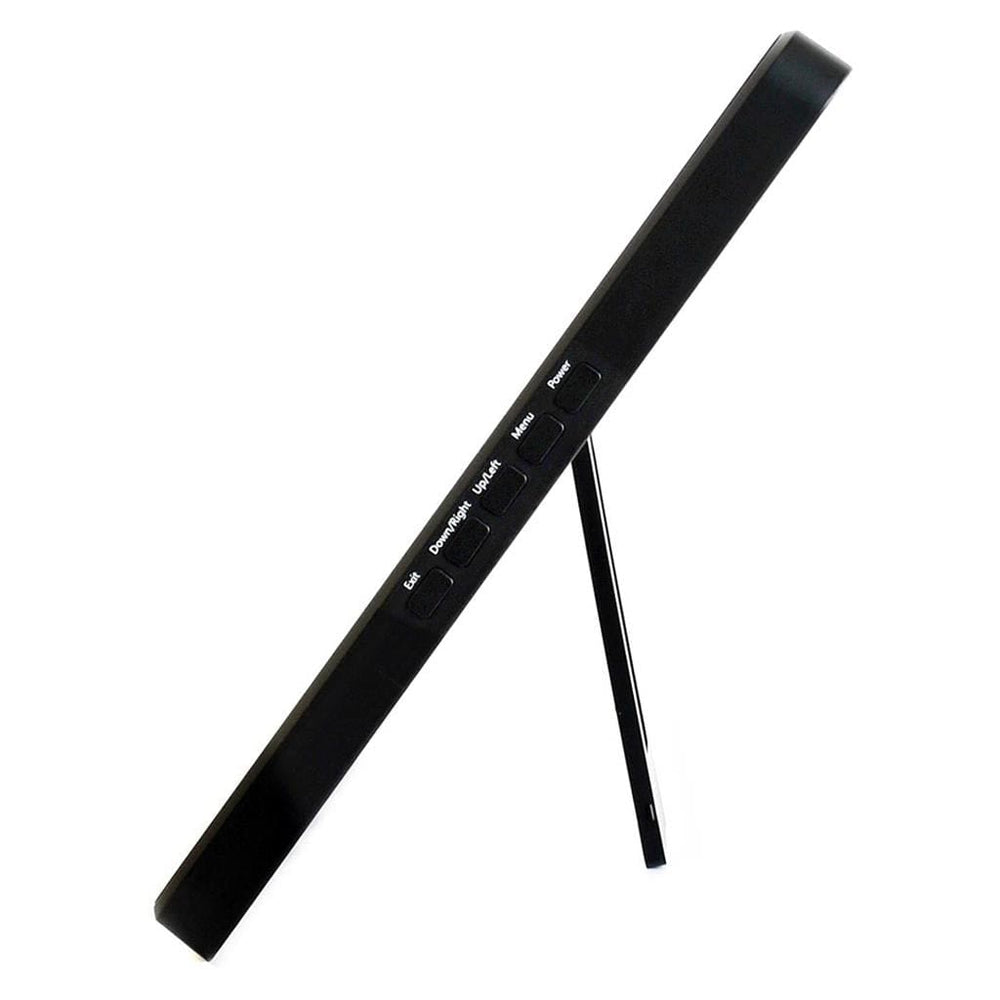

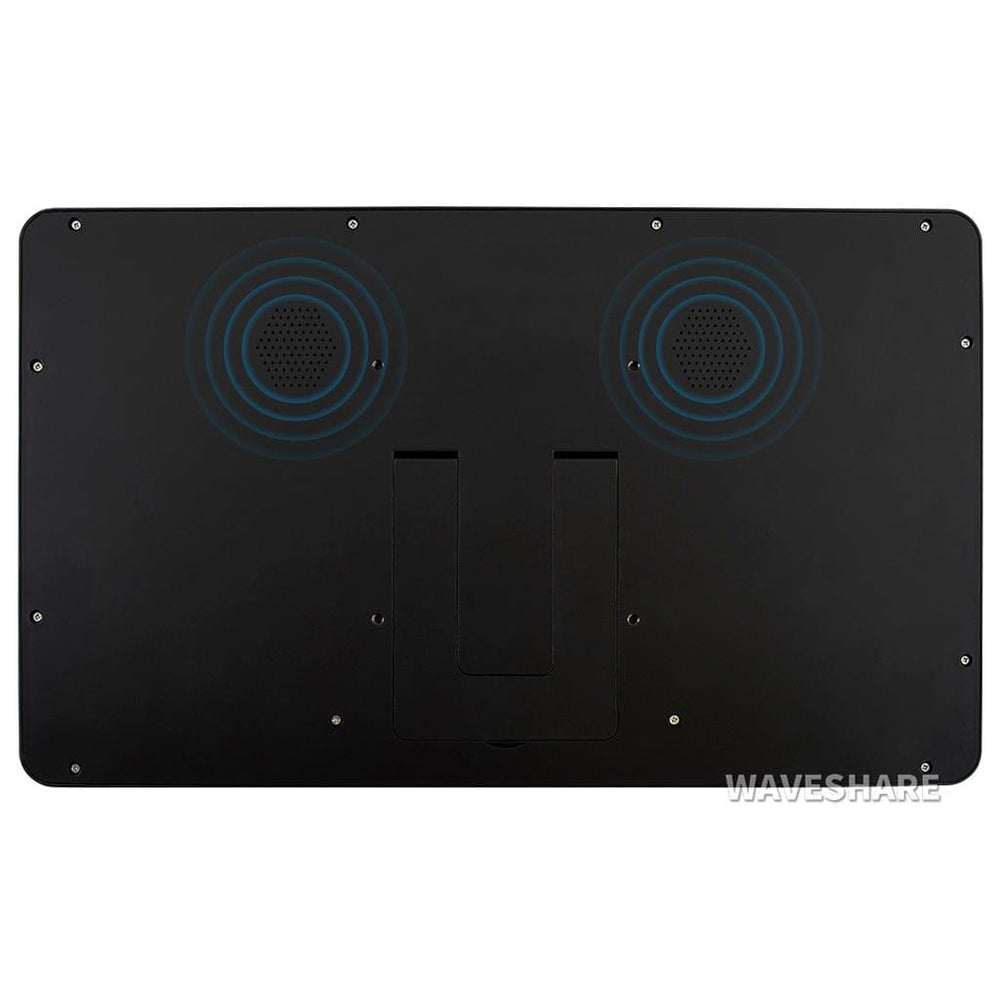

The rear of the display includes two Hi-Fi speakers which are fed via your device's HDMI audio, or hook up your own powered speakers via the 3.5mm jack. On the side are buttons to control the display's on-screen display, allowing you to quickly adjust brightness/contrast and even turn the display on/off.

A 12V 1A UK power supply is included in the package, along with an HDMI cable, Micro-HDMI adapter and Micro-USB cable.

Some simple configuration is required when using with a Raspberry Pi and other devices. Check the Wiki for setup information.


  • 15.6" IPS display
  • 1920x1080 high resolution
  • Toughened glass capacitive touch panel, 6H hardness
  • 10-point capacitive touch control
  • When used with Raspberry Pi, supports Raspberry Pi OS / Ubuntu / Kali and RetroPie
  • When used as a computer monitor, supports Windows 11/10/8.1/8/7
  • Multi-languages OSD menu, for power management, brightness/contrast adjustment
  • 3.5mm audio jack, supports HDMI audio output
  • Embedded ferrite Hi-Fi speaker
  • Supports VGA input via mini-HDMI (a specific cable is required and should be purchased separately)

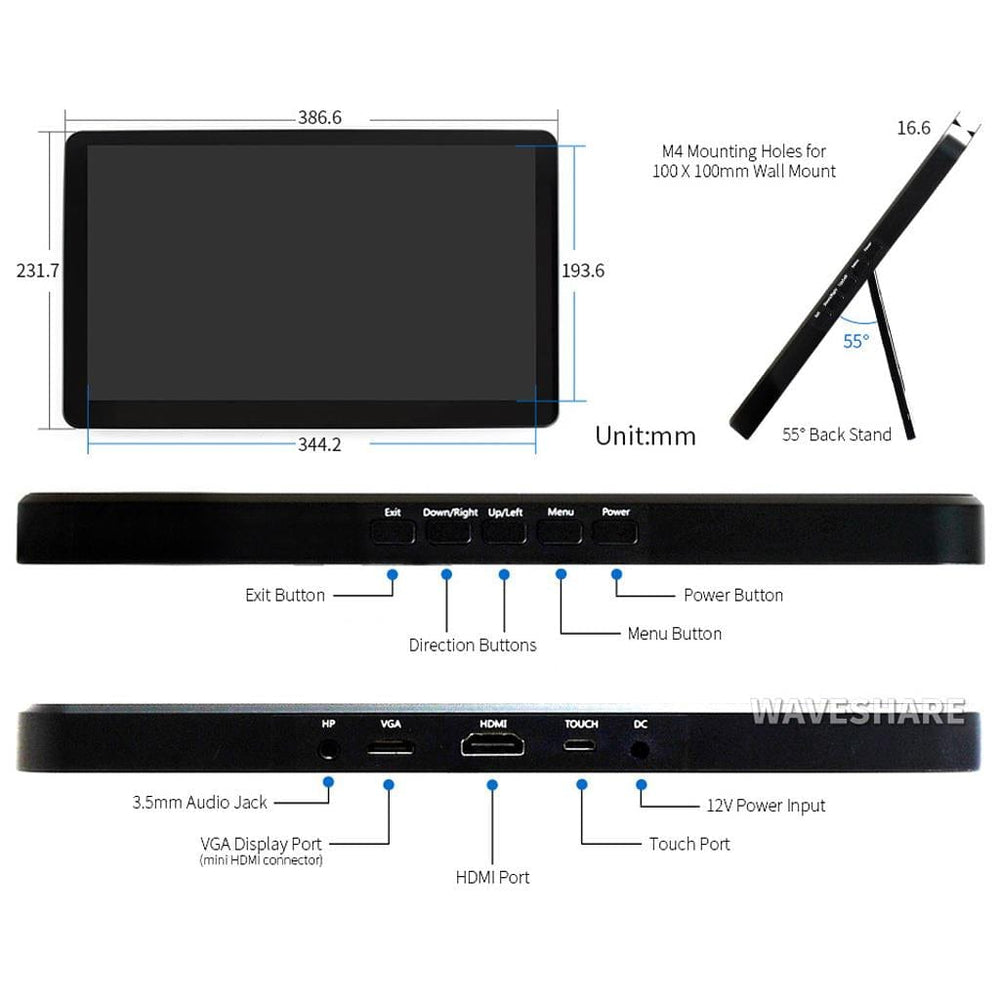

  • 100x100mm VESA spacing mounting holes (M4 screw hole)
  • Comes with 75° tilt angle stand

Connection Example - Raspberry Pi

Package Contents

  • 1x 15.6" IPS Display
  • 1x UK Power adapter 12V
  • 1x HDMI cable
  • 1x HDMI to Micro HDMI Adapter
  • 1x USB A to Micro-B cable
  • 1x Quick start sheet
