These light-weight aluminium shaft adapters convert a typical motor output shaft into a 12 mm hex shaft that is compatible with many common hobby RC wheels, such as our 65mm x 25mm RC-style wheels. The side of each adapter that mounts to the wheel contains a hole tapped for M4 screws, and the other side of the adapter mounts to a motor shaft with two M3 set screws.
This set includes a pair of adapters, two 8mm M4 screws, four M3 set screws, and one 1.5mm Allen wrench for use with the set screws.

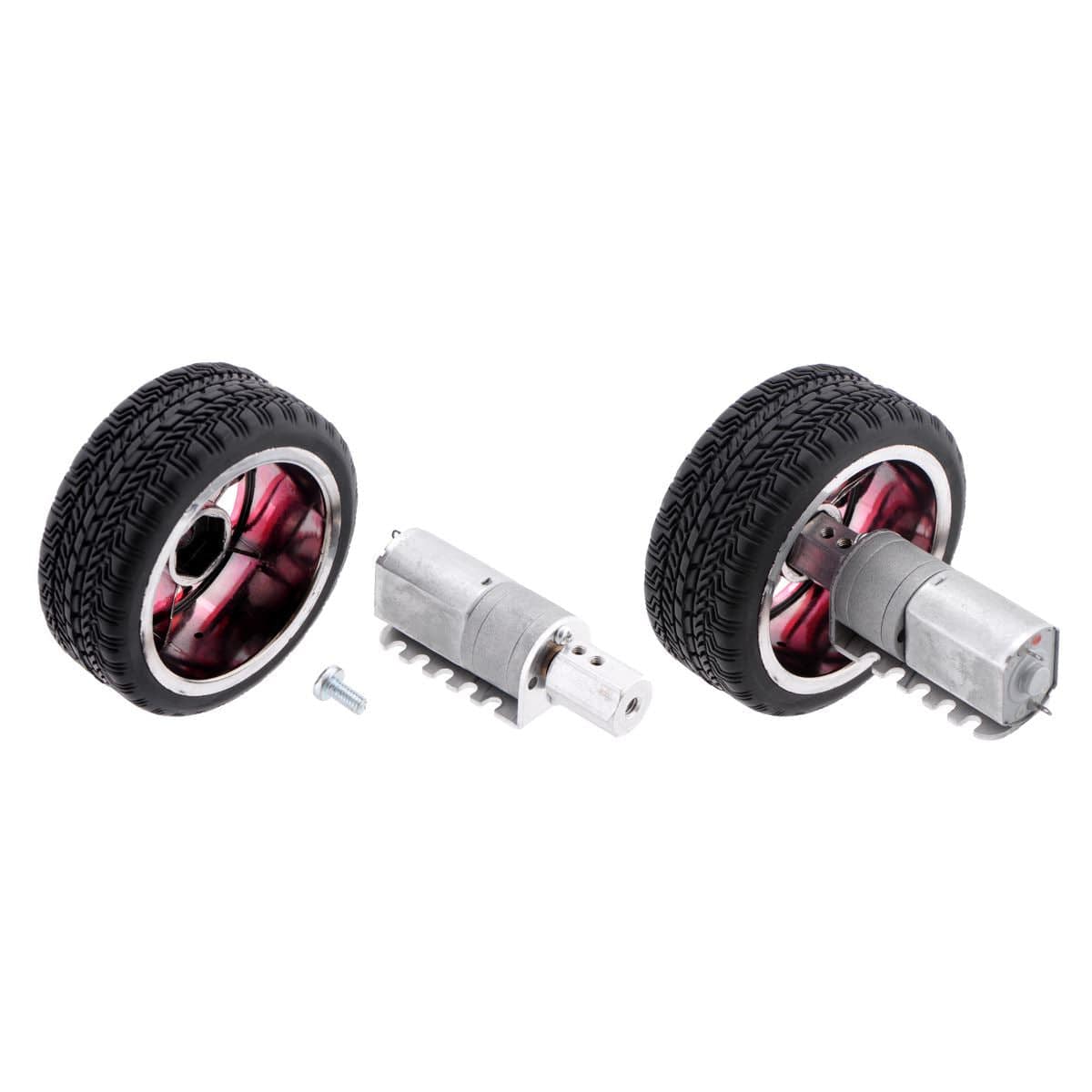

It works well with 20D metal gearmotors (as shown in the images) and 25D metal gearmotors. The wheel shown in the above picture is a hobby RC wheel that works with 12mm hex shafts.

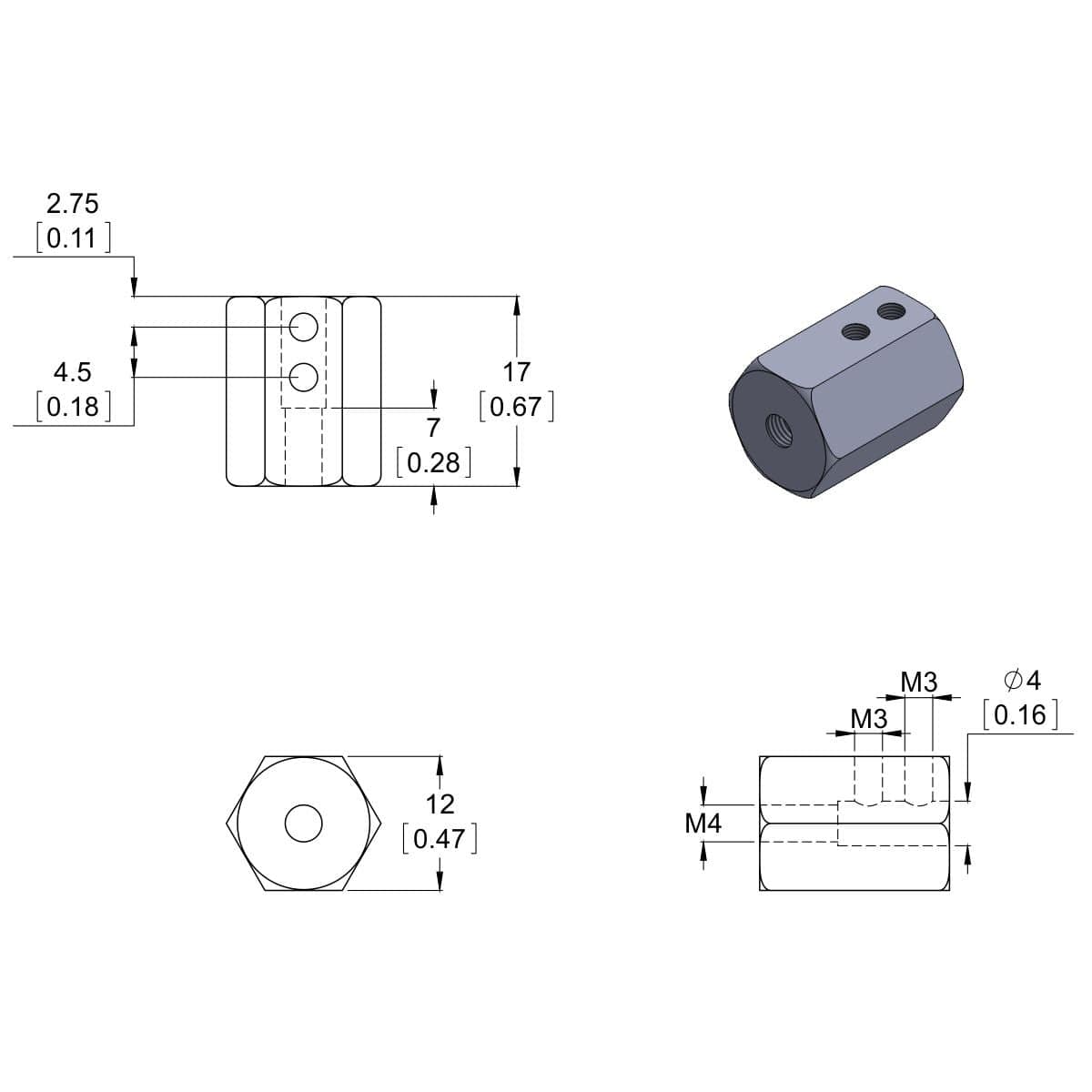

- Size:12 mm hex × 17 mm length
- Length: 17mm
- Weight: 5g*
- Shaft Diameter: 4mm
*For a single adapter only (without set screws or mounting screw)
