11.9" IPS HDMI Monitor (320 x 1480)

WaveshareSKU: WAV-25624
Price:
Sale price £85.30
incl. VAT
excl. VAT
Stock:
Only 6 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi 5 - The Pi HutRaspberry Pi 5 - The Pi Hut
Raspberry PiRaspberry Pi 5
Sale priceFrom £46.50 incl. VAT excl. VAT
11.9" IPS HDMI Capacitive Touch Side Monitor  (320 x 1480) - The Pi Hut11.9" IPS HDMI Capacitive Touch Side Monitor  (320 x 1480) - The Pi Hut
Raspberry Pi 5 Starter KitRaspberry Pi 5 Starter Kit
The Pi HutRaspberry Pi 5 Starter Kit
Sale priceFrom £81 incl. VAT excl. VAT

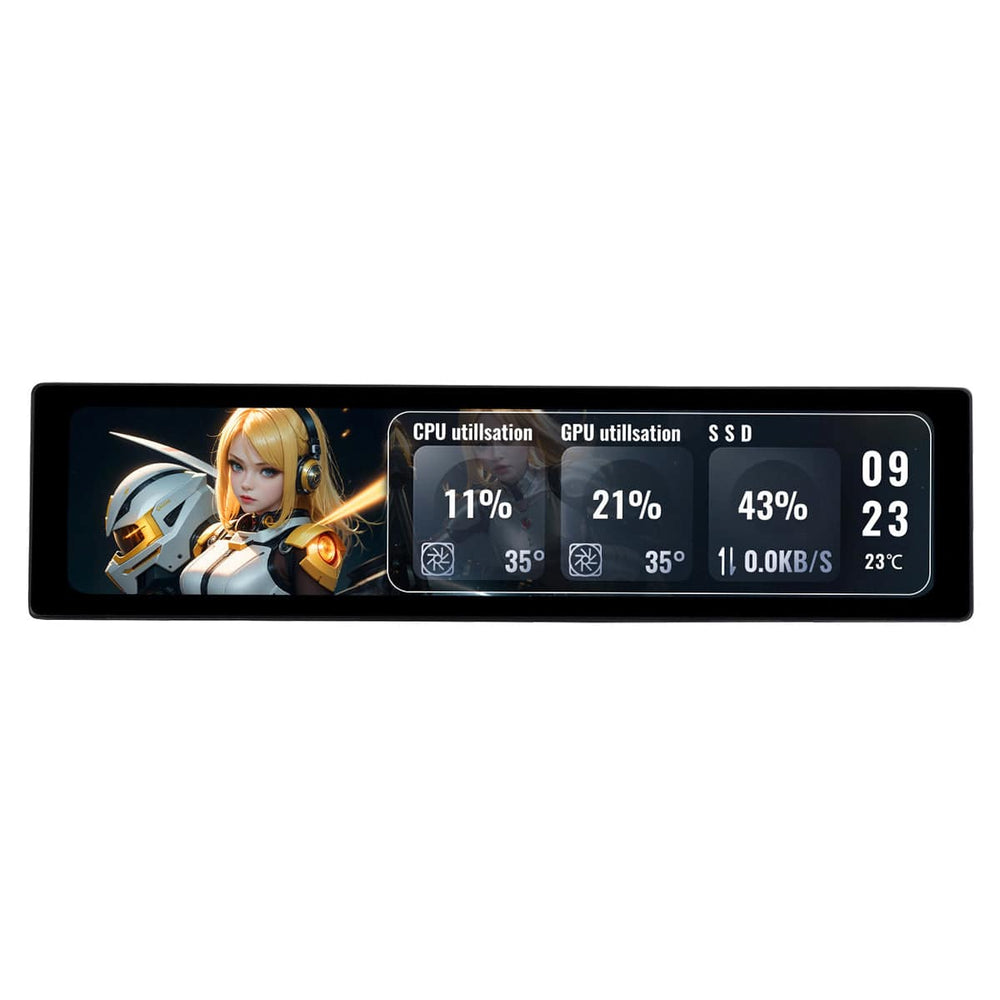

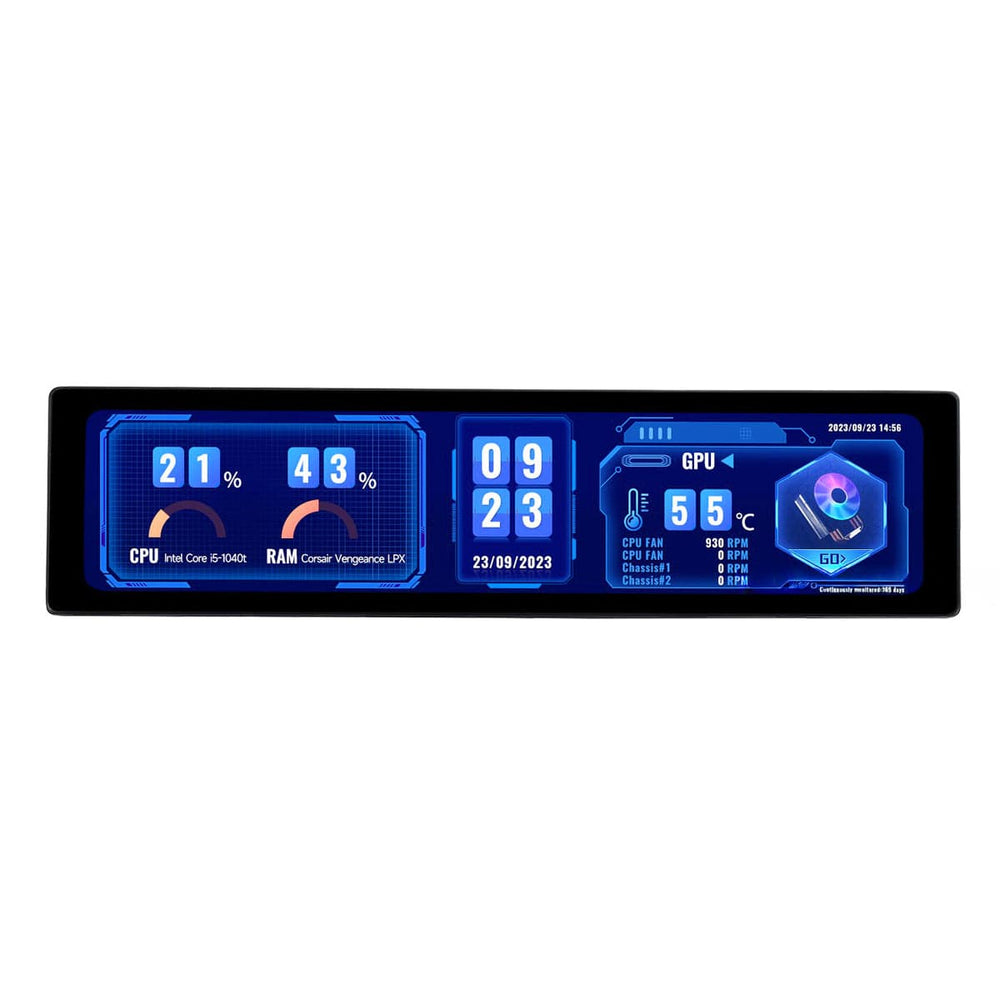

This 11.9" IPS display has a resolution of 320 x 1480 pixels for clear, crisp and colourful visuals. It functions as a computer monitor, supporting Windows 11/10/8.1/8/7 without the need for drivers.

This non-touch version comes equipped with Dual-Track Stereo ferrite speakers, providing high-fidelity sound quality. It offers a broad 170° viewing angle, providing vibrant visuals from almost any direction. The screen supports HDMI input and can switch between landscape and portrait modes within the system.

It has compatibility with all versions of Raspberry Pi OS, Ubuntu, Kali, and Retropie, all driver-free. It also works with Jetson Nano, supporting Ubuntu without requiring additional drivers. This display is versatile and energy-efficient, featuring a backlight control to help conserve power.

We also stock the touch version here

Features

  • 11.9-inch IPS display with a hardware resolution of 320 x 1480.
  • Zinc alloy case toughened glass panel with up to 6H hardness.
  • When working as a computer monitor, it supports Windows 11 / 10 /8.1 / 8 /7, driver-free.
  • When working with Raspberry Pi, it supports Raspberry Pi OS / Ubuntu / Kali and Retropie, driver-free.
  • When working with Jetson Nano, it supports Ubuntu, driver-free.
  • Support backlight control for power saving.

Specifications

Item Description Unit
Product Model 11.9" Monitor
Size 11.9 "
Viewing Angle 170 Deg
Resolution 320 x 1480 Pixels

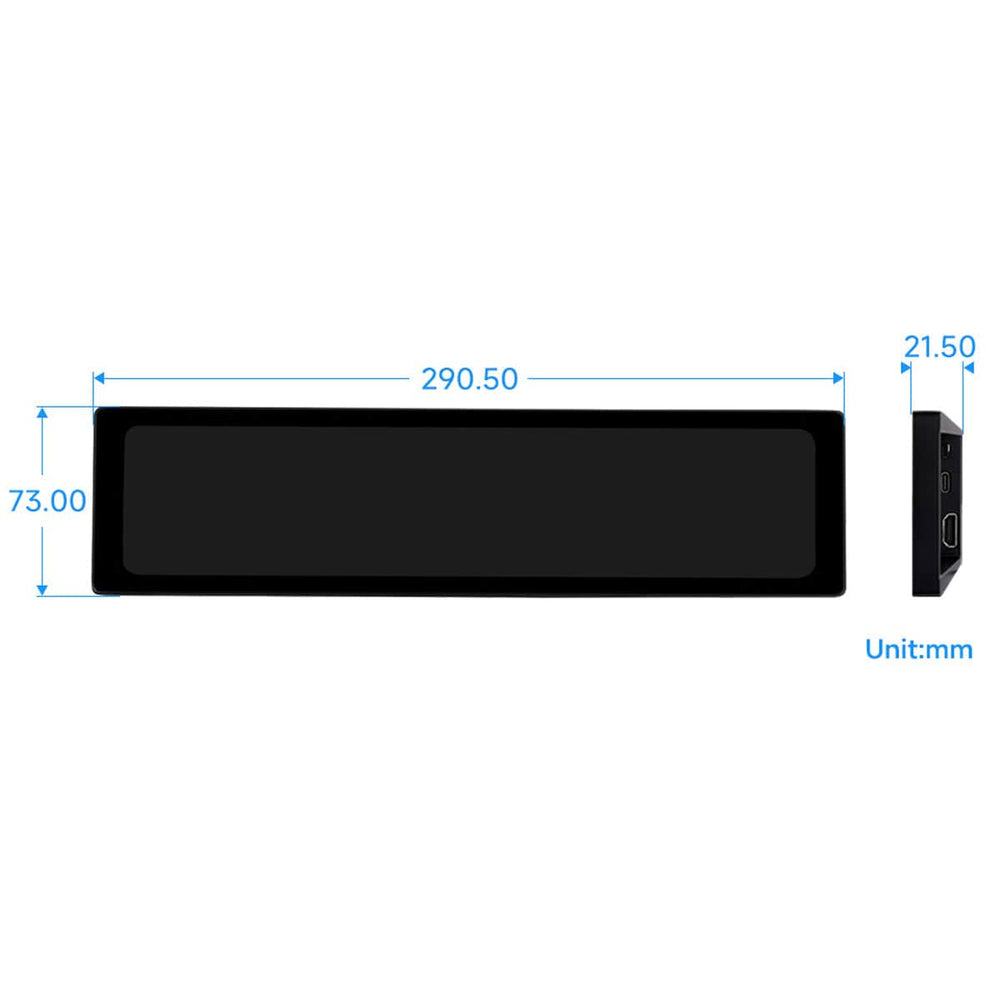

Dimension 290.50(H) x 73.00(V) x 21.50(D) mm
Display Area 268.18(H) x 57.98(V) mm
IPS version colour gamut 65%NTSC
Max Brightness 300 cd/m²
Backlight Adjustment Adjusted by the key/HID software
Contrast 900:1
Colour Depth 16.7M
Refresh Rate 60 Hz
Power Port USB Type-C
Display Port HDMI interface

Resources

Package Contents

  1. 1x 11.9" Side Monitor
  2. 1x HDMI to Micro HDMI adapter
  3. 1x USB Type-A to Type-C cable ~1m
  4. 1x HDMI flat cable ~1m
  5. 2x Non-skid rubber feet
