10.1" IPS Resistive Touchscreen LCD (1024×600)

WaveshareSKU: WAV-11870
(2 Reviews)
Price:
Sale price £72.50
incl. VAT
excl. VAT
Stock:
Only 15 units left
Quantity:

Compatible with:

Awesome Extras

(2482 Reviews)
Raspberry PiRaspberry Pi 4 Model B
Sale priceFrom £40incl. VAT excl. VAT
(2460 Reviews)
The Pi HutRaspberry Pi 4 Model B Starter Kit
Sale priceFrom £69 incl. VAT excl. VAT
(750 Reviews)
Raspberry PiOfficial Raspberry Pi Keyboard & Mouse
Sale priceFrom £9 incl. VAT excl. VAT

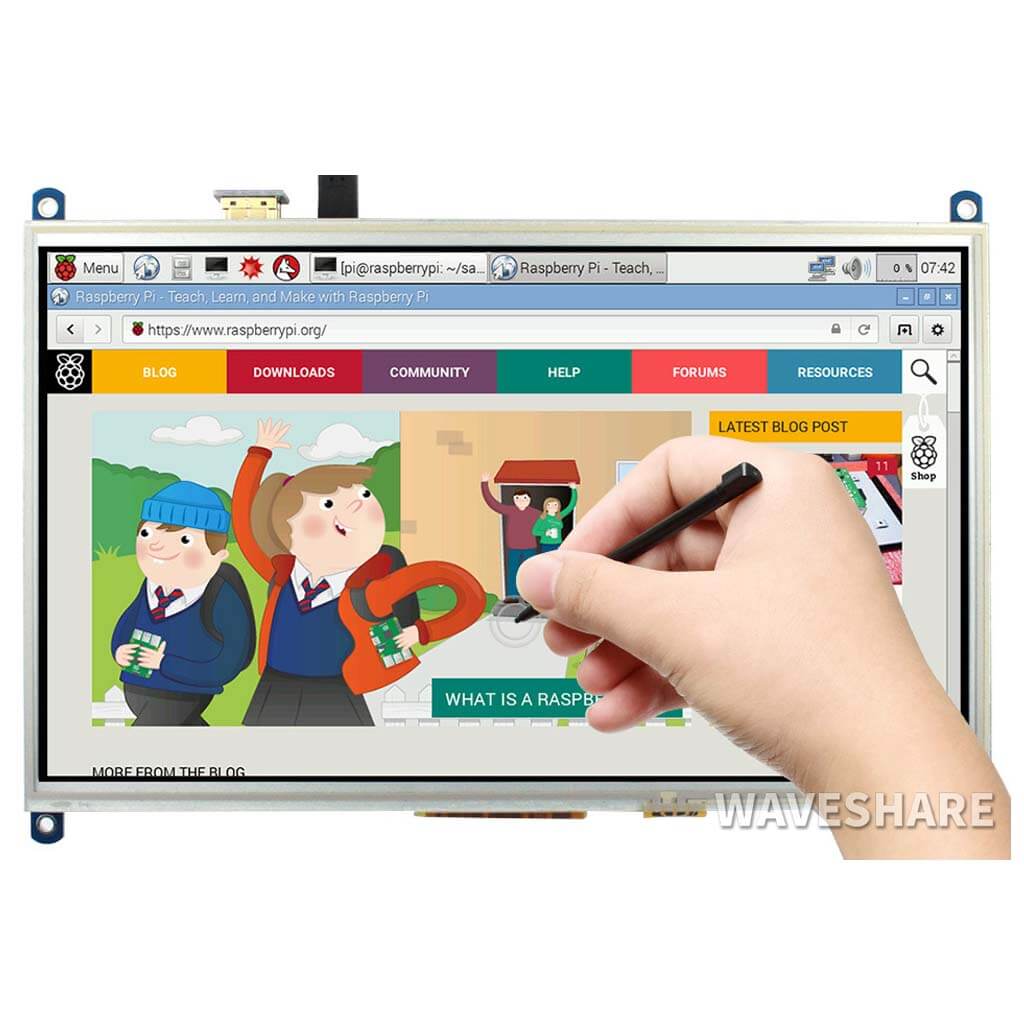

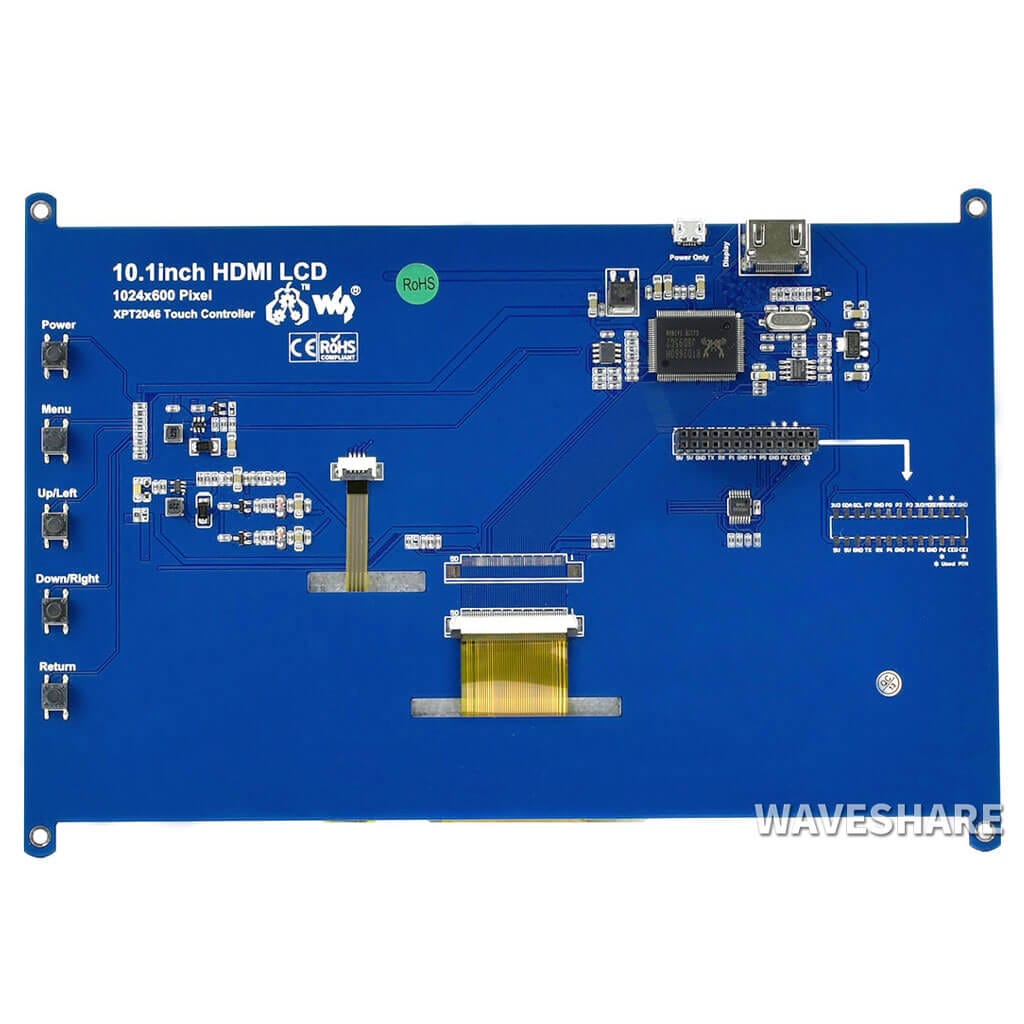

This Waveshare 10" IPS Resistive Touchscreen LCD features a resolution of 1024x600 with wide viewing angles and is Raspberry Pi and Raspberry Pi Zero compatible, with an onboard 40-pin female GPIO header and included set of HDMI PCB adapters.

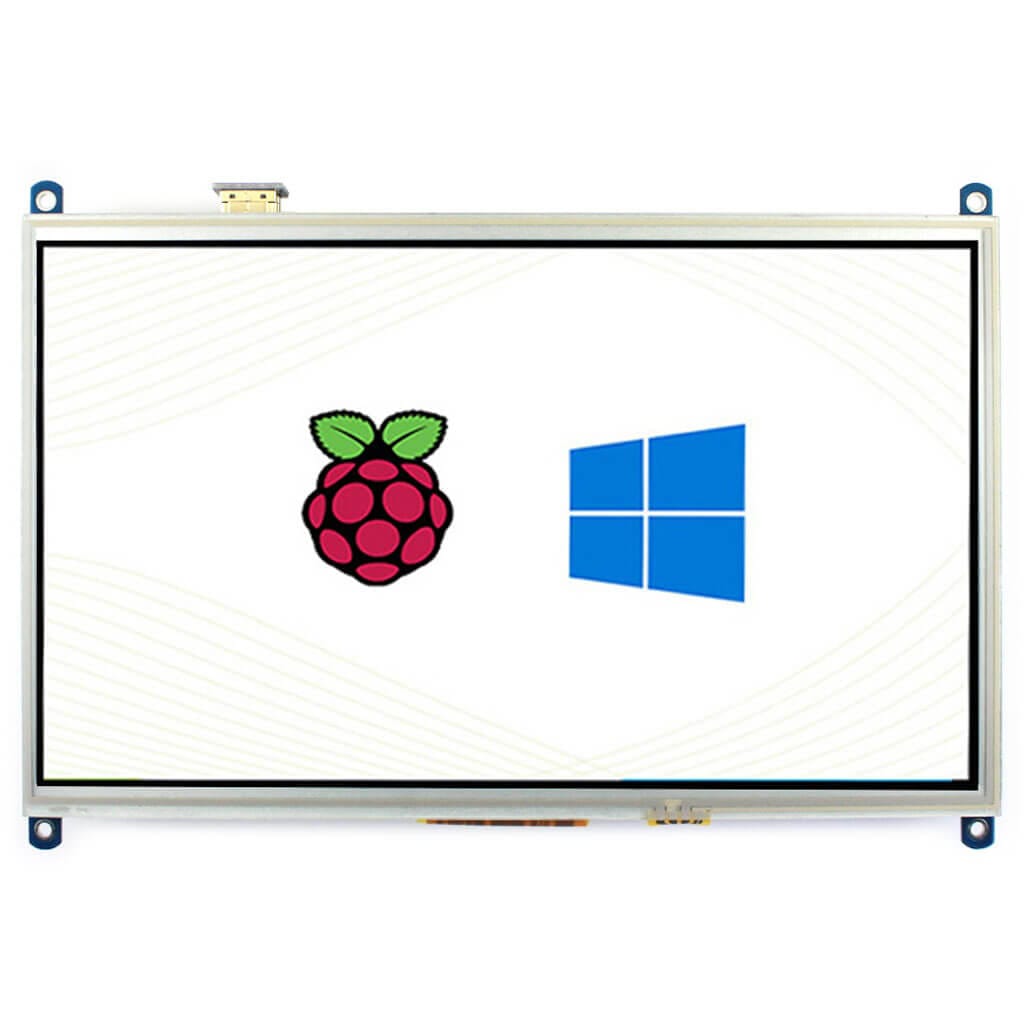

This 10" display is Raspberry Pi OS and RetroPie compatible and is completely driver-free which makes implementation super easy. Ubuntu, Kali, and Windows 10 IoT are supported as well but feature single-point touch recognition. Windows versions 7-11 are also supported with five-point touch recognition.

When used in conjunction with a Raspberry Pi, the 5-point touch interface is handled via the SPI Bus. When used with a PC, a USB connection is required for touch functionality. Side buttons are included for controlling the on-screen menu.

Online development resources are available, which include wiring guidance and example code, with additional information being found on the product Wiki.

Connection Examples

Raspberry Pi

Raspberry Pi 4 Connection Example

Raspberry Pi Zero

Connection Pi Zero

PC

Connection PC

Specifications

  • Operating Voltage: 5V
  • Connection Interface: HDMI & USB
  • Display Panel: IPS
  • Resolution: 1024x600 pixels
  • Display Size: 10.1-inch

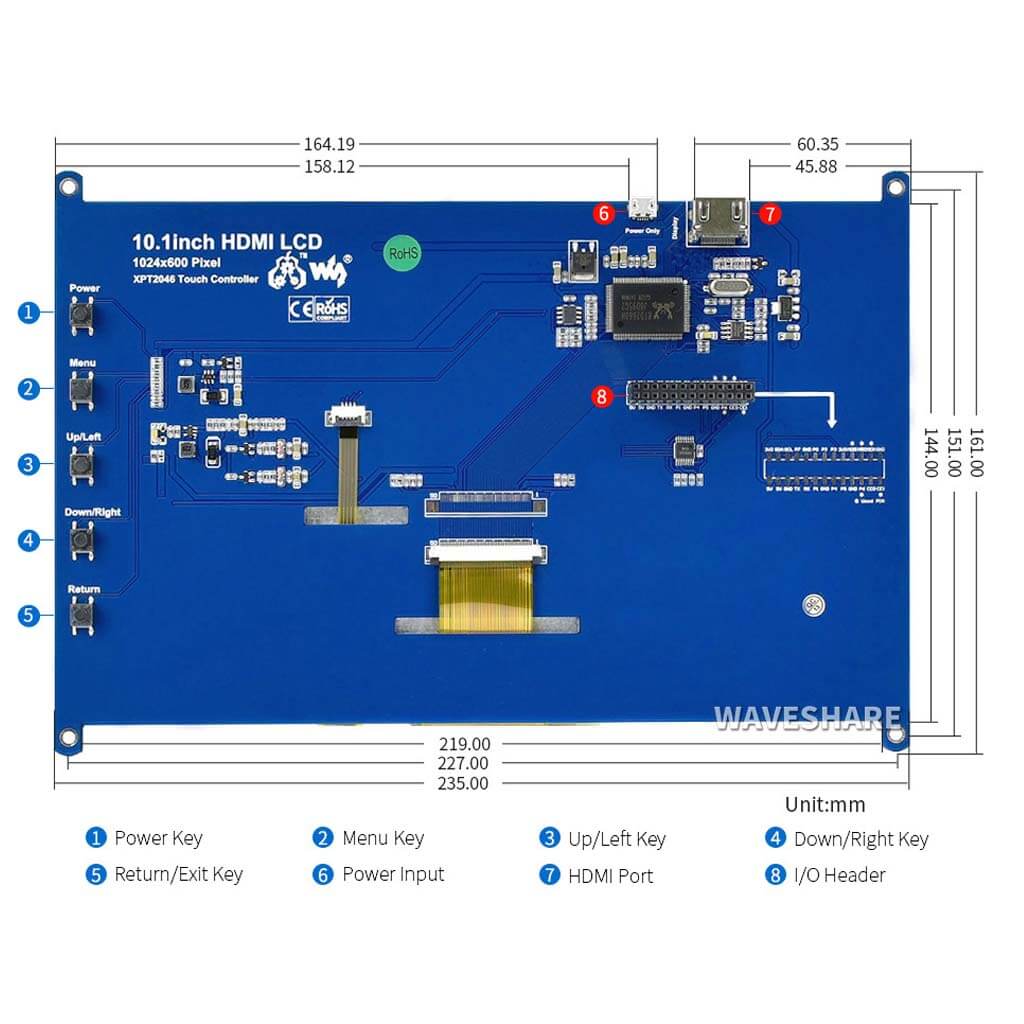

  • Dimensions: 235 × 161 mm
  • Touch Screen Type: Resistive

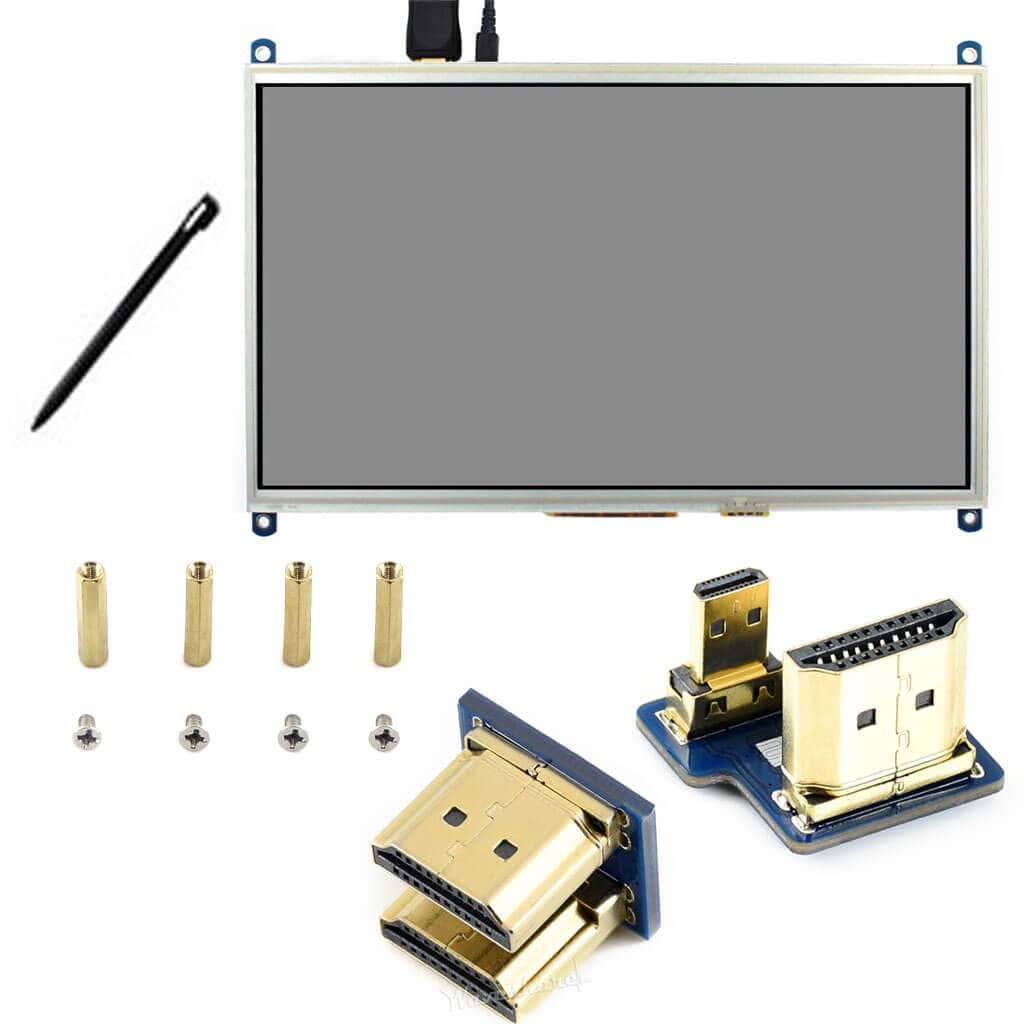

Package Contents

  • 1x 10.1inch HDMI LCD
  • 1x HDMI Adapter (A)
  • 1x HDMI Adapter (B)
  • 1x Touch stylus
  • 1x RPi screws pack (4pcs)
  • 1x Quick start sheet

Resources
