1.9" IPS Touch LCD Display Module (172x320)

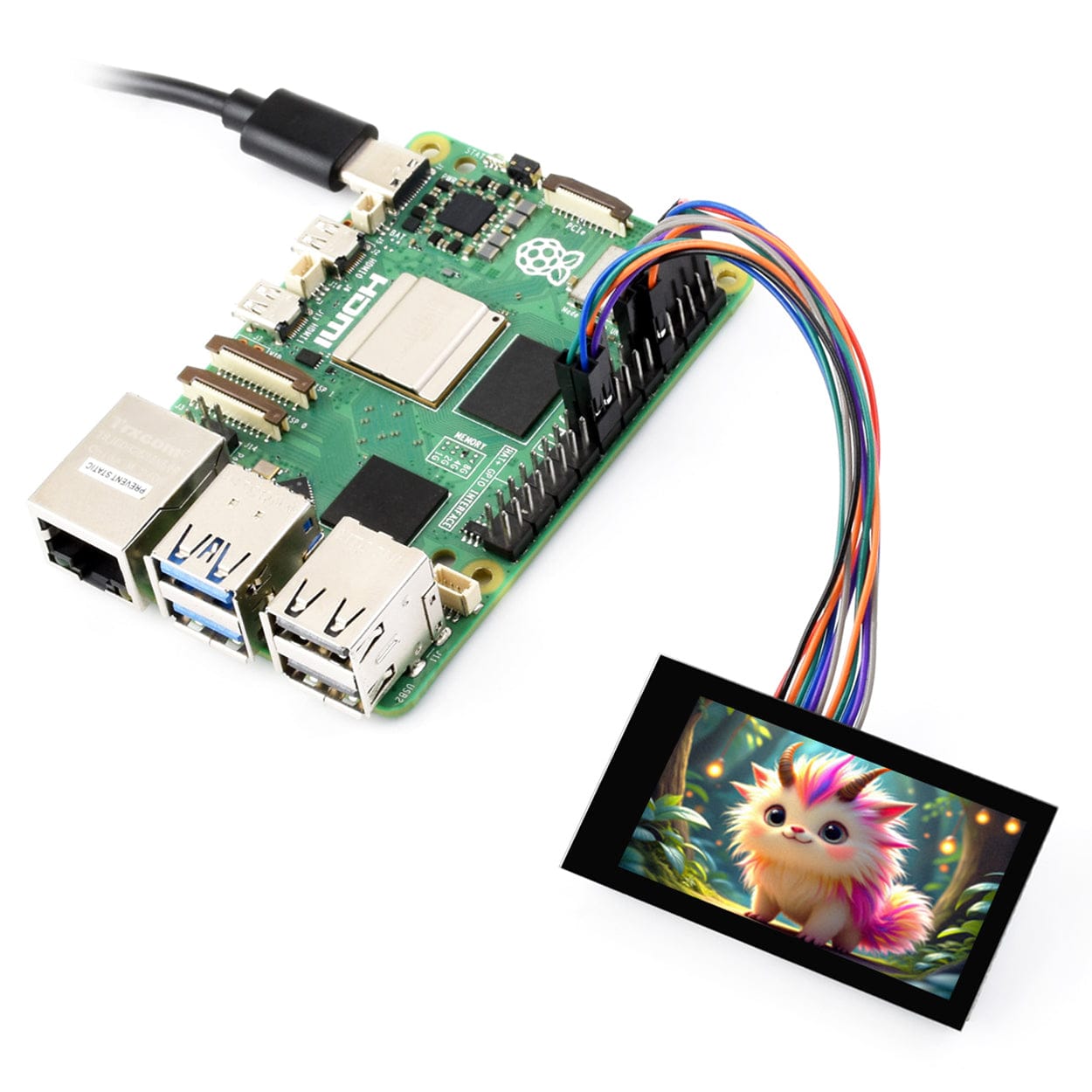

The Waveshare 1.9" Touch LCD display module is a compact IPS display compatible (with examples for) the Raspberry Pi, Pico, Arduino and ESP32.

The display is a 1.9" IPS 172x320 panel with 262k colours and touch input. The module offers 3.3V and 5V operation thanks to the built in voltage translator, with SPI control for the display and I2C communication for touch inputs. Using serial communication reduces the number of pins required from your microcontroller, leaving your GPIO free for the rest of your project.

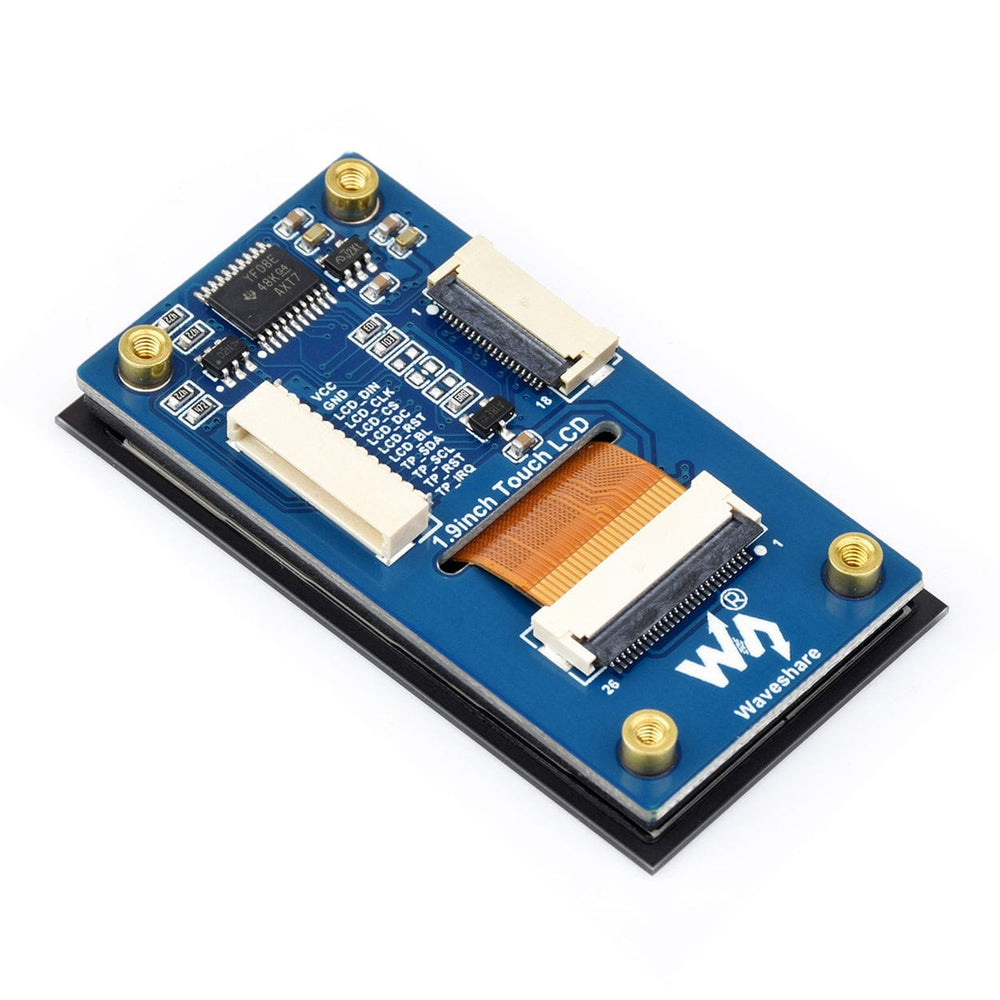

The display comes with a 12-pin cable assembly with female jumper ends, and an FPC cable for connecting to specific Waveshare development boards with this connection (Waveshare 27686 for example).

Waveshare provide online documentation and example code to get you started quickly.

Features

• 1.9" IPS display with 172×320 resolution and 262K colours
• Capacitive touch input with high transmittance, fast response and long lifetime

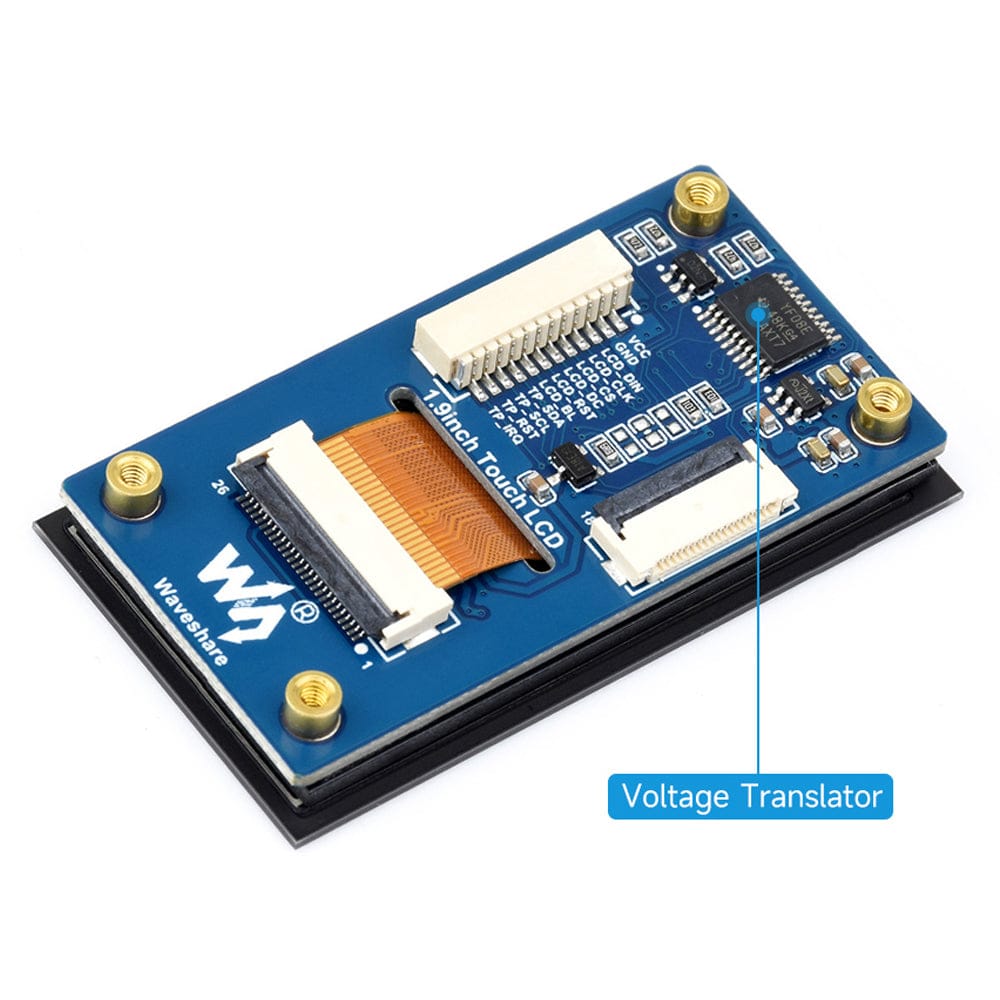

• 3.3V and 5V operation supported via built‑in voltage translator
• SPI display control for reduced pin usage on your microcontroller
• I2C touch interface using the CST816 touch controller
• ST7789V2 display driver embedded for stable performance
• GPIO‑friendly design thanks to serial communication minimising required IO pins

Specifications

Resources

• Product Wiki

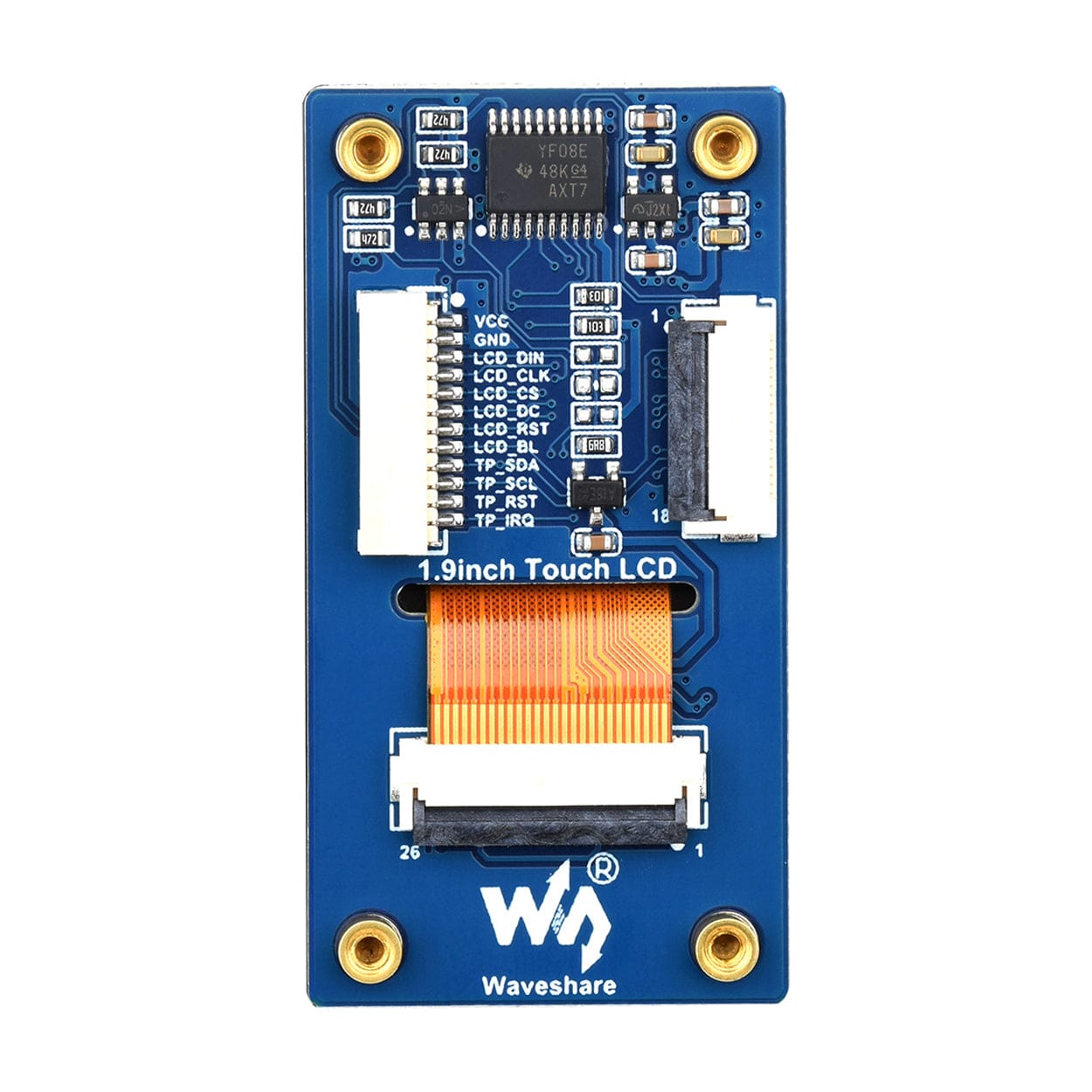

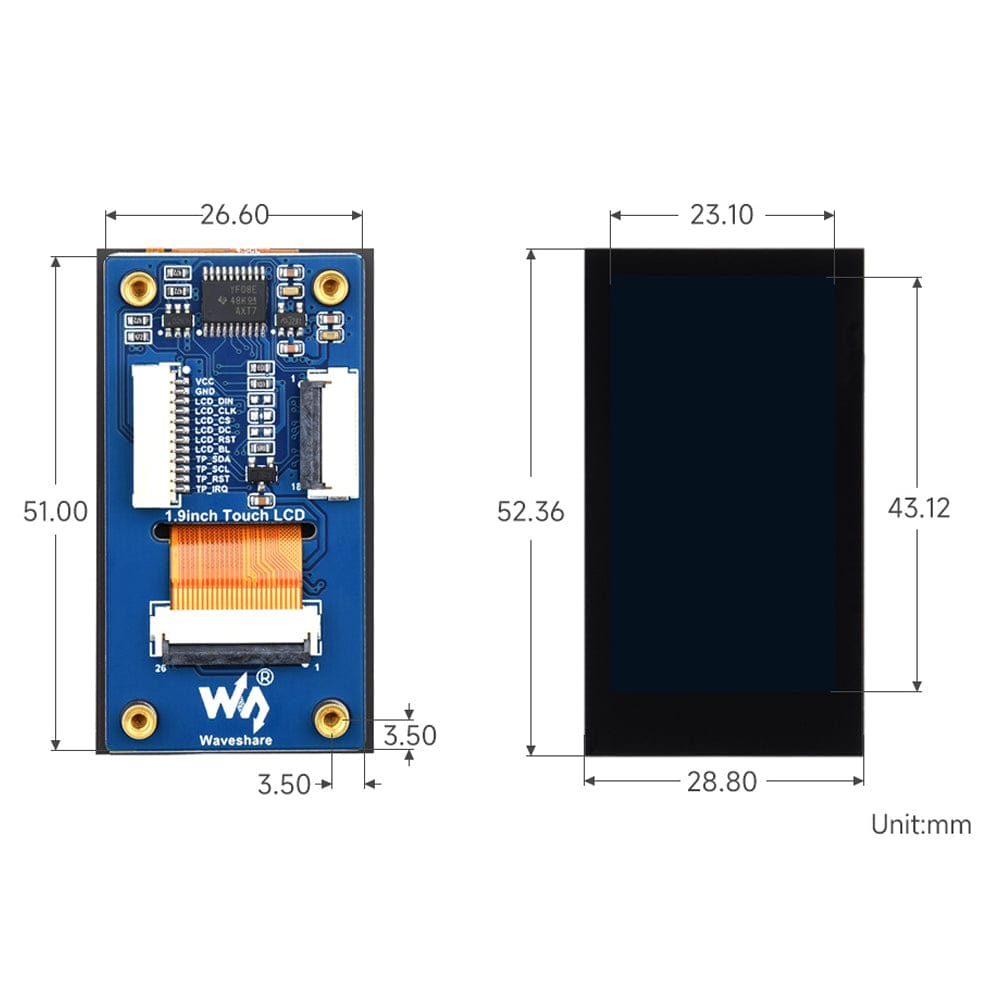

Pinout

Package Contents

• 1x 1.9" Touch LCD Micro Display Module (172x320)

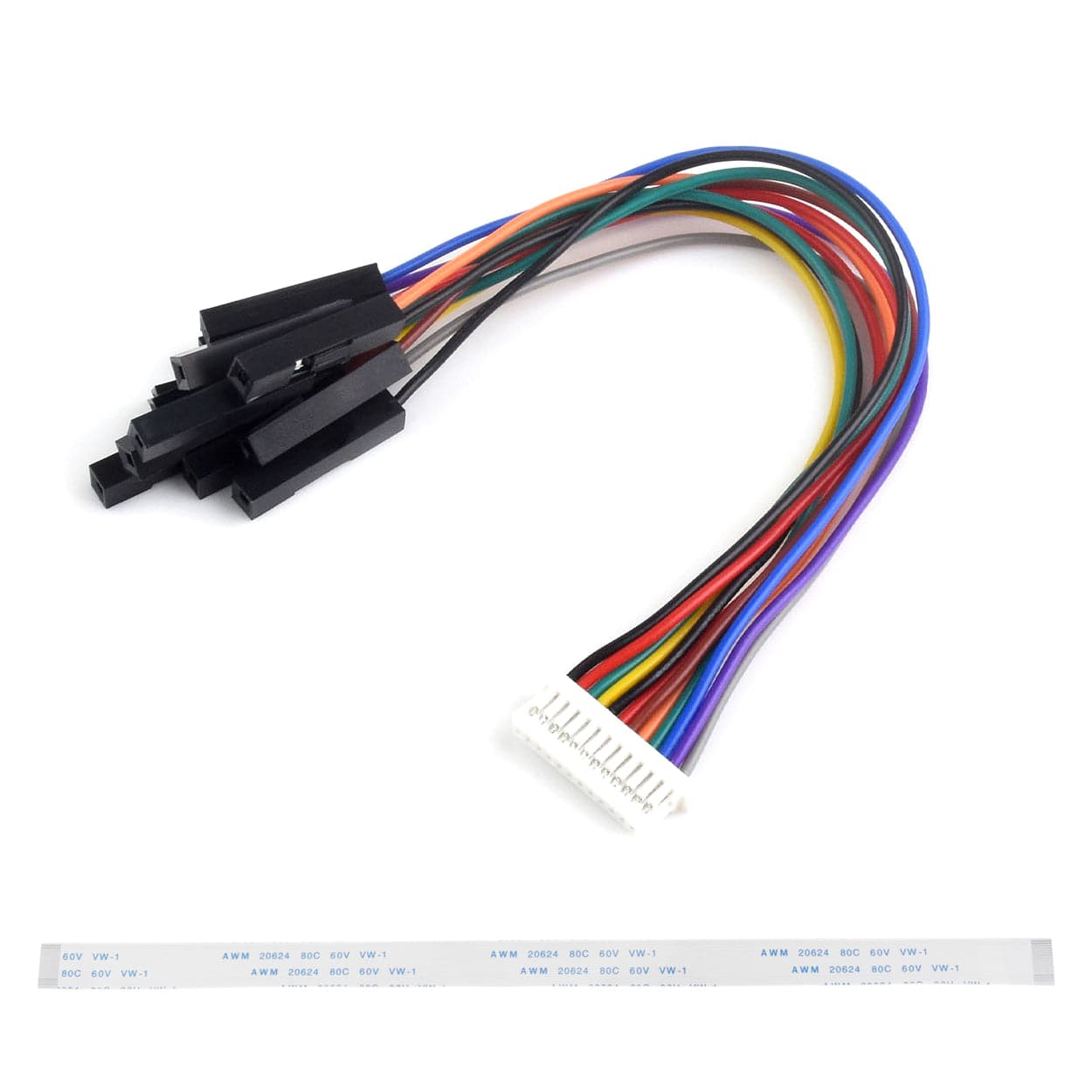

• 1x 12-pin SH1.0 cable assembly
• 1x FFC cable
