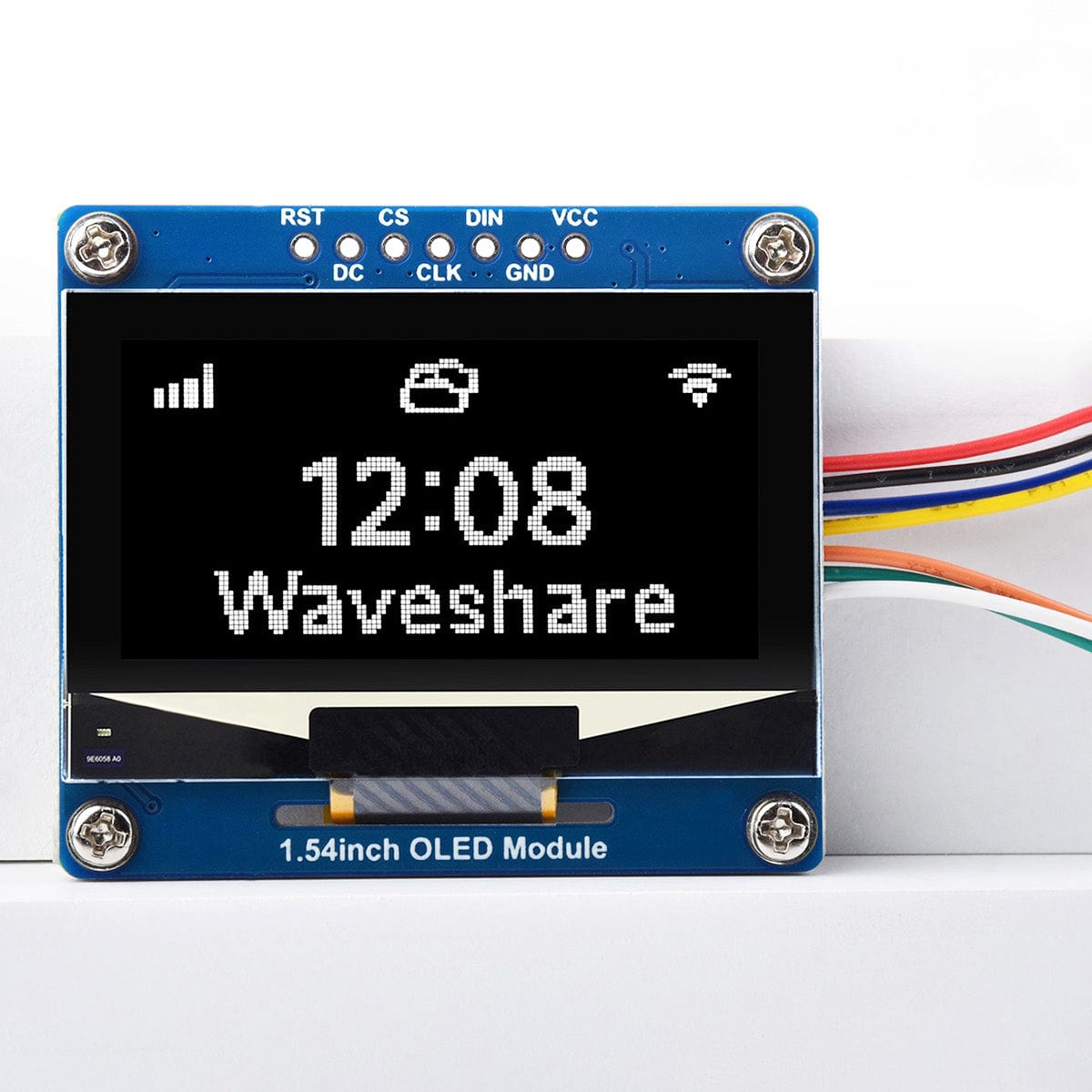

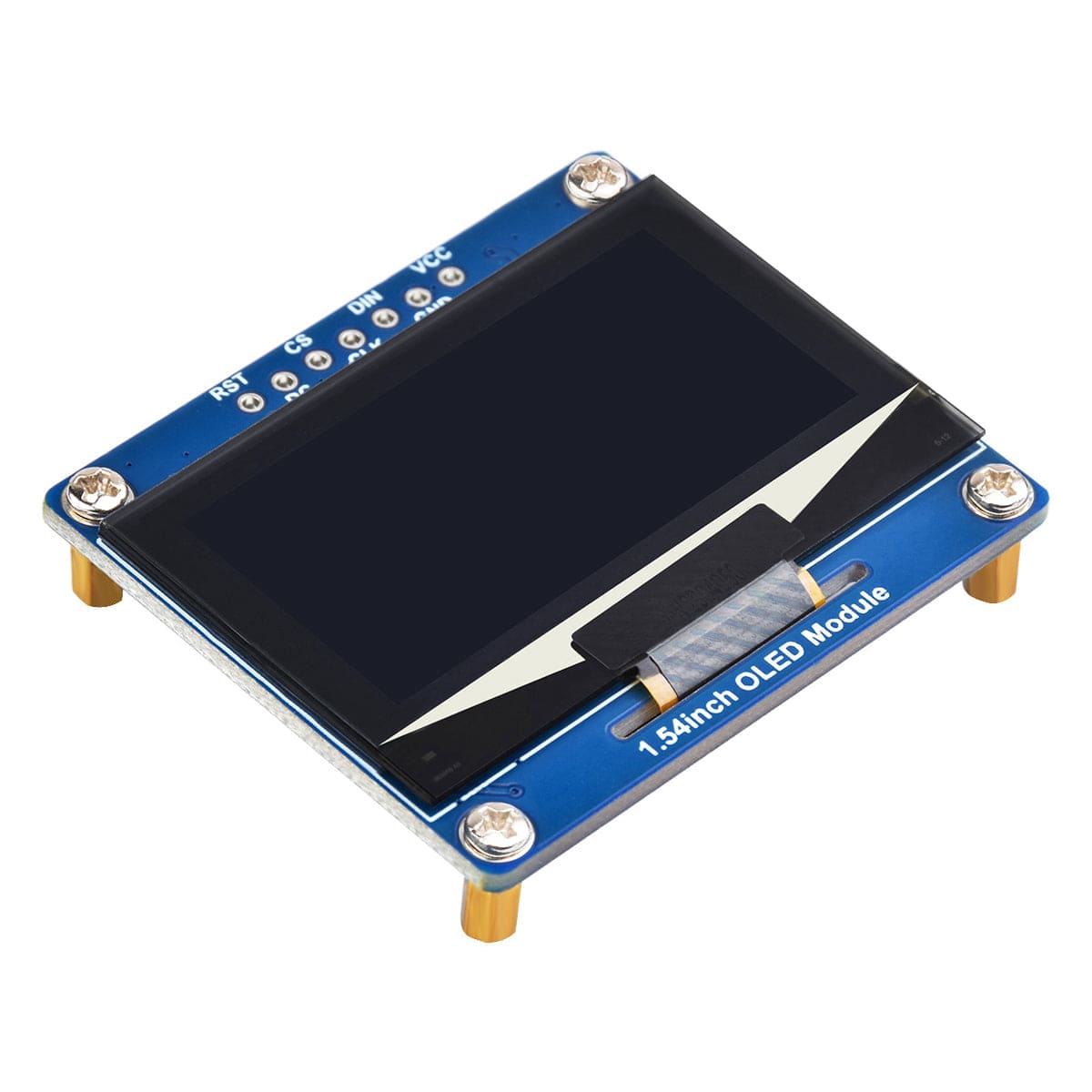

This 1.54" display has an OLED screen and a resolution of 128 x 64 for crisp visuals. It has an SSD1309 driver chip and supports both SPI and I2C communication protocols for it to run smoothly and makes it adaptable for a wide range of development platforms. It comes with ready-to-use examples for boards including Raspberry Pi, Arduino, STM32, ESP32, and Jetson Nano, providing a quick and easy setup to add a nice visual addition to your projects.

Features

  • Onboard voltage translator, compatible with 3.3V / 5V MCUs
  • Adopts 4-wire SPI and I2C interfaces, better compatibility, fast data rate
  • Comes with online development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/Jetson Nano)

Connection Example - Raspberry Pi

Specifications

Operating Voltage 3.3V / 5V
Resolution 128 x 64 pixels
Communication Interface 4-wire SPI / I2C
Display Size 35.05 x 17.52mm

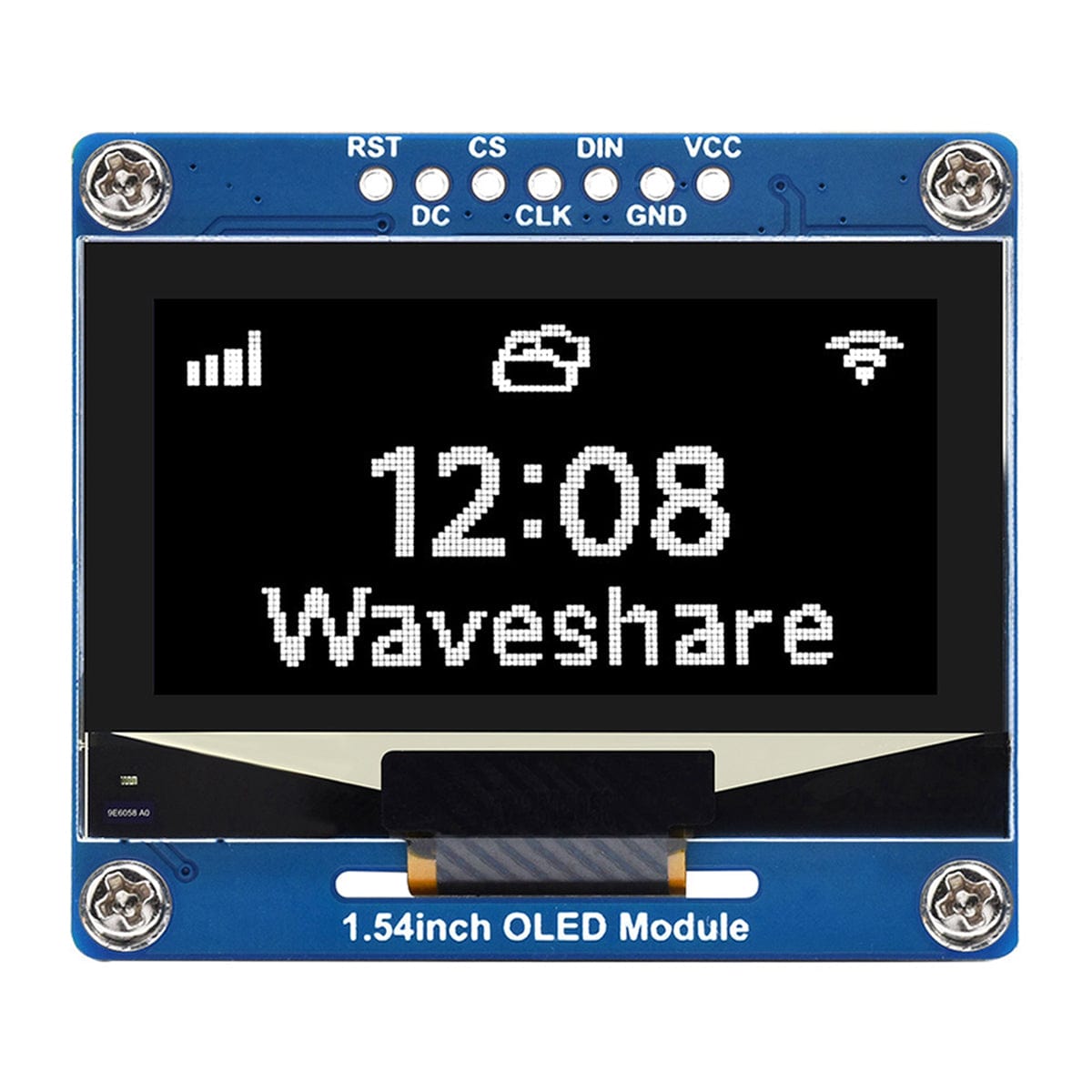

Display Colour 1.54" OLED Module: white

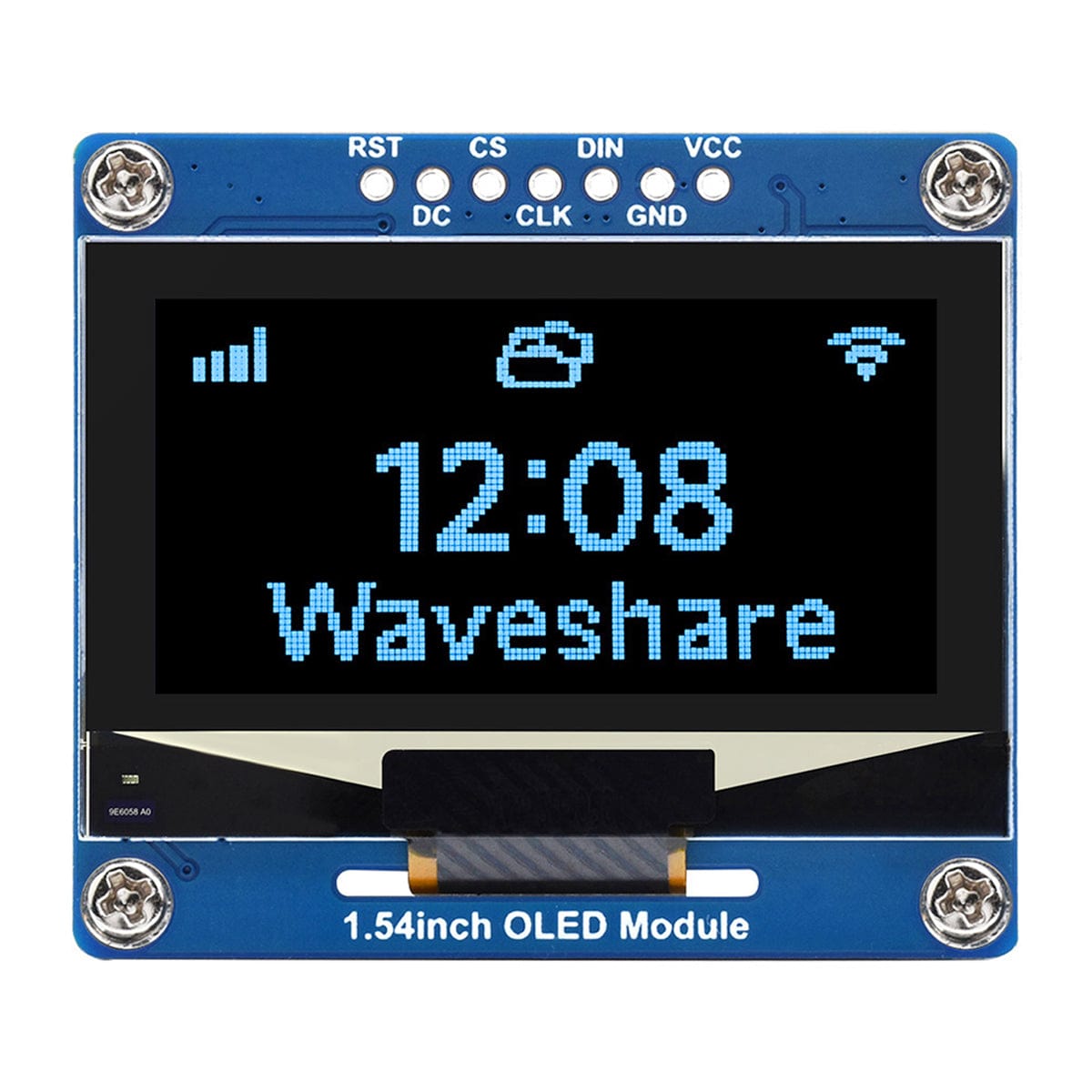

1.54" OLED Module (B): blue
Display Panel OLED
Pixel Size 0.25 x 0.25 mm
Driver SSD1309
Module Size 43.00 x 37.50mm

Resources

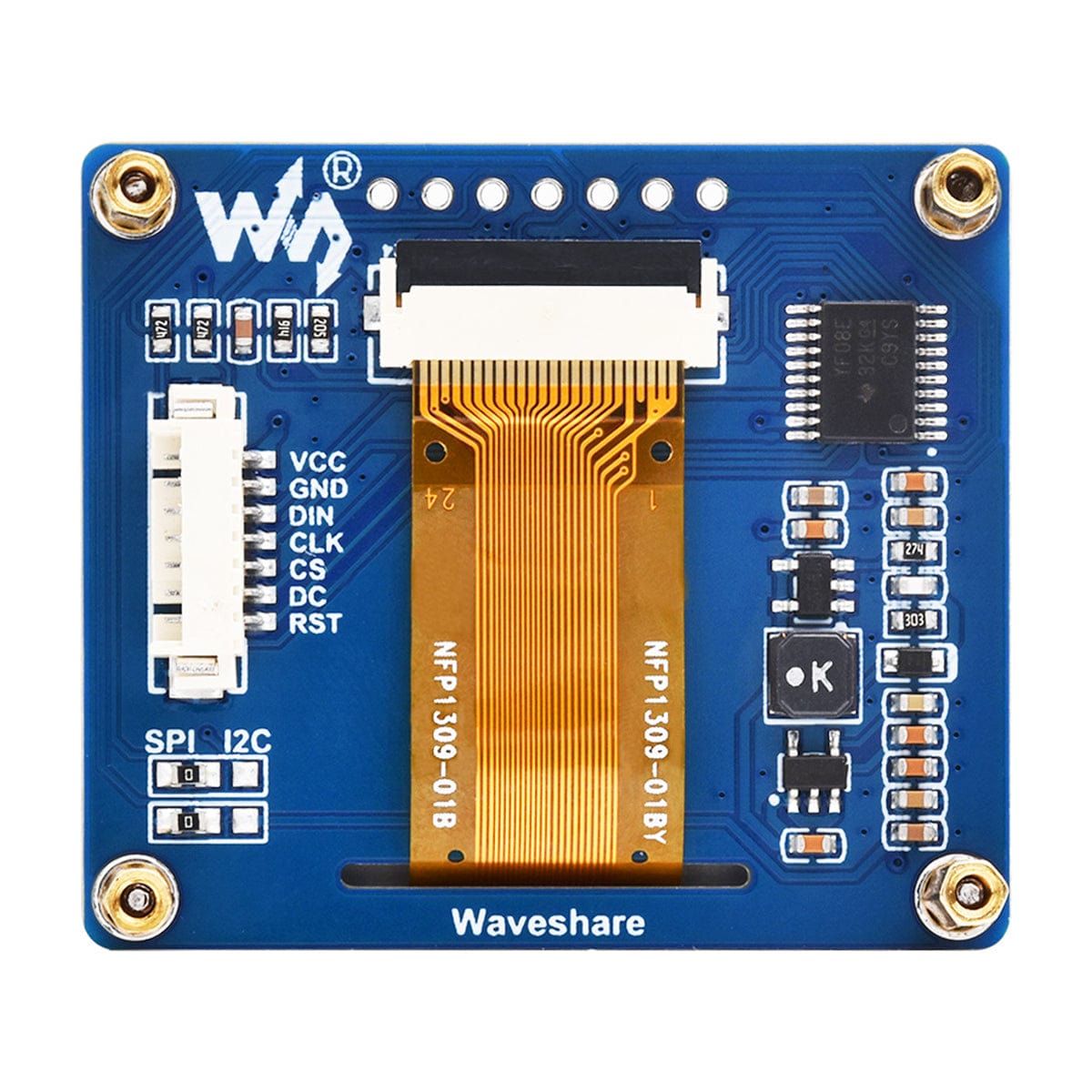

Pinout

VCC Power (3.3V / 5V input)
GND Ground
DIN Data input
CLK Clock input
CS Chip selection, low active
DC Data/Command selection (high for data, low for command)
RST Reset, low active

Package Contents

  • 1x 1.54" OLED Module

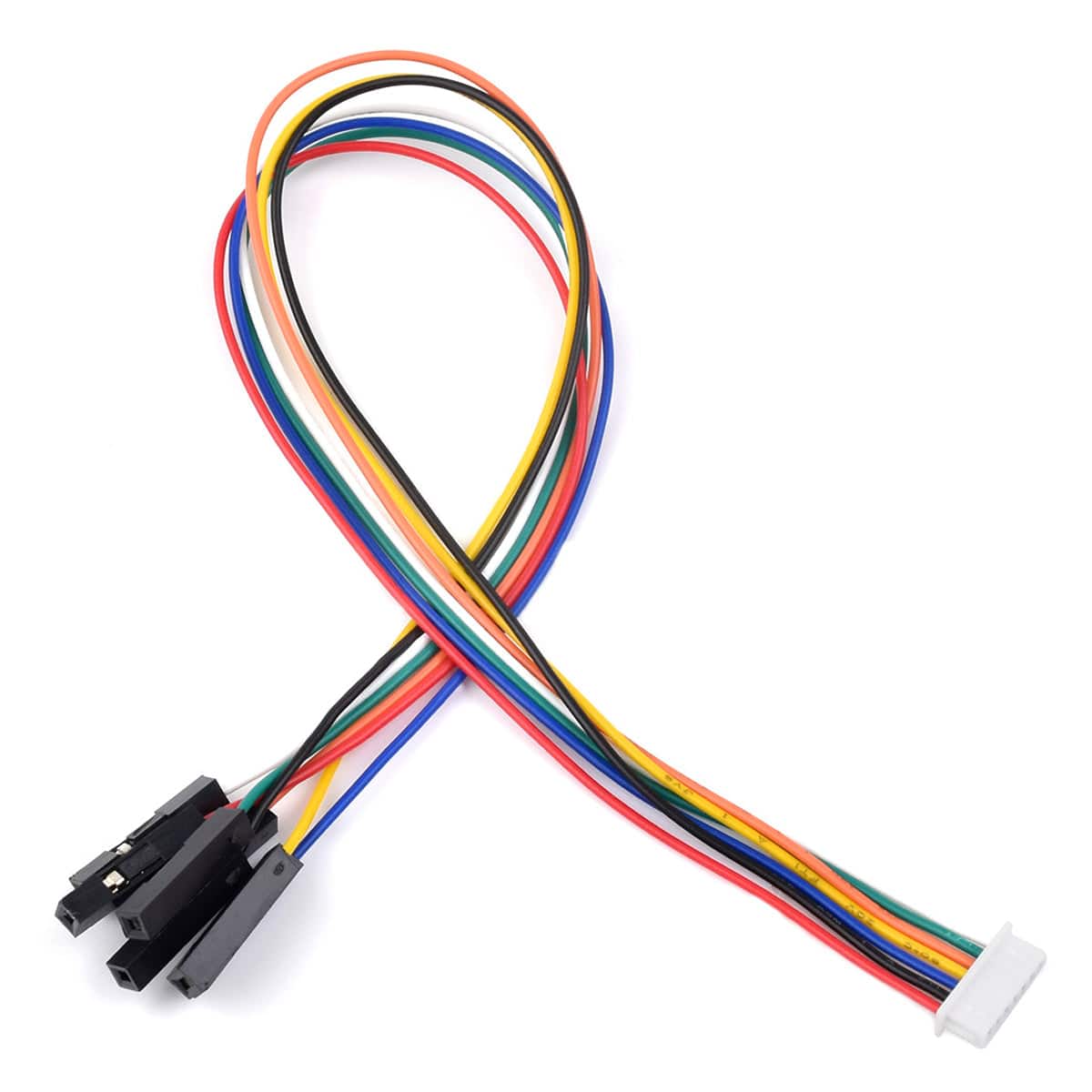

  • 1x GH1.25 7-pin cable
