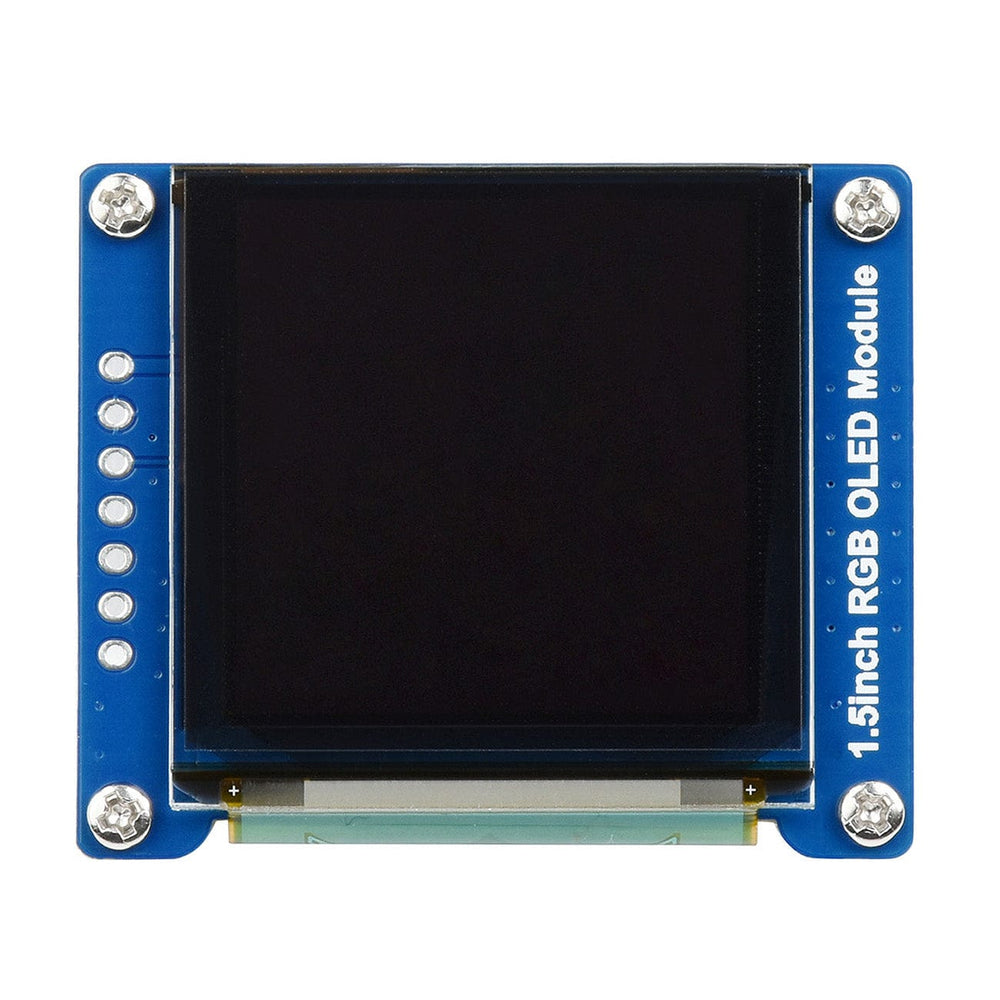

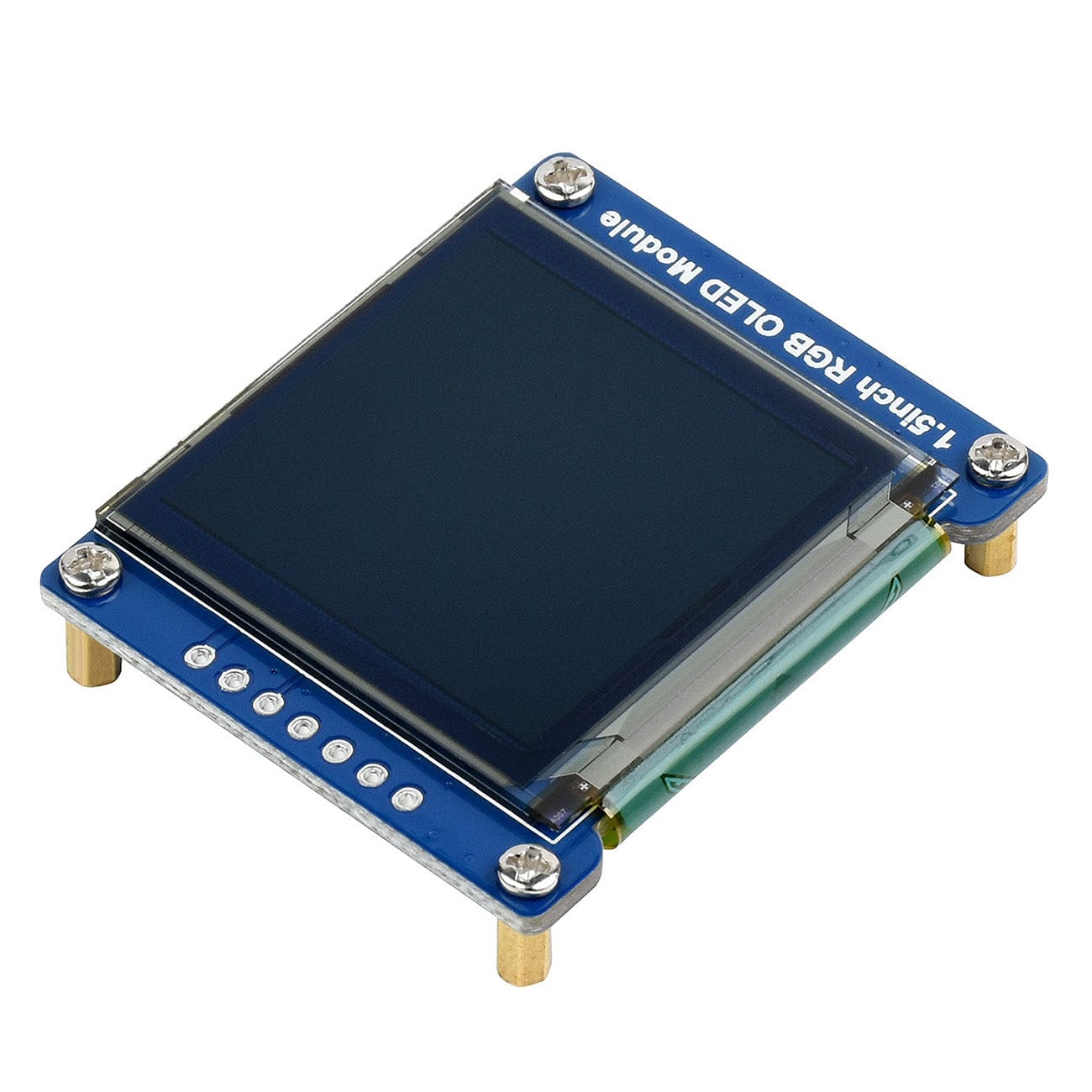

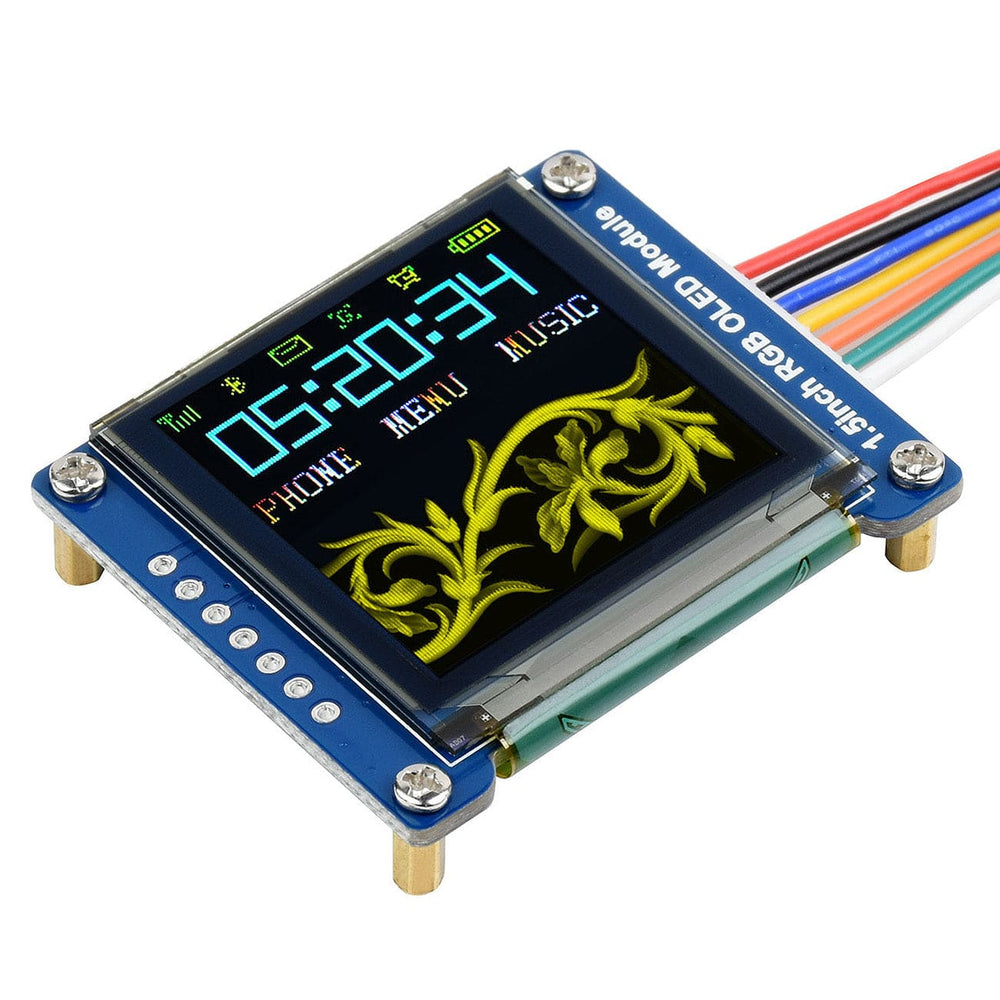

This is a stunning RGB OLED Display Module measuring 1.5" diagonally with 128x128 pixels. This high resolution combined with the 16-bit high colour (65K colours) offers incredibly clear and colourful images.

The module has an embedded controller communicating via SPI interface - use it with your favourite SPI-ready development board, such as the Raspberry Pi or Arduino (demo code available)

Features

  • 128x128 high resolution, 65K colours - clearly displays colourful images
  • Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor
  • Comes with online development resources and manual (examples for Raspberry Pi/Arduino)

Package Contents

  • 1x 1.5" RGB OLED Module
  • 1x PH2.0 7-pin wire

Resources

Specifications

  • Driver: SSD1351
  • Interface: 4-wire SPI, 3-wire SPI
  • Display colour: RGB, 65K colours
  • Resolution: 128x128
  • Viewing angle: >160°
  • Operating voltage: 3.3V / 5V
  • Dimension: 44.5 x 37 (mm)

Interface

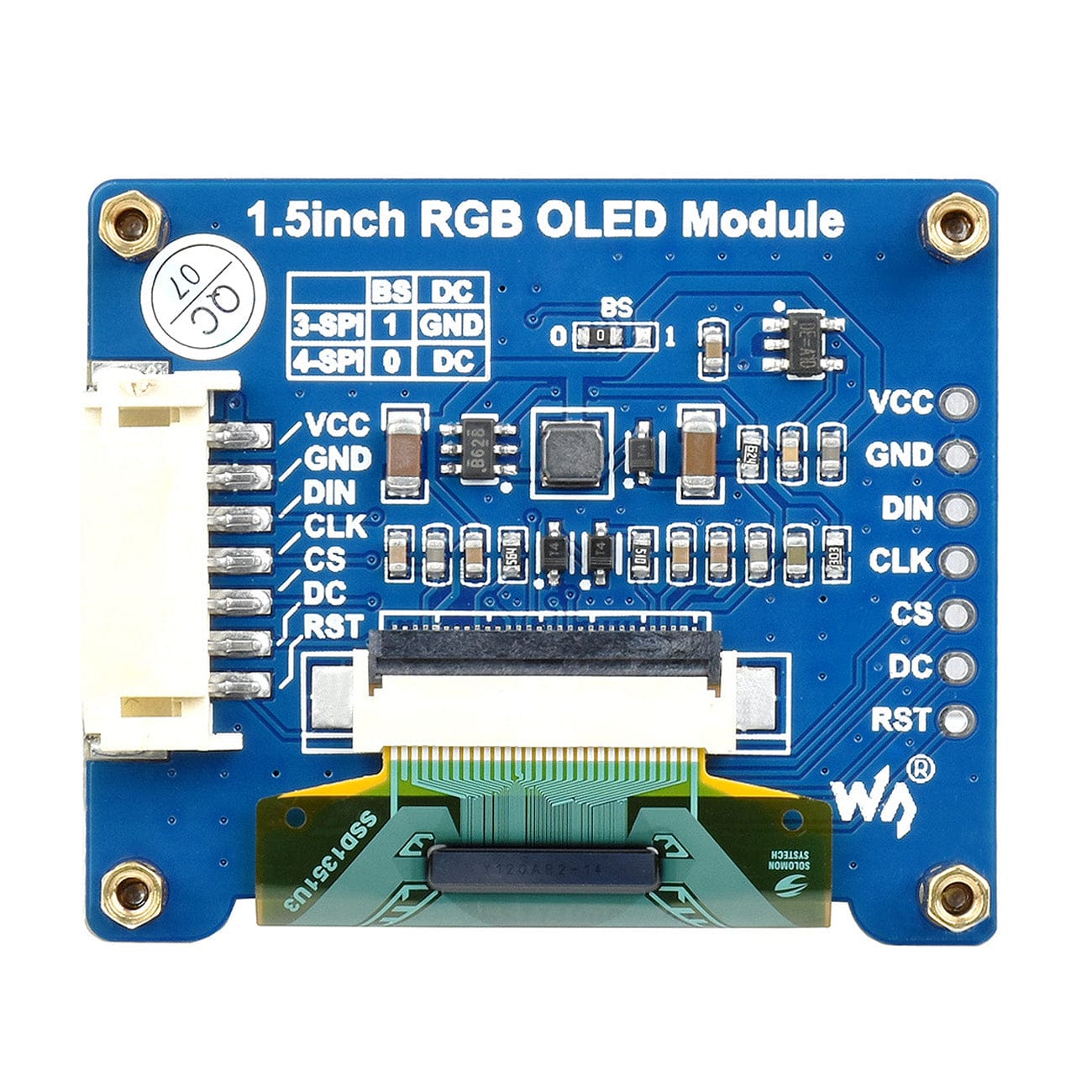

SYMBOL DESCRIPTION
VCC Power (3.3~5V input)
GND Ground
DIN Data input
CLK Clock data input
CS Chip selection, low active
DC 4-wire SPI: Data/Command selection (high for data, low for command)
3-wire SPI: Connects to GND, keeps low
RST Reset, low active

There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI:

BS DC
4-wire SPI 0 DC
3-wire SPI 1 Connects to GND
