1.5" Rounded IPS LCD Display Module (240 x 280)

WaveshareSKU: WAV-26118
Sale price £9
incl. VAT
excl. VAT
In stock

Awesome Extras

Raspberry PiRaspberry Pi 5
Sale priceFrom £57.60 incl. VAT excl. VAT
ArduinoArduino Uno Rev3
Sale price £24.50 incl. VAT excl. VAT
The Pi HutRaspberry Pi 5 Starter Kit
Sale priceFrom £93 incl. VAT excl. VAT

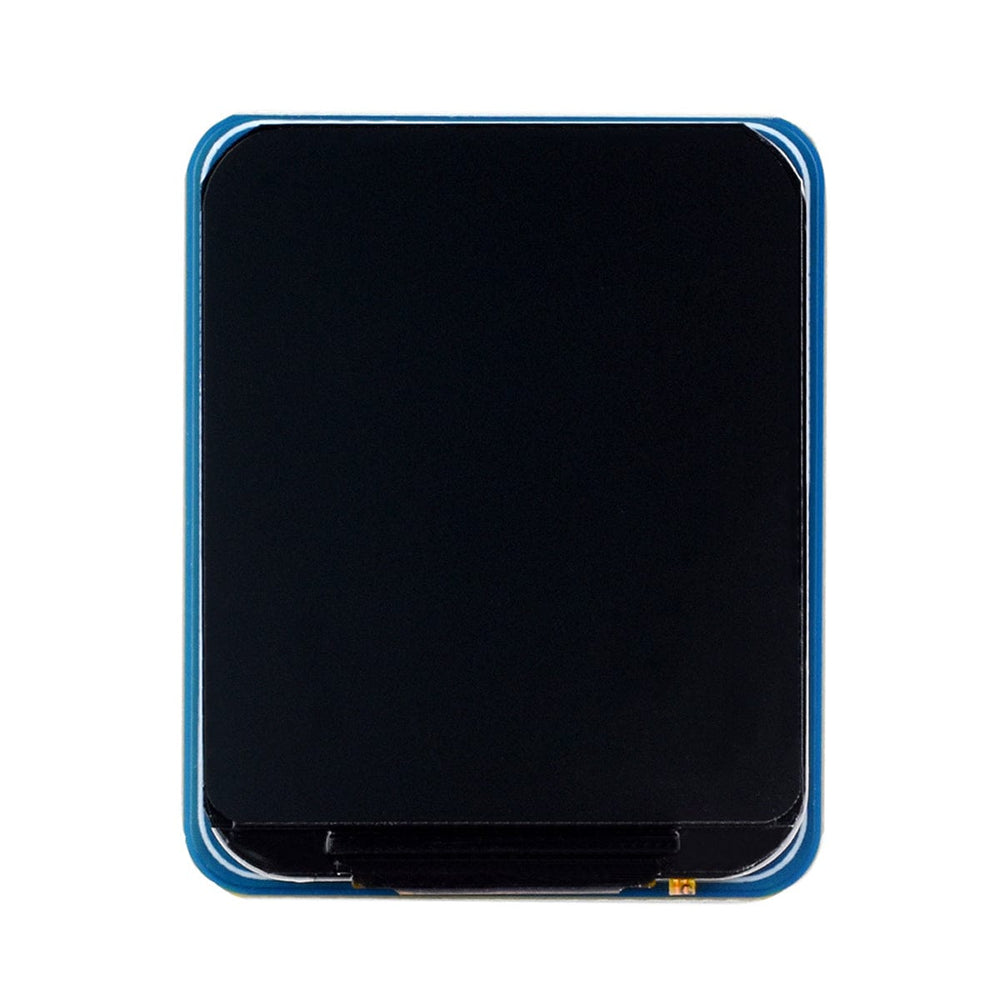

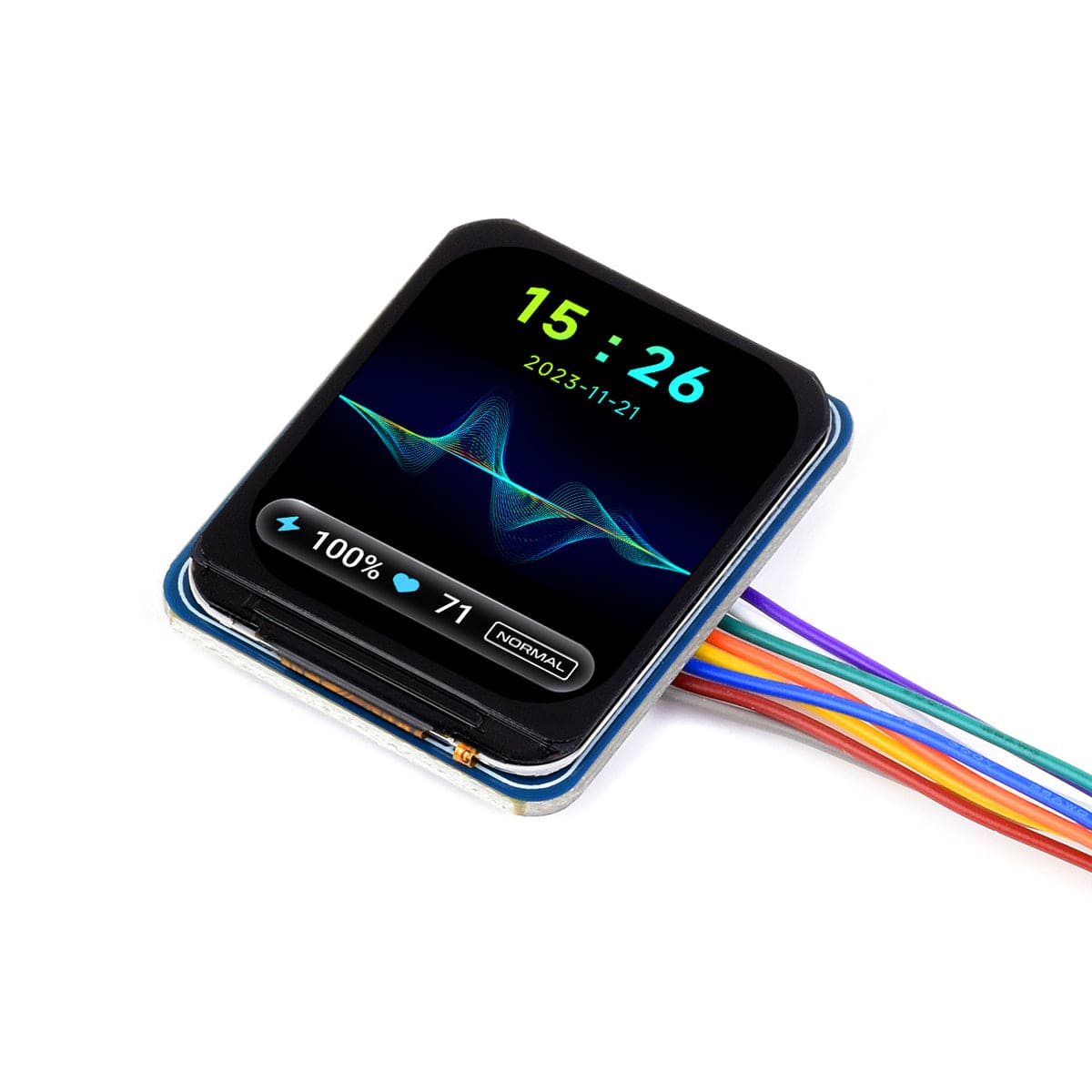

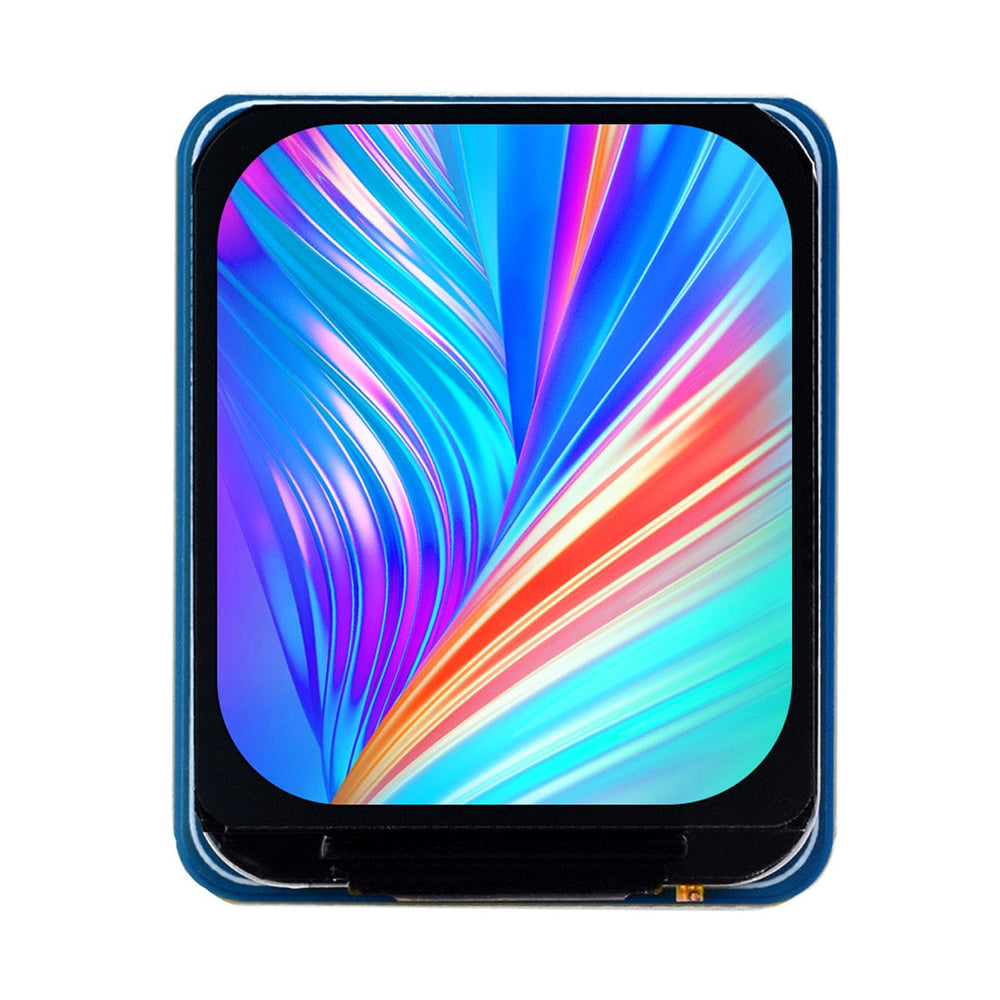

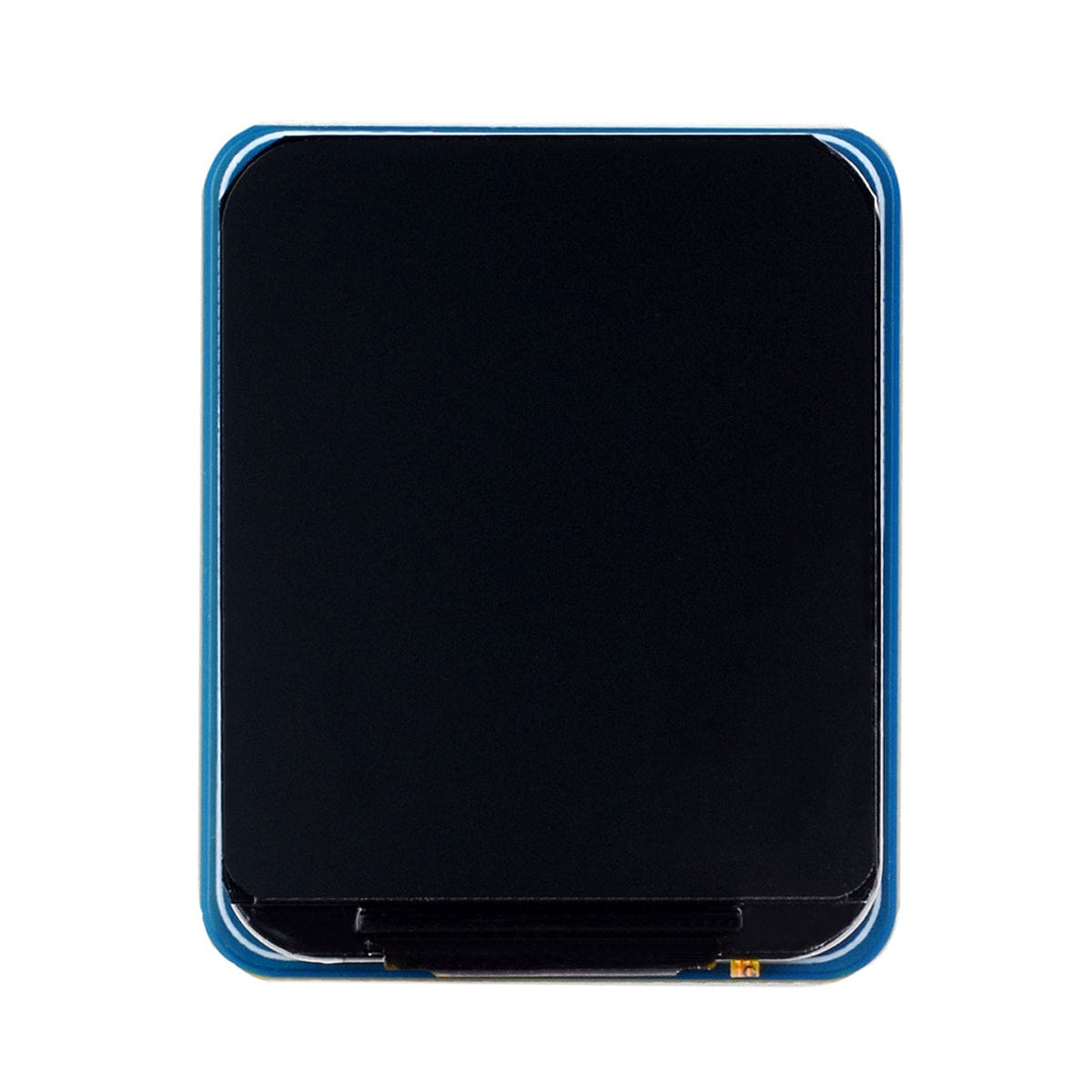

This display module features a 1.5" IPS panel with rounded corners, that provides good viewing angles and vivid colour reproduction. It has a resolution of 240 x 280 pixels, providing clear and sharp images in a smaller size. It supports 262K colours, providing decent colour rendering for most projects.

The SPI interface provides quick and easy integration into various projects, and the NV3030B driver takes care of the low-level functions of the display, freeing up the main controller to focus on the core functionalities. It supports controller boards from Raspberry Pi, Arduino, STM32, and many more!

Note: Raspberry Pi is NOT included


  • 240 x 280 resolution, 262K RGB colours, clear and colourful displaying effect
  • SPI interface, minimises required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series
  • Comes with development resources (examples for Raspberry Pi/Arduino/STM32/ESP32/RP2040/Jetson series)

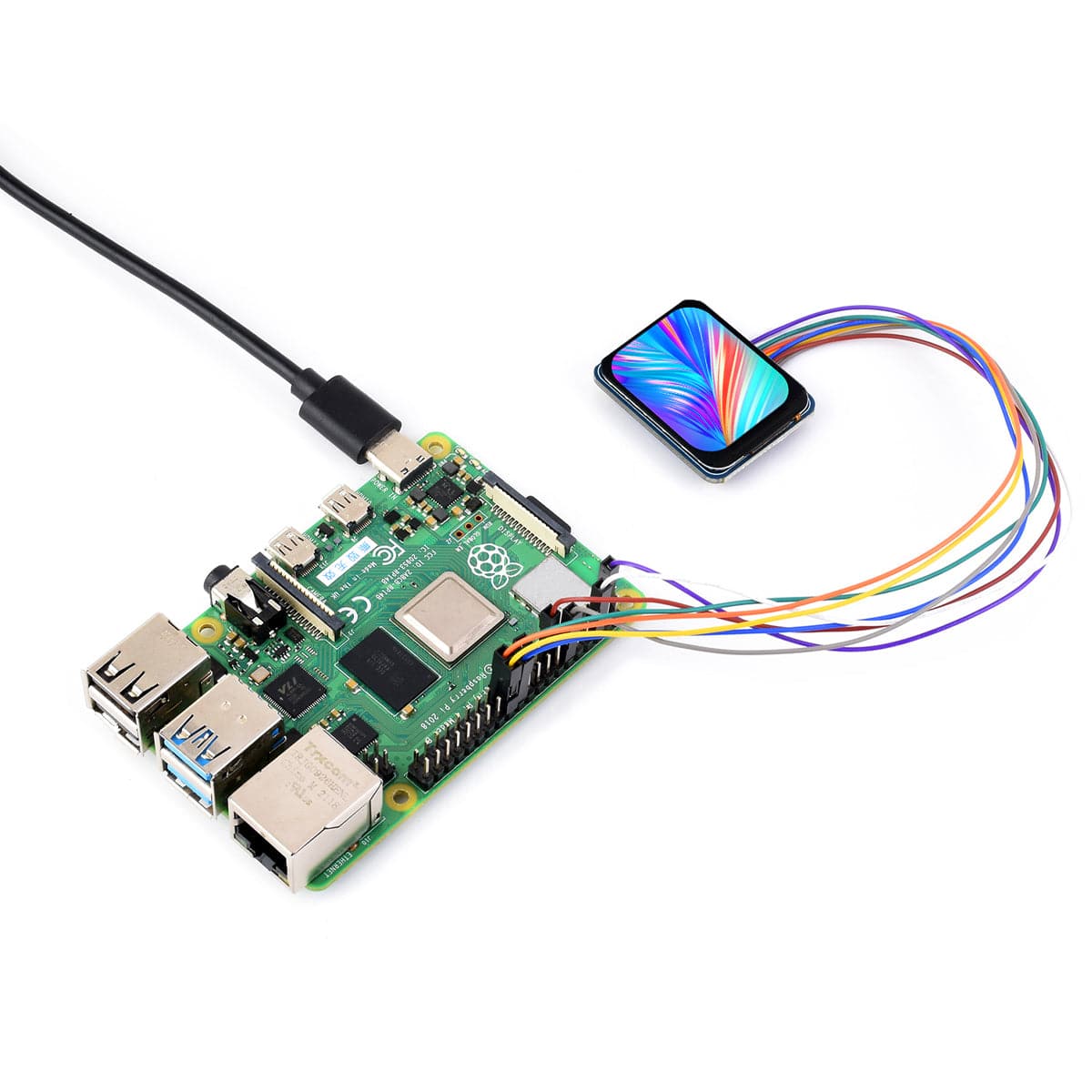

Connection Example - Raspberry Pi


Operating Voltage 3.3V / 5V
Communication Interface 4-wire SPI
Display Panel IPS
Driver NV3030B
Resolution 240 x 280 Pixels
Display Size 24.77 x 28.90mm
Pixel Pitch  0.1032 x 0.1032mm

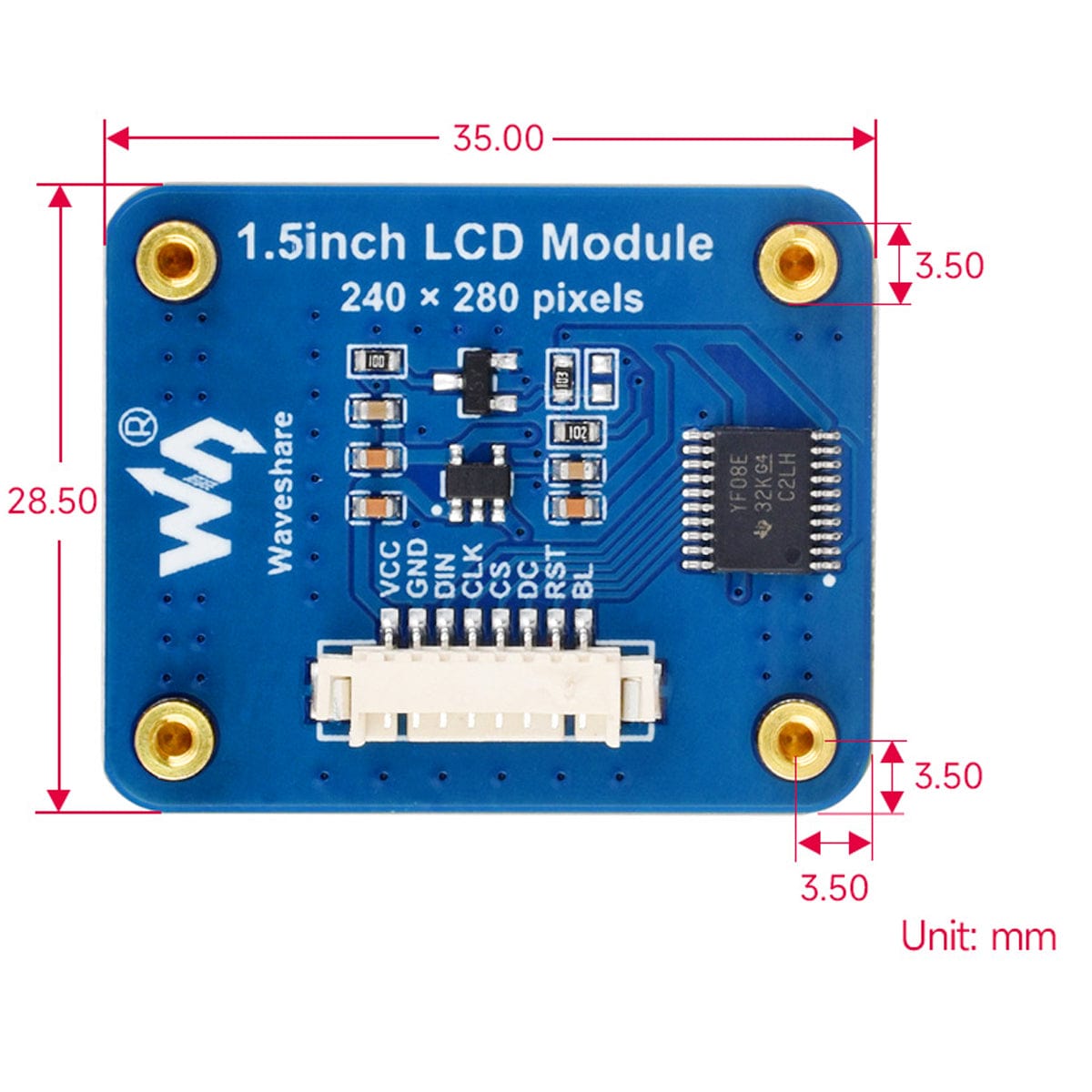

Dimensions 28.5 x 35.0mm



Package Contents

  • 1x 1.5" LCD Module
  • 1x GH1.25 8-Pin cable
