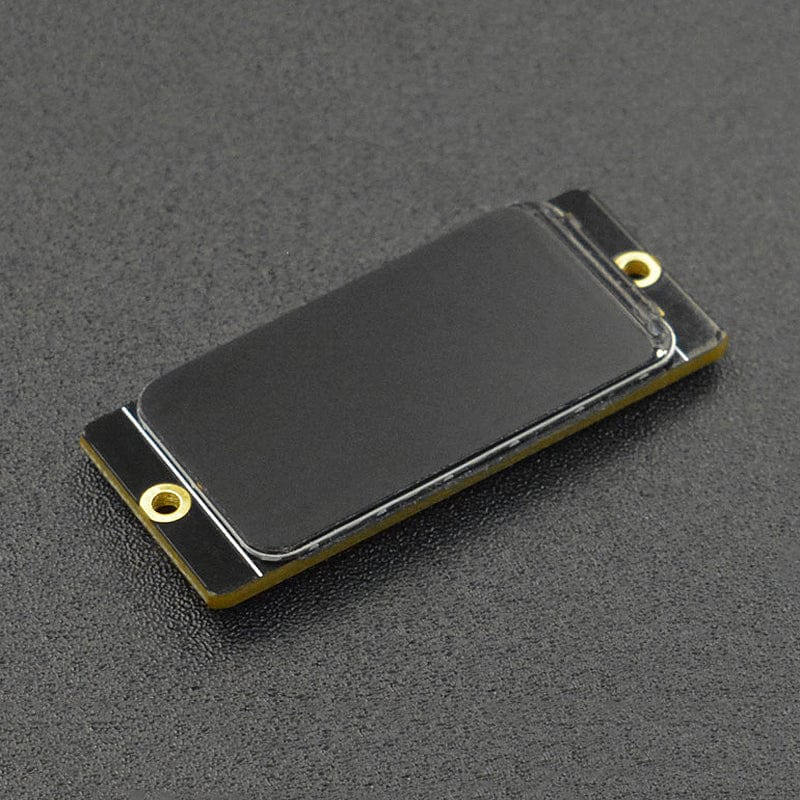

1.47" 172×320 IPS LCD Display Module

DFRobotSKU: DFR0995
Price:
Sale price £9.90
incl. VAT
excl. VAT
Stock:
Only 4 units left
Quantity:

Awesome Extras

DFRobotFireBeetle 2 ESP32-E IoT Microcontroller
Sale priceFrom £9.50 incl. VAT excl. VAT
The Pi HutHalf-Size Breadboard - White
Sale price £3 incl. VAT excl. VAT
The Pi HutPrototyping Wire Spool Set - 6 Spool Solid Core
Sale price £12 incl. VAT excl. VAT

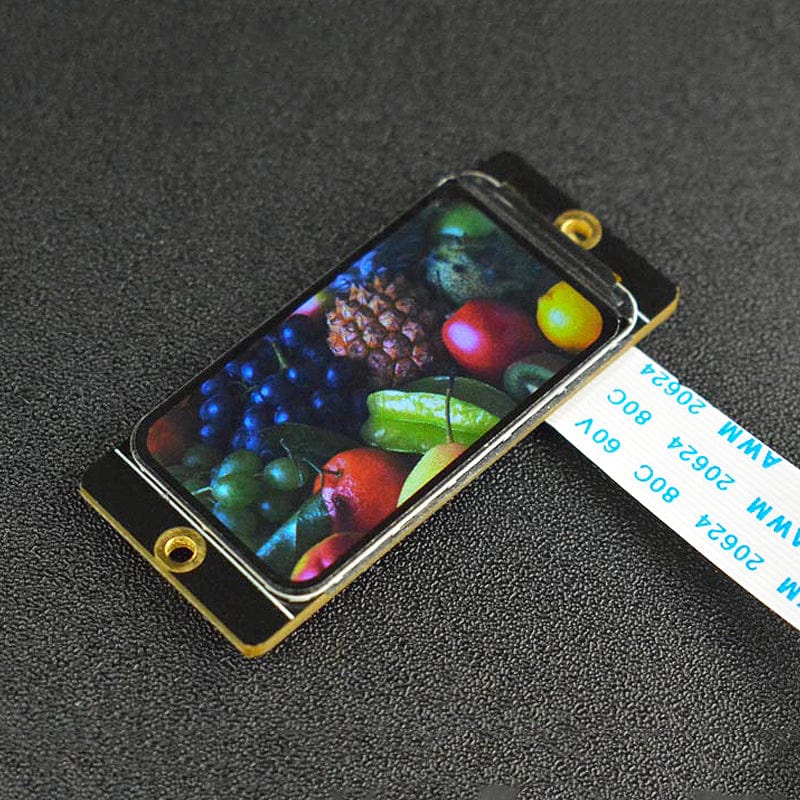

This exquisite little display is a good choice for projects requiring colourful and clear displaying effects!

Based on the ST7789V3 driver chip, this 1.47" display has 172×320 pixels with IPS any-angle viewing and an SPI interface for communication. It comes with a 1mm narrow frame and rounded corners. The display can be used to display text messages, images, animations or videos. Also, more amazing dynamic effects can be achieved with the supported Arduino GLD and LVGL libraries.

This display is mainly intended for use with FireBeetle development boards with a GDI ribbon cable connector (the ribbon cable is included with the display). You can wire this manually to other development boards, but you'll need to solder directly to the solder pads to do this.

Connection Example - FireBeetle ESP32-E

Features

  • Curved edges
  • 172×320 pixels
  • Narrow frame with a width of 1mm
  • HD IPS, adjustable viewing direction

Specification

  • Display Dimension: 1.47"
  • Pixels: 172×320
  • Interface: SPI
  • Brightness: 600(TYP)Cd/m2
  • Viewing Direction: full angle
  • Operating Temperature: -20℃ to +70℃
  • Operating Voltage: 3.3V
  • Backlit: 3 White LED Parallel
  • Display Area: 19.1mm×33.8mm/0.75×1.33"

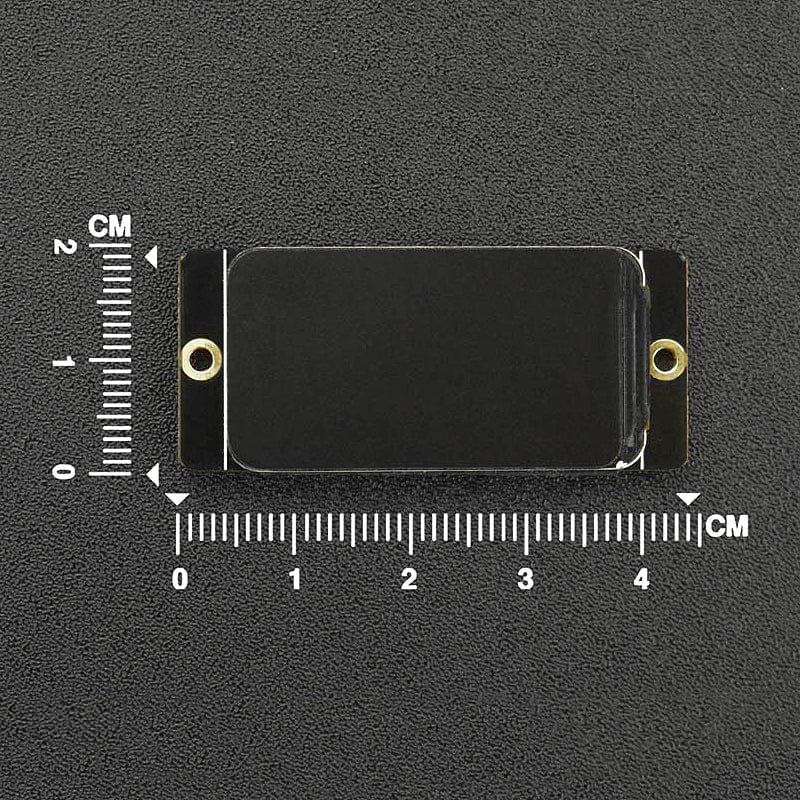

  • Module Dimension: 19.5mm×44.5mm/0.77×1.75"

Resources

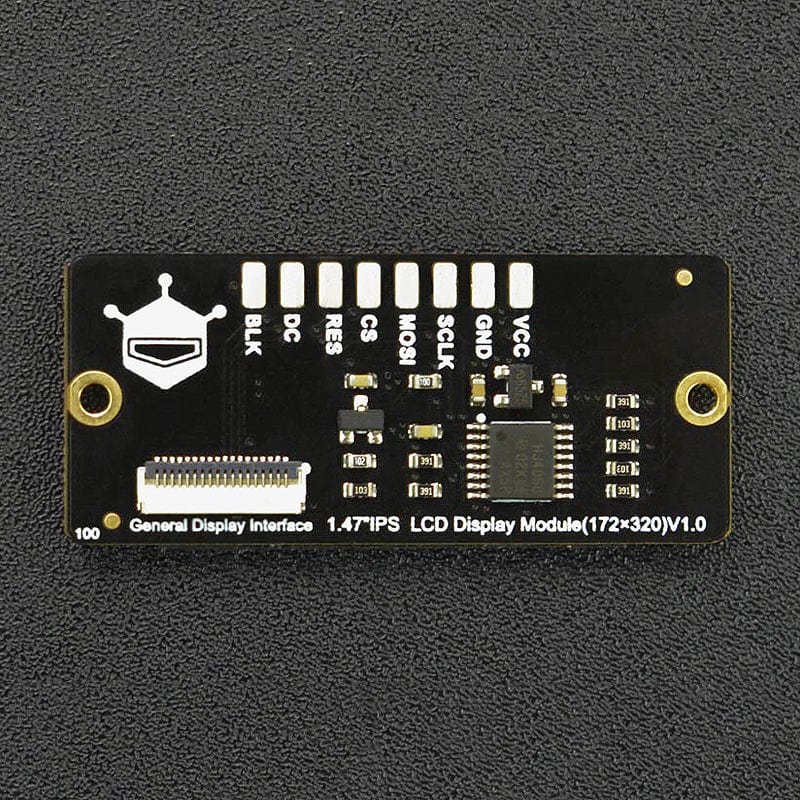

Pinout

Name Function
VCC DC3.3V-5V
GND Ground
SCLK SPI clock signal
MOSI SPI Main signal
CS SPI chip-select signal
RES Reset
DC Command
BLK Backlit

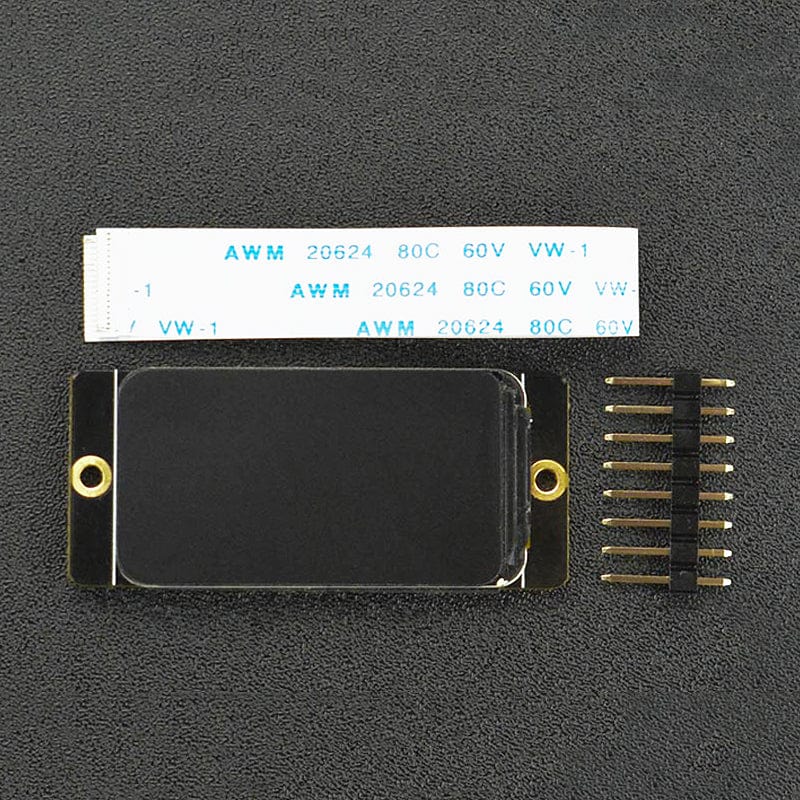

Package Contents

  • 1.47" 172×320 IPS LCD Display Module ×1
  • Black Single-row Pin Header-8PIN ×1
  • FPC Cable ×1
