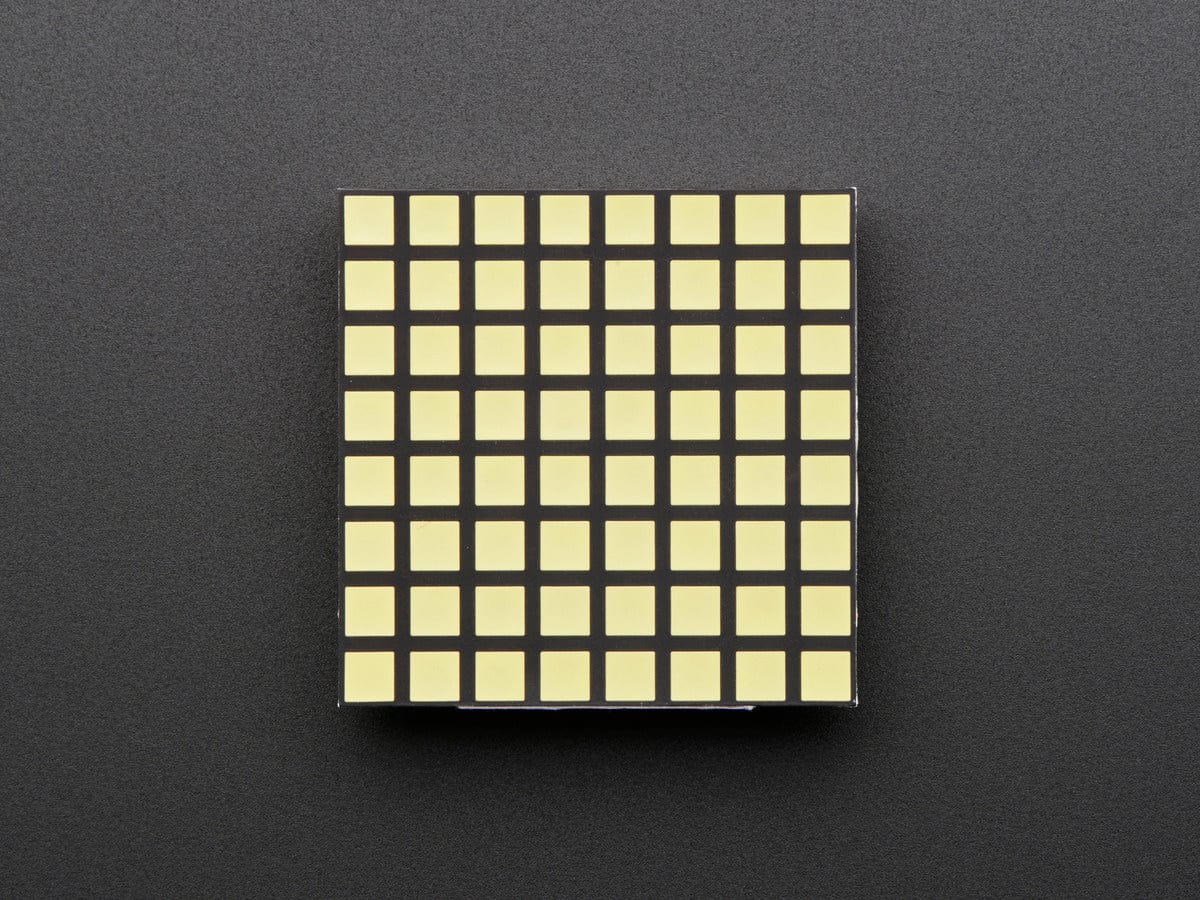

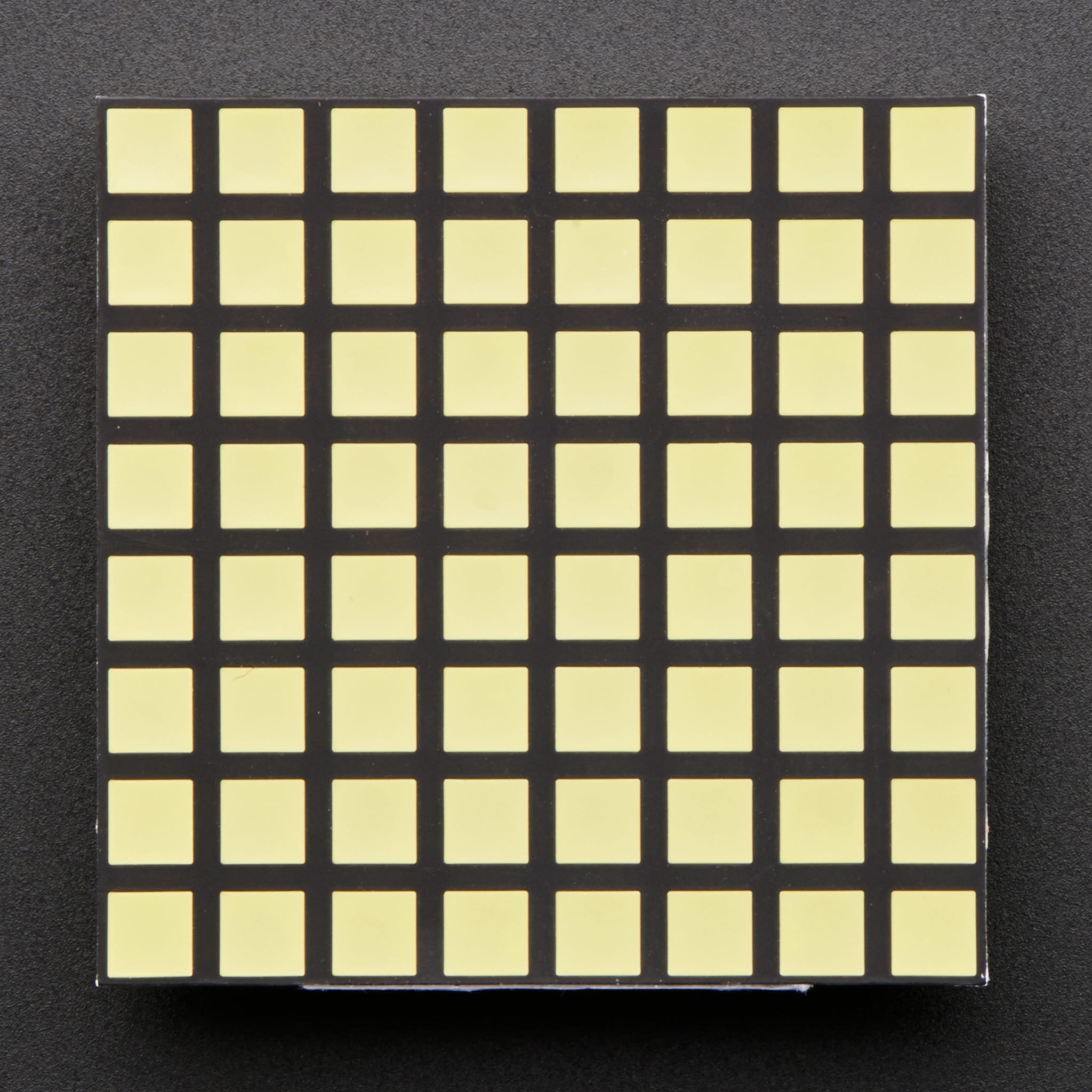

1.2" 8x8 Matrix Square Pixel - White (KWM-R30881CWB-Y)

Price:
Sale price £7.50
incl. VAT
excl. VAT
Stock:
Only 2 units left
Quantity:

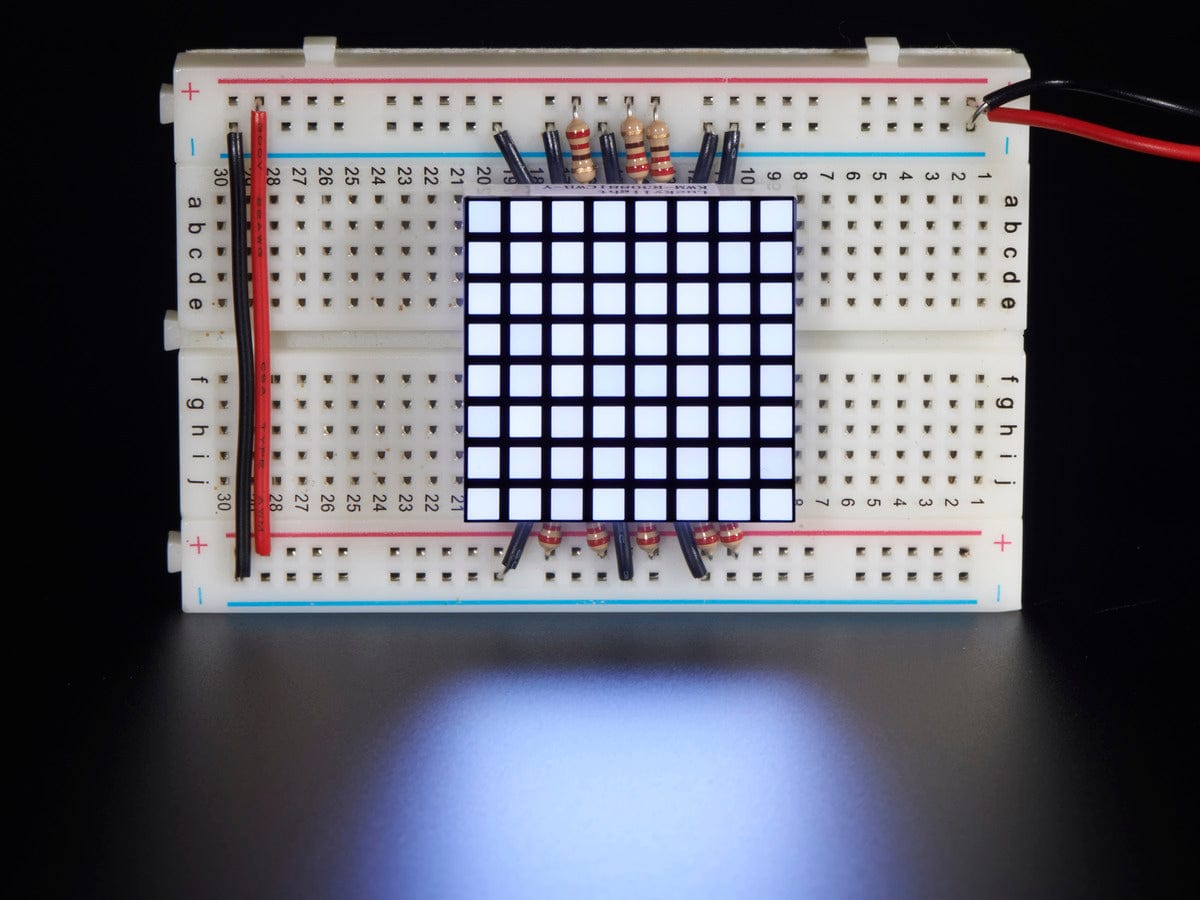

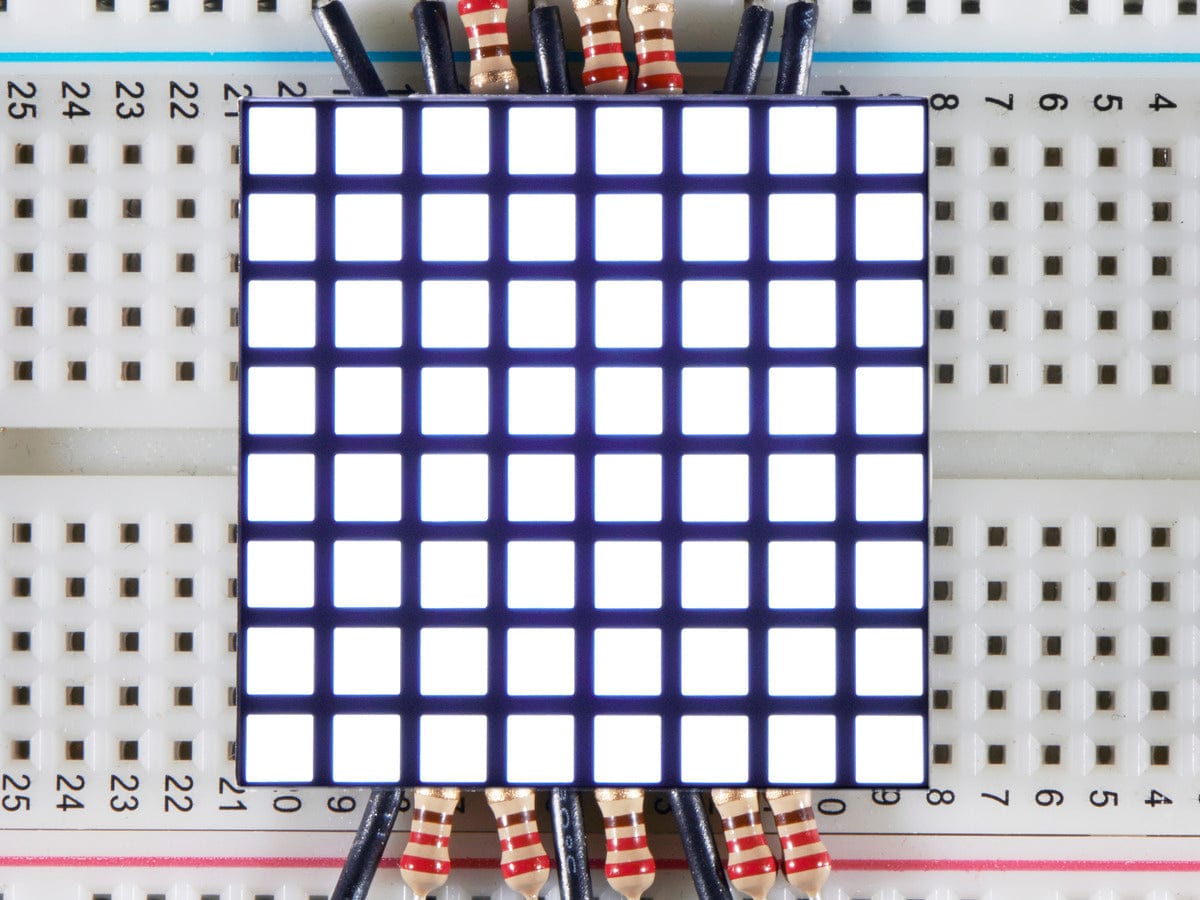

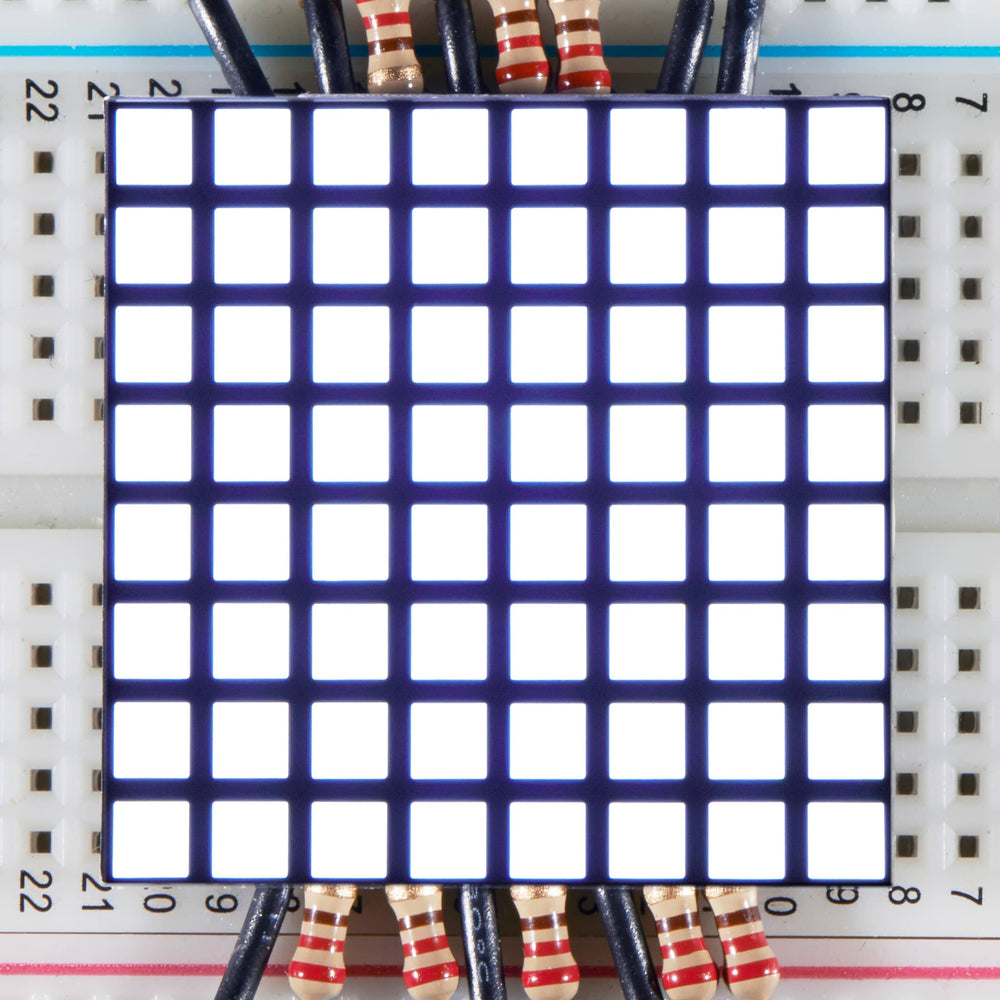

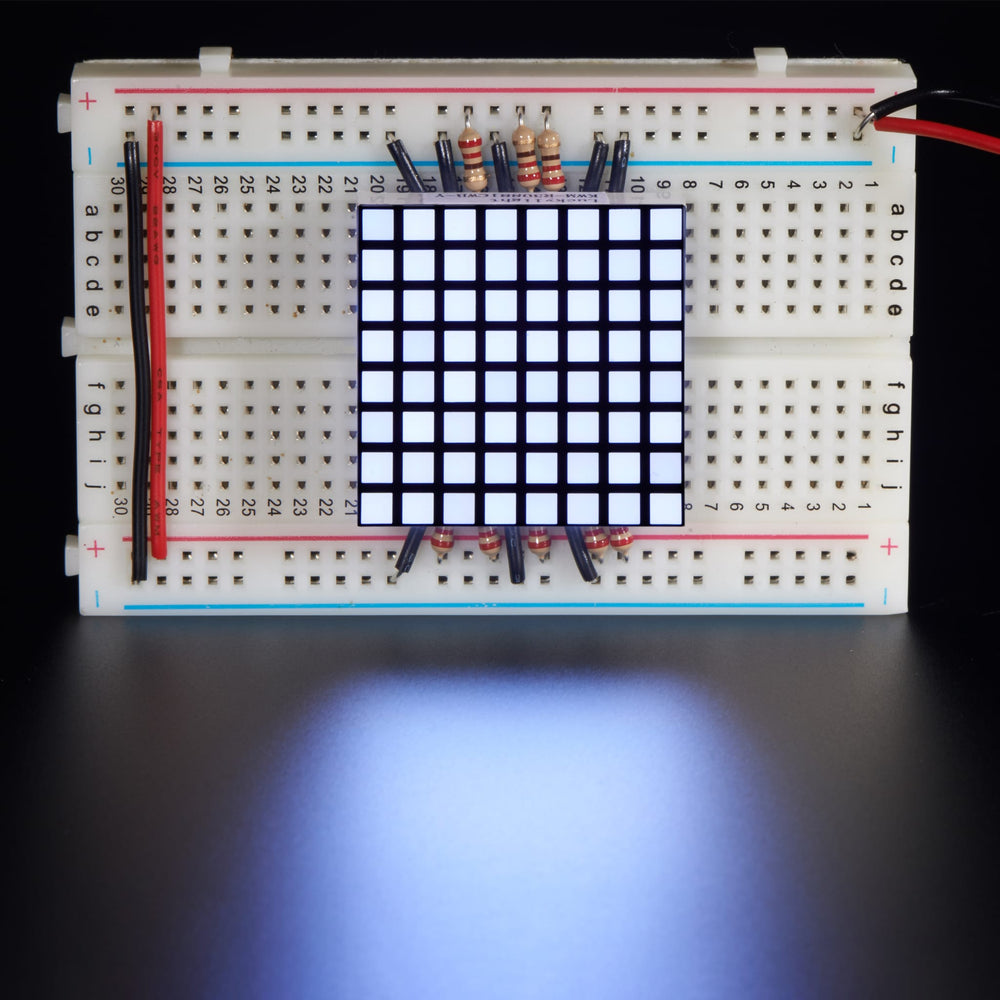

Make a scrolling sign, or a small video display with this 8x8 gridded pixel white LED matrix. Only 1.2" on a side, it is quite visible but not so large it won't plug into a breadboard! There are 16 pins on the side, 8 on each, with 0.1" spacing so you can easily plug it into a breadboard with one row on each side for wiring it up.

These LEDs have a bright white coloring, it's a beautiful shade but the process is different than our other 1.2" white LED matrices so be aware the colors won't match up

Since the display is in a grid, you'll need to 1:8 multiplex control it. We suggest either using a 74HC595 and TPIC6B595 (using the 74HC' to control the 8 anodes at once and then using the TPIC' to drive one cathode at a time) or just using a single MAX7219 which will do the multiplexing work for you.

The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices

Technical Details

The Arduino playground has a nice set of tutorials introducing the MAX7219 and 8x8 LED matrices

Using a high power shift register to drive 8x8 matrices with a NETduino

This is a Common Cathode LED Matrix

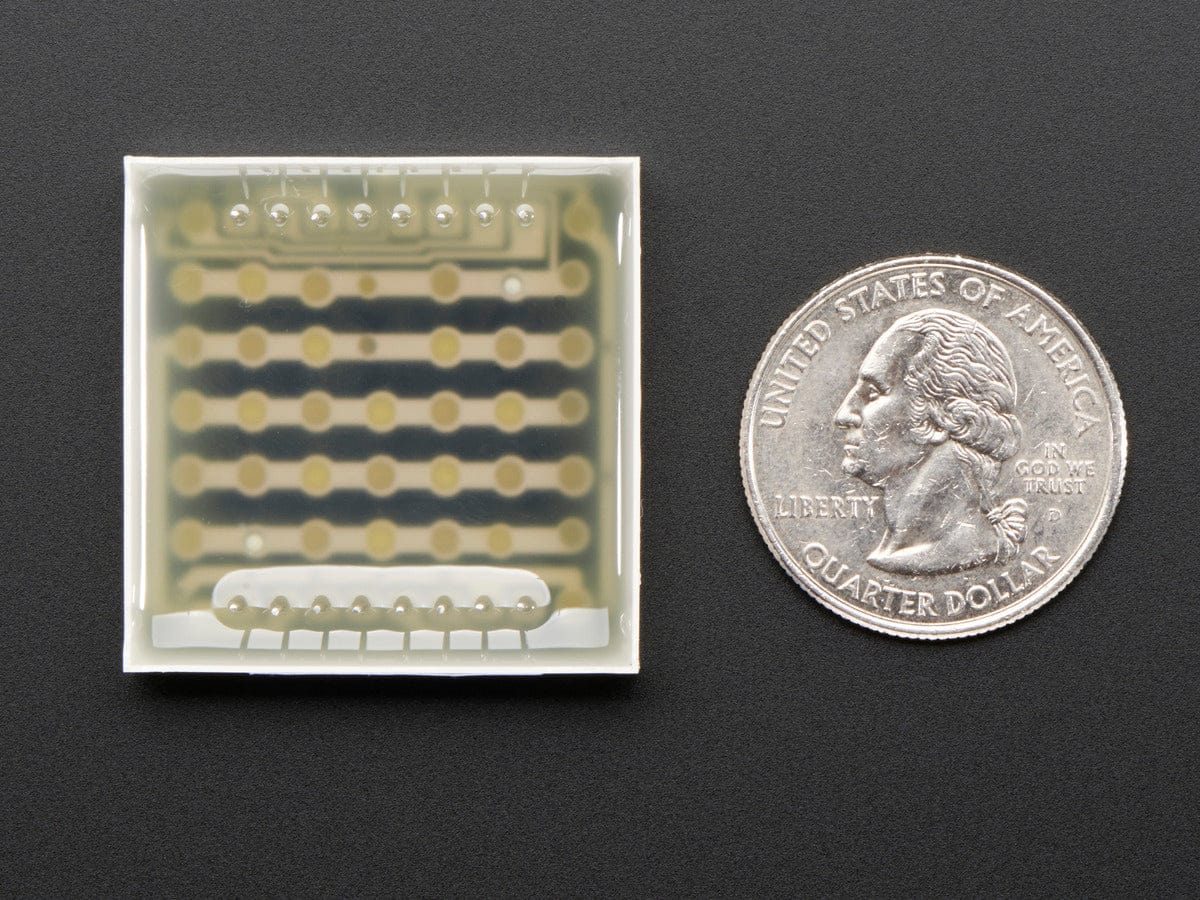

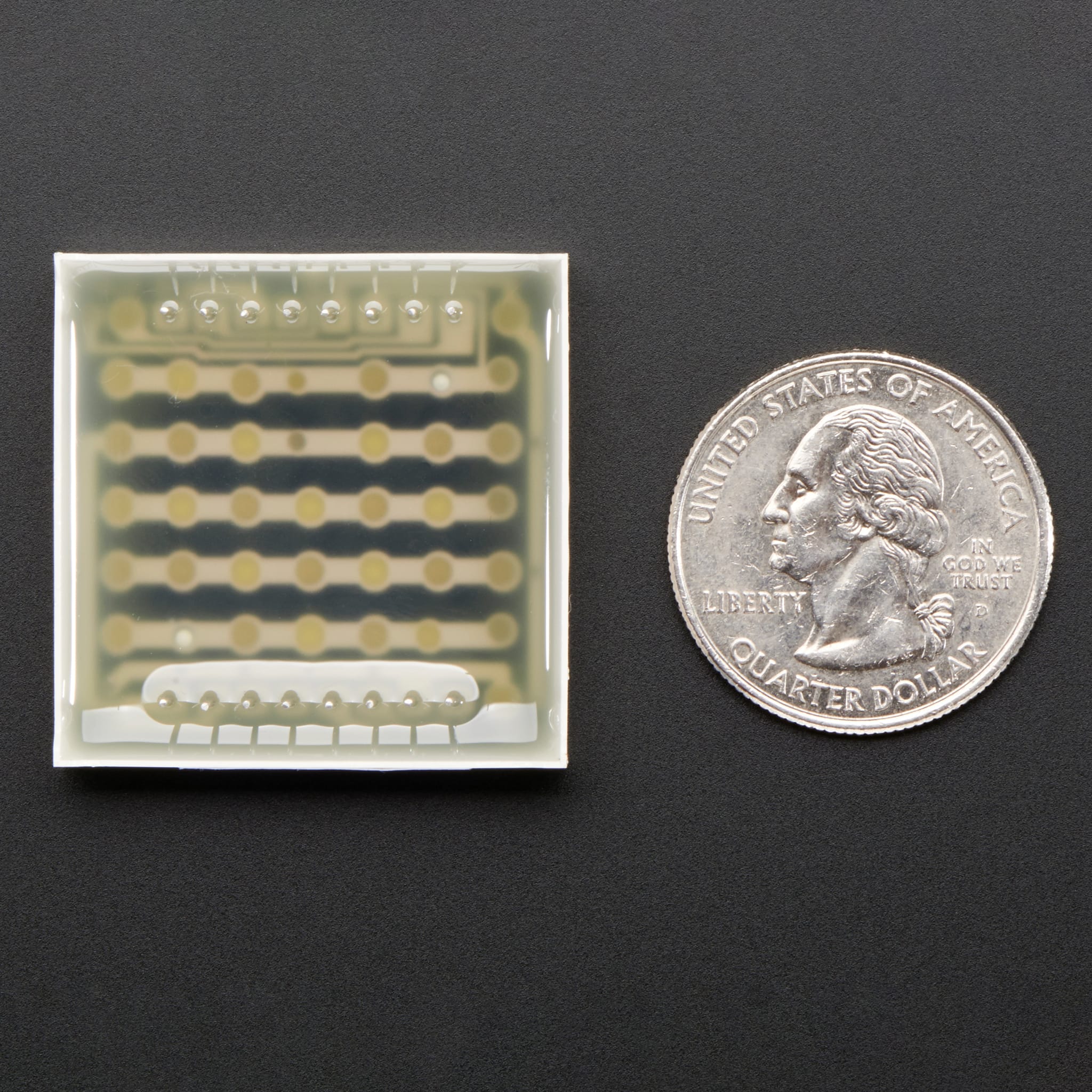

Dimensions:

  • 31mm x 31mm x 7mm / 1.2" x 1.2" x 0.3"
  • Height without Pins: 7mm / 0.3"
  • Weight: 7.65g
  • Datasheet
