1.14" IPS LCD Display Module (240x135)
Price:
Sale price
£7.70
Stock:
Quantity:
Awesome Extras

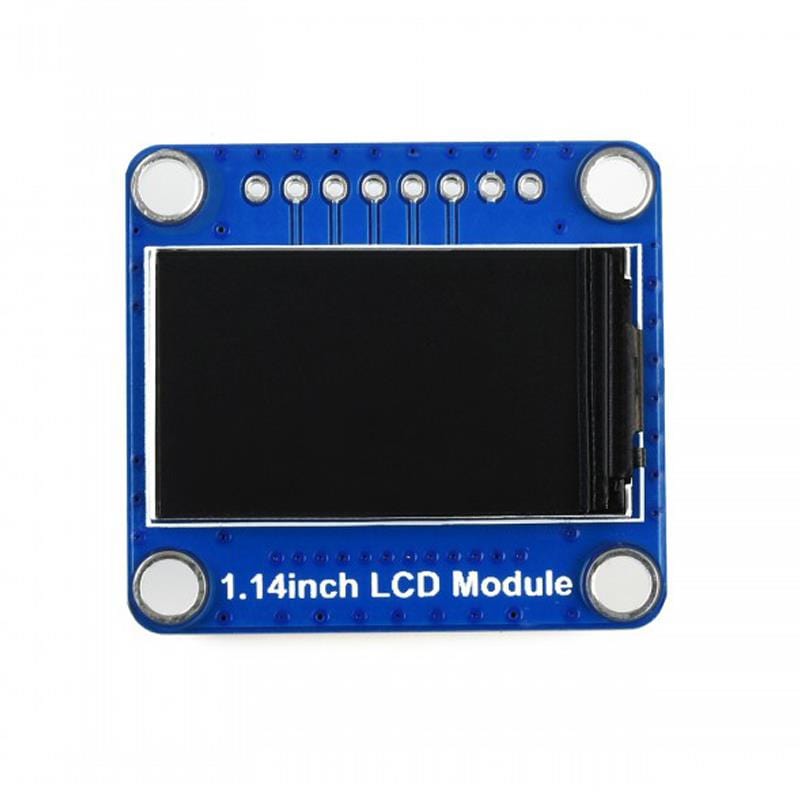

This 1.14" IPS LCD module from Waveshare is a great way to add a mini high-quality display to your project.
The display has a 240x135 resolution and offers 65K RGB colours via its IPS display. The module is controlled via a simple 4-wire SPI thanks to the embedded ST7789 driver.

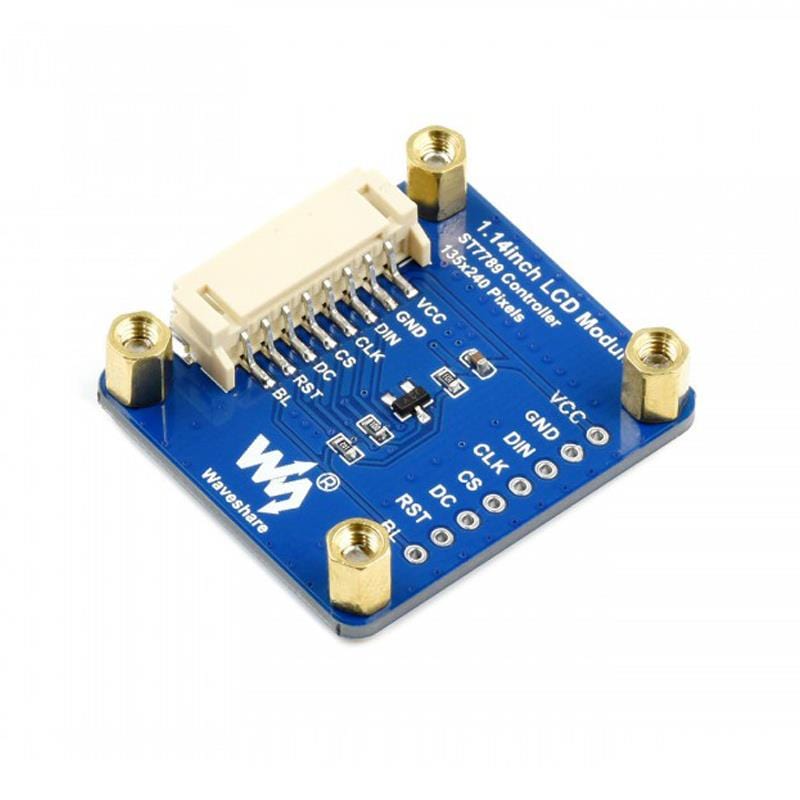

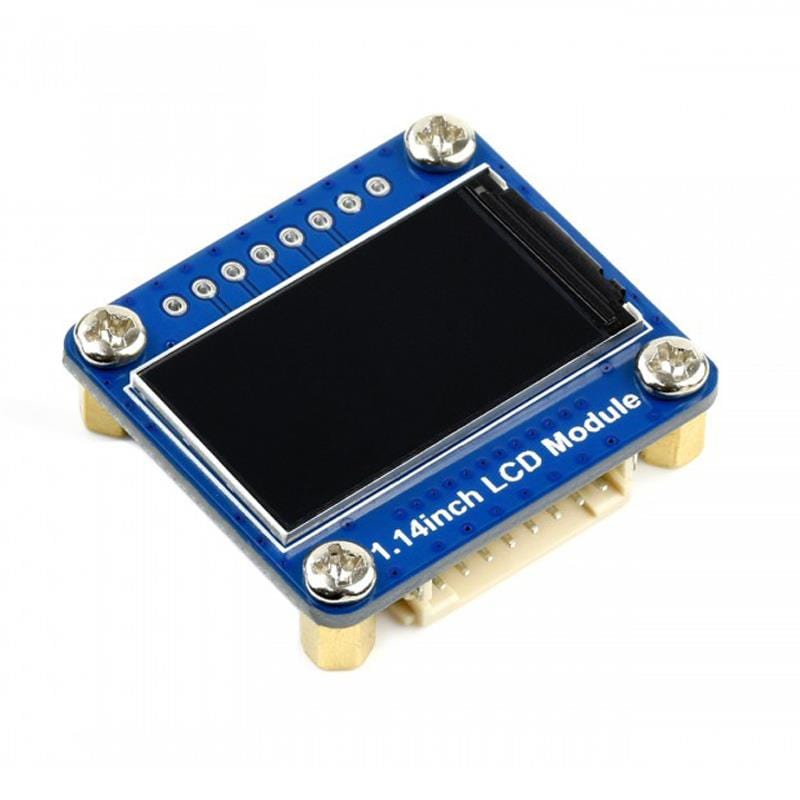

The handy mounting holes make it easy to incorporate into a custom panel or 3D printed enclosure, and the online development resources make it easy to get up and running on a Raspberry Pi or Arduino board.
Features
- 1.14" LCD Display
- 240×135 resolution
- 65K RGB colours

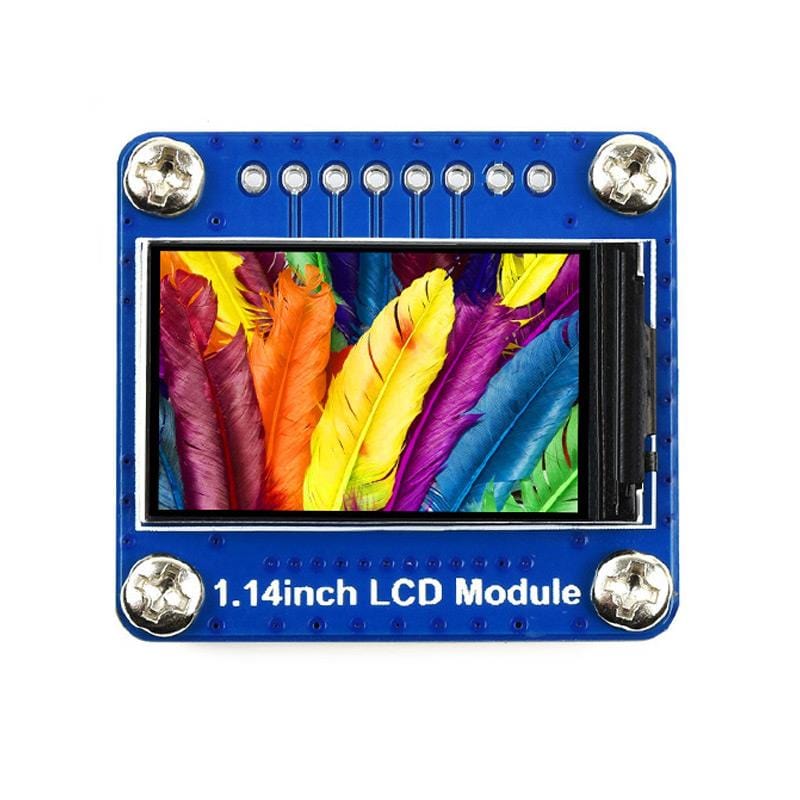

- Clear and colourful display
- SPI interface minimizes required IO pins
- Supports controller boards such as Raspberry Pi and Arduino
- Comes with online development resources (examples for Raspberry Pi/Arduino)
Wiring Examples
Package Contents
- 1x 1.14" LCD Module
- 1x PH2.0 8-pin 20cm cable
Resources

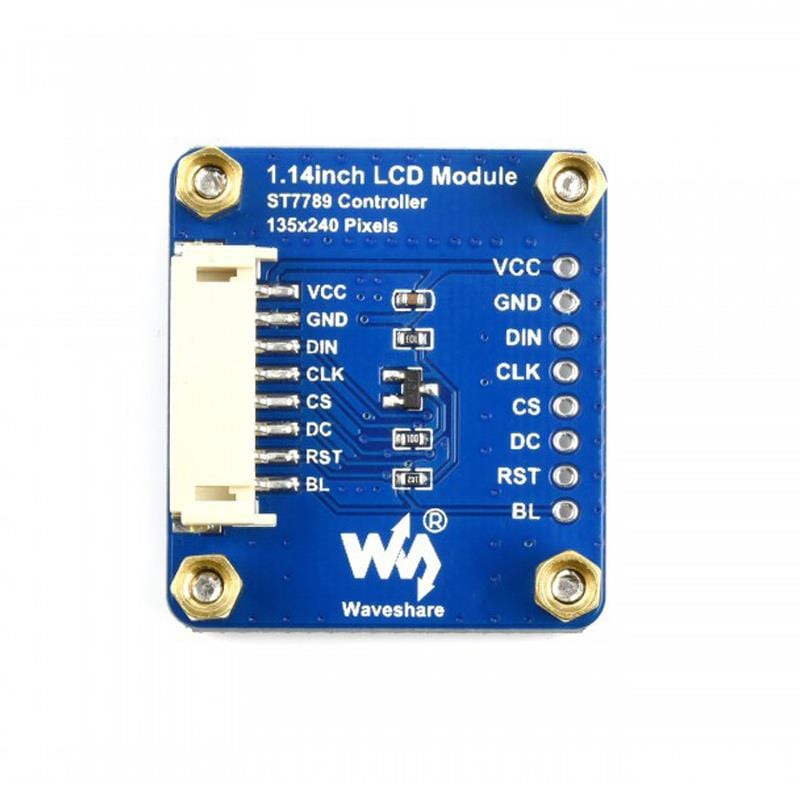

Pinout
| VCC | Power (3.3V/5V input) |
|---|---|
| GND | Ground |
| DIN | SPI data input |
| CLK | SPI clock input |
| CS | Chip selection, low active |
| DC | Data/Command selection (high for data, low for command) |
| RST | Reset, low active |
| BL | Backlight |
Specifications
- Operating voltage: 3.3V/5V
- Interface: 4-wire SPI
- LCD type: IPS
- Controller: ST7789
- Resolution: 240(H)RGB x 135(V)

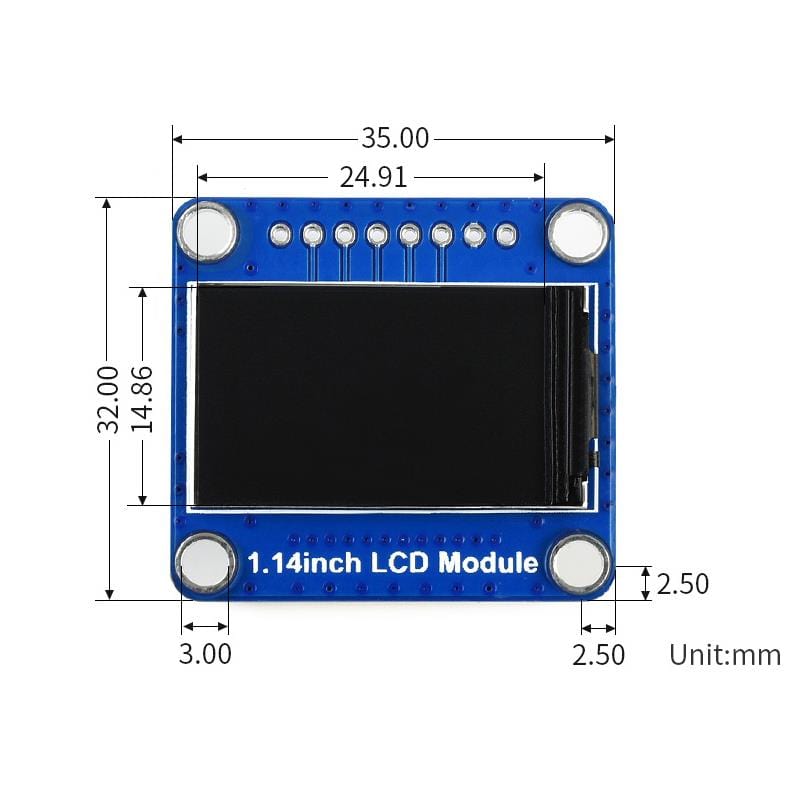

- Display size: 24.91 × 14.86mm
- Pixel size: 0.1101 × 0.1035mm
- Dimension: 35.00 × 32.00mm
