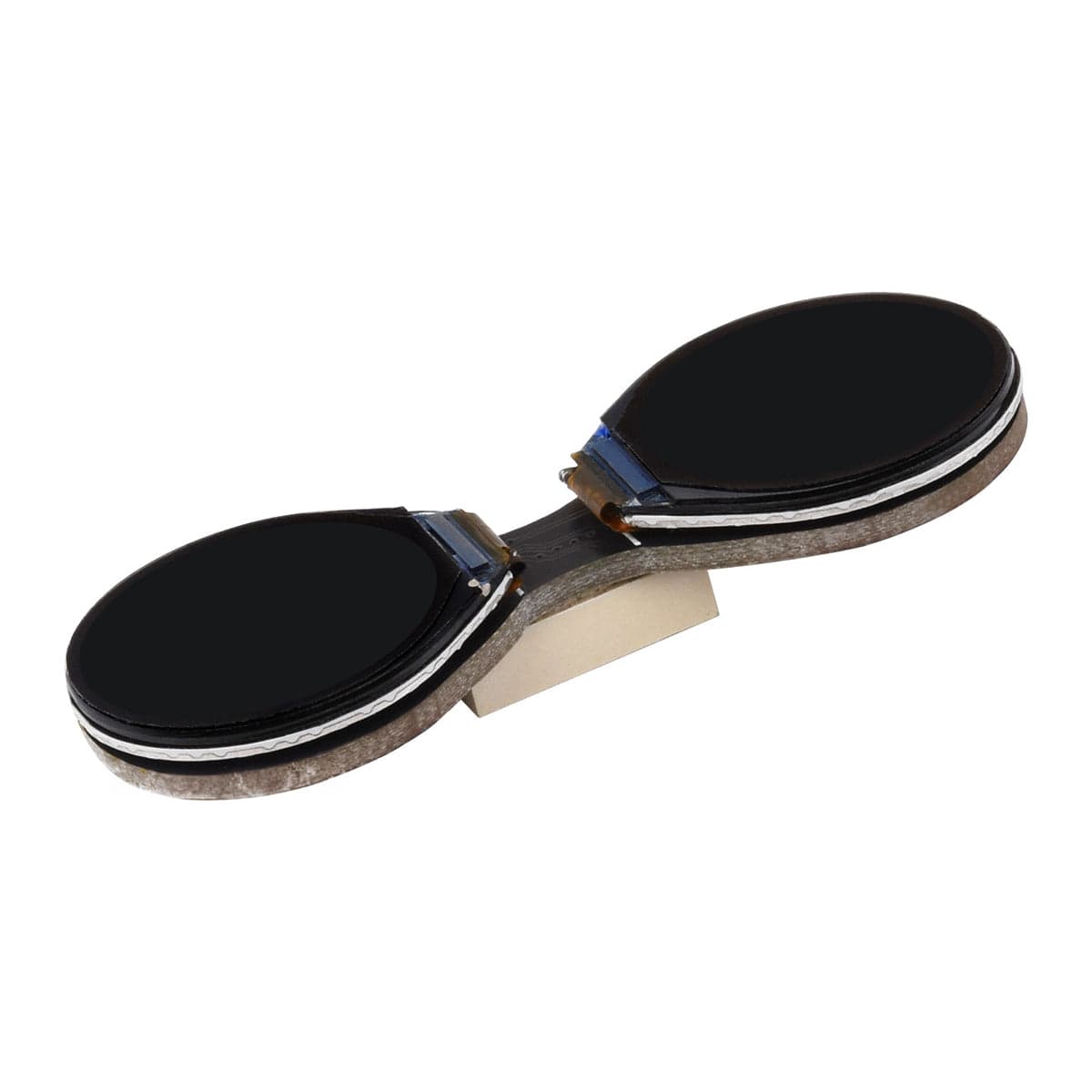

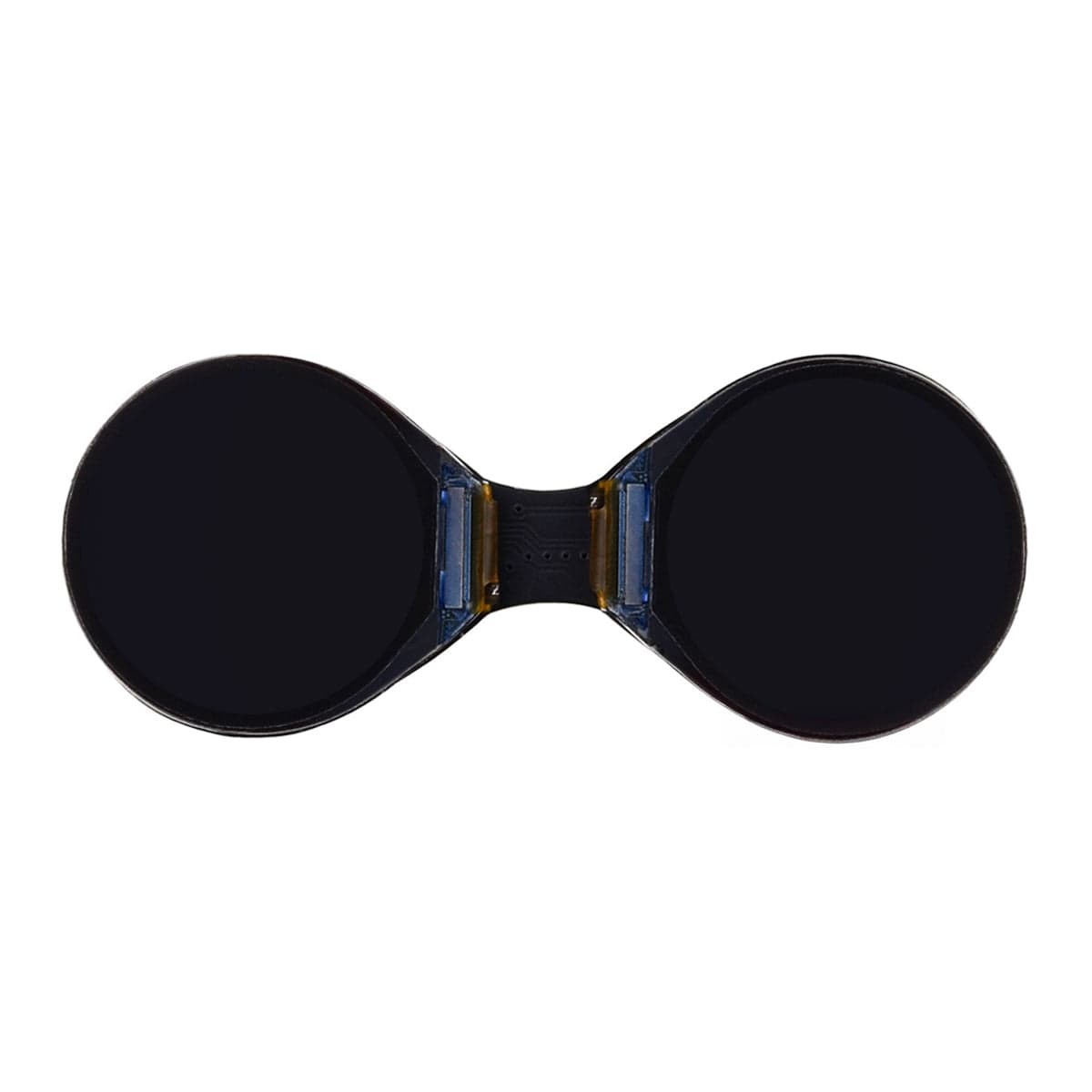

0.71" Double Eye Round IPS LCD Display (160 x 160)

WaveshareSKU: WAV-29381
(1 Review)
Price:
Sale price £15.80
incl. VAT
excl. VAT
Stock:
In stock
Quantity:

Awesome Extras

ESP32-C3 Zero Mini Development Board by Waveshare - The Pi HutESP32-C3 Zero Mini Development Board by Waveshare - The Pi Hut
(16 Reviews)
WaveshareESP32-C3 Zero Mini Development Board
Sale priceFrom £3.50incl. VAT excl. VAT
120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire) by The Pi Hut - The Pi Hut
(193 Reviews)
The Pi Hut120-Piece Ultimate Jumper Bumper Pack (Dupont Wire)
Sale price £6 incl. VAT excl. VAT
Break-away 0.1" 36-pin male headers (10-pack) by The Pi Hut - The Pi HutBreak-away 0.1" 36-pin male headers (10-pack) by The Pi Hut - The Pi Hut
(18 Reviews)
The Pi HutBreak-away 0.1" 36-pin male headers (10-pack)
Sale price £3.50 incl. VAT excl. VAT
Antex Lead Free Solder - 4m Tube by Antex - The Pi Hut
(25 Reviews)
AntexAntex Lead Free Solder - 4m Tube
Sale price £4.40 incl. VAT excl. VAT

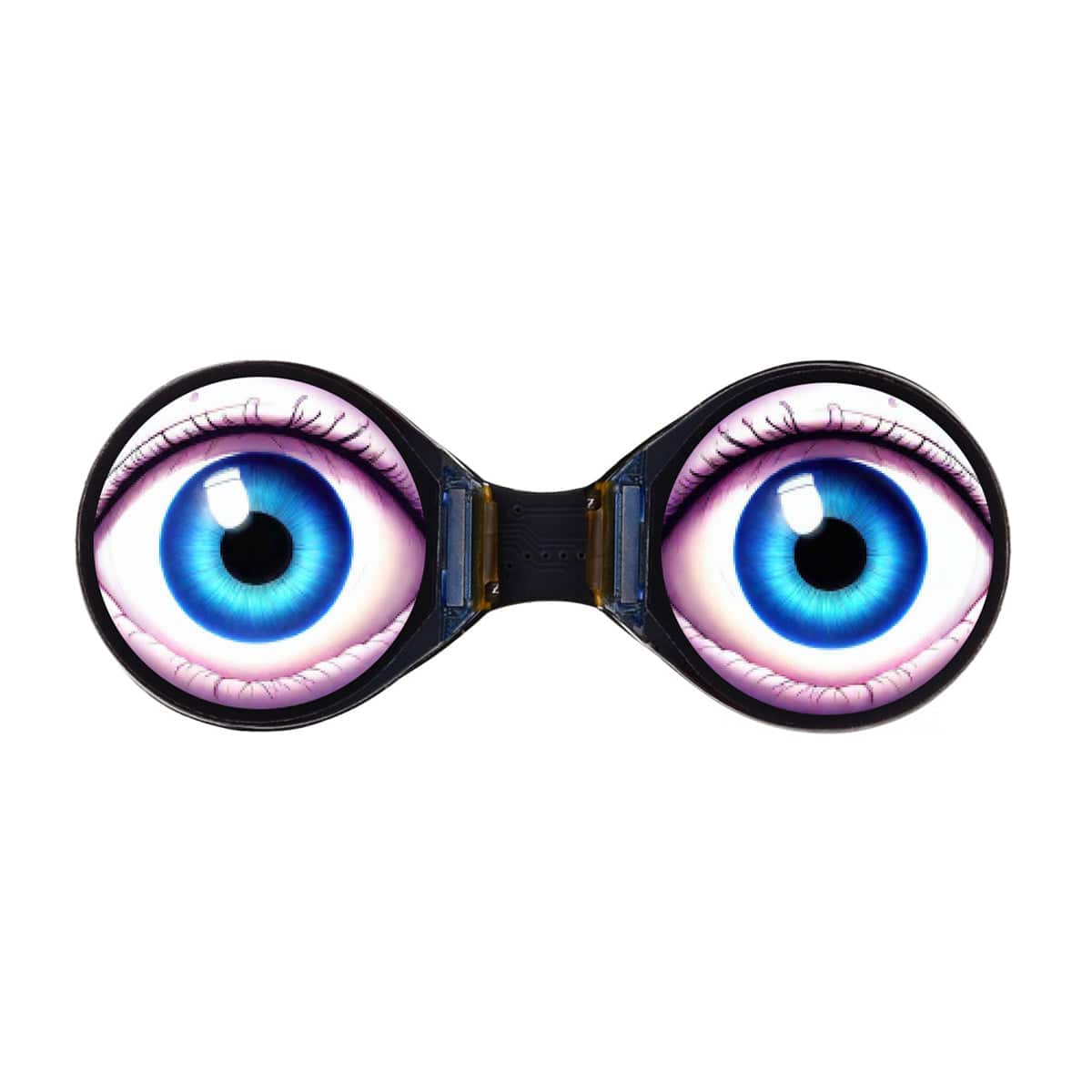

I can see you...looking at this cool double-eye display, that you can use with any project that needs moving eyes or a wearable for your next cosplay idea!

It has two round 0.71" IPS displays, each with a colourful 160x160 resolution. It uses the GC9D01 driver and communicates using an SPI connection.

It comes with examples for use with a Waveshare ESP32-C3 Zero board (technically it may work with other controllers, but no other examples are provided).

Board is NOT included

Features

  • The double-eye LCD module
  • Consists of two 0.71" round IPS LCDs
  • 160x160 resolution
  • 65K colours
  • SPI interface, minimises required IO pins

Specifications

Operating Voltage 3.3V / 5V
Communication Connection SPI
Display Panel IPS
Driver GC9D01
Resolution 160 x 160 pixels

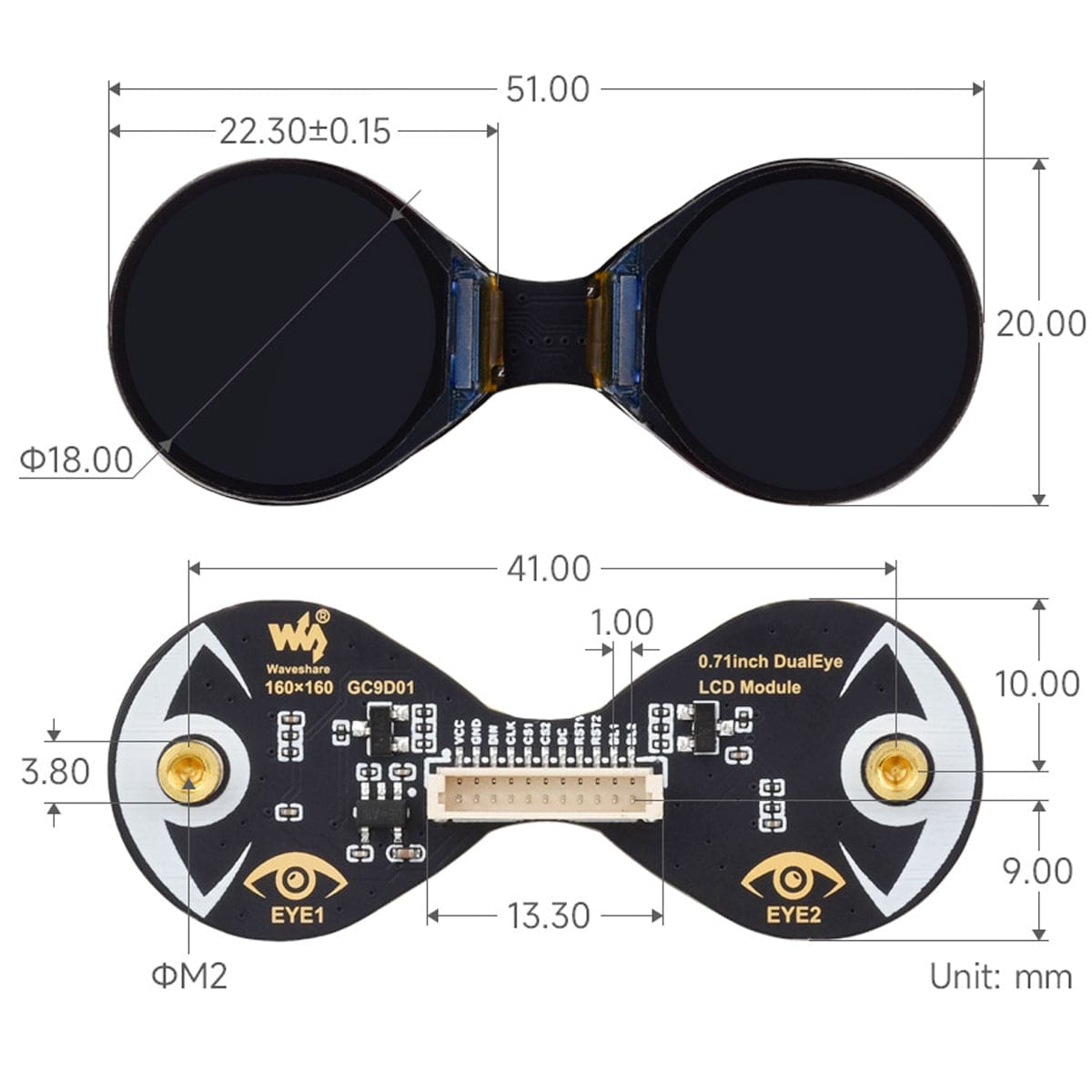

Display Size 18 x 18 (mm)
Pixel Pitch 37.5 x 112.5 (μm)
Dimensions 20.00 x 51.00 (mm)

Resources

Pinout

Package Contents

  • 1x 0.71" Dual Eye LCD Module
  • 1x SH1.0 11-pin Cable
  • 2x Convex Lens
