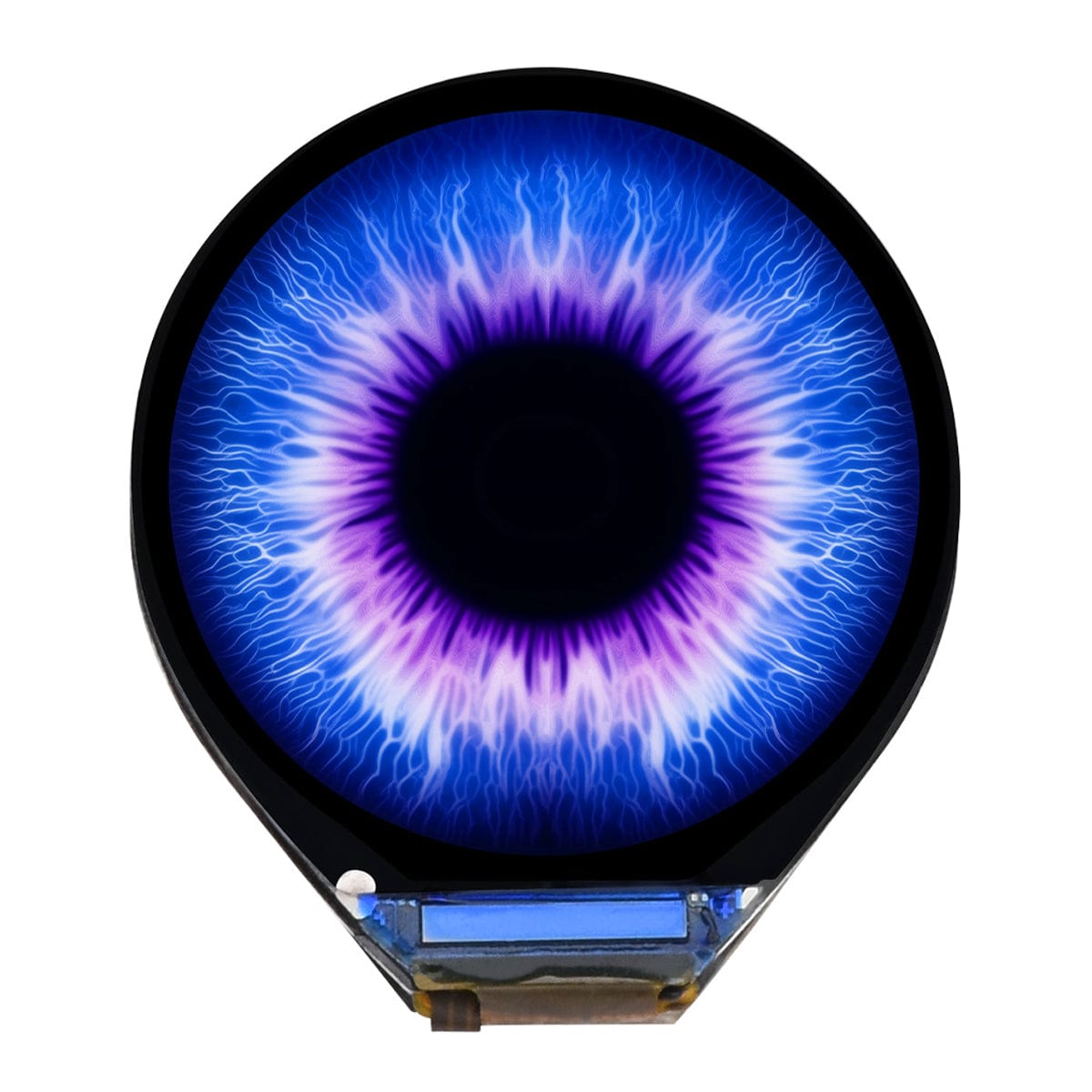

0.71" Round IPS LCD Display (160 x 160)

WaveshareSKU: WAV-29380
Price:
Sale price £9.90
incl. VAT
excl. VAT
Stock:
Only 7 units left
Quantity:

Compatible with:

Awesome Extras

Raspberry Pi Pico 2 WRaspberry Pi Pico 2 W
Raspberry PiRaspberry Pi Pico 2 W
Sale price £6.60 incl. VAT excl. VAT
ESP32-C3 Zero Mini Development Board - The Pi HutESP32-C3 Zero Mini Development Board - The Pi Hut
WaveshareESP32-C3 Zero Mini Development Board
Sale priceFrom £3.50incl. VAT excl. VAT
Arduino Nano ESP32 (with headers) - The Pi HutArduino Nano ESP32 (with headers) - The Pi Hut
ArduinoArduino Nano ESP32 (with headers)
Sale price £19.80 incl. VAT excl. VAT

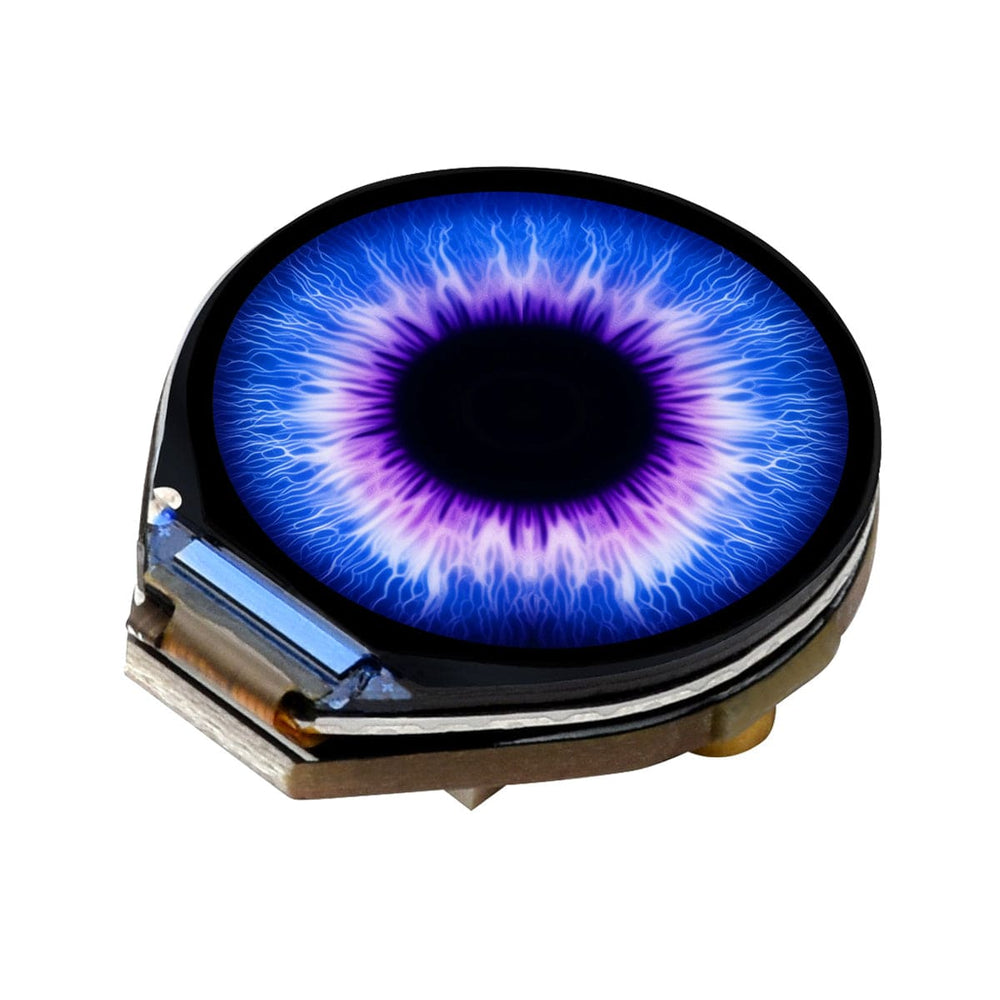

This 0.71" display gives you clear and vibrant visuals with help from a 160 x 160-pixel resolution and 65K colours. The IPS panel gives the screen brilliant colour accuracy and consistency and looks great from most angles.

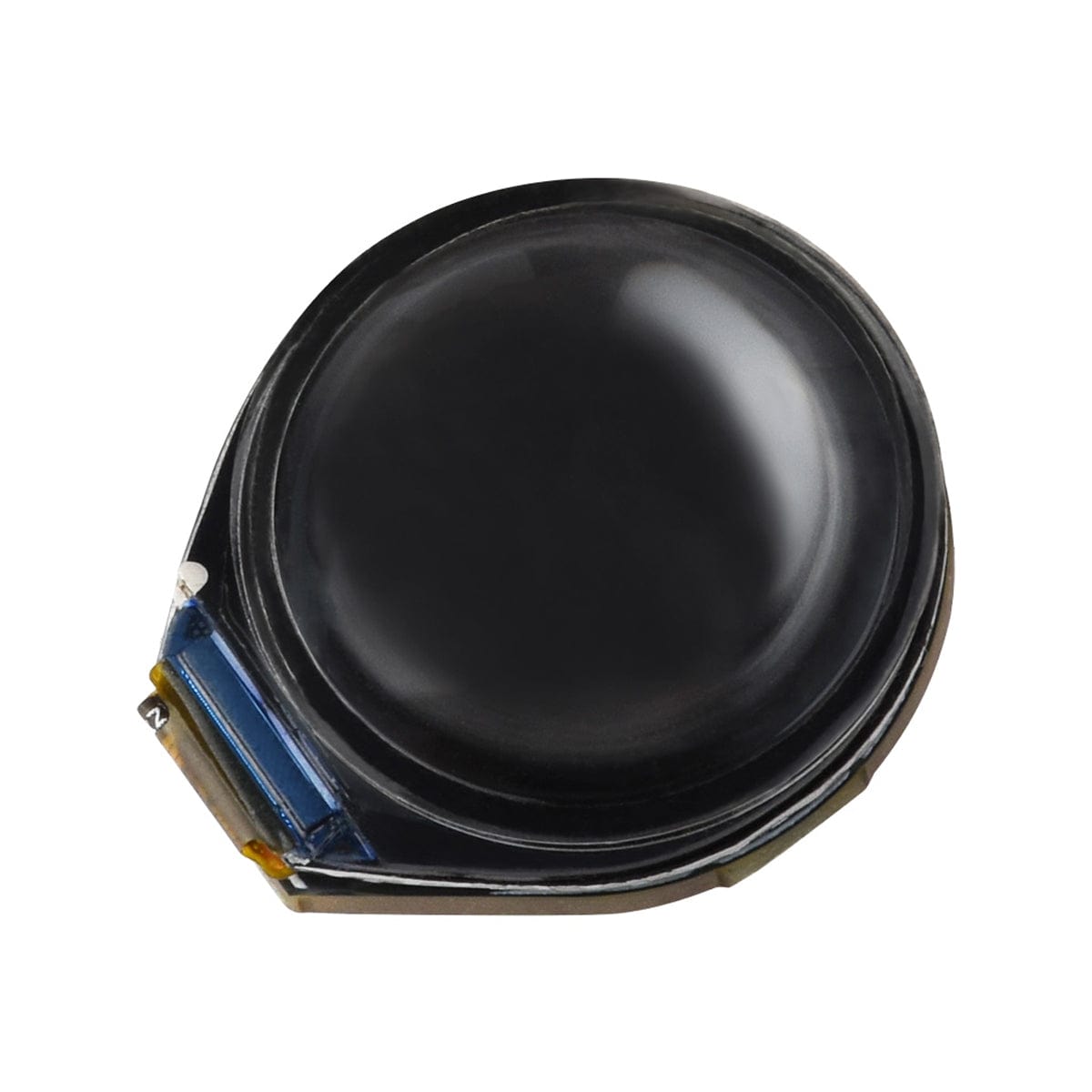

It connects using a 4-wire SPI setup, which keeps things simple and works with boards like Raspberry Pi Pico, ESP32 (e.g. ESP32-C3 Zero), and Arduino (e.g. Nano ESP32). A convex lens comes included, to make images on the display really pop out when you add them to projects like electronic eyes or wearable devices!

Features

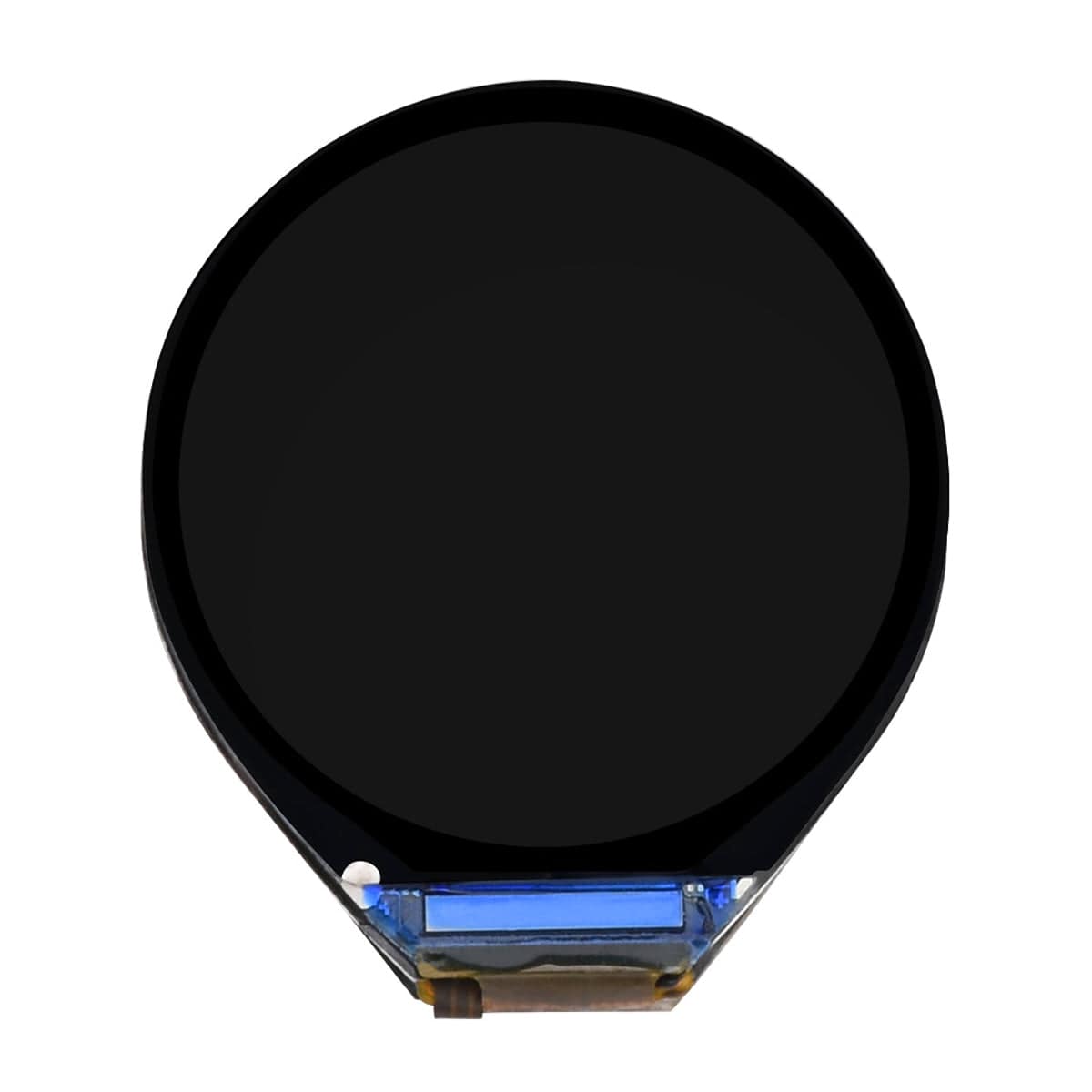

  • 0.71" round LCD, IPS panel, wide viewing angle
  • 160 x 160 resolution, 65K colours, clear and colourful displaying effect
  • SPI interface, minimises required IO pins, supports controller boards like Raspberry Pi Pico / ESP32 / Arduino

Specifications

Operating Voltage 3.3V / 5V
Communication Interface 4-wire SPI
Display Panel IPS
Driver GC9D01
Resolution 160 x 160 pixels

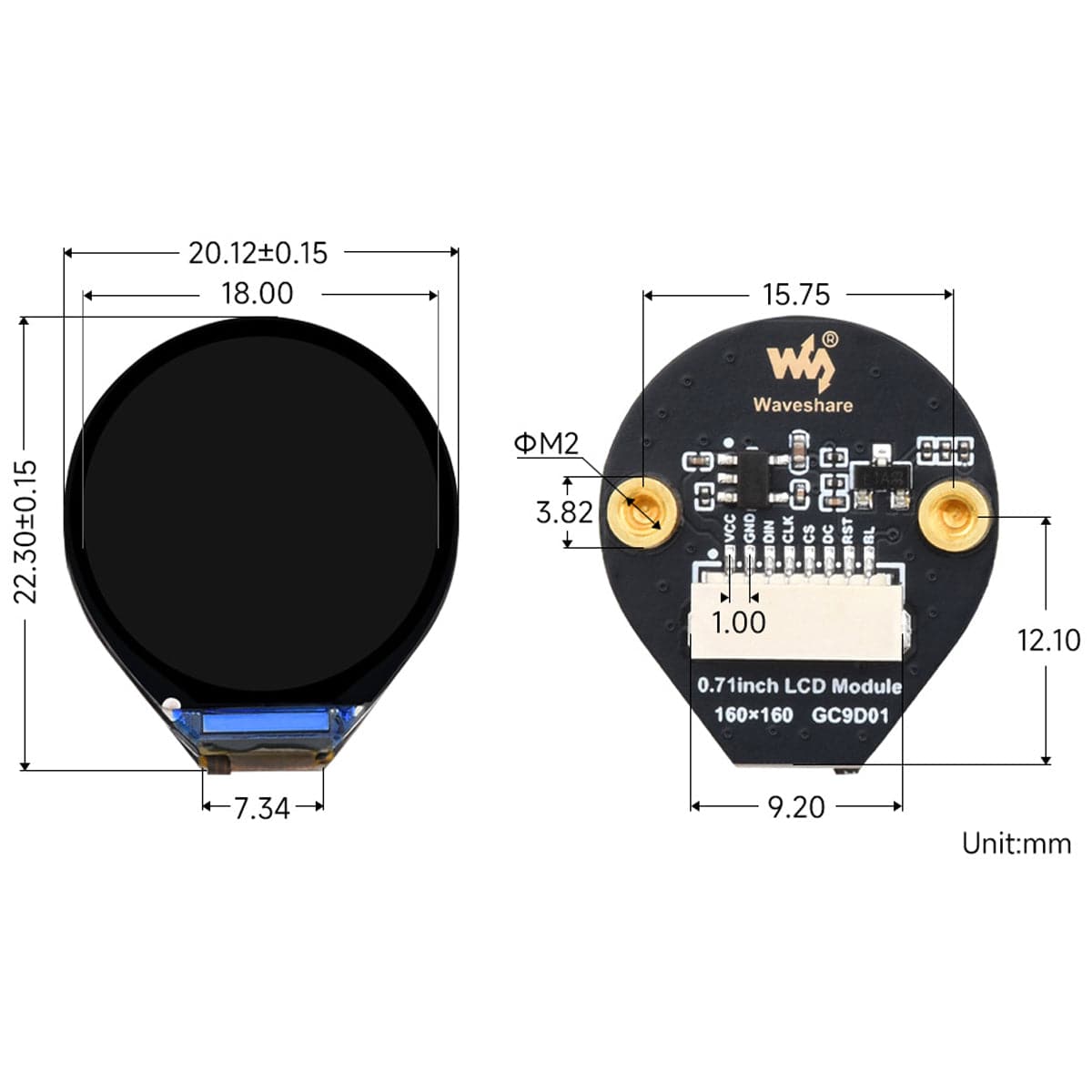

Display Size 18 x 18 (mm)
Pixel Pitch 37.5 x 112.5 (μm)
Dimensions 20.12 x 22.3 (mm)

Resources

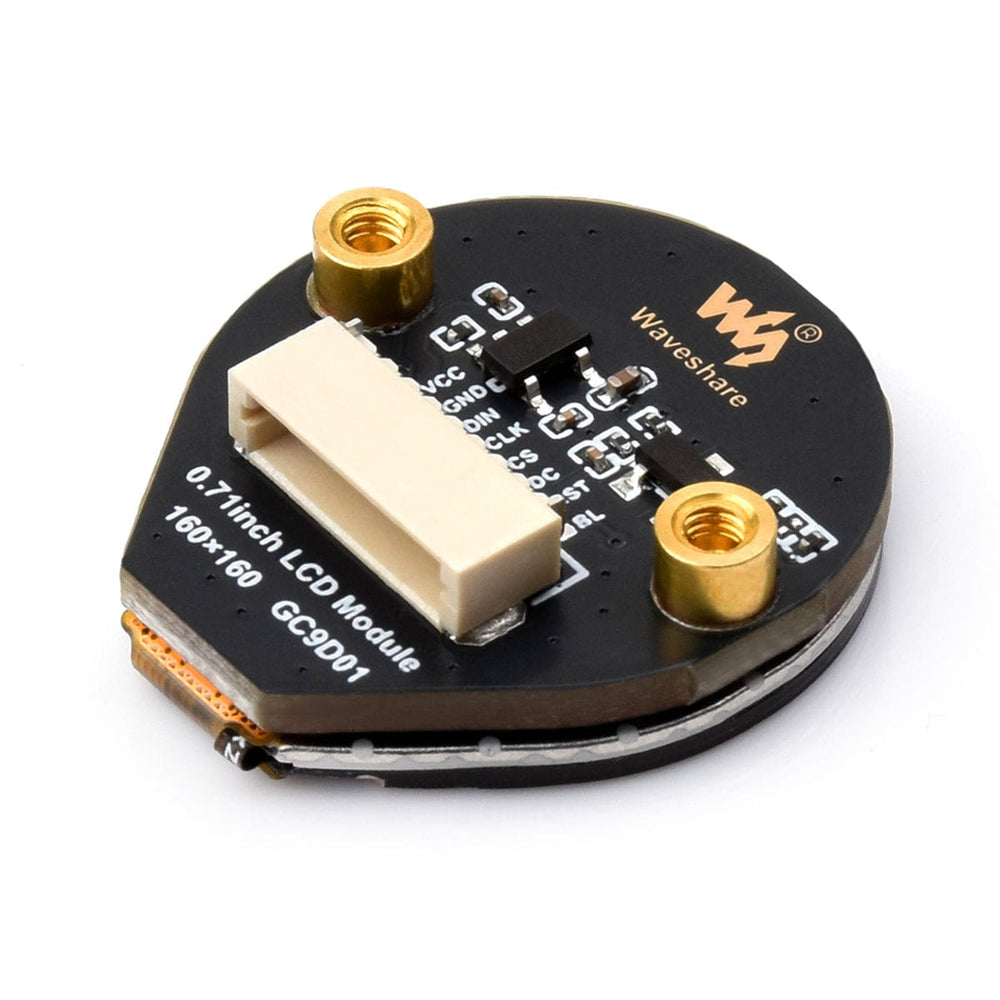

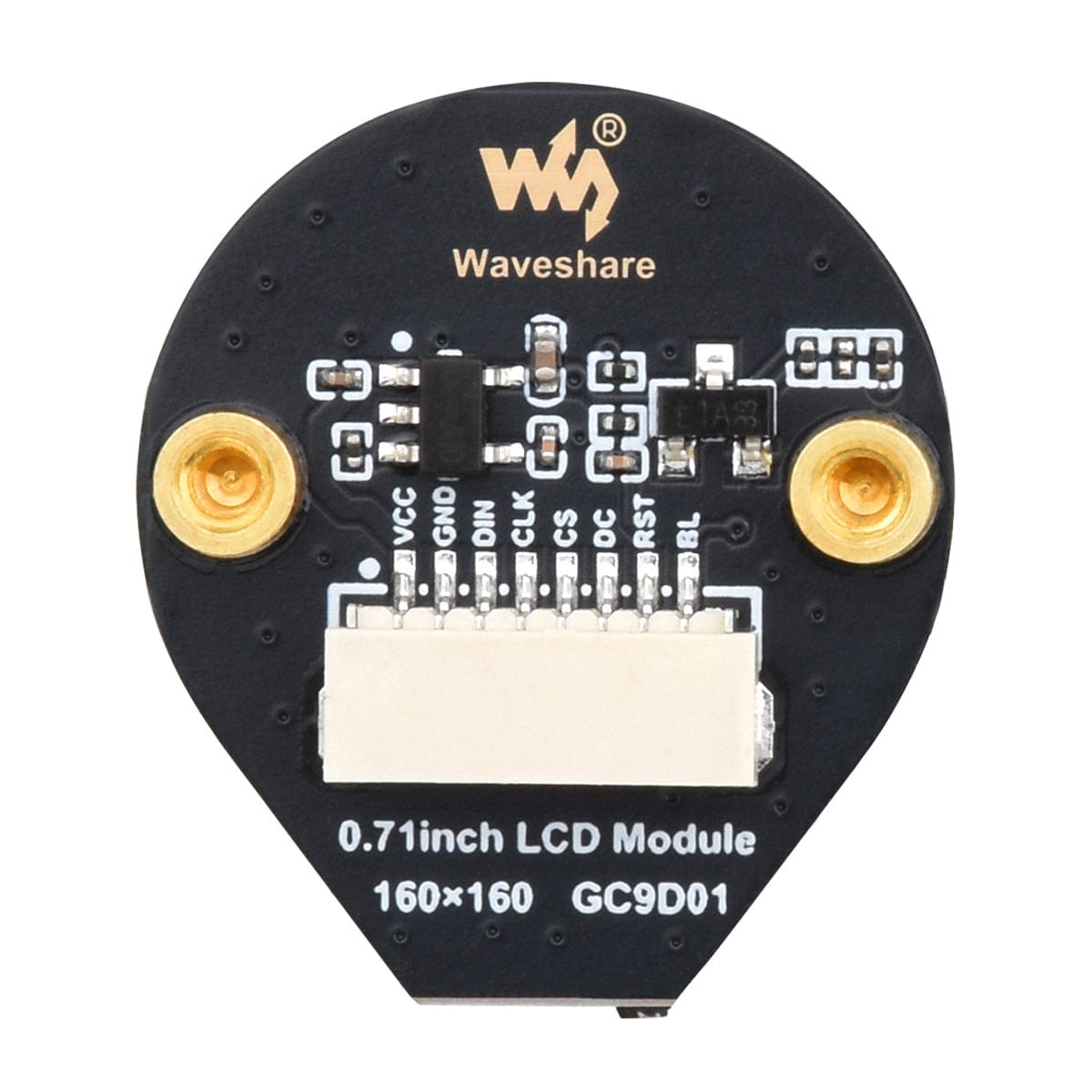

Pinout

Package Contents

  • 1x 0.71" LCD Module

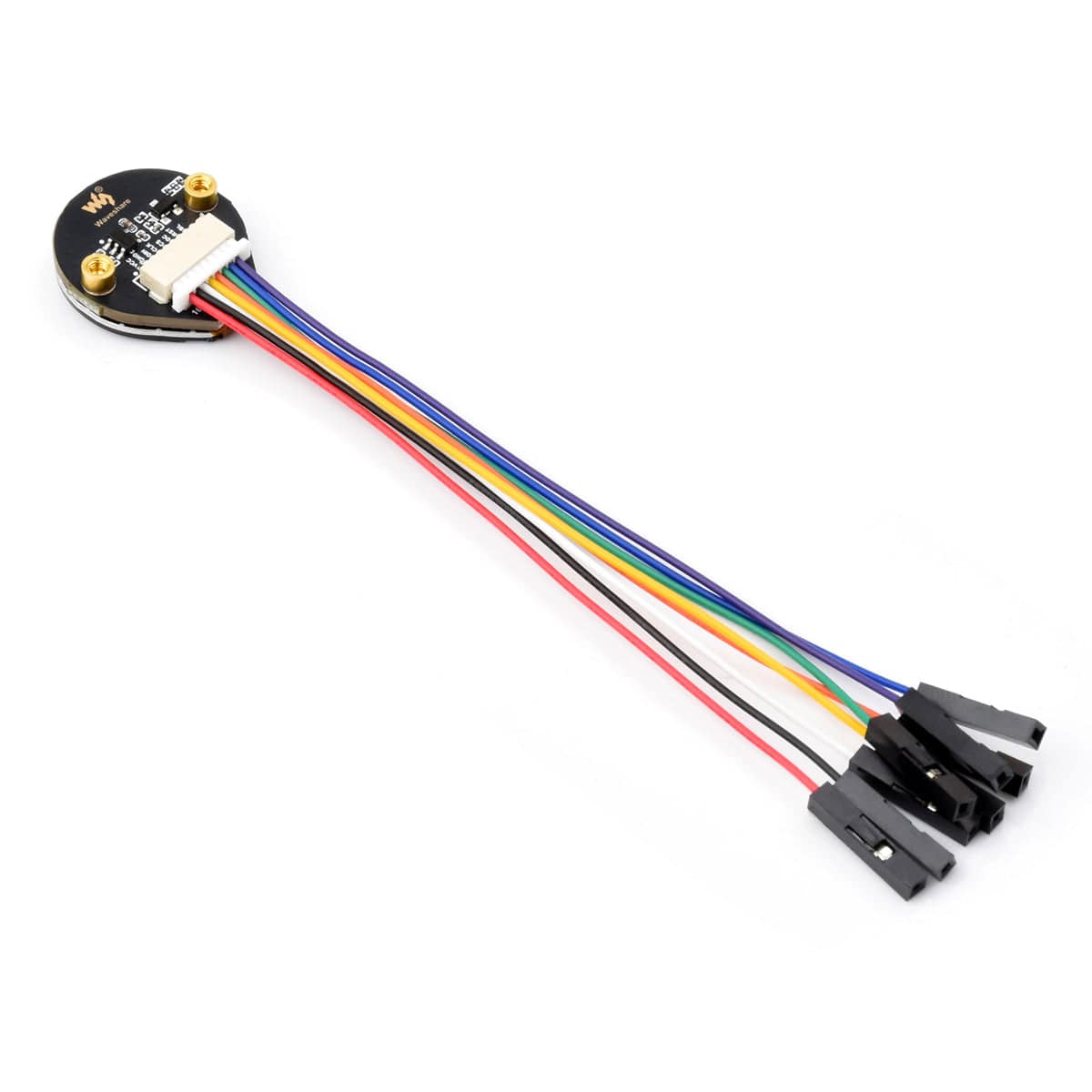

  • 1x SH1.0 8-pin Cable

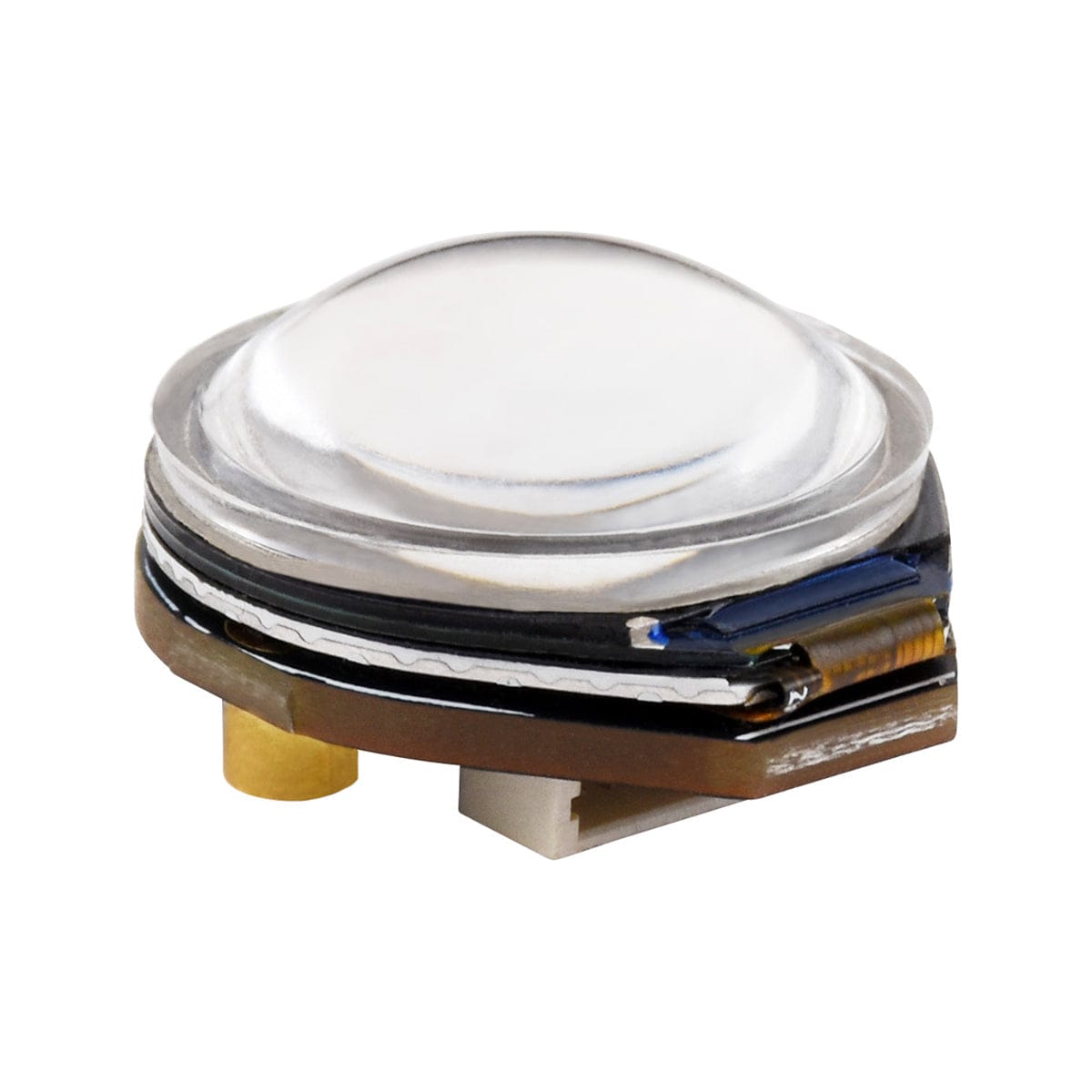

  • 1x Convex Lens
