Waveshare - RGB LED pHAT (4 x 8)

Name: Waveshare - RGB LED pHAT (4 x 8)
Brand: Waveshare
SKU: WAV-12725
Price: 11.90 GBP
Availability: InStock

WaveshareSKU: WAV-12725

£11.90

incl. VAT

excl. VAT

Only 10 units left

Compatible with:

Awesome Extras

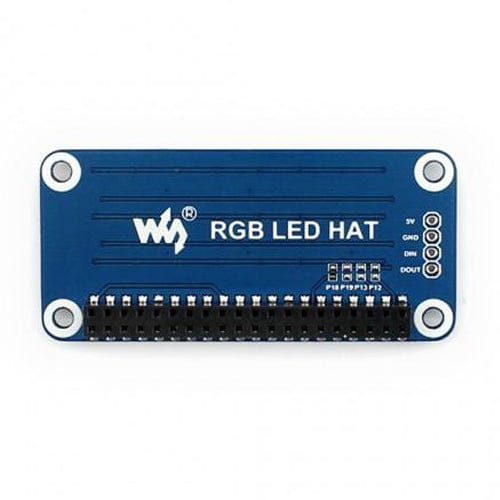

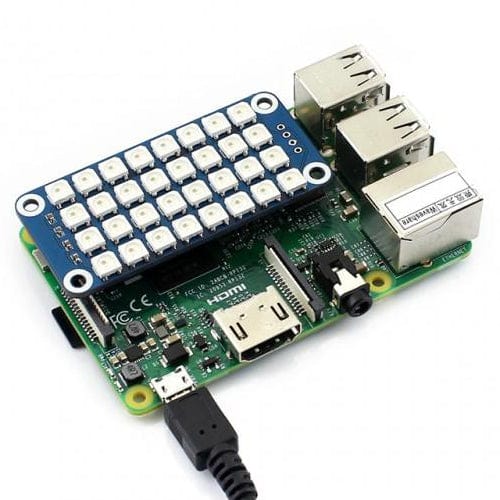

This RGB LED HAT can be easily attached on top of the Raspberry Pi or Raspberry Pi Zero to display colorful effects! It's controlled by only one signal pin, LEDs are arranged in an 4 x 8 matrix, and each RGB LED features a 24-bit true color depth!

Features

Supports any revision of Raspberry Pi (directly-pluggable)
Onboard 4 × 8 RGB LED (WS2812B)
Control pin is configurable via jumpers (0? resistor)
Break out control pins, easy for working with other MCUs
Comes with development resources and manual (examples in Python and Web control)

Specification

Operating voltage: 5V
Brightness: adjustable 256 levels
Color depth: 24-bit true color (8-bit for R/G/B respectively, totally 256x256x256=16777216 colors)
Data rate: 800Kbps(typ)
Dimension: 65mm × 30.2mm
Mounting hole size: 3.0mm

Downloads

RGB pHAT Wiki
