Large Inductive Coil and 10 Wireless LED Kit - 24V

Price:
Sale price £29.80
incl. VAT
excl. VAT
Stock:
Only 10 units left
Quantity:

Adding LEDs to anything makes it 5x better -- its a scientific fact! But when you have LEDs, you've got wires and power supplies and all that stuff is kinda annoying. What if you could have LEDs that light up without any wires or soldering or battery packs? Sounds magical! That's what makes this Large Inductive Coil and 10 Wireless LED Kit so nifty. It uses electromagnetic fields and inductive coupling to pass power through the air to light up lil LEDs soldered onto coils.

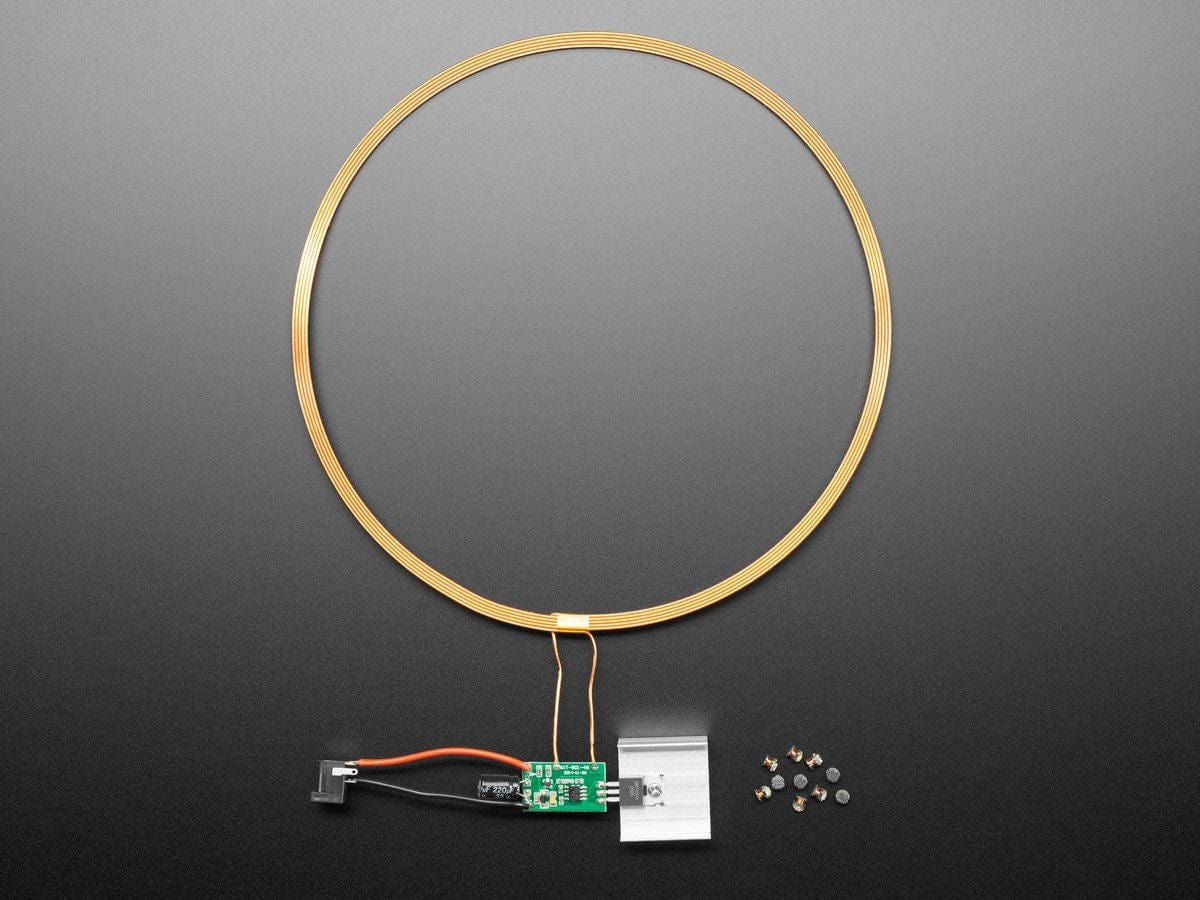

Each order comes with one driver board (you'll need a 24V power supply to power it) and ten miniature LED inductors in an assortment of colors (two each of white, blue, yellow, green, and red).

Inductive charging is a way of powering a device without a direct wire connection. Most people have seen inductive charging in a rechargeable electric toothbrush: you may have noticed that you recharge it by placing it into the holder, but there's no direct plug. These chargers work by taking a power transformer and splitting it in half, an AC waveform is generated into one, and couples into the second coil.

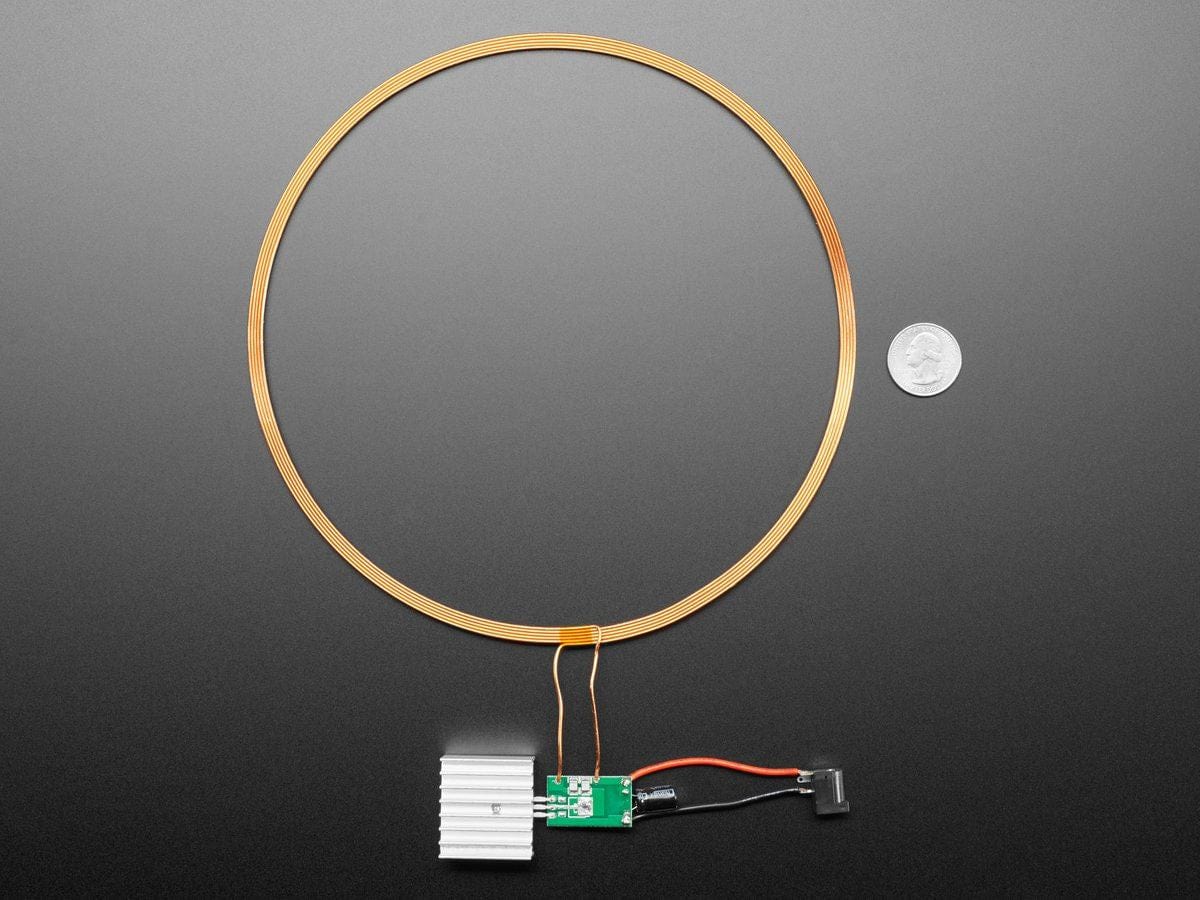

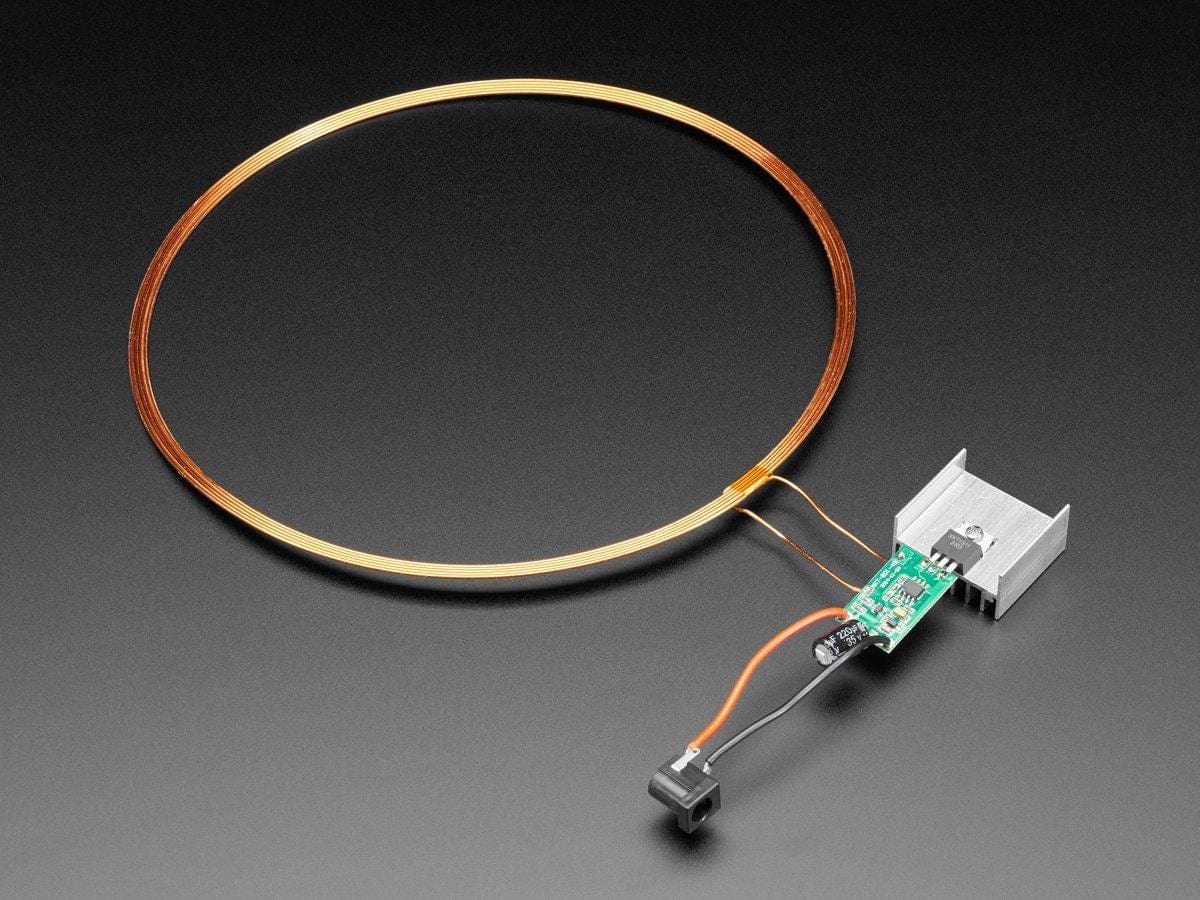

In this product, we have one reeeeeeeeeeallly large coil that forms the 'primary' of the power charger. Then, each individual LED has a smaller coil on the back. When the two couple, power is transferred from coil to LED and it lights up. You can have a large number of LEDs, all in different 3D space above or below the coil. You can also have them in different orientations, although you will get the best efficiency/power transfer when the two coils line up. You can also have the LEDs slightly outside the main ring, but, again, they'll not light up as bright as if they're right in the center.

These are often used for model makers, toy designs, or displays but we think there's a lot of potential here for art or craft or cosplay. The coil is large, but you get about 6" of vertical space to work within.

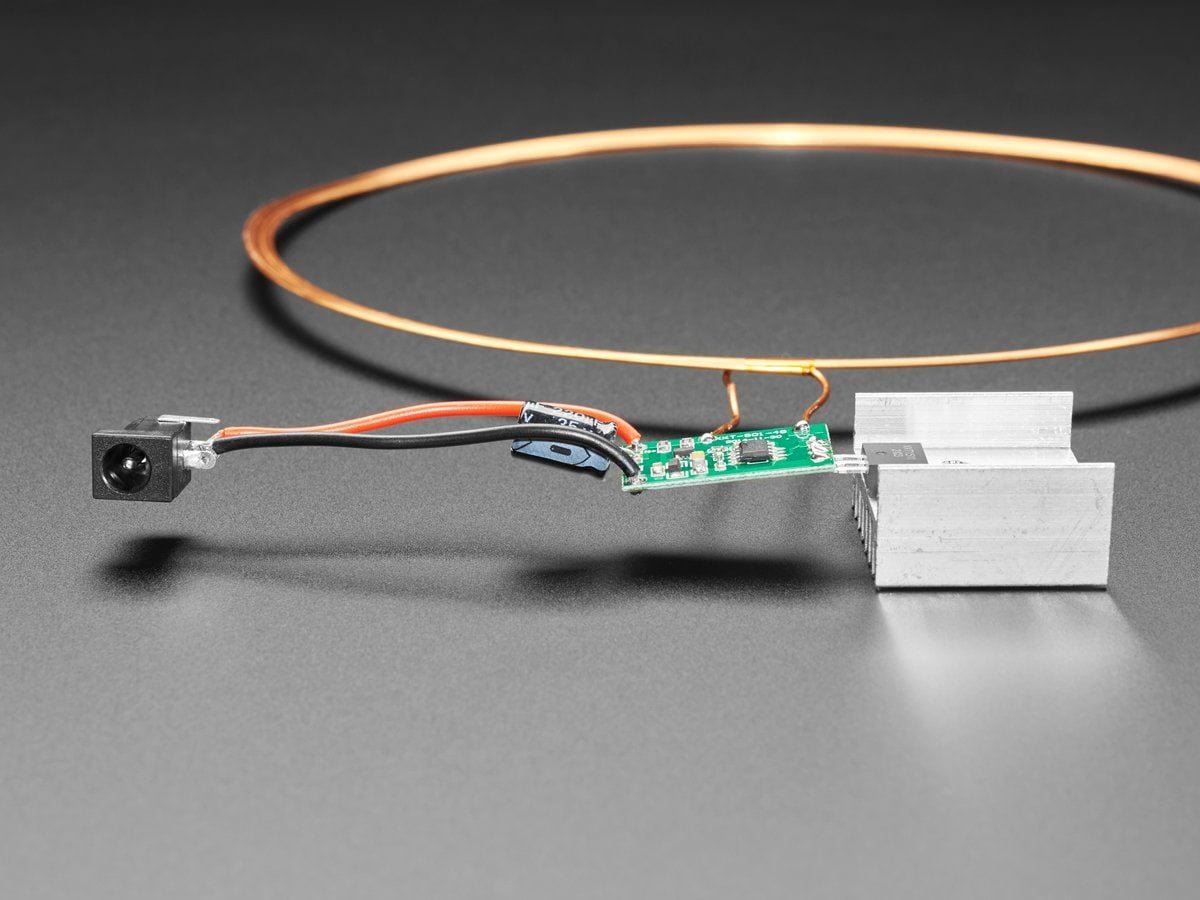

These are basic modules, and we don't have any datasheets or specifications for them. Use the pre-soldered barrel jack to power up with 24V.

Technical Details

Specs:

  • Voltage: 24V
  • Powering distance: 0 - 150mm
  • Module size: 18mm x 30mm
  • Coil outer diameter: 200mm
